Estimating TESS rotation periods with CNNs#
Introduction#
The NASA TESS mission conducts an all-sky survey searching for exoplanets that transit their host stars. To do so, it collects time series photometry called “light curves” for millions of stars across the sky. These light curves have many science uses besides exoplanets, including stellar rotation. As a star rotates, cool magnetic spots come into and out of view, causing periodic wiggles in the brighness measurements through time. We can therefore use light curves from TESS to infer stellar rotation periods, which are useful for studying stellar magnetism, structure, and ages.
However, systematics associated with the telescope’s special Earth-Moon orbit make it difficult to measure long (> 13 day) rotation periods from TESS light curves using conventional frequency analysis techniques. Machine learning methods, and in particular Convolutional Neural Networks (CNN) have been shown to circumvent some of the effects of systematics and estimate rotation periods from TESS light curves and their frequency transforms.
In this tutorial we will use a CNN to estimate stellar rotation periods from frequency transforms of TESS light curves. For our training set, we will use the simulations from the MAST High Level Science Product SMARTS. SMARTS combines physically realistic simulations of rotational light curves with real noise and systematics from TESS. This combination allows CNNs to learn the difference between rotation signals and systematics and estimate stellar rotation periods.
Goals#
The goal of this notebook is to use SMARTS data to train a CNN to regress TESS rotation periods. We will
Train the CNN, and
The training examples are 2-dimensional arrays of wavelet transforms of TESS light curves. The wavelet transform concentrates the periodicity of the light curve, making it easier for a CNN to regress the period. CNNs take advantage of the image-like nature of a wavelet transform in the same way that CNNs are useful for image recognition and computer vision.
Runtime#
On the TIKE “Large” instance, this notebook takes just under 3 minutes to run from start to finish. The bulk of this time is spent downloading the training data. Once you’ve done that once, you can comment out the cell, and the notebook will be faster.
This notebook, including the CNN training, is configured to run on a single CPU.
Installs and Imports#
This notebook uses the following packages:
globfor generating lists of training filescopyfor saving training weightsnumpyfor array operationsmatplotlibfor plottingastropyfor reading FITS filestorchfor tensor and CNN operations
You can install the requirements by running %pip install -r requirements.txt.
from glob import glob # for generating lists of input files
from copy import deepcopy # for saving CNN weights
import numpy as np # array operations
from astropy.io import fits # FITS file operations
import matplotlib.pyplot as plt # for plotting
# For tensor and CNN operations
import torch
import torch.nn as nn
import torch.nn.functional as F
import torch.optim as optim
from torch.utils.data import Dataset, DataLoader
0. Configure training run#
Before we get started, we need to set some configuration parameters to know how much data to read in, and how many epochs to train for. Ideally, we want to run on the full training set (max_n = 1_000_000) for long enough that the loss plateaus (usually num_epochs = 500). But this for this simple demo, we will use a subset of training data and a shorter training time. We will train/validation/test using a 80%/10%/10% split, and we’ll build a CNN with 3 convolution layers with filter depths increasing from 8, to 16, to 32 filters.
max_n = 10_000 # max 1_000_000
num_epochs = 20 # 100 is pretty good, typically ~300 to 500 to reach a plateau
split = [8, 1, 1] # ratios for train/validation/test split
filters = [8, 16, 32] # list of CNN layer filter depths
1. Prepare training data#

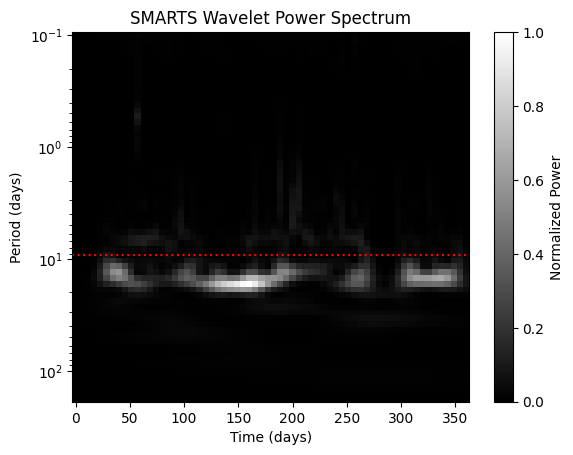

The SMARTS training data are in the form of continuous Morlet wavelet transforms (CWTs) or wavelet power spectra (WPS). Rather than train on the light curve itself, the WPS provides a 2D representation of the frequency information present in the light curve. With frequency or period on the y-axis and time on the x-axis, the WPS illustrates which frequencies dominate the light curve at different times. Since it is effectively an image, we can take advantage of image recognition capabilities of CNNs.
For more information on CWTs, see
We will first download and extract the data, load it into a DataLoader, and then look at an example.
# Download and extract training data
# Comment this cell out if you've already downloaded and extracted the data once!
!curl -o hlsp_smarts_tess_ffi_all_tess_v1.0_cat.tar.gz https://archive.stsci.edu/hlsps/smarts/tess/hlsp_smarts_tess_ffi_all_tess_v1.0_cat.tar.gz
!tar -xvzf hlsp_smarts_tess_ffi_all_tess_v1.0_cat.tar.gz
