Specreduce Demo

Author : Camilla Pacifici, Space Telescope Science Institute
Last update: May 5, 2026

Tutorial Overview
This tutorial will show the basic spectral extraction functionality in the Astropy package Specreduce. We will:

1. Get a 2D spectrum and look at it using Jdaviz

2. Read the spectrum with Specutils/Spectrum1D

3. Calculate the trace

4. Set up the background

5. Extract the 1D spectrum

Import

# Jdaviz to visualize the spectrum
import jdaviz as jd
# Matplotlib for other plotting
from matplotlib import pyplot as plt
# Astropy to load the spectrum
from astropy.io import fits
from astropy import units as u
from astropy.nddata import StdDevUncertainty
# Astropy modeling for fitting
from astropy.modeling.models import Polynomial1D
# Specutils to manipulate the spectrum
from specutils import Spectrum1D
# Specreduce methods for tracing and extracting
from specreduce.tracing import FlatTrace, FitTrace
from specreduce.extract import BoxcarExtract

Data

Use the example spectrum provided or your own spectrum.

file = 'hlsp_jades_jwst_nirspec_goods-n-mediumhst-00000804_clear-prism_v1.0_s2d.fits'
uri = 'mast:HLSP/jades/dr3/goods-n/spectra/clear-prism/goods-n-mediumhst/hlsp_jades_jwst_nirspec_goods-n-mediumhst-00000804_clear-prism_v1.0_s2d.fits'

Load the spectrum in Jdaviz to take a look. As you can see, this is very convenient when you are working with a single spectrum.

jd.load(uri, format='2D Spectrum')
jd.show()

Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HLSP/jades/dr3/goods-n/spectra/clear-prism/goods-n-mediumhst/hlsp_jades_jwst_nirspec_goods-n-mediumhst-00000804_clear-prism_v1.0_s2d.fits to ./hlsp_jades_jwst_nirspec_goods-n-mediumhst-00000804_clear-prism_v1.0_s2d.fits ...

 [Done]

Load the spectrum using Specutils

Here we take the spectrum and we load it with Specutils. Documentation for working with Spectrum1D in Specutils.

First we open the file using fits from atropy, then we find all the relavant extensions and units. Lastly, we create the Spectrum1D object.

hdu = fits.open(file)
hdu.info()

Filename: hlsp_jades_jwst_nirspec_goods-n-mediumhst-00000804_clear-prism_v1.0_s2d.fits
No.    Name      Ver    Type      Cards   Dimensions   Format
  0  PRIMARY       1 PrimaryHDU      34   ()
  1  FLUX          1 ImageHDU         9   (674, 27)   float64
  2  FLUX_ERR      1 ImageHDU         9   (674, 27)   float64
  3  WAVELENGTH    1 ImageHDU         8   (674,)   float64
  4  RA            1 ImageHDU         9   (674, 27)   float64
  5  DEC           1 ImageHDU         9   (674, 27)   float64
  6  ASDF          1 BinTableHDU      9   0R x 0C   []

flux = hdu['FLUX'].data
fluxunit = u.Unit(hdu['FLUX'].header['GUNIT'])
fluxerr = hdu['FLUX_ERR'].data
fluxerrunit = u.Unit(hdu['FLUX_ERR'].header['UNIT'])
wave = hdu['WAVELENGTH'].data
waveunit = u.Unit(hdu['WAVELENGTH'].header['UNIT'])

spec2d = Spectrum1D(spectral_axis=wave*waveunit,
                    flux=flux*fluxunit,
                    uncertainty=StdDevUncertainty(fluxerr*fluxerrunit))

spec2d

WARNING: AstropyDeprecationWarning: The Spectrum1D class is deprecated and may be removed in a future version.
        Use Spectrum instead. [warnings]

<Spectrum(flux=[[-8.71088874751965e-22 ... nan]] erg / (Angstrom s cm2) (shape=(27, 674), mean=-0.00000 erg / (Angstrom s cm2)); spectral_axis=<SpectralAxis [0.60255005 0.60515434 0.60776989 ... 5.29913789 5.30360628 5.30807845] um> (length=674); uncertainty=StdDevUncertainty)>

Tracing

Now that we have the object ready, we can start the processing. First, we need to find the trace, which means finding the pixels where the object is the brightest along each cross-dispersion column. There are three methods to do tracing in specreduce: ArrayTrace, FlatTrace, and FitTrace. Here we demonstrate FlatTrace and FitTrace.

Documentation for tracing with Specreduce.

trace = FlatTrace(spec2d, 14)
trace.trace_pos

14

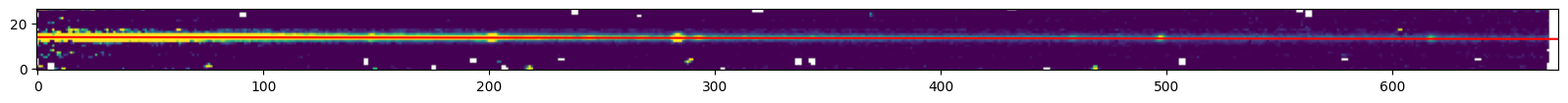

plt.figure(figsize=(20, 3))
plt.imshow(spec2d.flux, vmin=0, vmax=1E-20, origin='lower')
plt.hlines(trace.trace_pos, xmin=0, xmax=len(wave), color='red')
plt.show()

tracefit = FitTrace(spec2d, bins=50,
                    guess=trace.trace_pos, # Position to start looking for the trace
                    window=10, # Window in cross dispersion direction
                    trace_model=Polynomial1D(1)) # Model used to fit the trace

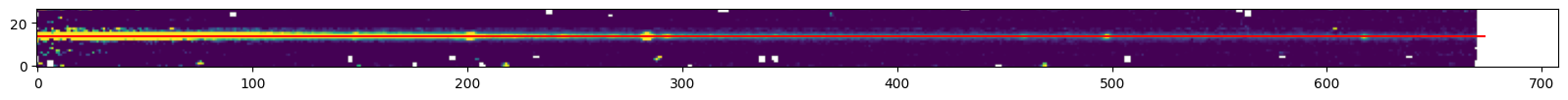

plt.figure(figsize=(20, 3))
plt.imshow(spec2d.flux, vmin=0, vmax=1E-20, origin='lower')
plt.plot(tracefit.trace.data, color='red')
plt.show()

Background subtraction

Background subtraction is important to remove the signal coming from the Universe. Usually, background subtraction is done by taking the median signal in regions where there is no light coming from the object of interest and then subtracting this light from the object. Because of the way JWST observes (nodding) the background is already subtracted here. We show the calls, but we do not use them.

from specreduce.background import Background
bg = Background.two_sided(spec2d, tracefit, separation=7, width=3)
subtracted_image = spec2d - bg

Documentation for background subtraction with Specreduce

Extraction

The last step is the extraction, i.e. translating the 2D spectrum into a 1D spectrum. This essencially means collapsing the signal in the cross-dispersion direction in a smart way to obtain the maximum signal-to-noise ratio. Specreduce provides us with two methods for extraction: BoxcarExtract and HorneExtract. Here, we show how to run the first.

Documentation for spectral extraction with Specreduce

# extract = BoxcarExtract?
extract = BoxcarExtract(spec2d,
                        tracefit,
                        width=5)
spec1d = extract.spectrum
spec1d

<Spectrum(flux=[1.4182971859414282e-19 ... nan] erg / (Angstrom s cm2) (shape=(674,), mean=0.00000 erg / (Angstrom s cm2)); spectral_axis=<SpectralAxis [0.60255005 0.60515434 0.60776989 ... 5.29913789 5.30360628 5.30807845] um> (length=674); uncertainty=StdDevUncertainty)>

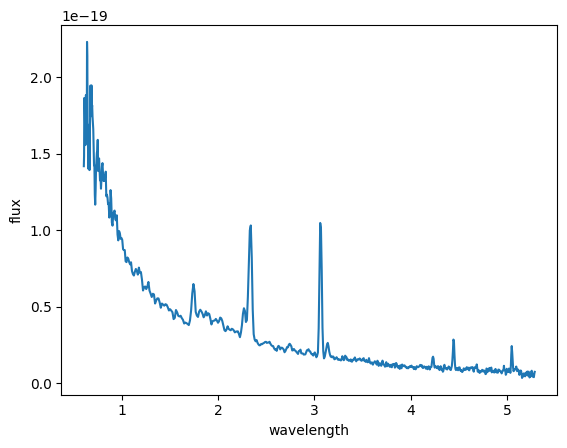

plt.plot(spec1d.spectral_axis, spec1d.flux)
plt.xlabel('wavelength')
plt.ylabel('flux')
plt.show()
