MIRI Imaging TSO Pipeline Notebook#
Authors: Ian Wong; MIRI branch
Last Updated: May 5, 2025
Pipeline Version: 1.18.0 (Build 11.3)
Purpose:
This notebook provides a framework for processing generic Mid-Infrared Instrument
(MIRI) Imaging time series observations (TSO) data through all
three James Webb Space Telescope (JWST) pipeline stages. The data are assumed
to be located in the observation directory located in the path set up below.
It should not be necessary to edit any cells other than in the
Configuration section unless modifying the standard
pipeline processing options.
A significant portion of the data processing workflow for Imaging TSOs is identical to the methods used to process (non-TSO) Imaging observations, and much of this notebook mirrors the corresponding steps shown in the general MIRI Imaging notebook.
Data:
This example is set up to use observations of a secondary eclipse event of LHS-1478b, which were obtained as part of Cycle 1 General Observers Proposal ID (PID) 3730 Observation 13 (PI: H. Diamond-Lowe). A continuous series of 964 integrations of the target was collected with the F1500W filter. No dithering was carried out, as is standard practice for Imaging TSOs. The SUB256 subarray readout was used. The example uncalibrated data will be downloaded automatically unless disabled (i.e., to run with user-supplied local files instead).
Most Imaging TSO programs do not have dedicated background observations, with background flux subtraction handled using pixels near the target in the science observations. This version of the notebook does not accommodate cases where dedicated background subtraction is needed. Consult the general MIRI Imaging notebook for a detailed implementation of dedicated background exposures.
JWST pipeline version and CRDS context:
This notebook was written for the above-specified pipeline version and associated build context for this version of the JWST Calibration Pipeline. Information about this and other contexts can be found in the JWST Calibration Reference Data System (CRDS server). If you use different pipeline versions, please refer to the table here to determine what context to use. To learn more about the differences for the pipeline, read the relevant documentation.
Please note that pipeline software development is a continuous process, so results in some cases may be slightly different if a subsequent version is used. For optimal results, users are strongly encouraged to reprocess their data using the most recent pipeline version and associated CRDS context, taking advantage of bug fixes and algorithm improvements. Any known issues for this build are noted in the notebook.
Updates:
This notebook is regularly updated as improvements are made to the
pipeline. Find the most up to date version of this notebook at:
https://github.com/spacetelescope/jwst-pipeline-notebooks/
Recent Changes:
Feb 2 2025: Notebook created.
May 5, 2025: Updated to jwst 1.18.0 (no significant changes)
Table of Contents#
Configuration
Package Imports
Demo Mode Setup (ignore if not using demo data)
Directory Setup
Detector1 Pipeline
Image2 Pipeline
Tso3 Pipeline

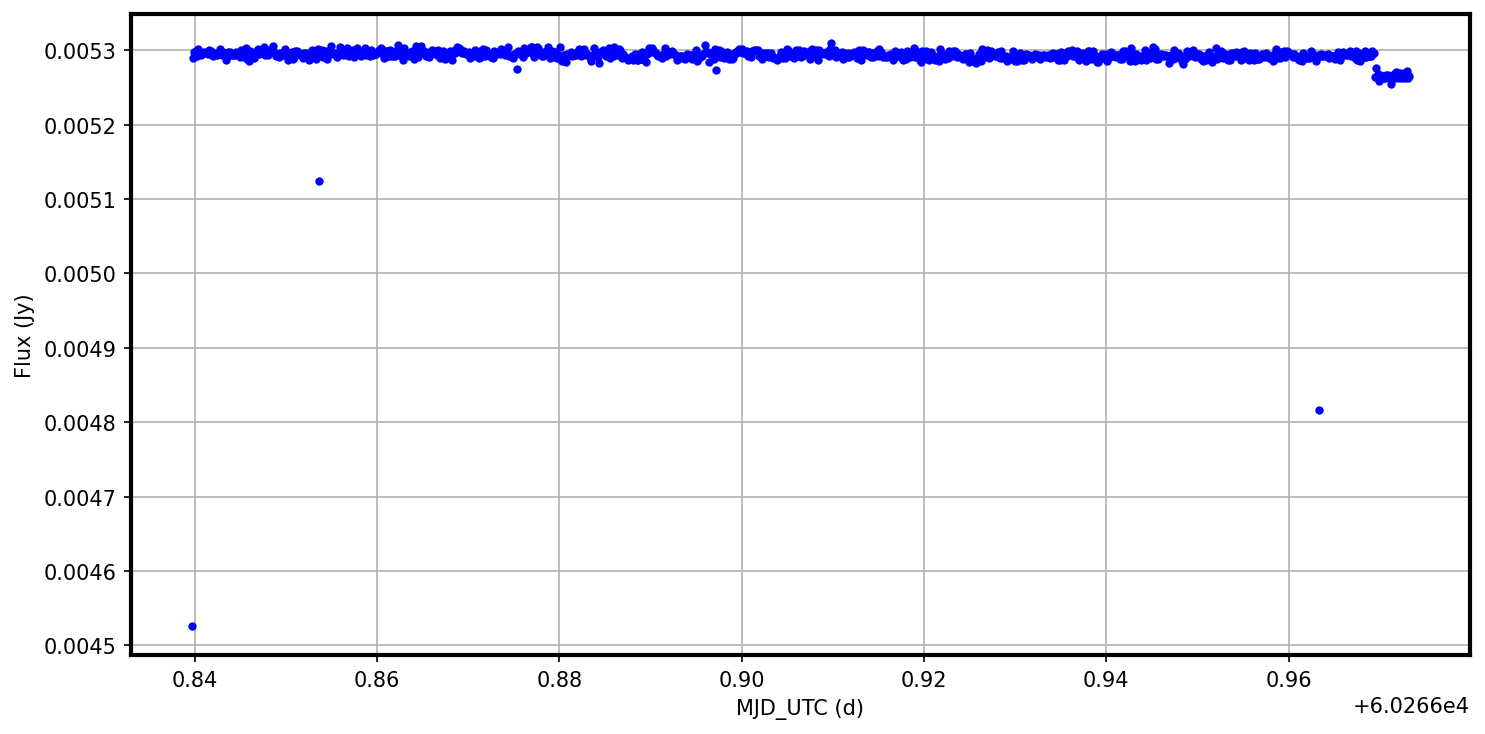

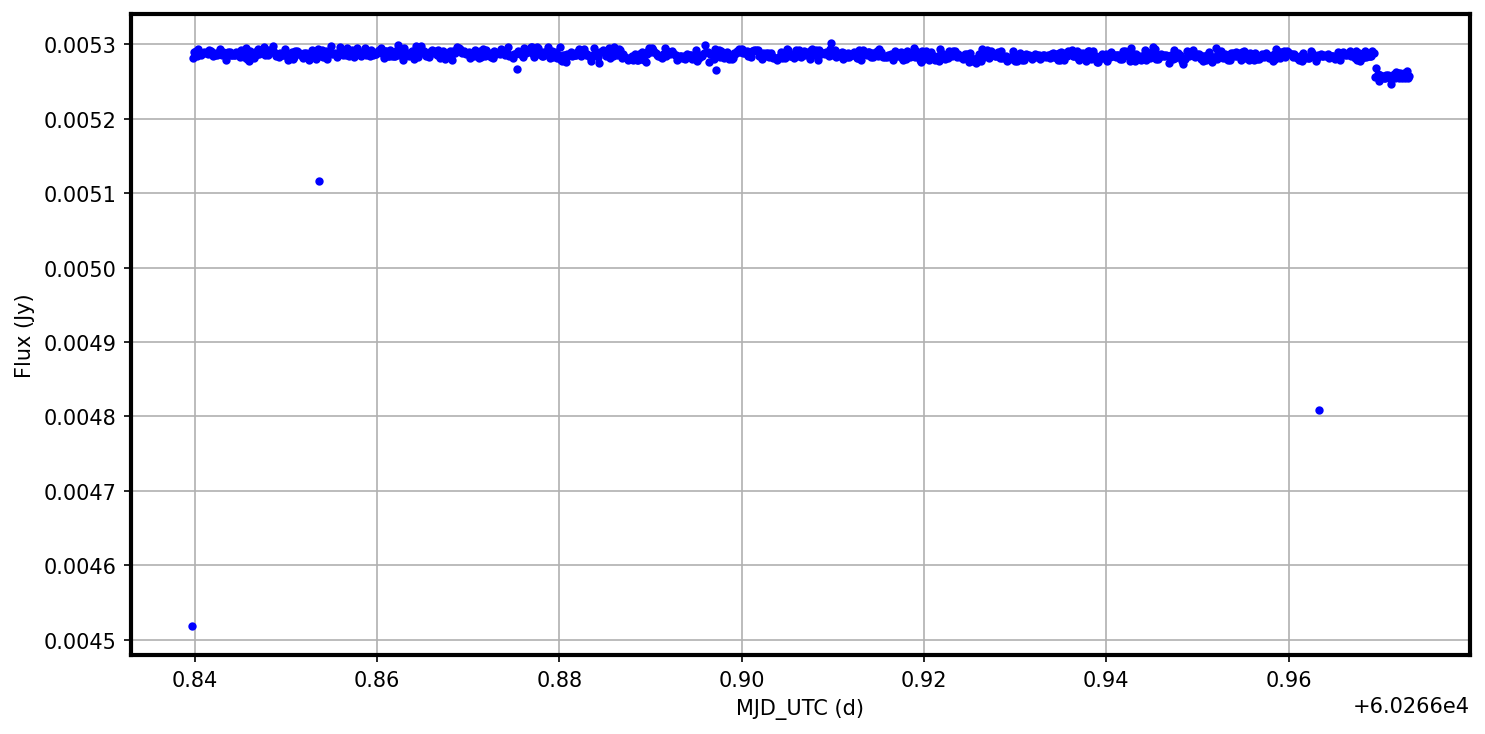

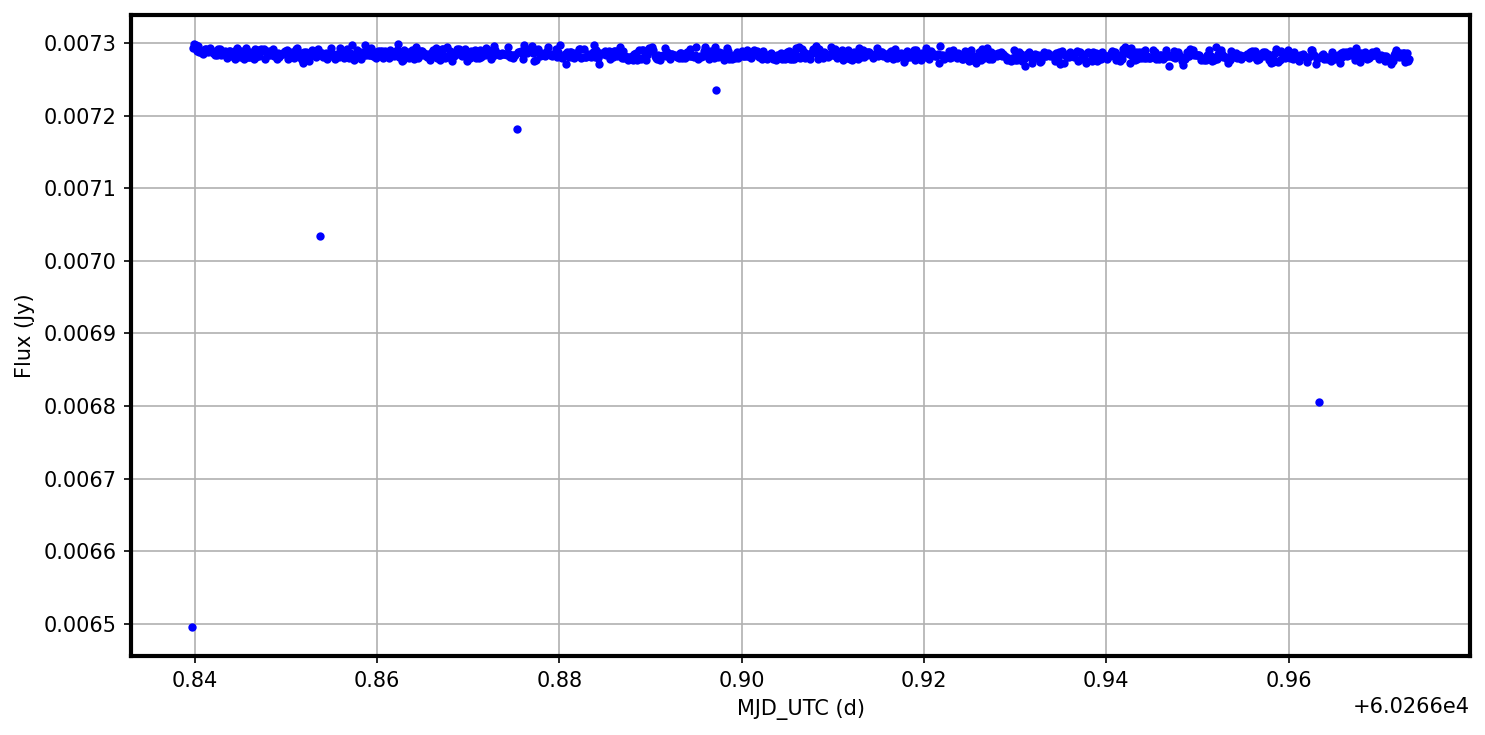

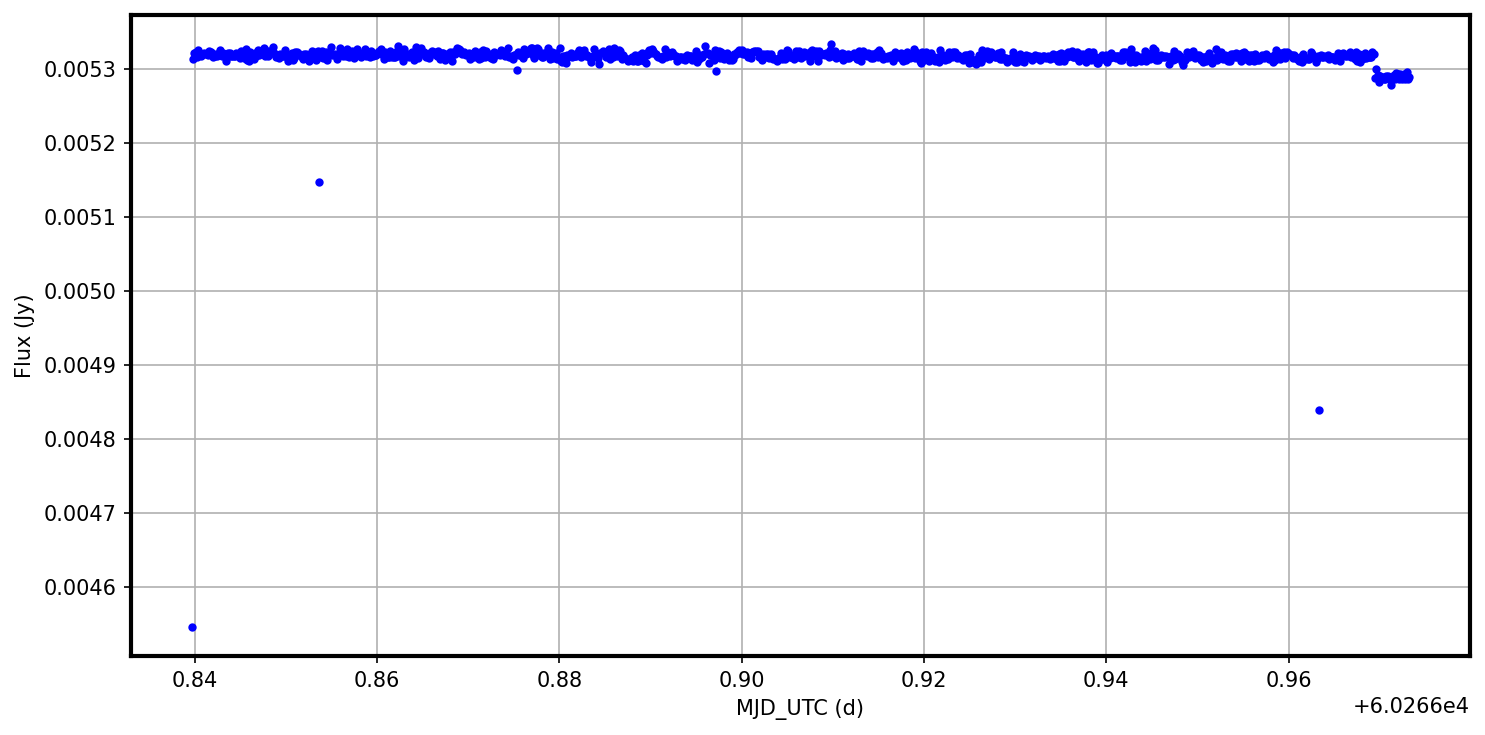

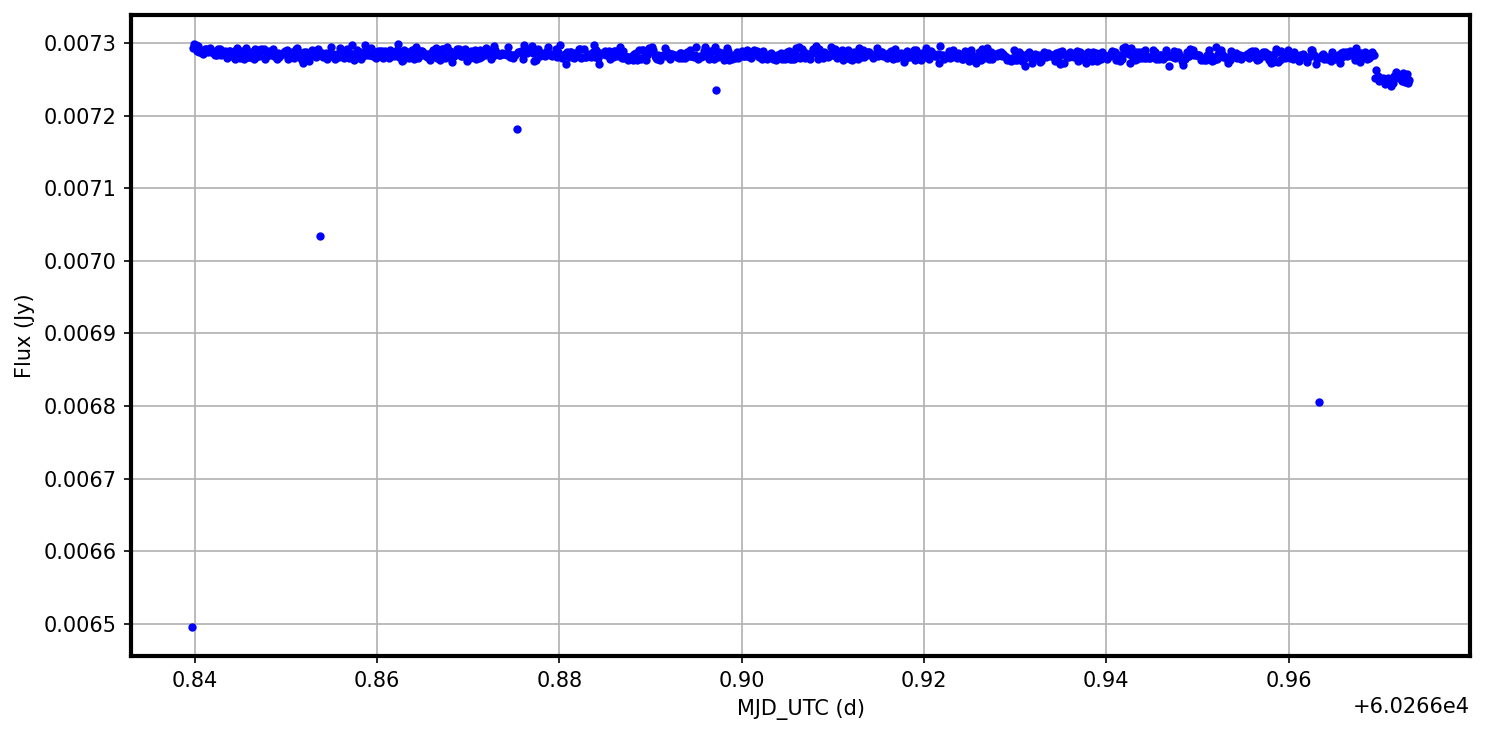

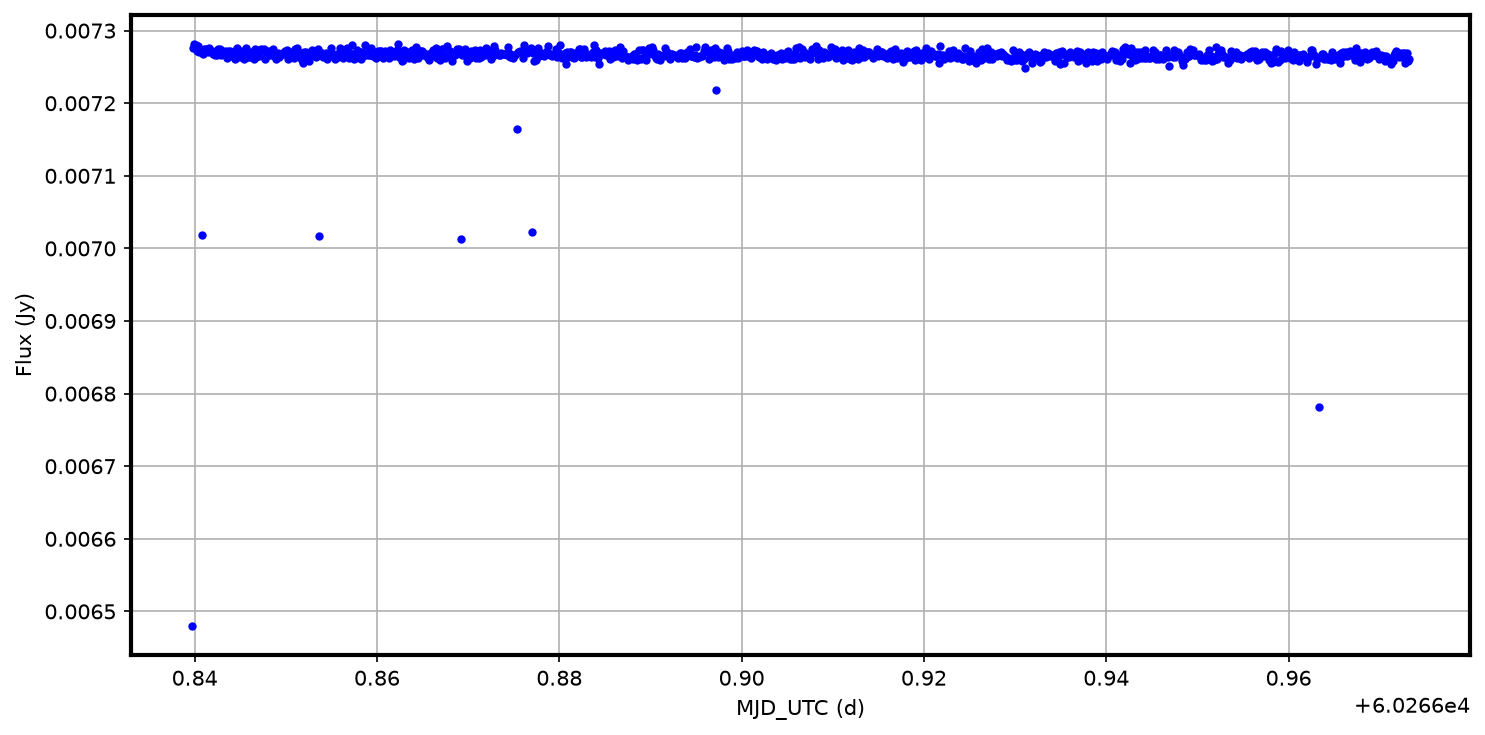

Visualize the photometric light curve
1. Configuration#
Install dependencies#
To make sure that the pipeline version is compatabile with this notebook and the required dependencies and packages are installed,
it is recommended that users create a new dedicated conda environment and install the provided
requirements.txt file before starting this notebook:
conda create -n lrs_demo python=3.11
conda activate lrs_demo
pip install -r requirements.txt
Set run parameters#
Set basic parameters to use with the notebook. These will affect what observation is used, where the uncalibrated data are located (if already on disk), which pipeline modules to run on the data, and whether background subtraction is carried out. The list of parameters are:
demo_mode
directory with data
pipeline steps
# Basic import necessary for configuration
import os
Note that
demo_mode must be set appropriately below.
Set demo_mode = True to run in demonstration mode. In this mode, this
notebook will download the example data from the
Barbara A. Mikulski Archive for Space Telescopes (MAST) and process them through the pipeline.
All input and output data will be stored in the local directory unless modified
in Section 3 below.
Set demo_mode = False to process user-specified data that have already
been downloaded and provide the location of the data.
# Set parameters for demo_mode and processing steps.
# -----------------------------Demo Mode---------------------------------
demo_mode = True
if demo_mode:
print('Running in demonstration mode using online example data!')
# --------------------------User Mode Directories------------------------
# If demo_mode = False, look for user data in these paths
if not demo_mode:
# Set directory paths for processing specific data; these will need
# to be changed to your local directory setup (below are given as
# examples)
basedir = os.path.join(os.getcwd(), '')
# Point to where science observation data are stored.
# Assumes uncalibrated data in sci_dir/uncal/, with the results stored in stage1,
# stage2, stage3 directories
sci_dir = os.path.join(basedir, 'imaging_demo_data/PID03730Obs013/')
# --------------------------Set Processing Steps--------------------------
# Individual pipeline stages can be turned on/off here. Note that a later
# stage won't be able to run unless data products have already been
# produced from the prior stage.
# Science processing
do_det1 = True # calwebb_detector1
do_image2 = True # calwebb_image2
do_tso3 = True # calwebb_tso3
do_viz = True # Visualize calwebb_tso3 results
Running in demonstration mode using online example data!
Set CRDS context and server#
Before importing CRDS and JWST modules, we need
to configure our environment. This includes defining a CRDS cache
directory in which to keep the reference files that will be used by the
calibration pipeline.
If the root directory for the local CRDS cache directory has not been set already, it will be set to create one in the home directory.
# ------------------------Set CRDS context and paths----------------------
# Each version of the calibration pipeline is associated with a specific CRDS
# context file. The pipeline will select the appropriate context file behind
# the scenes while running. However, if you wish to override the default context
# file and run the pipeline with a different context, you can set that using
# the CRDS_CONTEXT environment variable. Here we show how this is done,
# although we leave the line commented out in order to use the default context.
# If you wish to specify a different context, uncomment the line below.
#%env CRDS_CONTEXT jwst_1293.pmap
# Check whether the local CRDS cache directory has been set.
# If not, set it to the user home directory
if (os.getenv('CRDS_PATH') is None):
os.environ['CRDS_PATH'] = os.path.join(os.path.expanduser('~'), 'crds')
# Check whether the CRDS server URL has been set. If not, set it.
if (os.getenv('CRDS_SERVER_URL') is None):
os.environ['CRDS_SERVER_URL'] = 'https://jwst-crds.stsci.edu'
# Echo CRDS path in use
print(f"CRDS local filepath: {os.environ['CRDS_PATH']}")
print(f"CRDS file server: {os.environ['CRDS_SERVER_URL']}")
CRDS local filepath: /home/runner/crds
CRDS file server: https://jwst-crds.stsci.edu
2. Package Imports#
Automatically import necessary Python packages for use in the data processing and visualization.
# Use the entire available screen width for this notebook
from IPython.display import display, HTML
display(HTML("<style>.container { width:95% !important; }</style>"))
# Basic system utilities for interacting with files
# ----------------------General Imports------------------------------------
import glob
import time
from pathlib import Path
# Numpy for doing calculations
import numpy as np
# -----------------------Astropy Imports-----------------------------------
# Astropy utilities for opening FITS and ASCII files and downloading demo files
from astropy.io import ascii
# -----------------------Astrquery Imports-----------------------------------
# Utilities to download data
from astroquery.mast import Observations
# -----------------------Plotting Imports----------------------------------
# Matplotlib for making plots
import matplotlib.pyplot as plt
from matplotlib import rc
# ----------------------JWST calibration pipeline--------------------------
import jwst
import crds
from jwst.pipeline import Detector1Pipeline
from jwst.pipeline import Image2Pipeline
from jwst.pipeline import Tso3Pipeline
# JWST pipeline utilities
from jwst import datamodels
#from jwst.datamodels import ImageModel
from jwst.associations import asn_from_list as afl # Tools for creating association files
#from jwst.associations.lib.rules_level2_base import DMSLevel2bBase # Definition of a Lvl2 association file
from jwst.associations.lib.rules_level3_base import DMS_Level3_Base # Definition of a Lvl3 association file
# Echo pipeline version and CRDS context in use
print(f"JWST Calibration Pipeline Version: {jwst.__version__}")
print(f"Using CRDS Context: {crds.get_context_name('jwst')}")
JWST Calibration Pipeline Version: 1.18.0
CRDS - INFO - Calibration SW Found: jwst 1.18.0 (/usr/share/miniconda/lib/python3.13/site-packages/jwst-1.18.0.dist-info)
Using CRDS Context: jwst_1364.pmap
# Start a timer to keep track of runtime
time0 = time.perf_counter()
3. Demo Mode Setup (ignore if not using demo data)#
If running in demonstration mode, set up the program information to
retrieve the uncalibrated data automatically from MAST using
astroquery.
MAST allows for flexibility of searching by the proposal ID and the
observation ID instead of just filenames.
More information about the JWST file naming conventions can be found at: https://jwst-pipeline.readthedocs.io/en/latest/jwst/data_products/file_naming.html
# Set up the program information and paths for demo program
if demo_mode:
program = '03730'
sci_obs = "013"
basedir = os.path.join('.', 'imaging_demo_data')
sci_dir = os.path.join(basedir, 'PID' + program + 'Obs' + sci_obs)
uncal_dir = os.path.join(sci_dir, 'uncal')
# Ensure filepaths for input data exists
os.makedirs(uncal_dir, exist_ok=True)
Identify list of uncalibrated files associated with the observations.
# Obtain a list of observation IDs for the specified demo program
if demo_mode:
obs_id_table = Observations.query_criteria(instrument_name=["MIRI/IMAGE"], provenance_name=["CALJWST"], obs_id=['jw' + program + sci_obs + '*'])
# Turn the list of observations into a list of uncalibrated data files
if demo_mode:
# Define types of files to select
file_dict = {'uncal': {'product_type': 'SCIENCE',
'productSubGroupDescription': 'UNCAL',
'calib_level': [1]}}
# Science files
files_to_download = []
# Loop over visits identifying uncalibrated files that are associated with them
for exposure in (obs_id_table):
products = Observations.get_product_list(exposure)
for filetype, query_dict in file_dict.items():
filtered_products = Observations.filter_products(products, productType=query_dict['product_type'],
productSubGroupDescription=query_dict['productSubGroupDescription'],
calib_level=query_dict['calib_level'])
files_to_download.extend(filtered_products['dataURI'])
print("Number of files selected for downloading: ", len(files_to_download))
Number of files selected for downloading: 5
Due to data file size constraints, long TSOs have their exposures broken up into multiple segment files. In this case, there should be a total of 5 segments, which together comprise the full duration of the time series observation.
Now, download all the uncal files and place them into the appropriate
directories.
Warning: If this notebook is halted during this step the downloaded file
may be incomplete, and cause crashes later on!
if demo_mode:
for filename in files_to_download:
obs_manifest = Observations.download_file(filename, local_path=os.path.join(uncal_dir, Path(filename).name))
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:JWST/product/jw03730013001_03101_00001-seg005_mirimage_uncal.fits to ./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg005_mirimage_uncal.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:JWST/product/jw03730013001_03101_00001-seg004_mirimage_uncal.fits to ./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg004_mirimage_uncal.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:JWST/product/jw03730013001_03101_00001-seg002_mirimage_uncal.fits to ./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg002_mirimage_uncal.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:JWST/product/jw03730013001_03101_00001-seg003_mirimage_uncal.fits to ./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg003_mirimage_uncal.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:JWST/product/jw03730013001_03101_00001-seg001_mirimage_uncal.fits to ./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg001_mirimage_uncal.fits ...
[Done]
4. Directory Setup#
Set up detailed paths to input/output stages here. When running this notebook outside of demo mode, the uncalibrated pipeline input files must be placed into the appropriate directories before proceeding to the JWST pipeline processing.
# Define output subdirectories to keep the data products organized
uncal_dir = os.path.join(sci_dir, 'uncal') # Uncalibrated pipeline inputs should be here
det1_dir = os.path.join(sci_dir, 'stage1') # calwebb_detector1 pipeline outputs will go here
image2_dir = os.path.join(sci_dir, 'stage2') # calwebb_spec2 pipeline outputs will go here
tso3_dir = os.path.join(sci_dir, 'stage3') # calwebb_tso3 pipeline outputs will go here
# Create desired output directories, if needed
os.makedirs(det1_dir, exist_ok=True)
os.makedirs(image2_dir, exist_ok=True)
os.makedirs(tso3_dir, exist_ok=True)
5. Detector1 Pipeline#
Run the datasets through the
Detector1
stage of the pipeline to apply detector level calibrations and create a
countrate data product where slopes are fitted to the integration ramps.
The *_rate.fits products are 2D countrate images, averaged over all
integrations within each segment. Meanwhile, 3D countrate data stacks containing an image for each integration (*_rateints.fits files) are also
created, which will be used in the subsequent stage to preserve the temporal information in the exposure series.
When processing MIRI Imaging TSOs, the Detector1 pipeline skips a few pipeline steps by default that would otherwise be run for non-TSO data. These are rscd and firstframe, which both essentially instruct the pipeline to ignore initial frames within each ramp. The motivation behind the different settings here is that most TSOs have short ramps, and ignoring too many frames can leave too little of the ramp to adequately produce a ramp slope fit. See https://jwst-docs.stsci.edu/jwst-science-calibration-pipeline/stages-of-jwst-data-processing/calwebb_detector1 for a detailed overview of the various pipeline steps that comprise Detector1.
As of CRDS context jwst_1201.pmap and later, the
jump step
in the Detector1 pipeline allows for the removal of residuals associated
with showers
for MIRI Imaging observations, but only for data taken with filters shortward (inclusive) of F1500W.
Setting the find_showers parameter to True in the jump step activates this functionality. The default parameters for this correction are specified in the pars-jumpstep parameter reference files. Users may wish to alter parameters to optimize removal of
shower residuals. Available parameters are discussed in the
Detection and Flagging of Showers and Snowballs in JWST Technical Report (Regan 2023).
# Set up a dictionary to define how the Detector1 pipeline should be configured
# Boilerplate dictionary setup
det1dict = {}
det1dict['group_scale'], det1dict['dq_init'], det1dict['emicorr'] = {}, {}, {}
det1dict['saturation'], det1dict['firstframe'], det1dict['lastframe'] = {}, {}, {}
det1dict['reset'], det1dict['linearity'], det1dict['rscd'] = {}, {}, {}
det1dict['dark_current'], det1dict['refpix'], det1dict['jump'] = {}, {}, {}
det1dict['ramp_fit'], det1dict['gain_scale'], det1dict['clean_flicker_noise'] = {}, {}, {}
# Overrides for whether or not certain steps should be skipped
#det1dict['refpix']['skip'] = True
#det1dict['jump']['find_showers'] = True # Turn on detection of cosmic ray showers
#det1dict['clean_flicker_noise']['skip'] = True # Skipped by default
# Overrides for various reference files
# Files should be in the base local directory or provide full path
#det1dict['dq_init']['override_mask'] = 'myfile.fits' # Bad pixel mask
#det1dict['saturation']['override_saturation'] = 'myfile.fits' # Saturation
#det1dict['reset']['override_reset'] = 'myfile.fits' # Reset
#det1dict['linearity']['override_linearity'] = 'myfile.fits' # Linearity
#det1dict['rscd']['override_rscd'] = 'myfile.fits' # RSCD
#det1dict['dark_current']['override_dark'] = 'myfile.fits' # Dark current subtraction
#det1dict['jump']['override_gain'] = 'myfile.fits' # Gain used by jump step
#det1dict['ramp_fit']['override_gain'] = 'myfile.fits' # Gain used by ramp fitting step
#det1dict['jump']['override_readnoise'] = 'myfile.fits' # Read noise used by jump step
#det1dict['ramp_fit']['override_readnoise'] = 'myfile.fits' # Read noise used by ramp fitting step
# Turn on multi-core processing (off by default). Choose what fraction of cores to use (quarter, half, or all)
det1dict['jump']['maximum_cores'] = 'half'
# Alter parameters to optimize removal of shower residuals (example)
#det1dict['jump']['after_jump_flag_dn1'] = X # A floating point value in units of DN
#det1dict['jump']['after_jump_flag_time1'] = x.x # A floating point value in units of seconds
Grab all of the uncalibrated files, which comprise the full time series observation.
uncal_files = sorted(glob.glob(os.path.join(uncal_dir, '*_uncal.fits')))
print(uncal_files)
print('Found ' + str(len(uncal_files)) + ' input uncal files')
['./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg001_mirimage_uncal.fits', './imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg002_mirimage_uncal.fits', './imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg003_mirimage_uncal.fits', './imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg004_mirimage_uncal.fits', './imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg005_mirimage_uncal.fits']
Found 5 input uncal files
Run the Detector1 pipeline on the selected uncalibrated data using the call method. For long TSOs with full array readouts, this process may take more than 10 minutes per file, particularly if find_showers = True.
# Run the pipeline on the selected uncal files one by one with the custom parameter dictionary
if do_det1:
for file in uncal_files:
Detector1Pipeline.call(file, steps=det1dict, save_results=True, output_dir=det1_dir)
else:
print('Skipping Detector1 processing...')
2025-05-13 13:50:12,407 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_system_datalvl_0002.rmap 694 bytes (1 / 204 files) (0 / 741.0 K bytes)
2025-05-13 13:50:12,531 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_system_calver_0048.rmap 5.3 K bytes (2 / 204 files) (694 / 741.0 K bytes)
2025-05-13 13:50:12,613 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_system_0047.imap 385 bytes (3 / 204 files) (6.0 K / 741.0 K bytes)
2025-05-13 13:50:12,696 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_wavelengthrange_0024.rmap 1.4 K bytes (4 / 204 files) (6.4 K / 741.0 K bytes)
2025-05-13 13:50:12,802 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_wavecorr_0005.rmap 884 bytes (5 / 204 files) (7.8 K / 741.0 K bytes)
2025-05-13 13:50:12,918 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_superbias_0079.rmap 36.0 K bytes (6 / 204 files) (8.6 K / 741.0 K bytes)
2025-05-13 13:50:13,042 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_sirskernel_0001.rmap 630 bytes (7 / 204 files) (44.6 K / 741.0 K bytes)
2025-05-13 13:50:13,124 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_sflat_0026.rmap 20.6 K bytes (8 / 204 files) (45.3 K / 741.0 K bytes)
2025-05-13 13:50:13,229 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_saturation_0018.rmap 2.0 K bytes (9 / 204 files) (65.9 K / 741.0 K bytes)
2025-05-13 13:50:13,311 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_refpix_0015.rmap 1.6 K bytes (10 / 204 files) (67.9 K / 741.0 K bytes)
2025-05-13 13:50:13,395 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_readnoise_0025.rmap 2.6 K bytes (11 / 204 files) (69.5 K / 741.0 K bytes)
2025-05-13 13:50:13,506 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pictureframe_0001.rmap 675 bytes (12 / 204 files) (72.0 K / 741.0 K bytes)
2025-05-13 13:50:13,588 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_photom_0013.rmap 958 bytes (13 / 204 files) (72.7 K / 741.0 K bytes)
2025-05-13 13:50:13,671 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pathloss_0008.rmap 1.2 K bytes (14 / 204 files) (73.7 K / 741.0 K bytes)
2025-05-13 13:50:13,757 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-whitelightstep_0001.rmap 777 bytes (15 / 204 files) (74.9 K / 741.0 K bytes)
2025-05-13 13:50:13,854 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-spec2pipeline_0013.rmap 2.1 K bytes (16 / 204 files) (75.6 K / 741.0 K bytes)
2025-05-13 13:50:13,936 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-resamplespecstep_0002.rmap 709 bytes (17 / 204 files) (77.8 K / 741.0 K bytes)
2025-05-13 13:50:14,017 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-outlierdetectionstep_0005.rmap 1.1 K bytes (18 / 204 files) (78.5 K / 741.0 K bytes)
2025-05-13 13:50:14,099 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-jumpstep_0005.rmap 810 bytes (19 / 204 files) (79.6 K / 741.0 K bytes)
2025-05-13 13:50:14,208 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-image2pipeline_0008.rmap 1.0 K bytes (20 / 204 files) (80.4 K / 741.0 K bytes)
2025-05-13 13:50:14,293 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-detector1pipeline_0003.rmap 1.1 K bytes (21 / 204 files) (81.4 K / 741.0 K bytes)
2025-05-13 13:50:14,377 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-darkpipeline_0003.rmap 872 bytes (22 / 204 files) (82.5 K / 741.0 K bytes)
2025-05-13 13:50:14,460 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_pars-darkcurrentstep_0003.rmap 1.8 K bytes (23 / 204 files) (83.4 K / 741.0 K bytes)
2025-05-13 13:50:14,546 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_ote_0030.rmap 1.3 K bytes (24 / 204 files) (85.2 K / 741.0 K bytes)
2025-05-13 13:50:14,633 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_msaoper_0016.rmap 1.5 K bytes (25 / 204 files) (86.4 K / 741.0 K bytes)
2025-05-13 13:50:14,714 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_msa_0027.rmap 1.3 K bytes (26 / 204 files) (87.9 K / 741.0 K bytes)
2025-05-13 13:50:14,801 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_mask_0043.rmap 3.5 K bytes (27 / 204 files) (89.2 K / 741.0 K bytes)
2025-05-13 13:50:14,909 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_linearity_0017.rmap 1.6 K bytes (28 / 204 files) (92.7 K / 741.0 K bytes)
2025-05-13 13:50:14,990 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_ipc_0006.rmap 876 bytes (29 / 204 files) (94.3 K / 741.0 K bytes)
2025-05-13 13:50:15,097 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_ifuslicer_0017.rmap 1.5 K bytes (30 / 204 files) (95.2 K / 741.0 K bytes)
2025-05-13 13:50:15,180 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_ifupost_0019.rmap 1.5 K bytes (31 / 204 files) (96.7 K / 741.0 K bytes)
2025-05-13 13:50:15,289 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_ifufore_0017.rmap 1.5 K bytes (32 / 204 files) (98.2 K / 741.0 K bytes)
2025-05-13 13:50:15,394 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_gain_0023.rmap 1.8 K bytes (33 / 204 files) (99.7 K / 741.0 K bytes)
2025-05-13 13:50:15,499 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_fpa_0028.rmap 1.3 K bytes (34 / 204 files) (101.5 K / 741.0 K bytes)
2025-05-13 13:50:15,605 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_fore_0026.rmap 5.0 K bytes (35 / 204 files) (102.7 K / 741.0 K bytes)
2025-05-13 13:50:15,689 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_flat_0015.rmap 3.8 K bytes (36 / 204 files) (107.7 K / 741.0 K bytes)
2025-05-13 13:50:15,773 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_fflat_0026.rmap 7.2 K bytes (37 / 204 files) (111.5 K / 741.0 K bytes)
2025-05-13 13:50:15,862 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_extract1d_0018.rmap 2.3 K bytes (38 / 204 files) (118.7 K / 741.0 K bytes)
2025-05-13 13:50:15,970 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_disperser_0028.rmap 5.7 K bytes (39 / 204 files) (121.0 K / 741.0 K bytes)
2025-05-13 13:50:16,054 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_dflat_0007.rmap 1.1 K bytes (40 / 204 files) (126.7 K / 741.0 K bytes)
2025-05-13 13:50:16,137 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_dark_0074.rmap 34.2 K bytes (41 / 204 files) (127.9 K / 741.0 K bytes)
2025-05-13 13:50:16,251 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_cubepar_0015.rmap 966 bytes (42 / 204 files) (162.1 K / 741.0 K bytes)
2025-05-13 13:50:16,338 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_collimator_0026.rmap 1.3 K bytes (43 / 204 files) (163.1 K / 741.0 K bytes)
2025-05-13 13:50:16,423 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_camera_0026.rmap 1.3 K bytes (44 / 204 files) (164.4 K / 741.0 K bytes)
2025-05-13 13:50:16,506 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_barshadow_0007.rmap 1.8 K bytes (45 / 204 files) (165.7 K / 741.0 K bytes)
2025-05-13 13:50:16,591 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_area_0018.rmap 6.3 K bytes (46 / 204 files) (167.5 K / 741.0 K bytes)
2025-05-13 13:50:16,700 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_apcorr_0009.rmap 5.6 K bytes (47 / 204 files) (173.8 K / 741.0 K bytes)
2025-05-13 13:50:16,789 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nirspec_0398.imap 5.8 K bytes (48 / 204 files) (179.3 K / 741.0 K bytes)
2025-05-13 13:50:16,869 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_wfssbkg_0010.rmap 3.1 K bytes (49 / 204 files) (185.1 K / 741.0 K bytes)
2025-05-13 13:50:16,974 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_wavelengthrange_0006.rmap 862 bytes (50 / 204 files) (188.2 K / 741.0 K bytes)
2025-05-13 13:50:17,056 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_trappars_0004.rmap 753 bytes (51 / 204 files) (189.1 K / 741.0 K bytes)
2025-05-13 13:50:17,145 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_trapdensity_0005.rmap 705 bytes (52 / 204 files) (189.9 K / 741.0 K bytes)
2025-05-13 13:50:17,254 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_throughput_0005.rmap 1.3 K bytes (53 / 204 files) (190.6 K / 741.0 K bytes)
2025-05-13 13:50:17,337 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_superbias_0030.rmap 7.4 K bytes (54 / 204 files) (191.8 K / 741.0 K bytes)
2025-05-13 13:50:17,422 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_specwcs_0014.rmap 3.1 K bytes (55 / 204 files) (199.2 K / 741.0 K bytes)
2025-05-13 13:50:17,508 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_specprofile_0008.rmap 2.4 K bytes (56 / 204 files) (202.4 K / 741.0 K bytes)
2025-05-13 13:50:17,593 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_speckernel_0006.rmap 1.0 K bytes (57 / 204 files) (204.7 K / 741.0 K bytes)
2025-05-13 13:50:17,676 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_sirskernel_0001.rmap 627 bytes (58 / 204 files) (205.8 K / 741.0 K bytes)
2025-05-13 13:50:17,760 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_saturation_0015.rmap 829 bytes (59 / 204 files) (206.4 K / 741.0 K bytes)
2025-05-13 13:50:17,844 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_readnoise_0011.rmap 987 bytes (60 / 204 files) (207.2 K / 741.0 K bytes)
2025-05-13 13:50:17,927 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_photom_0036.rmap 1.3 K bytes (61 / 204 files) (208.2 K / 741.0 K bytes)
2025-05-13 13:50:18,009 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_persat_0007.rmap 674 bytes (62 / 204 files) (209.5 K / 741.0 K bytes)
2025-05-13 13:50:18,090 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pathloss_0003.rmap 758 bytes (63 / 204 files) (210.1 K / 741.0 K bytes)
2025-05-13 13:50:18,172 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pastasoss_0004.rmap 818 bytes (64 / 204 files) (210.9 K / 741.0 K bytes)
2025-05-13 13:50:18,253 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-undersamplecorrectionstep_0001.rmap 904 bytes (65 / 204 files) (211.7 K / 741.0 K bytes)
2025-05-13 13:50:18,337 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-tweakregstep_0012.rmap 3.1 K bytes (66 / 204 files) (212.6 K / 741.0 K bytes)
2025-05-13 13:50:18,440 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-spec2pipeline_0008.rmap 984 bytes (67 / 204 files) (215.8 K / 741.0 K bytes)
2025-05-13 13:50:18,549 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-sourcecatalogstep_0002.rmap 2.3 K bytes (68 / 204 files) (216.7 K / 741.0 K bytes)
2025-05-13 13:50:18,632 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-resamplestep_0002.rmap 687 bytes (69 / 204 files) (219.1 K / 741.0 K bytes)
2025-05-13 13:50:18,739 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-outlierdetectionstep_0004.rmap 2.7 K bytes (70 / 204 files) (219.7 K / 741.0 K bytes)
2025-05-13 13:50:18,823 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-jumpstep_0007.rmap 6.4 K bytes (71 / 204 files) (222.4 K / 741.0 K bytes)
2025-05-13 13:50:18,937 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-image2pipeline_0005.rmap 1.0 K bytes (72 / 204 files) (228.8 K / 741.0 K bytes)
2025-05-13 13:50:19,017 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-detector1pipeline_0002.rmap 1.0 K bytes (73 / 204 files) (229.8 K / 741.0 K bytes)
2025-05-13 13:50:19,100 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-darkpipeline_0002.rmap 868 bytes (74 / 204 files) (230.8 K / 741.0 K bytes)
2025-05-13 13:50:19,183 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-darkcurrentstep_0001.rmap 591 bytes (75 / 204 files) (231.7 K / 741.0 K bytes)
2025-05-13 13:50:19,288 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_pars-chargemigrationstep_0004.rmap 5.7 K bytes (76 / 204 files) (232.3 K / 741.0 K bytes)
2025-05-13 13:50:19,373 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_nrm_0005.rmap 663 bytes (77 / 204 files) (237.9 K / 741.0 K bytes)
2025-05-13 13:50:19,453 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_mask_0022.rmap 1.3 K bytes (78 / 204 files) (238.6 K / 741.0 K bytes)
2025-05-13 13:50:19,559 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_linearity_0022.rmap 961 bytes (79 / 204 files) (239.9 K / 741.0 K bytes)
2025-05-13 13:50:19,641 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_ipc_0007.rmap 651 bytes (80 / 204 files) (240.9 K / 741.0 K bytes)
2025-05-13 13:50:19,735 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_gain_0011.rmap 797 bytes (81 / 204 files) (241.5 K / 741.0 K bytes)
2025-05-13 13:50:19,840 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_flat_0023.rmap 5.9 K bytes (82 / 204 files) (242.3 K / 741.0 K bytes)
2025-05-13 13:50:19,924 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_filteroffset_0010.rmap 853 bytes (83 / 204 files) (248.2 K / 741.0 K bytes)
2025-05-13 13:50:20,009 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_extract1d_0007.rmap 905 bytes (84 / 204 files) (249.0 K / 741.0 K bytes)
2025-05-13 13:50:20,093 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_drizpars_0004.rmap 519 bytes (85 / 204 files) (249.9 K / 741.0 K bytes)
2025-05-13 13:50:20,175 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_distortion_0025.rmap 3.4 K bytes (86 / 204 files) (250.4 K / 741.0 K bytes)
2025-05-13 13:50:20,261 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_dark_0034.rmap 7.5 K bytes (87 / 204 files) (253.9 K / 741.0 K bytes)
2025-05-13 13:50:20,366 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_bkg_0002.rmap 2.9 K bytes (88 / 204 files) (261.4 K / 741.0 K bytes)
2025-05-13 13:50:20,449 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_area_0014.rmap 2.7 K bytes (89 / 204 files) (264.3 K / 741.0 K bytes)
2025-05-13 13:50:20,554 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_apcorr_0010.rmap 4.3 K bytes (90 / 204 files) (267.0 K / 741.0 K bytes)
2025-05-13 13:50:20,651 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_abvegaoffset_0004.rmap 1.4 K bytes (91 / 204 files) (271.3 K / 741.0 K bytes)
2025-05-13 13:50:20,734 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_niriss_0272.imap 5.8 K bytes (92 / 204 files) (272.7 K / 741.0 K bytes)
2025-05-13 13:50:20,818 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_wfssbkg_0004.rmap 7.2 K bytes (93 / 204 files) (278.5 K / 741.0 K bytes)
2025-05-13 13:50:20,903 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_wavelengthrange_0010.rmap 996 bytes (94 / 204 files) (285.7 K / 741.0 K bytes)
2025-05-13 13:50:20,986 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_tsophot_0003.rmap 896 bytes (95 / 204 files) (286.7 K / 741.0 K bytes)
2025-05-13 13:50:21,067 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_trappars_0003.rmap 1.6 K bytes (96 / 204 files) (287.6 K / 741.0 K bytes)
2025-05-13 13:50:21,151 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_trapdensity_0003.rmap 1.6 K bytes (97 / 204 files) (289.2 K / 741.0 K bytes)
2025-05-13 13:50:21,270 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_superbias_0019.rmap 18.9 K bytes (98 / 204 files) (290.8 K / 741.0 K bytes)
2025-05-13 13:50:21,402 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_specwcs_0022.rmap 7.1 K bytes (99 / 204 files) (309.7 K / 741.0 K bytes)
2025-05-13 13:50:21,488 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_sirskernel_0002.rmap 671 bytes (100 / 204 files) (316.8 K / 741.0 K bytes)
2025-05-13 13:50:21,573 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_saturation_0011.rmap 2.8 K bytes (101 / 204 files) (317.5 K / 741.0 K bytes)
2025-05-13 13:50:21,657 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_readnoise_0026.rmap 25.9 K bytes (102 / 204 files) (320.3 K / 741.0 K bytes)
2025-05-13 13:50:21,792 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_psfmask_0008.rmap 28.4 K bytes (103 / 204 files) (346.2 K / 741.0 K bytes)
2025-05-13 13:50:21,928 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_photom_0028.rmap 3.4 K bytes (104 / 204 files) (374.6 K / 741.0 K bytes)
2025-05-13 13:50:22,010 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_persat_0005.rmap 1.6 K bytes (105 / 204 files) (377.9 K / 741.0 K bytes)
2025-05-13 13:50:22,095 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-whitelightstep_0004.rmap 2.0 K bytes (106 / 204 files) (379.5 K / 741.0 K bytes)
2025-05-13 13:50:22,205 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-tweakregstep_0003.rmap 4.5 K bytes (107 / 204 files) (381.5 K / 741.0 K bytes)
2025-05-13 13:50:22,313 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-spec2pipeline_0008.rmap 984 bytes (108 / 204 files) (386.0 K / 741.0 K bytes)
2025-05-13 13:50:22,396 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-sourcecatalogstep_0002.rmap 4.6 K bytes (109 / 204 files) (387.0 K / 741.0 K bytes)
2025-05-13 13:50:22,480 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-resamplestep_0002.rmap 687 bytes (110 / 204 files) (391.6 K / 741.0 K bytes)
2025-05-13 13:50:22,562 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-outlierdetectionstep_0003.rmap 940 bytes (111 / 204 files) (392.3 K / 741.0 K bytes)
2025-05-13 13:50:22,653 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-jumpstep_0005.rmap 806 bytes (112 / 204 files) (393.2 K / 741.0 K bytes)
2025-05-13 13:50:22,740 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-image2pipeline_0004.rmap 1.1 K bytes (113 / 204 files) (394.0 K / 741.0 K bytes)
2025-05-13 13:50:22,849 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-detector1pipeline_0005.rmap 1.3 K bytes (114 / 204 files) (395.2 K / 741.0 K bytes)
2025-05-13 13:50:22,953 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-darkpipeline_0002.rmap 868 bytes (115 / 204 files) (396.4 K / 741.0 K bytes)
2025-05-13 13:50:23,036 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_pars-darkcurrentstep_0001.rmap 618 bytes (116 / 204 files) (397.3 K / 741.0 K bytes)
2025-05-13 13:50:23,116 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_mask_0012.rmap 4.1 K bytes (117 / 204 files) (397.9 K / 741.0 K bytes)
2025-05-13 13:50:23,201 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_linearity_0011.rmap 2.4 K bytes (118 / 204 files) (402.1 K / 741.0 K bytes)
2025-05-13 13:50:23,286 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_ipc_0003.rmap 2.0 K bytes (119 / 204 files) (404.5 K / 741.0 K bytes)
2025-05-13 13:50:23,371 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_gain_0016.rmap 2.1 K bytes (120 / 204 files) (406.4 K / 741.0 K bytes)
2025-05-13 13:50:23,457 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_flat_0028.rmap 51.7 K bytes (121 / 204 files) (408.6 K / 741.0 K bytes)
2025-05-13 13:50:23,576 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_filteroffset_0004.rmap 1.4 K bytes (122 / 204 files) (460.2 K / 741.0 K bytes)
2025-05-13 13:50:23,657 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_extract1d_0005.rmap 1.2 K bytes (123 / 204 files) (461.7 K / 741.0 K bytes)
2025-05-13 13:50:23,742 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_drizpars_0001.rmap 519 bytes (124 / 204 files) (462.9 K / 741.0 K bytes)
2025-05-13 13:50:23,831 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_distortion_0033.rmap 53.4 K bytes (125 / 204 files) (463.4 K / 741.0 K bytes)
2025-05-13 13:50:23,963 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_dark_0047.rmap 29.0 K bytes (126 / 204 files) (516.7 K / 741.0 K bytes)
2025-05-13 13:50:24,068 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_area_0012.rmap 33.5 K bytes (127 / 204 files) (545.7 K / 741.0 K bytes)
2025-05-13 13:50:24,174 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_apcorr_0008.rmap 4.3 K bytes (128 / 204 files) (579.2 K / 741.0 K bytes)
2025-05-13 13:50:24,260 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_abvegaoffset_0003.rmap 1.3 K bytes (129 / 204 files) (583.5 K / 741.0 K bytes)
2025-05-13 13:50:24,340 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_nircam_0314.imap 5.6 K bytes (130 / 204 files) (584.8 K / 741.0 K bytes)
2025-05-13 13:50:24,429 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_wavelengthrange_0027.rmap 929 bytes (131 / 204 files) (590.4 K / 741.0 K bytes)
2025-05-13 13:50:24,512 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_tsophot_0004.rmap 882 bytes (132 / 204 files) (591.3 K / 741.0 K bytes)
2025-05-13 13:50:24,596 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_straymask_0009.rmap 987 bytes (133 / 204 files) (592.2 K / 741.0 K bytes)
2025-05-13 13:50:24,682 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_specwcs_0043.rmap 5.8 K bytes (134 / 204 files) (593.2 K / 741.0 K bytes)
2025-05-13 13:50:24,766 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_saturation_0015.rmap 1.2 K bytes (135 / 204 files) (599.0 K / 741.0 K bytes)
2025-05-13 13:50:24,848 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_rscd_0008.rmap 1.0 K bytes (136 / 204 files) (600.1 K / 741.0 K bytes)
2025-05-13 13:50:24,933 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_resol_0006.rmap 790 bytes (137 / 204 files) (601.2 K / 741.0 K bytes)
2025-05-13 13:50:25,015 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_reset_0026.rmap 3.9 K bytes (138 / 204 files) (602.0 K / 741.0 K bytes)
2025-05-13 13:50:25,100 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_regions_0034.rmap 5.2 K bytes (139 / 204 files) (605.8 K / 741.0 K bytes)
2025-05-13 13:50:25,181 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_readnoise_0023.rmap 1.6 K bytes (140 / 204 files) (611.0 K / 741.0 K bytes)
2025-05-13 13:50:25,286 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_psfmask_0009.rmap 2.1 K bytes (141 / 204 files) (612.7 K / 741.0 K bytes)
2025-05-13 13:50:25,368 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_psf_0003.rmap 839 bytes (142 / 204 files) (614.8 K / 741.0 K bytes)
2025-05-13 13:50:25,455 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_photom_0056.rmap 3.7 K bytes (143 / 204 files) (615.6 K / 741.0 K bytes)
2025-05-13 13:50:25,539 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pathloss_0005.rmap 866 bytes (144 / 204 files) (619.4 K / 741.0 K bytes)
2025-05-13 13:50:25,629 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-whitelightstep_0003.rmap 912 bytes (145 / 204 files) (620.2 K / 741.0 K bytes)
2025-05-13 13:50:25,737 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-tweakregstep_0003.rmap 1.8 K bytes (146 / 204 files) (621.2 K / 741.0 K bytes)
2025-05-13 13:50:25,821 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-spec3pipeline_0009.rmap 816 bytes (147 / 204 files) (623.0 K / 741.0 K bytes)
2025-05-13 13:50:25,929 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-spec2pipeline_0012.rmap 1.3 K bytes (148 / 204 files) (623.8 K / 741.0 K bytes)
2025-05-13 13:50:26,018 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-sourcecatalogstep_0003.rmap 1.9 K bytes (149 / 204 files) (625.1 K / 741.0 K bytes)
2025-05-13 13:50:26,102 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-resamplestep_0002.rmap 677 bytes (150 / 204 files) (627.0 K / 741.0 K bytes)
2025-05-13 13:50:26,188 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-resamplespecstep_0002.rmap 706 bytes (151 / 204 files) (627.7 K / 741.0 K bytes)
2025-05-13 13:50:26,272 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-outlierdetectionstep_0020.rmap 3.4 K bytes (152 / 204 files) (628.4 K / 741.0 K bytes)
2025-05-13 13:50:26,354 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-jumpstep_0011.rmap 1.6 K bytes (153 / 204 files) (631.8 K / 741.0 K bytes)
2025-05-13 13:50:26,438 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-image2pipeline_0010.rmap 1.1 K bytes (154 / 204 files) (633.4 K / 741.0 K bytes)
2025-05-13 13:50:26,519 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-extract1dstep_0003.rmap 807 bytes (155 / 204 files) (634.5 K / 741.0 K bytes)
2025-05-13 13:50:26,624 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-emicorrstep_0003.rmap 796 bytes (156 / 204 files) (635.3 K / 741.0 K bytes)
2025-05-13 13:50:26,705 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-detector1pipeline_0010.rmap 1.6 K bytes (157 / 204 files) (636.1 K / 741.0 K bytes)
2025-05-13 13:50:26,812 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-darkpipeline_0002.rmap 860 bytes (158 / 204 files) (637.7 K / 741.0 K bytes)
2025-05-13 13:50:26,897 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_pars-darkcurrentstep_0002.rmap 683 bytes (159 / 204 files) (638.5 K / 741.0 K bytes)
2025-05-13 13:50:27,003 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_mrsxartcorr_0002.rmap 2.2 K bytes (160 / 204 files) (639.2 K / 741.0 K bytes)
2025-05-13 13:50:27,085 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_mrsptcorr_0005.rmap 2.0 K bytes (161 / 204 files) (641.4 K / 741.0 K bytes)
2025-05-13 13:50:27,166 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_mask_0026.rmap 4.3 K bytes (162 / 204 files) (643.3 K / 741.0 K bytes)
2025-05-13 13:50:27,248 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_linearity_0018.rmap 2.8 K bytes (163 / 204 files) (647.6 K / 741.0 K bytes)
2025-05-13 13:50:27,330 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_ipc_0008.rmap 700 bytes (164 / 204 files) (650.4 K / 741.0 K bytes)
2025-05-13 13:50:27,411 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_gain_0013.rmap 3.9 K bytes (165 / 204 files) (651.1 K / 741.0 K bytes)
2025-05-13 13:50:27,515 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_fringefreq_0003.rmap 1.4 K bytes (166 / 204 files) (655.0 K / 741.0 K bytes)
2025-05-13 13:50:27,609 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_fringe_0019.rmap 3.9 K bytes (167 / 204 files) (656.5 K / 741.0 K bytes)
2025-05-13 13:50:27,691 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_flat_0066.rmap 15.7 K bytes (168 / 204 files) (660.4 K / 741.0 K bytes)
2025-05-13 13:50:27,828 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_filteroffset_0025.rmap 2.5 K bytes (169 / 204 files) (676.1 K / 741.0 K bytes)
2025-05-13 13:50:27,911 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_extract1d_0020.rmap 1.4 K bytes (170 / 204 files) (678.6 K / 741.0 K bytes)
2025-05-13 13:50:27,993 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_emicorr_0003.rmap 663 bytes (171 / 204 files) (679.9 K / 741.0 K bytes)
2025-05-13 13:50:28,075 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_drizpars_0002.rmap 511 bytes (172 / 204 files) (680.6 K / 741.0 K bytes)
2025-05-13 13:50:28,162 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_distortion_0040.rmap 4.9 K bytes (173 / 204 files) (681.1 K / 741.0 K bytes)
2025-05-13 13:50:28,245 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_dark_0036.rmap 4.4 K bytes (174 / 204 files) (686.0 K / 741.0 K bytes)
2025-05-13 13:50:28,324 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_cubepar_0017.rmap 800 bytes (175 / 204 files) (690.4 K / 741.0 K bytes)
2025-05-13 13:50:28,403 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_area_0015.rmap 866 bytes (176 / 204 files) (691.2 K / 741.0 K bytes)
2025-05-13 13:50:28,484 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_apcorr_0019.rmap 5.0 K bytes (177 / 204 files) (692.0 K / 741.0 K bytes)
2025-05-13 13:50:28,566 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_abvegaoffset_0003.rmap 1.3 K bytes (178 / 204 files) (697.0 K / 741.0 K bytes)
2025-05-13 13:50:28,647 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_miri_0437.imap 5.8 K bytes (179 / 204 files) (698.3 K / 741.0 K bytes)
2025-05-13 13:50:28,735 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_trappars_0004.rmap 903 bytes (180 / 204 files) (704.1 K / 741.0 K bytes)
2025-05-13 13:50:28,815 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_trapdensity_0006.rmap 930 bytes (181 / 204 files) (705.0 K / 741.0 K bytes)
2025-05-13 13:50:28,899 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_superbias_0017.rmap 3.8 K bytes (182 / 204 files) (706.0 K / 741.0 K bytes)
2025-05-13 13:50:28,984 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_saturation_0009.rmap 779 bytes (183 / 204 files) (709.7 K / 741.0 K bytes)
2025-05-13 13:50:29,067 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_readnoise_0014.rmap 1.3 K bytes (184 / 204 files) (710.5 K / 741.0 K bytes)
2025-05-13 13:50:29,156 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_photom_0014.rmap 1.1 K bytes (185 / 204 files) (711.8 K / 741.0 K bytes)
2025-05-13 13:50:29,239 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_persat_0006.rmap 884 bytes (186 / 204 files) (712.9 K / 741.0 K bytes)
2025-05-13 13:50:29,320 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-tweakregstep_0002.rmap 850 bytes (187 / 204 files) (713.8 K / 741.0 K bytes)
2025-05-13 13:50:29,407 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-sourcecatalogstep_0001.rmap 636 bytes (188 / 204 files) (714.6 K / 741.0 K bytes)
2025-05-13 13:50:29,487 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-outlierdetectionstep_0001.rmap 654 bytes (189 / 204 files) (715.3 K / 741.0 K bytes)
2025-05-13 13:50:29,570 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-image2pipeline_0005.rmap 974 bytes (190 / 204 files) (715.9 K / 741.0 K bytes)
2025-05-13 13:50:29,658 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-detector1pipeline_0002.rmap 1.0 K bytes (191 / 204 files) (716.9 K / 741.0 K bytes)
2025-05-13 13:50:29,764 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_pars-darkpipeline_0002.rmap 856 bytes (192 / 204 files) (717.9 K / 741.0 K bytes)
2025-05-13 13:50:29,867 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_mask_0023.rmap 1.1 K bytes (193 / 204 files) (718.8 K / 741.0 K bytes)
2025-05-13 13:50:29,970 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_linearity_0015.rmap 925 bytes (194 / 204 files) (719.8 K / 741.0 K bytes)
2025-05-13 13:50:30,075 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_ipc_0003.rmap 614 bytes (195 / 204 files) (720.8 K / 741.0 K bytes)
2025-05-13 13:50:30,156 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_gain_0010.rmap 890 bytes (196 / 204 files) (721.4 K / 741.0 K bytes)
2025-05-13 13:50:30,246 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_flat_0009.rmap 1.1 K bytes (197 / 204 files) (722.3 K / 741.0 K bytes)
2025-05-13 13:50:30,328 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_distortion_0011.rmap 1.2 K bytes (198 / 204 files) (723.4 K / 741.0 K bytes)
2025-05-13 13:50:30,424 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_dark_0017.rmap 4.3 K bytes (199 / 204 files) (724.6 K / 741.0 K bytes)
2025-05-13 13:50:30,513 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_area_0010.rmap 1.2 K bytes (200 / 204 files) (728.9 K / 741.0 K bytes)
2025-05-13 13:50:30,593 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_apcorr_0004.rmap 4.0 K bytes (201 / 204 files) (730.1 K / 741.0 K bytes)
2025-05-13 13:50:30,677 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_abvegaoffset_0002.rmap 1.3 K bytes (202 / 204 files) (734.0 K / 741.0 K bytes)
2025-05-13 13:50:30,759 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_fgs_0123.imap 5.1 K bytes (203 / 204 files) (735.3 K / 741.0 K bytes)
2025-05-13 13:50:30,840 - CRDS - INFO - Fetching /home/runner/crds/mappings/jwst/jwst_1364.pmap 580 bytes (204 / 204 files) (740.4 K / 741.0 K bytes)
2025-05-13 13:50:31,081 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf 1.0 K bytes (1 / 1 files) (0 / 1.0 K bytes)
2025-05-13 13:50:31,185 - stpipe - INFO - PARS-EMICORRSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf
2025-05-13 13:50:31,200 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf 936 bytes (1 / 1 files) (0 / 936 bytes)
2025-05-13 13:50:31,283 - stpipe - INFO - PARS-DARKCURRENTSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf
2025-05-13 13:50:31,293 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf 1.9 K bytes (1 / 1 files) (0 / 1.9 K bytes)
2025-05-13 13:50:31,379 - stpipe - INFO - PARS-JUMPSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf
2025-05-13 13:50:31,390 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf 2.0 K bytes (1 / 1 files) (0 / 2.0 K bytes)
2025-05-13 13:50:31,474 - stpipe - INFO - PARS-DETECTOR1PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf
2025-05-13 13:50:31,508 - stpipe.Detector1Pipeline - INFO - Detector1Pipeline instance created.
2025-05-13 13:50:31,509 - stpipe.Detector1Pipeline.group_scale - INFO - GroupScaleStep instance created.
2025-05-13 13:50:31,509 - stpipe.Detector1Pipeline.dq_init - INFO - DQInitStep instance created.
2025-05-13 13:50:31,510 - stpipe.Detector1Pipeline.emicorr - INFO - EmiCorrStep instance created.
2025-05-13 13:50:31,511 - stpipe.Detector1Pipeline.saturation - INFO - SaturationStep instance created.
2025-05-13 13:50:31,512 - stpipe.Detector1Pipeline.ipc - INFO - IPCStep instance created.
2025-05-13 13:50:31,513 - stpipe.Detector1Pipeline.superbias - INFO - SuperBiasStep instance created.
2025-05-13 13:50:31,514 - stpipe.Detector1Pipeline.refpix - INFO - RefPixStep instance created.
2025-05-13 13:50:31,515 - stpipe.Detector1Pipeline.rscd - INFO - RscdStep instance created.
2025-05-13 13:50:31,516 - stpipe.Detector1Pipeline.firstframe - INFO - FirstFrameStep instance created.
2025-05-13 13:50:31,516 - stpipe.Detector1Pipeline.lastframe - INFO - LastFrameStep instance created.
2025-05-13 13:50:31,517 - stpipe.Detector1Pipeline.linearity - INFO - LinearityStep instance created.
2025-05-13 13:50:31,518 - stpipe.Detector1Pipeline.dark_current - INFO - DarkCurrentStep instance created.
2025-05-13 13:50:31,518 - stpipe.Detector1Pipeline.reset - INFO - ResetStep instance created.
2025-05-13 13:50:31,519 - stpipe.Detector1Pipeline.persistence - INFO - PersistenceStep instance created.
2025-05-13 13:50:31,521 - stpipe.Detector1Pipeline.charge_migration - INFO - ChargeMigrationStep instance created.
2025-05-13 13:50:31,523 - stpipe.Detector1Pipeline.jump - INFO - JumpStep instance created.
2025-05-13 13:50:31,524 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - CleanFlickerNoiseStep instance created.
2025-05-13 13:50:31,525 - stpipe.Detector1Pipeline.ramp_fit - INFO - RampFitStep instance created.
2025-05-13 13:50:31,526 - stpipe.Detector1Pipeline.gain_scale - INFO - GainScaleStep instance created.
2025-05-13 13:50:31,653 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline running with args ('./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg001_mirimage_uncal.fits',).
2025-05-13 13:50:31,673 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage1
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_calibrated_ramp: True
steps:
group_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dq_init:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
emicorr:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: sequential
nints_to_phase: None
nbins: None
scale_reference: True
onthefly_corr_freq: None
use_n_cycles: 3
fit_ints_separately: False
user_supplied_reffile: None
save_intermediate_results: False
saturation:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
n_pix_grow_sat: 1
use_readpatt: True
ipc:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
superbias:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
refpix:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
odd_even_columns: True
use_side_ref_pixels: True
side_smoothing_length: 11
side_gain: 1.0
odd_even_rows: True
ovr_corr_mitigation_ftr: 3.0
preserve_irs2_refpix: False
irs2_mean_subtraction: False
refpix_algorithm: median
sigreject: 4.0
gaussmooth: 1.0
halfwidth: 30
rscd:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
type: baseline
firstframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
bright_use_group1: False
lastframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
linearity:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_current:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_output: None
average_dark_current: 1.0
reset:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
persistence:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
input_trapsfilled: ''
flag_pers_cutoff: 40.0
save_persistence: False
save_trapsfilled: True
modify_input: False
charge_migration:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
signal_threshold: 25000.0
jump:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
rejection_threshold: 4.0
three_group_rejection_threshold: 6.0
four_group_rejection_threshold: 5.0
maximum_cores: half
flag_4_neighbors: True
max_jump_to_flag_neighbors: 1000
min_jump_to_flag_neighbors: 30
after_jump_flag_dn1: 500
after_jump_flag_time1: 15
after_jump_flag_dn2: 1000
after_jump_flag_time2: 3000
expand_large_events: False
min_sat_area: 1
min_jump_area: 0
expand_factor: 0
use_ellipses: False
sat_required_snowball: False
min_sat_radius_extend: 0.0
sat_expand: 0
edge_size: 0
mask_snowball_core_next_int: True
snowball_time_masked_next_int: 4000
find_showers: True
max_shower_amplitude: 4.0
extend_snr_threshold: 3.0
extend_min_area: 50
extend_inner_radius: 1
extend_outer_radius: 2.6
extend_ellipse_expand_ratio: 1.1
time_masked_after_shower: 30
min_diffs_single_pass: 10
max_extended_radius: 200
minimum_groups: 3
minimum_sigclip_groups: 100
only_use_ints: True
clean_flicker_noise:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
fit_method: median
fit_by_channel: False
background_method: median
background_box_size: None
mask_science_regions: False
apply_flat_field: False
n_sigma: 2.0
fit_histogram: False
single_mask: True
user_mask: None
save_mask: False
save_background: False
save_noise: False
ramp_fit:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: OLS_C
int_name: ''
save_opt: False
opt_name: ''
suppress_one_group: True
firstgroup: None
lastgroup: None
maximum_cores: '1'
gain_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
2025-05-13 13:50:32,716 - stpipe.Detector1Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg001_mirimage_uncal.fits' reftypes = ['dark', 'emicorr', 'gain', 'linearity', 'mask', 'readnoise', 'refpix', 'reset', 'saturation', 'sirskernel', 'superbias']
2025-05-13 13:50:32,719 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits 210.3 M bytes (1 / 8 files) (0 / 281.4 M bytes)
2025-05-13 13:50:47,385 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf 16.9 K bytes (2 / 8 files) (210.3 M / 281.4 M bytes)
2025-05-13 13:50:47,483 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits 12.7 M bytes (3 / 8 files) (210.3 M / 281.4 M bytes)
2025-05-13 13:50:47,813 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits 25.4 M bytes (4 / 8 files) (223.0 M / 281.4 M bytes)
2025-05-13 13:50:48,294 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits 4.3 M bytes (5 / 8 files) (248.4 M / 281.4 M bytes)
2025-05-13 13:50:48,556 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits 4.2 M bytes (6 / 8 files) (252.6 M / 281.4 M bytes)
2025-05-13 13:50:48,850 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits 16.0 M bytes (7 / 8 files) (256.9 M / 281.4 M bytes)
2025-05-13 13:50:49,255 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits 8.5 M bytes (8 / 8 files) (272.9 M / 281.4 M bytes)
2025-05-13 13:50:49,575 - stpipe.Detector1Pipeline - INFO - Prefetch for DARK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits'.
2025-05-13 13:50:49,575 - stpipe.Detector1Pipeline - INFO - Prefetch for EMICORR reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf'.
2025-05-13 13:50:49,576 - stpipe.Detector1Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 13:50:49,576 - stpipe.Detector1Pipeline - INFO - Prefetch for LINEARITY reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits'.
2025-05-13 13:50:49,577 - stpipe.Detector1Pipeline - INFO - Prefetch for MASK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits'.
2025-05-13 13:50:49,577 - stpipe.Detector1Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 13:50:49,577 - stpipe.Detector1Pipeline - INFO - Prefetch for REFPIX reference file is 'N/A'.
2025-05-13 13:50:49,578 - stpipe.Detector1Pipeline - INFO - Prefetch for RESET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits'.
2025-05-13 13:50:49,578 - stpipe.Detector1Pipeline - INFO - Prefetch for SATURATION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits'.
2025-05-13 13:50:49,578 - stpipe.Detector1Pipeline - INFO - Prefetch for SIRSKERNEL reference file is 'N/A'.
2025-05-13 13:50:49,579 - stpipe.Detector1Pipeline - INFO - Prefetch for SUPERBIAS reference file is 'N/A'.
2025-05-13 13:50:49,586 - stpipe.Detector1Pipeline - INFO - Starting calwebb_detector1 ...
2025-05-13 13:50:51,065 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:50:51,073 - stpipe.Detector1Pipeline.group_scale - INFO - NFRAMES and FRMDIVSR are equal; correction not needed
2025-05-13 13:50:51,074 - stpipe.Detector1Pipeline.group_scale - INFO - Step will be skipped
2025-05-13 13:50:51,075 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale done
2025-05-13 13:50:51,189 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:50:51,206 - stpipe.Detector1Pipeline.dq_init - INFO - Using MASK reference file /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits
2025-05-13 13:50:51,723 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:50:51,734 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:50:51,737 - stpipe.Detector1Pipeline.dq_init - INFO - Extracting mask subarray to match science data
2025-05-13 13:50:52,259 - CRDS - INFO - Calibration SW Found: jwst 1.18.0 (/usr/share/miniconda/lib/python3.13/site-packages/jwst-1.18.0.dist-info)
2025-05-13 13:50:52,351 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init done
2025-05-13 13:50:52,461 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:50:53,023 - stpipe.Detector1Pipeline.emicorr - INFO - Using CRDS reference file: /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf
2025-05-13 13:50:53,040 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to get subarray case.
2025-05-13 13:50:53,041 - stpipe.Detector1Pipeline.emicorr - INFO - With configuration: Subarray=SUB256, Read_pattern=FASTR1, Detector=MIRIMAGE
2025-05-13 13:50:53,041 - stpipe.Detector1Pipeline.emicorr - INFO - Will correct data for the following 1 frequencies:
2025-05-13 13:50:53,042 - stpipe.Detector1Pipeline.emicorr - INFO - ['Hz10']
2025-05-13 13:50:53,042 - stpipe.Detector1Pipeline.emicorr - INFO - Running EMI fit with algorithm = 'sequential'.
2025-05-13 13:50:53,042 - stpipe.Detector1Pipeline.emicorr - INFO - Correcting for frequency: 10.039216 Hz (1 out of 1)
2025-05-13 13:50:53,043 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting self-superbias from each group of each integration
2025-05-13 13:50:53,044 - stpipe.Detector1Pipeline.emicorr - INFO - Doing phase calculation per integration
2025-05-13 13:51:29,572 - stpipe.Detector1Pipeline.emicorr - INFO - Calculating the phase amplitude for 500 bins
2025-05-13 13:51:30,077 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to measure phase shift
2025-05-13 13:51:30,115 - stpipe.Detector1Pipeline.emicorr - INFO - Creating phased-matched noise model to subtract from data
2025-05-13 13:51:30,807 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting EMI noise from data
2025-05-13 13:51:31,846 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr done
2025-05-13 13:51:31,971 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:32,088 - stpipe.Detector1Pipeline.saturation - INFO - Using SATURATION reference file /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits
2025-05-13 13:51:32,114 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:32,124 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:32,644 - stpipe.Detector1Pipeline.saturation - INFO - Extracting reference file subarray to match science data
2025-05-13 13:51:32,651 - stpipe.Detector1Pipeline.saturation - INFO - Using read_pattern with nframes 1
2025-05-13 13:51:37,116 - stpipe.Detector1Pipeline.saturation - INFO - Detected 0 saturated pixels
2025-05-13 13:51:37,256 - stpipe.Detector1Pipeline.saturation - INFO - Detected 1 A/D floor pixels
2025-05-13 13:51:37,260 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation done
2025-05-13 13:51:37,373 - stpipe.Detector1Pipeline.ipc - INFO - Step ipc running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:37,373 - stpipe.Detector1Pipeline.ipc - INFO - Step skipped.
2025-05-13 13:51:37,465 - stpipe.Detector1Pipeline.firstframe - INFO - Step firstframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:37,465 - stpipe.Detector1Pipeline.firstframe - INFO - Step skipped.
2025-05-13 13:51:37,553 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:38,058 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe done
2025-05-13 13:51:38,166 - stpipe.Detector1Pipeline.reset - INFO - Step reset running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:38,190 - stpipe.Detector1Pipeline.reset - INFO - Using RESET reference file /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits
2025-05-13 13:51:38,212 - stpipe.Detector1Pipeline.reset - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:38,214 - stpipe.Detector1Pipeline.reset - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:39,014 - stpipe.Detector1Pipeline.reset - INFO - Step reset done
2025-05-13 13:51:39,141 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:39,160 - stpipe.Detector1Pipeline.linearity - INFO - Using Linearity reference file /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits
2025-05-13 13:51:39,189 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:39,199 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:51:43,163 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity done
2025-05-13 13:51:43,288 - stpipe.Detector1Pipeline.rscd - INFO - Step rscd running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:43,288 - stpipe.Detector1Pipeline.rscd - INFO - Step skipped.
2025-05-13 13:51:43,387 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:43,408 - stpipe.Detector1Pipeline.dark_current - INFO - Using DARK reference file /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits
2025-05-13 13:51:43,966 - stpipe.Detector1Pipeline.dark_current - INFO - Using Poisson noise from average dark current 1.0 e-/sec
2025-05-13 13:51:43,966 - stpipe.Detector1Pipeline.dark_current - INFO - Science data nints=234, ngroups=39, nframes=1, groupgap=0
2025-05-13 13:51:43,967 - stpipe.Detector1Pipeline.dark_current - INFO - Dark data nints=2, ngroups=200, nframes=1, groupgap=0
2025-05-13 13:51:44,926 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current done
2025-05-13 13:51:45,047 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:45,546 - stpipe.Detector1Pipeline.refpix - WARNING - Refpix correction skipped for MIRI subarrays
2025-05-13 13:51:45,548 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix done
2025-05-13 13:51:45,660 - stpipe.Detector1Pipeline.charge_migration - INFO - Step charge_migration running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:45,661 - stpipe.Detector1Pipeline.charge_migration - INFO - Step skipped.
2025-05-13 13:51:45,765 - stpipe.Detector1Pipeline.jump - INFO - Step jump running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:51:45,773 - stpipe.Detector1Pipeline.jump - INFO - CR rejection threshold = 4 sigma
2025-05-13 13:51:45,774 - stpipe.Detector1Pipeline.jump - INFO - Maximum cores to use = half
2025-05-13 13:51:46,293 - stpipe.Detector1Pipeline.jump - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 13:51:46,303 - stpipe.Detector1Pipeline.jump - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 13:51:46,328 - stpipe.Detector1Pipeline.jump - INFO - Extracting gain subarray to match science data
2025-05-13 13:51:46,333 - stpipe.Detector1Pipeline.jump - INFO - Extracting readnoise subarray to match science data
2025-05-13 13:51:47,092 - stpipe.Detector1Pipeline.jump - INFO - Executing two-point difference method
2025-05-13 13:51:47,093 - stpipe.Detector1Pipeline.jump - INFO - Creating 4 processes for jump detection
2025-05-13 13:52:26,447 - stpipe.Detector1Pipeline.jump - INFO - Flagging Showers
2025-05-13 13:54:40,940 - stpipe.Detector1Pipeline.jump - INFO - Total showers= 0
2025-05-13 13:54:40,940 - stpipe.Detector1Pipeline.jump - INFO - Total elapsed time = 173.847 sec
2025-05-13 13:54:41,605 - stpipe.Detector1Pipeline.jump - INFO - The execution time in seconds: 175.832107
2025-05-13 13:54:41,610 - stpipe.Detector1Pipeline.jump - INFO - Step jump done
2025-05-13 13:54:41,718 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step clean_flicker_noise running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_uncal.fits>,).
2025-05-13 13:54:41,719 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step skipped.
2025-05-13 13:54:44,196 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage_ramp.fits
2025-05-13 13:54:44,304 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_ramp.fits>,).
2025-05-13 13:54:44,833 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 13:54:44,833 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 13:54:44,857 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting gain subarray to match science data
2025-05-13 13:54:44,862 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting readnoise subarray to match science data
2025-05-13 13:54:44,867 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using algorithm = OLS_C
2025-05-13 13:54:44,868 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using weighting = optimal
2025-05-13 13:54:49,295 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of multiprocessing slices: 1
2025-05-13 13:54:49,298 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of leading groups that are flagged as DO_NOT_USE: 0
2025-05-13 13:54:49,301 - stpipe.Detector1Pipeline.ramp_fit - INFO - MIRI dataset has all pixels in the final group flagged as DO_NOT_USE.
2025-05-13 13:55:43,999 - stpipe.Detector1Pipeline.ramp_fit - INFO - Ramp Fitting C Time: 54.69596195220947
2025-05-13 13:55:44,073 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit done
2025-05-13 13:55:44,193 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<ImageModel(256, 256) from jw03730013001_03101_00001-seg001_mirimage_ramp.fits>,).
2025-05-13 13:55:44,228 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 13:55:44,229 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 13:55:44,231 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 13:55:44,340 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_ramp.fits>,).
2025-05-13 13:55:44,366 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 13:55:44,367 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 13:55:44,369 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 13:55:44,645 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage_rateints.fits
2025-05-13 13:55:44,646 - stpipe.Detector1Pipeline - INFO - ... ending calwebb_detector1
2025-05-13 13:55:44,648 - stpipe.Detector1Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 13:55:44,707 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage_rate.fits
2025-05-13 13:55:44,708 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline done
2025-05-13 13:55:44,708 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 13:55:45,622 - stpipe - INFO - PARS-EMICORRSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf
2025-05-13 13:55:45,635 - stpipe - INFO - PARS-DARKCURRENTSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf
2025-05-13 13:55:45,645 - stpipe - INFO - PARS-JUMPSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf
2025-05-13 13:55:45,656 - stpipe - INFO - PARS-DETECTOR1PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf
2025-05-13 13:55:45,680 - stpipe.Detector1Pipeline - INFO - Detector1Pipeline instance created.
2025-05-13 13:55:45,681 - stpipe.Detector1Pipeline.group_scale - INFO - GroupScaleStep instance created.
2025-05-13 13:55:45,681 - stpipe.Detector1Pipeline.dq_init - INFO - DQInitStep instance created.
2025-05-13 13:55:45,682 - stpipe.Detector1Pipeline.emicorr - INFO - EmiCorrStep instance created.
2025-05-13 13:55:45,683 - stpipe.Detector1Pipeline.saturation - INFO - SaturationStep instance created.
2025-05-13 13:55:45,684 - stpipe.Detector1Pipeline.ipc - INFO - IPCStep instance created.
2025-05-13 13:55:45,685 - stpipe.Detector1Pipeline.superbias - INFO - SuperBiasStep instance created.
2025-05-13 13:55:45,686 - stpipe.Detector1Pipeline.refpix - INFO - RefPixStep instance created.
2025-05-13 13:55:45,687 - stpipe.Detector1Pipeline.rscd - INFO - RscdStep instance created.
2025-05-13 13:55:45,687 - stpipe.Detector1Pipeline.firstframe - INFO - FirstFrameStep instance created.
2025-05-13 13:55:45,688 - stpipe.Detector1Pipeline.lastframe - INFO - LastFrameStep instance created.
2025-05-13 13:55:45,689 - stpipe.Detector1Pipeline.linearity - INFO - LinearityStep instance created.
2025-05-13 13:55:45,689 - stpipe.Detector1Pipeline.dark_current - INFO - DarkCurrentStep instance created.
2025-05-13 13:55:45,690 - stpipe.Detector1Pipeline.reset - INFO - ResetStep instance created.
2025-05-13 13:55:45,691 - stpipe.Detector1Pipeline.persistence - INFO - PersistenceStep instance created.
2025-05-13 13:55:45,691 - stpipe.Detector1Pipeline.charge_migration - INFO - ChargeMigrationStep instance created.
2025-05-13 13:55:45,693 - stpipe.Detector1Pipeline.jump - INFO - JumpStep instance created.
2025-05-13 13:55:45,694 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - CleanFlickerNoiseStep instance created.
2025-05-13 13:55:45,695 - stpipe.Detector1Pipeline.ramp_fit - INFO - RampFitStep instance created.
2025-05-13 13:55:45,695 - stpipe.Detector1Pipeline.gain_scale - INFO - GainScaleStep instance created.
2025-05-13 13:55:45,805 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline running with args ('./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg002_mirimage_uncal.fits',).
2025-05-13 13:55:45,825 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage1
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_calibrated_ramp: True
steps:
group_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dq_init:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
emicorr:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: sequential
nints_to_phase: None
nbins: None
scale_reference: True
onthefly_corr_freq: None
use_n_cycles: 3
fit_ints_separately: False
user_supplied_reffile: None
save_intermediate_results: False
saturation:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
n_pix_grow_sat: 1
use_readpatt: True
ipc:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
superbias:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
refpix:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
odd_even_columns: True
use_side_ref_pixels: True
side_smoothing_length: 11
side_gain: 1.0
odd_even_rows: True
ovr_corr_mitigation_ftr: 3.0
preserve_irs2_refpix: False
irs2_mean_subtraction: False
refpix_algorithm: median
sigreject: 4.0
gaussmooth: 1.0
halfwidth: 30
rscd:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
type: baseline
firstframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
bright_use_group1: False
lastframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
linearity:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_current:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_output: None
average_dark_current: 1.0
reset:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
persistence:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
input_trapsfilled: ''
flag_pers_cutoff: 40.0
save_persistence: False
save_trapsfilled: True
modify_input: False
charge_migration:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
signal_threshold: 25000.0
jump:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
rejection_threshold: 4.0
three_group_rejection_threshold: 6.0
four_group_rejection_threshold: 5.0
maximum_cores: half
flag_4_neighbors: True
max_jump_to_flag_neighbors: 1000
min_jump_to_flag_neighbors: 30
after_jump_flag_dn1: 500
after_jump_flag_time1: 15
after_jump_flag_dn2: 1000
after_jump_flag_time2: 3000
expand_large_events: False
min_sat_area: 1
min_jump_area: 0
expand_factor: 0
use_ellipses: False
sat_required_snowball: False
min_sat_radius_extend: 0.0
sat_expand: 0
edge_size: 0
mask_snowball_core_next_int: True
snowball_time_masked_next_int: 4000
find_showers: True
max_shower_amplitude: 4.0
extend_snr_threshold: 3.0
extend_min_area: 50
extend_inner_radius: 1
extend_outer_radius: 2.6
extend_ellipse_expand_ratio: 1.1
time_masked_after_shower: 30
min_diffs_single_pass: 10
max_extended_radius: 200
minimum_groups: 3
minimum_sigclip_groups: 100
only_use_ints: True
clean_flicker_noise:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
fit_method: median
fit_by_channel: False
background_method: median
background_box_size: None
mask_science_regions: False
apply_flat_field: False
n_sigma: 2.0
fit_histogram: False
single_mask: True
user_mask: None
save_mask: False
save_background: False
save_noise: False
ramp_fit:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: OLS_C
int_name: ''
save_opt: False
opt_name: ''
suppress_one_group: True
firstgroup: None
lastgroup: None
maximum_cores: '1'
gain_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
2025-05-13 13:55:46,701 - stpipe.Detector1Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg002_mirimage_uncal.fits' reftypes = ['dark', 'emicorr', 'gain', 'linearity', 'mask', 'readnoise', 'refpix', 'reset', 'saturation', 'sirskernel', 'superbias']
2025-05-13 13:55:46,704 - stpipe.Detector1Pipeline - INFO - Prefetch for DARK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits'.
2025-05-13 13:55:46,705 - stpipe.Detector1Pipeline - INFO - Prefetch for EMICORR reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf'.
2025-05-13 13:55:46,706 - stpipe.Detector1Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 13:55:46,706 - stpipe.Detector1Pipeline - INFO - Prefetch for LINEARITY reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits'.
2025-05-13 13:55:46,707 - stpipe.Detector1Pipeline - INFO - Prefetch for MASK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits'.
2025-05-13 13:55:46,707 - stpipe.Detector1Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 13:55:46,708 - stpipe.Detector1Pipeline - INFO - Prefetch for REFPIX reference file is 'N/A'.
2025-05-13 13:55:46,708 - stpipe.Detector1Pipeline - INFO - Prefetch for RESET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits'.
2025-05-13 13:55:46,709 - stpipe.Detector1Pipeline - INFO - Prefetch for SATURATION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits'.
2025-05-13 13:55:46,709 - stpipe.Detector1Pipeline - INFO - Prefetch for SIRSKERNEL reference file is 'N/A'.
2025-05-13 13:55:46,710 - stpipe.Detector1Pipeline - INFO - Prefetch for SUPERBIAS reference file is 'N/A'.
2025-05-13 13:55:46,717 - stpipe.Detector1Pipeline - INFO - Starting calwebb_detector1 ...
2025-05-13 13:55:48,120 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:55:48,127 - stpipe.Detector1Pipeline.group_scale - INFO - NFRAMES and FRMDIVSR are equal; correction not needed
2025-05-13 13:55:48,127 - stpipe.Detector1Pipeline.group_scale - INFO - Step will be skipped
2025-05-13 13:55:48,129 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale done
2025-05-13 13:55:48,237 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:55:48,252 - stpipe.Detector1Pipeline.dq_init - INFO - Using MASK reference file /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits
2025-05-13 13:55:48,735 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:55:48,746 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:55:48,749 - stpipe.Detector1Pipeline.dq_init - INFO - Extracting mask subarray to match science data
2025-05-13 13:55:49,249 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init done
2025-05-13 13:55:49,373 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:55:49,843 - stpipe.Detector1Pipeline.emicorr - INFO - Using CRDS reference file: /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf
2025-05-13 13:55:49,860 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to get subarray case.
2025-05-13 13:55:49,860 - stpipe.Detector1Pipeline.emicorr - INFO - With configuration: Subarray=SUB256, Read_pattern=FASTR1, Detector=MIRIMAGE
2025-05-13 13:55:49,861 - stpipe.Detector1Pipeline.emicorr - INFO - Will correct data for the following 1 frequencies:
2025-05-13 13:55:49,861 - stpipe.Detector1Pipeline.emicorr - INFO - ['Hz10']
2025-05-13 13:55:49,861 - stpipe.Detector1Pipeline.emicorr - INFO - Running EMI fit with algorithm = 'sequential'.
2025-05-13 13:55:49,862 - stpipe.Detector1Pipeline.emicorr - INFO - Correcting for frequency: 10.039216 Hz (1 out of 1)
2025-05-13 13:55:49,862 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting self-superbias from each group of each integration
2025-05-13 13:55:49,863 - stpipe.Detector1Pipeline.emicorr - INFO - Doing phase calculation per integration
2025-05-13 13:56:27,496 - stpipe.Detector1Pipeline.emicorr - INFO - Calculating the phase amplitude for 500 bins
2025-05-13 13:56:28,000 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to measure phase shift
2025-05-13 13:56:28,036 - stpipe.Detector1Pipeline.emicorr - INFO - Creating phased-matched noise model to subtract from data
2025-05-13 13:56:28,702 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting EMI noise from data
2025-05-13 13:56:29,692 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr done
2025-05-13 13:56:29,819 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:29,835 - stpipe.Detector1Pipeline.saturation - INFO - Using SATURATION reference file /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits
2025-05-13 13:56:29,857 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:29,867 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:30,335 - stpipe.Detector1Pipeline.saturation - INFO - Extracting reference file subarray to match science data
2025-05-13 13:56:30,343 - stpipe.Detector1Pipeline.saturation - INFO - Using read_pattern with nframes 1
2025-05-13 13:56:34,824 - stpipe.Detector1Pipeline.saturation - INFO - Detected 9 saturated pixels
2025-05-13 13:56:34,954 - stpipe.Detector1Pipeline.saturation - INFO - Detected 2 A/D floor pixels
2025-05-13 13:56:34,958 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation done
2025-05-13 13:56:35,083 - stpipe.Detector1Pipeline.ipc - INFO - Step ipc running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:35,083 - stpipe.Detector1Pipeline.ipc - INFO - Step skipped.
2025-05-13 13:56:35,187 - stpipe.Detector1Pipeline.firstframe - INFO - Step firstframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:35,188 - stpipe.Detector1Pipeline.firstframe - INFO - Step skipped.
2025-05-13 13:56:35,280 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:35,756 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe done
2025-05-13 13:56:35,868 - stpipe.Detector1Pipeline.reset - INFO - Step reset running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:35,884 - stpipe.Detector1Pipeline.reset - INFO - Using RESET reference file /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits
2025-05-13 13:56:35,904 - stpipe.Detector1Pipeline.reset - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:35,906 - stpipe.Detector1Pipeline.reset - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:36,675 - stpipe.Detector1Pipeline.reset - INFO - Step reset done
2025-05-13 13:56:36,783 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:36,799 - stpipe.Detector1Pipeline.linearity - INFO - Using Linearity reference file /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits
2025-05-13 13:56:36,824 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:36,833 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 13:56:40,764 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity done
2025-05-13 13:56:40,874 - stpipe.Detector1Pipeline.rscd - INFO - Step rscd running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:40,875 - stpipe.Detector1Pipeline.rscd - INFO - Step skipped.
2025-05-13 13:56:40,962 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:40,979 - stpipe.Detector1Pipeline.dark_current - INFO - Using DARK reference file /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits
2025-05-13 13:56:41,504 - stpipe.Detector1Pipeline.dark_current - INFO - Using Poisson noise from average dark current 1.0 e-/sec
2025-05-13 13:56:41,505 - stpipe.Detector1Pipeline.dark_current - INFO - Science data nints=234, ngroups=39, nframes=1, groupgap=0
2025-05-13 13:56:41,505 - stpipe.Detector1Pipeline.dark_current - INFO - Dark data nints=2, ngroups=200, nframes=1, groupgap=0
2025-05-13 13:56:42,431 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current done
2025-05-13 13:56:42,540 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:43,008 - stpipe.Detector1Pipeline.refpix - WARNING - Refpix correction skipped for MIRI subarrays
2025-05-13 13:56:43,010 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix done
2025-05-13 13:56:43,121 - stpipe.Detector1Pipeline.charge_migration - INFO - Step charge_migration running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:43,122 - stpipe.Detector1Pipeline.charge_migration - INFO - Step skipped.
2025-05-13 13:56:43,217 - stpipe.Detector1Pipeline.jump - INFO - Step jump running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:56:43,224 - stpipe.Detector1Pipeline.jump - INFO - CR rejection threshold = 4 sigma
2025-05-13 13:56:43,224 - stpipe.Detector1Pipeline.jump - INFO - Maximum cores to use = half
2025-05-13 13:56:43,691 - stpipe.Detector1Pipeline.jump - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 13:56:43,700 - stpipe.Detector1Pipeline.jump - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 13:56:43,724 - stpipe.Detector1Pipeline.jump - INFO - Extracting gain subarray to match science data
2025-05-13 13:56:43,729 - stpipe.Detector1Pipeline.jump - INFO - Extracting readnoise subarray to match science data
2025-05-13 13:56:44,463 - stpipe.Detector1Pipeline.jump - INFO - Executing two-point difference method
2025-05-13 13:56:44,464 - stpipe.Detector1Pipeline.jump - INFO - Creating 4 processes for jump detection
2025-05-13 13:57:23,670 - stpipe.Detector1Pipeline.jump - INFO - Flagging Showers
2025-05-13 13:59:37,389 - stpipe.Detector1Pipeline.jump - INFO - Total showers= 0
2025-05-13 13:59:37,390 - stpipe.Detector1Pipeline.jump - INFO - Total elapsed time = 172.926 sec
2025-05-13 13:59:38,057 - stpipe.Detector1Pipeline.jump - INFO - The execution time in seconds: 174.833441
2025-05-13 13:59:38,062 - stpipe.Detector1Pipeline.jump - INFO - Step jump done
2025-05-13 13:59:38,185 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step clean_flicker_noise running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_uncal.fits>,).
2025-05-13 13:59:38,186 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step skipped.
2025-05-13 13:59:40,609 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage_ramp.fits
2025-05-13 13:59:40,709 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_ramp.fits>,).
2025-05-13 13:59:41,225 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 13:59:41,225 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 13:59:41,249 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting gain subarray to match science data
2025-05-13 13:59:41,254 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting readnoise subarray to match science data
2025-05-13 13:59:41,259 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using algorithm = OLS_C
2025-05-13 13:59:41,260 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using weighting = optimal
2025-05-13 13:59:45,698 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of multiprocessing slices: 1
2025-05-13 13:59:45,701 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of leading groups that are flagged as DO_NOT_USE: 0
2025-05-13 13:59:45,703 - stpipe.Detector1Pipeline.ramp_fit - INFO - MIRI dataset has all pixels in the final group flagged as DO_NOT_USE.
2025-05-13 14:00:40,350 - stpipe.Detector1Pipeline.ramp_fit - INFO - Ramp Fitting C Time: 54.64521861076355
2025-05-13 14:00:40,418 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit done
2025-05-13 14:00:40,531 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<ImageModel(256, 256) from jw03730013001_03101_00001-seg002_mirimage_ramp.fits>,).
2025-05-13 14:00:40,559 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:00:40,560 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:00:40,562 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:00:40,655 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_ramp.fits>,).
2025-05-13 14:00:40,681 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:00:40,682 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:00:40,684 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:00:40,960 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage_rateints.fits
2025-05-13 14:00:40,960 - stpipe.Detector1Pipeline - INFO - ... ending calwebb_detector1
2025-05-13 14:00:40,963 - stpipe.Detector1Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:00:41,022 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage_rate.fits
2025-05-13 14:00:41,022 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline done
2025-05-13 14:00:41,023 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:00:43,021 - stpipe - INFO - PARS-EMICORRSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf
2025-05-13 14:00:43,034 - stpipe - INFO - PARS-DARKCURRENTSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf
2025-05-13 14:00:43,044 - stpipe - INFO - PARS-JUMPSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf
2025-05-13 14:00:43,055 - stpipe - INFO - PARS-DETECTOR1PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf
2025-05-13 14:00:43,077 - stpipe.Detector1Pipeline - INFO - Detector1Pipeline instance created.
2025-05-13 14:00:43,078 - stpipe.Detector1Pipeline.group_scale - INFO - GroupScaleStep instance created.
2025-05-13 14:00:43,079 - stpipe.Detector1Pipeline.dq_init - INFO - DQInitStep instance created.
2025-05-13 14:00:43,080 - stpipe.Detector1Pipeline.emicorr - INFO - EmiCorrStep instance created.
2025-05-13 14:00:43,081 - stpipe.Detector1Pipeline.saturation - INFO - SaturationStep instance created.
2025-05-13 14:00:43,082 - stpipe.Detector1Pipeline.ipc - INFO - IPCStep instance created.
2025-05-13 14:00:43,083 - stpipe.Detector1Pipeline.superbias - INFO - SuperBiasStep instance created.
2025-05-13 14:00:43,084 - stpipe.Detector1Pipeline.refpix - INFO - RefPixStep instance created.
2025-05-13 14:00:43,085 - stpipe.Detector1Pipeline.rscd - INFO - RscdStep instance created.
2025-05-13 14:00:43,086 - stpipe.Detector1Pipeline.firstframe - INFO - FirstFrameStep instance created.
2025-05-13 14:00:43,086 - stpipe.Detector1Pipeline.lastframe - INFO - LastFrameStep instance created.
2025-05-13 14:00:43,087 - stpipe.Detector1Pipeline.linearity - INFO - LinearityStep instance created.
2025-05-13 14:00:43,088 - stpipe.Detector1Pipeline.dark_current - INFO - DarkCurrentStep instance created.
2025-05-13 14:00:43,089 - stpipe.Detector1Pipeline.reset - INFO - ResetStep instance created.
2025-05-13 14:00:43,090 - stpipe.Detector1Pipeline.persistence - INFO - PersistenceStep instance created.
2025-05-13 14:00:43,090 - stpipe.Detector1Pipeline.charge_migration - INFO - ChargeMigrationStep instance created.
2025-05-13 14:00:43,092 - stpipe.Detector1Pipeline.jump - INFO - JumpStep instance created.
2025-05-13 14:00:43,093 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - CleanFlickerNoiseStep instance created.
2025-05-13 14:00:43,094 - stpipe.Detector1Pipeline.ramp_fit - INFO - RampFitStep instance created.
2025-05-13 14:00:43,095 - stpipe.Detector1Pipeline.gain_scale - INFO - GainScaleStep instance created.
2025-05-13 14:00:43,211 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline running with args ('./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg003_mirimage_uncal.fits',).
2025-05-13 14:00:43,233 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage1
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_calibrated_ramp: True
steps:
group_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dq_init:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
emicorr:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: sequential
nints_to_phase: None
nbins: None
scale_reference: True
onthefly_corr_freq: None
use_n_cycles: 3
fit_ints_separately: False
user_supplied_reffile: None
save_intermediate_results: False
saturation:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
n_pix_grow_sat: 1
use_readpatt: True
ipc:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
superbias:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
refpix:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
odd_even_columns: True
use_side_ref_pixels: True
side_smoothing_length: 11
side_gain: 1.0
odd_even_rows: True
ovr_corr_mitigation_ftr: 3.0
preserve_irs2_refpix: False
irs2_mean_subtraction: False
refpix_algorithm: median
sigreject: 4.0
gaussmooth: 1.0
halfwidth: 30
rscd:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
type: baseline
firstframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
bright_use_group1: False
lastframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
linearity:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_current:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_output: None
average_dark_current: 1.0
reset:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
persistence:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
input_trapsfilled: ''
flag_pers_cutoff: 40.0
save_persistence: False
save_trapsfilled: True
modify_input: False
charge_migration:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
signal_threshold: 25000.0
jump:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
rejection_threshold: 4.0
three_group_rejection_threshold: 6.0
four_group_rejection_threshold: 5.0
maximum_cores: half
flag_4_neighbors: True
max_jump_to_flag_neighbors: 1000
min_jump_to_flag_neighbors: 30
after_jump_flag_dn1: 500
after_jump_flag_time1: 15
after_jump_flag_dn2: 1000
after_jump_flag_time2: 3000
expand_large_events: False
min_sat_area: 1
min_jump_area: 0
expand_factor: 0
use_ellipses: False
sat_required_snowball: False
min_sat_radius_extend: 0.0
sat_expand: 0
edge_size: 0
mask_snowball_core_next_int: True
snowball_time_masked_next_int: 4000
find_showers: True
max_shower_amplitude: 4.0
extend_snr_threshold: 3.0
extend_min_area: 50
extend_inner_radius: 1
extend_outer_radius: 2.6
extend_ellipse_expand_ratio: 1.1
time_masked_after_shower: 30
min_diffs_single_pass: 10
max_extended_radius: 200
minimum_groups: 3
minimum_sigclip_groups: 100
only_use_ints: True
clean_flicker_noise:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
fit_method: median
fit_by_channel: False
background_method: median
background_box_size: None
mask_science_regions: False
apply_flat_field: False
n_sigma: 2.0
fit_histogram: False
single_mask: True
user_mask: None
save_mask: False
save_background: False
save_noise: False
ramp_fit:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: OLS_C
int_name: ''
save_opt: False
opt_name: ''
suppress_one_group: True
firstgroup: None
lastgroup: None
maximum_cores: '1'
gain_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
2025-05-13 14:00:44,121 - stpipe.Detector1Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg003_mirimage_uncal.fits' reftypes = ['dark', 'emicorr', 'gain', 'linearity', 'mask', 'readnoise', 'refpix', 'reset', 'saturation', 'sirskernel', 'superbias']
2025-05-13 14:00:44,124 - stpipe.Detector1Pipeline - INFO - Prefetch for DARK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits'.
2025-05-13 14:00:44,125 - stpipe.Detector1Pipeline - INFO - Prefetch for EMICORR reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf'.
2025-05-13 14:00:44,125 - stpipe.Detector1Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 14:00:44,125 - stpipe.Detector1Pipeline - INFO - Prefetch for LINEARITY reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits'.
2025-05-13 14:00:44,126 - stpipe.Detector1Pipeline - INFO - Prefetch for MASK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits'.
2025-05-13 14:00:44,126 - stpipe.Detector1Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 14:00:44,127 - stpipe.Detector1Pipeline - INFO - Prefetch for REFPIX reference file is 'N/A'.
2025-05-13 14:00:44,127 - stpipe.Detector1Pipeline - INFO - Prefetch for RESET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits'.
2025-05-13 14:00:44,128 - stpipe.Detector1Pipeline - INFO - Prefetch for SATURATION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits'.
2025-05-13 14:00:44,128 - stpipe.Detector1Pipeline - INFO - Prefetch for SIRSKERNEL reference file is 'N/A'.
2025-05-13 14:00:44,128 - stpipe.Detector1Pipeline - INFO - Prefetch for SUPERBIAS reference file is 'N/A'.
2025-05-13 14:00:44,135 - stpipe.Detector1Pipeline - INFO - Starting calwebb_detector1 ...
2025-05-13 14:00:45,550 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:00:45,558 - stpipe.Detector1Pipeline.group_scale - INFO - NFRAMES and FRMDIVSR are equal; correction not needed
2025-05-13 14:00:45,558 - stpipe.Detector1Pipeline.group_scale - INFO - Step will be skipped
2025-05-13 14:00:45,560 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale done
2025-05-13 14:00:45,652 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:00:45,667 - stpipe.Detector1Pipeline.dq_init - INFO - Using MASK reference file /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits
2025-05-13 14:00:46,154 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:00:46,166 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:00:46,169 - stpipe.Detector1Pipeline.dq_init - INFO - Extracting mask subarray to match science data
2025-05-13 14:00:46,681 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init done
2025-05-13 14:00:46,797 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:00:47,281 - stpipe.Detector1Pipeline.emicorr - INFO - Using CRDS reference file: /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf
2025-05-13 14:00:47,298 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to get subarray case.
2025-05-13 14:00:47,298 - stpipe.Detector1Pipeline.emicorr - INFO - With configuration: Subarray=SUB256, Read_pattern=FASTR1, Detector=MIRIMAGE
2025-05-13 14:00:47,299 - stpipe.Detector1Pipeline.emicorr - INFO - Will correct data for the following 1 frequencies:
2025-05-13 14:00:47,299 - stpipe.Detector1Pipeline.emicorr - INFO - ['Hz10']
2025-05-13 14:00:47,299 - stpipe.Detector1Pipeline.emicorr - INFO - Running EMI fit with algorithm = 'sequential'.
2025-05-13 14:00:47,300 - stpipe.Detector1Pipeline.emicorr - INFO - Correcting for frequency: 10.039216 Hz (1 out of 1)
2025-05-13 14:00:47,301 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting self-superbias from each group of each integration
2025-05-13 14:00:47,301 - stpipe.Detector1Pipeline.emicorr - INFO - Doing phase calculation per integration
2025-05-13 14:01:22,533 - stpipe.Detector1Pipeline.emicorr - INFO - Calculating the phase amplitude for 500 bins
2025-05-13 14:01:23,037 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to measure phase shift
2025-05-13 14:01:23,073 - stpipe.Detector1Pipeline.emicorr - INFO - Creating phased-matched noise model to subtract from data
2025-05-13 14:01:23,743 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting EMI noise from data
2025-05-13 14:01:24,715 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr done
2025-05-13 14:01:24,828 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:24,844 - stpipe.Detector1Pipeline.saturation - INFO - Using SATURATION reference file /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits
2025-05-13 14:01:24,866 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:24,875 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:25,353 - stpipe.Detector1Pipeline.saturation - INFO - Extracting reference file subarray to match science data
2025-05-13 14:01:25,360 - stpipe.Detector1Pipeline.saturation - INFO - Using read_pattern with nframes 1
2025-05-13 14:01:29,832 - stpipe.Detector1Pipeline.saturation - INFO - Detected 0 saturated pixels
2025-05-13 14:01:29,970 - stpipe.Detector1Pipeline.saturation - INFO - Detected 3 A/D floor pixels
2025-05-13 14:01:29,973 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation done
2025-05-13 14:01:30,107 - stpipe.Detector1Pipeline.ipc - INFO - Step ipc running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:30,107 - stpipe.Detector1Pipeline.ipc - INFO - Step skipped.
2025-05-13 14:01:30,213 - stpipe.Detector1Pipeline.firstframe - INFO - Step firstframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:30,214 - stpipe.Detector1Pipeline.firstframe - INFO - Step skipped.
2025-05-13 14:01:30,303 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:30,792 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe done
2025-05-13 14:01:30,902 - stpipe.Detector1Pipeline.reset - INFO - Step reset running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:30,918 - stpipe.Detector1Pipeline.reset - INFO - Using RESET reference file /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits
2025-05-13 14:01:30,938 - stpipe.Detector1Pipeline.reset - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:30,940 - stpipe.Detector1Pipeline.reset - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:31,714 - stpipe.Detector1Pipeline.reset - INFO - Step reset done
2025-05-13 14:01:31,830 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:31,846 - stpipe.Detector1Pipeline.linearity - INFO - Using Linearity reference file /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits
2025-05-13 14:01:31,871 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:31,881 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:01:35,811 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity done
2025-05-13 14:01:35,928 - stpipe.Detector1Pipeline.rscd - INFO - Step rscd running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:35,928 - stpipe.Detector1Pipeline.rscd - INFO - Step skipped.
2025-05-13 14:01:36,016 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:36,033 - stpipe.Detector1Pipeline.dark_current - INFO - Using DARK reference file /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits
2025-05-13 14:01:36,566 - stpipe.Detector1Pipeline.dark_current - INFO - Using Poisson noise from average dark current 1.0 e-/sec
2025-05-13 14:01:36,567 - stpipe.Detector1Pipeline.dark_current - INFO - Science data nints=234, ngroups=39, nframes=1, groupgap=0
2025-05-13 14:01:36,567 - stpipe.Detector1Pipeline.dark_current - INFO - Dark data nints=2, ngroups=200, nframes=1, groupgap=0
2025-05-13 14:01:37,518 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current done
2025-05-13 14:01:37,632 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:38,115 - stpipe.Detector1Pipeline.refpix - WARNING - Refpix correction skipped for MIRI subarrays
2025-05-13 14:01:38,116 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix done
2025-05-13 14:01:38,234 - stpipe.Detector1Pipeline.charge_migration - INFO - Step charge_migration running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:38,235 - stpipe.Detector1Pipeline.charge_migration - INFO - Step skipped.
2025-05-13 14:01:38,323 - stpipe.Detector1Pipeline.jump - INFO - Step jump running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:01:38,331 - stpipe.Detector1Pipeline.jump - INFO - CR rejection threshold = 4 sigma
2025-05-13 14:01:38,332 - stpipe.Detector1Pipeline.jump - INFO - Maximum cores to use = half
2025-05-13 14:01:38,814 - stpipe.Detector1Pipeline.jump - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:01:38,824 - stpipe.Detector1Pipeline.jump - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:01:38,848 - stpipe.Detector1Pipeline.jump - INFO - Extracting gain subarray to match science data
2025-05-13 14:01:38,853 - stpipe.Detector1Pipeline.jump - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:01:39,607 - stpipe.Detector1Pipeline.jump - INFO - Executing two-point difference method
2025-05-13 14:01:39,608 - stpipe.Detector1Pipeline.jump - INFO - Creating 4 processes for jump detection
2025-05-13 14:02:19,169 - stpipe.Detector1Pipeline.jump - INFO - Flagging Showers
2025-05-13 14:04:36,005 - stpipe.Detector1Pipeline.jump - INFO - Total showers= 0
2025-05-13 14:04:36,005 - stpipe.Detector1Pipeline.jump - INFO - Total elapsed time = 176.397 sec
2025-05-13 14:04:36,684 - stpipe.Detector1Pipeline.jump - INFO - The execution time in seconds: 178.352535
2025-05-13 14:04:36,689 - stpipe.Detector1Pipeline.jump - INFO - Step jump done
2025-05-13 14:04:36,825 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step clean_flicker_noise running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_uncal.fits>,).
2025-05-13 14:04:36,826 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step skipped.
2025-05-13 14:04:39,259 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage_ramp.fits
2025-05-13 14:04:39,374 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_ramp.fits>,).
2025-05-13 14:04:39,868 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:04:39,869 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:04:39,893 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting gain subarray to match science data
2025-05-13 14:04:39,898 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:04:39,905 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using algorithm = OLS_C
2025-05-13 14:04:39,905 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using weighting = optimal
2025-05-13 14:04:44,366 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of multiprocessing slices: 1
2025-05-13 14:04:44,369 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of leading groups that are flagged as DO_NOT_USE: 0
2025-05-13 14:04:44,372 - stpipe.Detector1Pipeline.ramp_fit - INFO - MIRI dataset has all pixels in the final group flagged as DO_NOT_USE.
2025-05-13 14:05:38,791 - stpipe.Detector1Pipeline.ramp_fit - INFO - Ramp Fitting C Time: 54.4172477722168
2025-05-13 14:05:38,858 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit done
2025-05-13 14:05:38,970 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<ImageModel(256, 256) from jw03730013001_03101_00001-seg003_mirimage_ramp.fits>,).
2025-05-13 14:05:38,997 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:05:38,998 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:05:39,000 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:05:39,092 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_ramp.fits>,).
2025-05-13 14:05:39,120 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:05:39,120 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:05:39,122 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:05:39,397 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage_rateints.fits
2025-05-13 14:05:39,398 - stpipe.Detector1Pipeline - INFO - ... ending calwebb_detector1
2025-05-13 14:05:39,400 - stpipe.Detector1Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:05:39,459 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage_rate.fits
2025-05-13 14:05:39,459 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline done
2025-05-13 14:05:39,460 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:05:41,452 - stpipe - INFO - PARS-EMICORRSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf
2025-05-13 14:05:41,465 - stpipe - INFO - PARS-DARKCURRENTSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf
2025-05-13 14:05:41,475 - stpipe - INFO - PARS-JUMPSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf
2025-05-13 14:05:41,485 - stpipe - INFO - PARS-DETECTOR1PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf
2025-05-13 14:05:41,508 - stpipe.Detector1Pipeline - INFO - Detector1Pipeline instance created.
2025-05-13 14:05:41,509 - stpipe.Detector1Pipeline.group_scale - INFO - GroupScaleStep instance created.
2025-05-13 14:05:41,510 - stpipe.Detector1Pipeline.dq_init - INFO - DQInitStep instance created.
2025-05-13 14:05:41,511 - stpipe.Detector1Pipeline.emicorr - INFO - EmiCorrStep instance created.
2025-05-13 14:05:41,512 - stpipe.Detector1Pipeline.saturation - INFO - SaturationStep instance created.
2025-05-13 14:05:41,513 - stpipe.Detector1Pipeline.ipc - INFO - IPCStep instance created.
2025-05-13 14:05:41,514 - stpipe.Detector1Pipeline.superbias - INFO - SuperBiasStep instance created.
2025-05-13 14:05:41,515 - stpipe.Detector1Pipeline.refpix - INFO - RefPixStep instance created.
2025-05-13 14:05:41,515 - stpipe.Detector1Pipeline.rscd - INFO - RscdStep instance created.
2025-05-13 14:05:41,516 - stpipe.Detector1Pipeline.firstframe - INFO - FirstFrameStep instance created.
2025-05-13 14:05:41,517 - stpipe.Detector1Pipeline.lastframe - INFO - LastFrameStep instance created.
2025-05-13 14:05:41,517 - stpipe.Detector1Pipeline.linearity - INFO - LinearityStep instance created.
2025-05-13 14:05:41,518 - stpipe.Detector1Pipeline.dark_current - INFO - DarkCurrentStep instance created.
2025-05-13 14:05:41,519 - stpipe.Detector1Pipeline.reset - INFO - ResetStep instance created.
2025-05-13 14:05:41,520 - stpipe.Detector1Pipeline.persistence - INFO - PersistenceStep instance created.
2025-05-13 14:05:41,520 - stpipe.Detector1Pipeline.charge_migration - INFO - ChargeMigrationStep instance created.
2025-05-13 14:05:41,522 - stpipe.Detector1Pipeline.jump - INFO - JumpStep instance created.
2025-05-13 14:05:41,523 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - CleanFlickerNoiseStep instance created.
2025-05-13 14:05:41,524 - stpipe.Detector1Pipeline.ramp_fit - INFO - RampFitStep instance created.
2025-05-13 14:05:41,524 - stpipe.Detector1Pipeline.gain_scale - INFO - GainScaleStep instance created.
2025-05-13 14:05:41,626 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline running with args ('./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg004_mirimage_uncal.fits',).
2025-05-13 14:05:41,647 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage1
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_calibrated_ramp: True
steps:
group_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dq_init:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
emicorr:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: sequential
nints_to_phase: None
nbins: None
scale_reference: True
onthefly_corr_freq: None
use_n_cycles: 3
fit_ints_separately: False
user_supplied_reffile: None
save_intermediate_results: False
saturation:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
n_pix_grow_sat: 1
use_readpatt: True
ipc:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
superbias:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
refpix:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
odd_even_columns: True
use_side_ref_pixels: True
side_smoothing_length: 11
side_gain: 1.0
odd_even_rows: True
ovr_corr_mitigation_ftr: 3.0
preserve_irs2_refpix: False
irs2_mean_subtraction: False
refpix_algorithm: median
sigreject: 4.0
gaussmooth: 1.0
halfwidth: 30
rscd:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
type: baseline
firstframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
bright_use_group1: False
lastframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
linearity:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_current:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_output: None
average_dark_current: 1.0
reset:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
persistence:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
input_trapsfilled: ''
flag_pers_cutoff: 40.0
save_persistence: False
save_trapsfilled: True
modify_input: False
charge_migration:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
signal_threshold: 25000.0
jump:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
rejection_threshold: 4.0
three_group_rejection_threshold: 6.0
four_group_rejection_threshold: 5.0
maximum_cores: half
flag_4_neighbors: True
max_jump_to_flag_neighbors: 1000
min_jump_to_flag_neighbors: 30
after_jump_flag_dn1: 500
after_jump_flag_time1: 15
after_jump_flag_dn2: 1000
after_jump_flag_time2: 3000
expand_large_events: False
min_sat_area: 1
min_jump_area: 0
expand_factor: 0
use_ellipses: False
sat_required_snowball: False
min_sat_radius_extend: 0.0
sat_expand: 0
edge_size: 0
mask_snowball_core_next_int: True
snowball_time_masked_next_int: 4000
find_showers: True
max_shower_amplitude: 4.0
extend_snr_threshold: 3.0
extend_min_area: 50
extend_inner_radius: 1
extend_outer_radius: 2.6
extend_ellipse_expand_ratio: 1.1
time_masked_after_shower: 30
min_diffs_single_pass: 10
max_extended_radius: 200
minimum_groups: 3
minimum_sigclip_groups: 100
only_use_ints: True
clean_flicker_noise:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
fit_method: median
fit_by_channel: False
background_method: median
background_box_size: None
mask_science_regions: False
apply_flat_field: False
n_sigma: 2.0
fit_histogram: False
single_mask: True
user_mask: None
save_mask: False
save_background: False
save_noise: False
ramp_fit:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: OLS_C
int_name: ''
save_opt: False
opt_name: ''
suppress_one_group: True
firstgroup: None
lastgroup: None
maximum_cores: '1'
gain_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
2025-05-13 14:05:42,539 - stpipe.Detector1Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg004_mirimage_uncal.fits' reftypes = ['dark', 'emicorr', 'gain', 'linearity', 'mask', 'readnoise', 'refpix', 'reset', 'saturation', 'sirskernel', 'superbias']
2025-05-13 14:05:42,542 - stpipe.Detector1Pipeline - INFO - Prefetch for DARK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits'.
2025-05-13 14:05:42,543 - stpipe.Detector1Pipeline - INFO - Prefetch for EMICORR reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf'.
2025-05-13 14:05:42,543 - stpipe.Detector1Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 14:05:42,544 - stpipe.Detector1Pipeline - INFO - Prefetch for LINEARITY reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits'.
2025-05-13 14:05:42,544 - stpipe.Detector1Pipeline - INFO - Prefetch for MASK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits'.
2025-05-13 14:05:42,544 - stpipe.Detector1Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 14:05:42,545 - stpipe.Detector1Pipeline - INFO - Prefetch for REFPIX reference file is 'N/A'.
2025-05-13 14:05:42,545 - stpipe.Detector1Pipeline - INFO - Prefetch for RESET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits'.
2025-05-13 14:05:42,546 - stpipe.Detector1Pipeline - INFO - Prefetch for SATURATION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits'.
2025-05-13 14:05:42,546 - stpipe.Detector1Pipeline - INFO - Prefetch for SIRSKERNEL reference file is 'N/A'.
2025-05-13 14:05:42,546 - stpipe.Detector1Pipeline - INFO - Prefetch for SUPERBIAS reference file is 'N/A'.
2025-05-13 14:05:42,553 - stpipe.Detector1Pipeline - INFO - Starting calwebb_detector1 ...
2025-05-13 14:05:43,985 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:05:43,992 - stpipe.Detector1Pipeline.group_scale - INFO - NFRAMES and FRMDIVSR are equal; correction not needed
2025-05-13 14:05:43,992 - stpipe.Detector1Pipeline.group_scale - INFO - Step will be skipped
2025-05-13 14:05:43,994 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale done
2025-05-13 14:05:44,106 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:05:44,120 - stpipe.Detector1Pipeline.dq_init - INFO - Using MASK reference file /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits
2025-05-13 14:05:44,617 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:05:44,628 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:05:44,632 - stpipe.Detector1Pipeline.dq_init - INFO - Extracting mask subarray to match science data
2025-05-13 14:05:45,141 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init done
2025-05-13 14:05:45,257 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:05:45,741 - stpipe.Detector1Pipeline.emicorr - INFO - Using CRDS reference file: /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf
2025-05-13 14:05:45,758 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to get subarray case.
2025-05-13 14:05:45,758 - stpipe.Detector1Pipeline.emicorr - INFO - With configuration: Subarray=SUB256, Read_pattern=FASTR1, Detector=MIRIMAGE
2025-05-13 14:05:45,759 - stpipe.Detector1Pipeline.emicorr - INFO - Will correct data for the following 1 frequencies:
2025-05-13 14:05:45,759 - stpipe.Detector1Pipeline.emicorr - INFO - ['Hz10']
2025-05-13 14:05:45,760 - stpipe.Detector1Pipeline.emicorr - INFO - Running EMI fit with algorithm = 'sequential'.
2025-05-13 14:05:45,760 - stpipe.Detector1Pipeline.emicorr - INFO - Correcting for frequency: 10.039216 Hz (1 out of 1)
2025-05-13 14:05:45,761 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting self-superbias from each group of each integration
2025-05-13 14:05:45,761 - stpipe.Detector1Pipeline.emicorr - INFO - Doing phase calculation per integration
2025-05-13 14:06:21,080 - stpipe.Detector1Pipeline.emicorr - INFO - Calculating the phase amplitude for 500 bins
2025-05-13 14:06:21,580 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to measure phase shift
2025-05-13 14:06:21,616 - stpipe.Detector1Pipeline.emicorr - INFO - Creating phased-matched noise model to subtract from data
2025-05-13 14:06:22,300 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting EMI noise from data
2025-05-13 14:06:23,261 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr done
2025-05-13 14:06:23,378 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:23,394 - stpipe.Detector1Pipeline.saturation - INFO - Using SATURATION reference file /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits
2025-05-13 14:06:23,421 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:23,430 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:23,931 - stpipe.Detector1Pipeline.saturation - INFO - Extracting reference file subarray to match science data
2025-05-13 14:06:23,938 - stpipe.Detector1Pipeline.saturation - INFO - Using read_pattern with nframes 1
2025-05-13 14:06:28,391 - stpipe.Detector1Pipeline.saturation - INFO - Detected 0 saturated pixels
2025-05-13 14:06:28,527 - stpipe.Detector1Pipeline.saturation - INFO - Detected 2 A/D floor pixels
2025-05-13 14:06:28,530 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation done
2025-05-13 14:06:28,650 - stpipe.Detector1Pipeline.ipc - INFO - Step ipc running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:28,651 - stpipe.Detector1Pipeline.ipc - INFO - Step skipped.
2025-05-13 14:06:28,749 - stpipe.Detector1Pipeline.firstframe - INFO - Step firstframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:28,750 - stpipe.Detector1Pipeline.firstframe - INFO - Step skipped.
2025-05-13 14:06:28,841 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:29,344 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe done
2025-05-13 14:06:29,458 - stpipe.Detector1Pipeline.reset - INFO - Step reset running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:29,475 - stpipe.Detector1Pipeline.reset - INFO - Using RESET reference file /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits
2025-05-13 14:06:29,501 - stpipe.Detector1Pipeline.reset - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:29,503 - stpipe.Detector1Pipeline.reset - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:30,299 - stpipe.Detector1Pipeline.reset - INFO - Step reset done
2025-05-13 14:06:30,425 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:30,441 - stpipe.Detector1Pipeline.linearity - INFO - Using Linearity reference file /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits
2025-05-13 14:06:30,480 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:30,489 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:06:34,450 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity done
2025-05-13 14:06:34,577 - stpipe.Detector1Pipeline.rscd - INFO - Step rscd running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:34,577 - stpipe.Detector1Pipeline.rscd - INFO - Step skipped.
2025-05-13 14:06:34,690 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:34,708 - stpipe.Detector1Pipeline.dark_current - INFO - Using DARK reference file /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits
2025-05-13 14:06:35,342 - stpipe.Detector1Pipeline.dark_current - INFO - Using Poisson noise from average dark current 1.0 e-/sec
2025-05-13 14:06:35,343 - stpipe.Detector1Pipeline.dark_current - INFO - Science data nints=234, ngroups=39, nframes=1, groupgap=0
2025-05-13 14:06:35,343 - stpipe.Detector1Pipeline.dark_current - INFO - Dark data nints=2, ngroups=200, nframes=1, groupgap=0
2025-05-13 14:06:36,338 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current done
2025-05-13 14:06:36,457 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:36,968 - stpipe.Detector1Pipeline.refpix - WARNING - Refpix correction skipped for MIRI subarrays
2025-05-13 14:06:36,970 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix done
2025-05-13 14:06:37,096 - stpipe.Detector1Pipeline.charge_migration - INFO - Step charge_migration running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:37,097 - stpipe.Detector1Pipeline.charge_migration - INFO - Step skipped.
2025-05-13 14:06:37,195 - stpipe.Detector1Pipeline.jump - INFO - Step jump running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:06:37,206 - stpipe.Detector1Pipeline.jump - INFO - CR rejection threshold = 4 sigma
2025-05-13 14:06:37,206 - stpipe.Detector1Pipeline.jump - INFO - Maximum cores to use = half
2025-05-13 14:06:37,741 - stpipe.Detector1Pipeline.jump - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:06:37,751 - stpipe.Detector1Pipeline.jump - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:06:37,775 - stpipe.Detector1Pipeline.jump - INFO - Extracting gain subarray to match science data
2025-05-13 14:06:37,780 - stpipe.Detector1Pipeline.jump - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:06:38,542 - stpipe.Detector1Pipeline.jump - INFO - Executing two-point difference method
2025-05-13 14:06:38,542 - stpipe.Detector1Pipeline.jump - INFO - Creating 4 processes for jump detection
2025-05-13 14:07:18,080 - stpipe.Detector1Pipeline.jump - INFO - Flagging Showers
2025-05-13 14:09:32,625 - stpipe.Detector1Pipeline.jump - INFO - Total showers= 0
2025-05-13 14:09:32,626 - stpipe.Detector1Pipeline.jump - INFO - Total elapsed time = 174.084 sec
2025-05-13 14:09:33,298 - stpipe.Detector1Pipeline.jump - INFO - The execution time in seconds: 176.092490
2025-05-13 14:09:33,303 - stpipe.Detector1Pipeline.jump - INFO - Step jump done
2025-05-13 14:09:33,421 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step clean_flicker_noise running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_uncal.fits>,).
2025-05-13 14:09:33,422 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step skipped.
2025-05-13 14:09:35,842 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage_ramp.fits
2025-05-13 14:09:35,959 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit running with args (<RampModel(234, 39, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_ramp.fits>,).
2025-05-13 14:09:36,455 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:09:36,455 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:09:36,487 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting gain subarray to match science data
2025-05-13 14:09:36,492 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:09:36,497 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using algorithm = OLS_C
2025-05-13 14:09:36,497 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using weighting = optimal
2025-05-13 14:09:40,902 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of multiprocessing slices: 1
2025-05-13 14:09:40,905 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of leading groups that are flagged as DO_NOT_USE: 0
2025-05-13 14:09:40,907 - stpipe.Detector1Pipeline.ramp_fit - INFO - MIRI dataset has all pixels in the final group flagged as DO_NOT_USE.
2025-05-13 14:10:35,451 - stpipe.Detector1Pipeline.ramp_fit - INFO - Ramp Fitting C Time: 54.54133677482605
2025-05-13 14:10:35,517 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit done
2025-05-13 14:10:35,636 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<ImageModel(256, 256) from jw03730013001_03101_00001-seg004_mirimage_ramp.fits>,).
2025-05-13 14:10:35,664 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:10:35,664 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:10:35,667 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:10:35,777 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_ramp.fits>,).
2025-05-13 14:10:35,805 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:10:35,805 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:10:35,807 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:10:36,085 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage_rateints.fits
2025-05-13 14:10:36,086 - stpipe.Detector1Pipeline - INFO - ... ending calwebb_detector1
2025-05-13 14:10:36,089 - stpipe.Detector1Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:10:36,148 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage_rate.fits
2025-05-13 14:10:36,149 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline done
2025-05-13 14:10:36,149 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:10:36,361 - stpipe - INFO - PARS-EMICORRSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-emicorrstep_0003.asdf
2025-05-13 14:10:36,374 - stpipe - INFO - PARS-DARKCURRENTSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-darkcurrentstep_0001.asdf
2025-05-13 14:10:36,383 - stpipe - INFO - PARS-JUMPSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-jumpstep_0005.asdf
2025-05-13 14:10:36,393 - stpipe - INFO - PARS-DETECTOR1PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-detector1pipeline_0006.asdf
2025-05-13 14:10:36,411 - stpipe.Detector1Pipeline - INFO - Detector1Pipeline instance created.
2025-05-13 14:10:36,412 - stpipe.Detector1Pipeline.group_scale - INFO - GroupScaleStep instance created.
2025-05-13 14:10:36,413 - stpipe.Detector1Pipeline.dq_init - INFO - DQInitStep instance created.
2025-05-13 14:10:36,414 - stpipe.Detector1Pipeline.emicorr - INFO - EmiCorrStep instance created.
2025-05-13 14:10:36,415 - stpipe.Detector1Pipeline.saturation - INFO - SaturationStep instance created.
2025-05-13 14:10:36,415 - stpipe.Detector1Pipeline.ipc - INFO - IPCStep instance created.
2025-05-13 14:10:36,416 - stpipe.Detector1Pipeline.superbias - INFO - SuperBiasStep instance created.
2025-05-13 14:10:36,417 - stpipe.Detector1Pipeline.refpix - INFO - RefPixStep instance created.
2025-05-13 14:10:36,418 - stpipe.Detector1Pipeline.rscd - INFO - RscdStep instance created.
2025-05-13 14:10:36,419 - stpipe.Detector1Pipeline.firstframe - INFO - FirstFrameStep instance created.
2025-05-13 14:10:36,419 - stpipe.Detector1Pipeline.lastframe - INFO - LastFrameStep instance created.
2025-05-13 14:10:36,420 - stpipe.Detector1Pipeline.linearity - INFO - LinearityStep instance created.
2025-05-13 14:10:36,421 - stpipe.Detector1Pipeline.dark_current - INFO - DarkCurrentStep instance created.
2025-05-13 14:10:36,421 - stpipe.Detector1Pipeline.reset - INFO - ResetStep instance created.
2025-05-13 14:10:36,422 - stpipe.Detector1Pipeline.persistence - INFO - PersistenceStep instance created.
2025-05-13 14:10:36,423 - stpipe.Detector1Pipeline.charge_migration - INFO - ChargeMigrationStep instance created.
2025-05-13 14:10:36,425 - stpipe.Detector1Pipeline.jump - INFO - JumpStep instance created.
2025-05-13 14:10:36,426 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - CleanFlickerNoiseStep instance created.
2025-05-13 14:10:36,427 - stpipe.Detector1Pipeline.ramp_fit - INFO - RampFitStep instance created.
2025-05-13 14:10:36,428 - stpipe.Detector1Pipeline.gain_scale - INFO - GainScaleStep instance created.
2025-05-13 14:10:36,536 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline running with args ('./imaging_demo_data/PID03730Obs013/uncal/jw03730013001_03101_00001-seg005_mirimage_uncal.fits',).
2025-05-13 14:10:36,557 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage1
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_calibrated_ramp: True
steps:
group_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dq_init:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
emicorr:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: sequential
nints_to_phase: None
nbins: None
scale_reference: True
onthefly_corr_freq: None
use_n_cycles: 3
fit_ints_separately: False
user_supplied_reffile: None
save_intermediate_results: False
saturation:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
n_pix_grow_sat: 1
use_readpatt: True
ipc:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
superbias:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
refpix:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
odd_even_columns: True
use_side_ref_pixels: True
side_smoothing_length: 11
side_gain: 1.0
odd_even_rows: True
ovr_corr_mitigation_ftr: 3.0
preserve_irs2_refpix: False
irs2_mean_subtraction: False
refpix_algorithm: median
sigreject: 4.0
gaussmooth: 1.0
halfwidth: 30
rscd:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
type: baseline
firstframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
bright_use_group1: False
lastframe:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
linearity:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_current:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
dark_output: None
average_dark_current: 1.0
reset:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
persistence:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
input_trapsfilled: ''
flag_pers_cutoff: 40.0
save_persistence: False
save_trapsfilled: True
modify_input: False
charge_migration:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
signal_threshold: 25000.0
jump:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
rejection_threshold: 4.0
three_group_rejection_threshold: 6.0
four_group_rejection_threshold: 5.0
maximum_cores: half
flag_4_neighbors: True
max_jump_to_flag_neighbors: 1000
min_jump_to_flag_neighbors: 30
after_jump_flag_dn1: 500
after_jump_flag_time1: 15
after_jump_flag_dn2: 1000
after_jump_flag_time2: 3000
expand_large_events: False
min_sat_area: 1
min_jump_area: 0
expand_factor: 0
use_ellipses: False
sat_required_snowball: False
min_sat_radius_extend: 0.0
sat_expand: 0
edge_size: 0
mask_snowball_core_next_int: True
snowball_time_masked_next_int: 4000
find_showers: True
max_shower_amplitude: 4.0
extend_snr_threshold: 3.0
extend_min_area: 50
extend_inner_radius: 1
extend_outer_radius: 2.6
extend_ellipse_expand_ratio: 1.1
time_masked_after_shower: 30
min_diffs_single_pass: 10
max_extended_radius: 200
minimum_groups: 3
minimum_sigclip_groups: 100
only_use_ints: True
clean_flicker_noise:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
fit_method: median
fit_by_channel: False
background_method: median
background_box_size: None
mask_science_regions: False
apply_flat_field: False
n_sigma: 2.0
fit_histogram: False
single_mask: True
user_mask: None
save_mask: False
save_background: False
save_noise: False
ramp_fit:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
algorithm: OLS_C
int_name: ''
save_opt: False
opt_name: ''
suppress_one_group: True
firstgroup: None
lastgroup: None
maximum_cores: '1'
gain_scale:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
2025-05-13 14:10:36,709 - stpipe.Detector1Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg005_mirimage_uncal.fits' reftypes = ['dark', 'emicorr', 'gain', 'linearity', 'mask', 'readnoise', 'refpix', 'reset', 'saturation', 'sirskernel', 'superbias']
2025-05-13 14:10:36,713 - stpipe.Detector1Pipeline - INFO - Prefetch for DARK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits'.
2025-05-13 14:10:36,713 - stpipe.Detector1Pipeline - INFO - Prefetch for EMICORR reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf'.
2025-05-13 14:10:36,713 - stpipe.Detector1Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 14:10:36,714 - stpipe.Detector1Pipeline - INFO - Prefetch for LINEARITY reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits'.
2025-05-13 14:10:36,714 - stpipe.Detector1Pipeline - INFO - Prefetch for MASK reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits'.
2025-05-13 14:10:36,715 - stpipe.Detector1Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 14:10:36,715 - stpipe.Detector1Pipeline - INFO - Prefetch for REFPIX reference file is 'N/A'.
2025-05-13 14:10:36,715 - stpipe.Detector1Pipeline - INFO - Prefetch for RESET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits'.
2025-05-13 14:10:36,716 - stpipe.Detector1Pipeline - INFO - Prefetch for SATURATION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits'.
2025-05-13 14:10:36,716 - stpipe.Detector1Pipeline - INFO - Prefetch for SIRSKERNEL reference file is 'N/A'.
2025-05-13 14:10:36,716 - stpipe.Detector1Pipeline - INFO - Prefetch for SUPERBIAS reference file is 'N/A'.
2025-05-13 14:10:36,718 - stpipe.Detector1Pipeline - INFO - Starting calwebb_detector1 ...
2025-05-13 14:10:37,067 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:37,075 - stpipe.Detector1Pipeline.group_scale - INFO - NFRAMES and FRMDIVSR are equal; correction not needed
2025-05-13 14:10:37,075 - stpipe.Detector1Pipeline.group_scale - INFO - Step will be skipped
2025-05-13 14:10:37,077 - stpipe.Detector1Pipeline.group_scale - INFO - Step group_scale done
2025-05-13 14:10:37,187 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:37,202 - stpipe.Detector1Pipeline.dq_init - INFO - Using MASK reference file /home/runner/crds/references/jwst/miri/jwst_miri_mask_0036.fits
2025-05-13 14:10:37,291 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:37,301 - stpipe.Detector1Pipeline.dq_init - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:37,304 - stpipe.Detector1Pipeline.dq_init - INFO - Extracting mask subarray to match science data
2025-05-13 14:10:37,377 - stpipe.Detector1Pipeline.dq_init - INFO - Step dq_init done
2025-05-13 14:10:37,484 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:37,566 - stpipe.Detector1Pipeline.emicorr - INFO - Using CRDS reference file: /home/runner/crds/references/jwst/miri/jwst_miri_emicorr_0002.asdf
2025-05-13 14:10:37,583 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to get subarray case.
2025-05-13 14:10:37,583 - stpipe.Detector1Pipeline.emicorr - INFO - With configuration: Subarray=SUB256, Read_pattern=FASTR1, Detector=MIRIMAGE
2025-05-13 14:10:37,583 - stpipe.Detector1Pipeline.emicorr - INFO - Will correct data for the following 1 frequencies:
2025-05-13 14:10:37,584 - stpipe.Detector1Pipeline.emicorr - INFO - ['Hz10']
2025-05-13 14:10:37,584 - stpipe.Detector1Pipeline.emicorr - INFO - Running EMI fit with algorithm = 'sequential'.
2025-05-13 14:10:37,585 - stpipe.Detector1Pipeline.emicorr - INFO - Correcting for frequency: 10.039216 Hz (1 out of 1)
2025-05-13 14:10:37,585 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting self-superbias from each group of each integration
2025-05-13 14:10:37,586 - stpipe.Detector1Pipeline.emicorr - INFO - Doing phase calculation per integration
2025-05-13 14:10:41,885 - stpipe.Detector1Pipeline.emicorr - INFO - Calculating the phase amplitude for 500 bins
2025-05-13 14:10:42,373 - stpipe.Detector1Pipeline.emicorr - INFO - Using reference file to measure phase shift
2025-05-13 14:10:42,410 - stpipe.Detector1Pipeline.emicorr - INFO - Creating phased-matched noise model to subtract from data
2025-05-13 14:10:42,491 - stpipe.Detector1Pipeline.emicorr - INFO - Subtracting EMI noise from data
2025-05-13 14:10:42,614 - stpipe.Detector1Pipeline.emicorr - INFO - Step emicorr done
2025-05-13 14:10:42,720 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:42,735 - stpipe.Detector1Pipeline.saturation - INFO - Using SATURATION reference file /home/runner/crds/references/jwst/miri/jwst_miri_saturation_0034.fits
2025-05-13 14:10:42,758 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:42,767 - stpipe.Detector1Pipeline.saturation - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:42,833 - stpipe.Detector1Pipeline.saturation - INFO - Extracting reference file subarray to match science data
2025-05-13 14:10:42,840 - stpipe.Detector1Pipeline.saturation - INFO - Using read_pattern with nframes 1
2025-05-13 14:10:43,379 - stpipe.Detector1Pipeline.saturation - INFO - Detected 0 saturated pixels
2025-05-13 14:10:43,398 - stpipe.Detector1Pipeline.saturation - INFO - Detected 0 A/D floor pixels
2025-05-13 14:10:43,401 - stpipe.Detector1Pipeline.saturation - INFO - Step saturation done
2025-05-13 14:10:43,506 - stpipe.Detector1Pipeline.ipc - INFO - Step ipc running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:43,507 - stpipe.Detector1Pipeline.ipc - INFO - Step skipped.
2025-05-13 14:10:43,605 - stpipe.Detector1Pipeline.firstframe - INFO - Step firstframe running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:43,606 - stpipe.Detector1Pipeline.firstframe - INFO - Step skipped.
2025-05-13 14:10:43,704 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:43,781 - stpipe.Detector1Pipeline.lastframe - INFO - Step lastframe done
2025-05-13 14:10:43,890 - stpipe.Detector1Pipeline.reset - INFO - Step reset running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:43,906 - stpipe.Detector1Pipeline.reset - INFO - Using RESET reference file /home/runner/crds/references/jwst/miri/jwst_miri_reset_0055.fits
2025-05-13 14:10:43,926 - stpipe.Detector1Pipeline.reset - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:43,929 - stpipe.Detector1Pipeline.reset - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:44,034 - stpipe.Detector1Pipeline.reset - INFO - Step reset done
2025-05-13 14:10:44,145 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:44,162 - stpipe.Detector1Pipeline.linearity - INFO - Using Linearity reference file /home/runner/crds/references/jwst/miri/jwst_miri_linearity_0039.fits
2025-05-13 14:10:44,187 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword RESERVED_4 does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:44,197 - stpipe.Detector1Pipeline.linearity - WARNING - Keyword UNRELIABLE_RESET does not correspond to an existing DQ mnemonic, so will be ignored
2025-05-13 14:10:44,691 - stpipe.Detector1Pipeline.linearity - INFO - Step linearity done
2025-05-13 14:10:44,802 - stpipe.Detector1Pipeline.rscd - INFO - Step rscd running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:44,803 - stpipe.Detector1Pipeline.rscd - INFO - Step skipped.
2025-05-13 14:10:44,905 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:44,922 - stpipe.Detector1Pipeline.dark_current - INFO - Using DARK reference file /home/runner/crds/references/jwst/miri/jwst_miri_dark_0104.fits
2025-05-13 14:10:45,050 - stpipe.Detector1Pipeline.dark_current - INFO - Using Poisson noise from average dark current 1.0 e-/sec
2025-05-13 14:10:45,051 - stpipe.Detector1Pipeline.dark_current - INFO - Science data nints=28, ngroups=39, nframes=1, groupgap=0
2025-05-13 14:10:45,051 - stpipe.Detector1Pipeline.dark_current - INFO - Dark data nints=2, ngroups=200, nframes=1, groupgap=0
2025-05-13 14:10:45,187 - stpipe.Detector1Pipeline.dark_current - INFO - Step dark_current done
2025-05-13 14:10:45,296 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:45,368 - stpipe.Detector1Pipeline.refpix - WARNING - Refpix correction skipped for MIRI subarrays
2025-05-13 14:10:45,370 - stpipe.Detector1Pipeline.refpix - INFO - Step refpix done
2025-05-13 14:10:45,487 - stpipe.Detector1Pipeline.charge_migration - INFO - Step charge_migration running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:45,487 - stpipe.Detector1Pipeline.charge_migration - INFO - Step skipped.
2025-05-13 14:10:45,588 - stpipe.Detector1Pipeline.jump - INFO - Step jump running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:45,596 - stpipe.Detector1Pipeline.jump - INFO - CR rejection threshold = 4 sigma
2025-05-13 14:10:45,596 - stpipe.Detector1Pipeline.jump - INFO - Maximum cores to use = half
2025-05-13 14:10:45,671 - stpipe.Detector1Pipeline.jump - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:10:45,679 - stpipe.Detector1Pipeline.jump - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:10:45,703 - stpipe.Detector1Pipeline.jump - INFO - Extracting gain subarray to match science data
2025-05-13 14:10:45,708 - stpipe.Detector1Pipeline.jump - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:10:45,805 - stpipe.Detector1Pipeline.jump - INFO - Executing two-point difference method
2025-05-13 14:10:45,805 - stpipe.Detector1Pipeline.jump - INFO - Creating 4 processes for jump detection
2025-05-13 14:10:50,912 - stpipe.Detector1Pipeline.jump - INFO - Flagging Showers
2025-05-13 14:10:59,612 - stpipe.Detector1Pipeline.jump - INFO - Total showers= 0
2025-05-13 14:10:59,613 - stpipe.Detector1Pipeline.jump - INFO - Total elapsed time = 13.8078 sec
2025-05-13 14:10:59,697 - stpipe.Detector1Pipeline.jump - INFO - The execution time in seconds: 14.100971
2025-05-13 14:10:59,701 - stpipe.Detector1Pipeline.jump - INFO - Step jump done
2025-05-13 14:10:59,811 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step clean_flicker_noise running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_uncal.fits>,).
2025-05-13 14:10:59,812 - stpipe.Detector1Pipeline.clean_flicker_noise - INFO - Step skipped.
2025-05-13 14:11:00,161 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage_ramp.fits
2025-05-13 14:11:00,267 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit running with args (<RampModel(28, 39, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_ramp.fits>,).
2025-05-13 14:11:00,360 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using READNOISE reference file: /home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits
2025-05-13 14:11:00,361 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using GAIN reference file: /home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits
2025-05-13 14:11:00,387 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting gain subarray to match science data
2025-05-13 14:11:00,393 - stpipe.Detector1Pipeline.ramp_fit - INFO - Extracting readnoise subarray to match science data
2025-05-13 14:11:00,398 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using algorithm = OLS_C
2025-05-13 14:11:00,398 - stpipe.Detector1Pipeline.ramp_fit - INFO - Using weighting = optimal
2025-05-13 14:11:00,950 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of multiprocessing slices: 1
2025-05-13 14:11:00,951 - stpipe.Detector1Pipeline.ramp_fit - INFO - Number of leading groups that are flagged as DO_NOT_USE: 0
2025-05-13 14:11:00,952 - stpipe.Detector1Pipeline.ramp_fit - INFO - MIRI dataset has all pixels in the final group flagged as DO_NOT_USE.
2025-05-13 14:11:07,432 - stpipe.Detector1Pipeline.ramp_fit - INFO - Ramp Fitting C Time: 6.479647874832153
2025-05-13 14:11:07,477 - stpipe.Detector1Pipeline.ramp_fit - INFO - Step ramp_fit done
2025-05-13 14:11:07,581 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<ImageModel(256, 256) from jw03730013001_03101_00001-seg005_mirimage_ramp.fits>,).
2025-05-13 14:11:07,607 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:11:07,608 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:11:07,610 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:11:07,702 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale running with args (<CubeModel(28, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_ramp.fits>,).
2025-05-13 14:11:07,730 - stpipe.Detector1Pipeline.gain_scale - INFO - GAINFACT not found in gain reference file
2025-05-13 14:11:07,730 - stpipe.Detector1Pipeline.gain_scale - INFO - Step will be skipped
2025-05-13 14:11:07,732 - stpipe.Detector1Pipeline.gain_scale - INFO - Step gain_scale done
2025-05-13 14:11:07,810 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage_rateints.fits
2025-05-13 14:11:07,811 - stpipe.Detector1Pipeline - INFO - ... ending calwebb_detector1
2025-05-13 14:11:07,812 - stpipe.Detector1Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:07,863 - stpipe.Detector1Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage_rate.fits
2025-05-13 14:11:07,863 - stpipe.Detector1Pipeline - INFO - Step Detector1Pipeline done
2025-05-13 14:11:07,864 - stpipe - INFO - Results used jwst version: 1.18.0
# Print out the time benchmark
time1 = time.perf_counter()
print(f"Runtime for Detector1: {time1 - time0:0.0f} seconds")
Runtime for Detector1: 1376 seconds
Exploring the data#
Identify the *_rateints.fits files and verify which pipeline steps were run and
which calibration reference files were applied.
The header contains information about which calibration steps were
completed and skipped and which reference files were used to process the
data.
if do_det1:
# Find rate files
rate_files = sorted(glob.glob(os.path.join(det1_dir, '*_rateints.fits')))
# Read in file as datamodel
rate_f = datamodels.open(rate_files[0])
# Check which steps were run
rate_f.meta.cal_step.instance
# Check which reference files were used to calibrate the dataset:
rate_f.meta.ref_file.instance
6. Image2 Pipeline#
In the Image2 stage of the pipeline,
flat-fielded and flux-calibrated data products (*_calints.fits files) are created from the *_rateints.fits files produced by Detector1.
See https://jwst-docs.stsci.edu/jwst-science-calibration-pipeline/stages-of-jwst-data-processing/calwebb_image2 for a detailed overview of the various pipeline steps that comprise Image2.
To override certain steps and reference files, use the examples below.
time_image2 = time.perf_counter()
# Set up a dictionary to define how the Image2 pipeline should be configured.
# Boilerplate dictionary setup
image2dict = {}
image2dict['assign_wcs'], image2dict['flat_field'] = {}, {}
image2dict['photom'] = {}
# Overrides for whether or not certain steps should be skipped (example)
#image2dict['photom']['skip'] = True
# Overrides for various reference files
# Files should be in the base local directory or provide full path
#image2dict['assign_wcs']['override_distortion'] = 'myfile.asdf' # Spatial distortion (ASDF file)
#image2dict['assign_wcs']['override_filteroffset'] = 'myfile.asdf' # Imager filter offsets (ASDF file)
#image2dict['assign_wcs']['override_specwcs'] = 'myfile.asdf' # Spectral distortion (ASDF file)
#image2dict['assign_wcs']['override_wavelengthrange'] = 'myfile.asdf' # Wavelength channel mapping (ASDF file)
#image2dict['flat_field']['override_flat'] = 'myfile.fits' # Pixel flatfield
#image2dict['photom']['override_photom'] = 'myfile.fits' # Photometric calibration array
Grab the *rateints.fits files, ensuring the use of absolute paths.
# Get rate files from the Detector1 output folder
rate_files = sorted(glob.glob(os.path.join(det1_dir, '*rateints.fits')))
# Use the absolute file paths
for ii in range(len(rate_files)):
rate_files[ii] = os.path.abspath(rate_files[ii])
rate_files = np.array(rate_files)
Run the files through the Image2 pipeline.
# Run the pipeline on the selected rate files one by one with the custom parameter dictionary
if do_image2:
for ii, file in enumerate(rate_files):
Image2Pipeline.call(file, steps=image2dict, save_results=True, output_dir=image2_dir)
else:
print('Skipping Image2 processing...')
2025-05-13 14:11:08,230 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf 1.0 K bytes (1 / 1 files) (0 / 1.0 K bytes)
2025-05-13 14:11:08,366 - stpipe - INFO - PARS-RESAMPLESTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf
2025-05-13 14:11:08,374 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf 1.2 K bytes (1 / 1 files) (0 / 1.2 K bytes)
2025-05-13 14:11:08,463 - stpipe - INFO - PARS-IMAGE2PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf
2025-05-13 14:11:08,477 - stpipe.Image2Pipeline - INFO - Image2Pipeline instance created.
2025-05-13 14:11:08,478 - stpipe.Image2Pipeline.bkg_subtract - INFO - BackgroundStep instance created.
2025-05-13 14:11:08,479 - stpipe.Image2Pipeline.assign_wcs - INFO - AssignWcsStep instance created.
2025-05-13 14:11:08,480 - stpipe.Image2Pipeline.flat_field - INFO - FlatFieldStep instance created.
2025-05-13 14:11:08,481 - stpipe.Image2Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:08,482 - stpipe.Image2Pipeline.resample - INFO - ResampleStep instance created.
2025-05-13 14:11:08,582 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline running with args (np.str_('/home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage_rateints.fits'),).
2025-05-13 14:11:08,590 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage2
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_bsub: False
steps:
bkg_subtract:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
save_combined_background: False
sigma: 3.0
maxiters: None
wfss_mmag_extract: None
wfss_maxiter: 5
wfss_rms_stop: 0.0
wfss_outlier_percent: 1.0
assign_wcs:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
sip_approx: True
sip_max_pix_error: 0.01
sip_degree: None
sip_max_inv_pix_error: 0.01
sip_inv_degree: None
sip_npoints: 12
slit_y_low: -0.55
slit_y_high: 0.55
flat_field:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_interpolated_flat: False
user_supplied_flat: None
inverse: False
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
resample:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
pixfrac: 1.0
kernel: square
fillval: NAN
weight_type: exptime
output_shape: None
crpix: None
crval: None
rotation: None
pixel_scale_ratio: 1.0
pixel_scale: None
output_wcs: ''
single: False
blendheaders: True
in_memory: True
2025-05-13 14:11:08,710 - stpipe.Image2Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg001_mirimage_rateints.fits' reftypes = ['area', 'camera', 'collimator', 'dflat', 'disperser', 'distortion', 'fflat', 'filteroffset', 'flat', 'fore', 'fpa', 'ifufore', 'ifupost', 'ifuslicer', 'msa', 'ote', 'photom', 'regions', 'sflat', 'specwcs', 'wavelengthrange']
2025-05-13 14:11:08,713 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits 4.2 M bytes (1 / 5 files) (0 / 17.0 M bytes)
2025-05-13 14:11:08,999 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf 12.4 K bytes (2 / 5 files) (4.2 M / 17.0 M bytes)
2025-05-13 14:11:09,098 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf 2.4 K bytes (3 / 5 files) (4.2 M / 17.0 M bytes)
2025-05-13 14:11:09,206 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits 12.7 M bytes (4 / 5 files) (4.3 M / 17.0 M bytes)
2025-05-13 14:11:09,561 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits 14.4 K bytes (5 / 5 files) (17.0 M / 17.0 M bytes)
2025-05-13 14:11:09,698 - stpipe.Image2Pipeline - INFO - Prefetch for AREA reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits'.
2025-05-13 14:11:09,698 - stpipe.Image2Pipeline - INFO - Prefetch for CAMERA reference file is 'N/A'.
2025-05-13 14:11:09,699 - stpipe.Image2Pipeline - INFO - Prefetch for COLLIMATOR reference file is 'N/A'.
2025-05-13 14:11:09,699 - stpipe.Image2Pipeline - INFO - Prefetch for DFLAT reference file is 'N/A'.
2025-05-13 14:11:09,699 - stpipe.Image2Pipeline - INFO - Prefetch for DISPERSER reference file is 'N/A'.
2025-05-13 14:11:09,700 - stpipe.Image2Pipeline - INFO - Prefetch for DISTORTION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf'.
2025-05-13 14:11:09,700 - stpipe.Image2Pipeline - INFO - Prefetch for FFLAT reference file is 'N/A'.
2025-05-13 14:11:09,700 - stpipe.Image2Pipeline - INFO - Prefetch for FILTEROFFSET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf'.
2025-05-13 14:11:09,701 - stpipe.Image2Pipeline - INFO - Prefetch for FLAT reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits'.
2025-05-13 14:11:09,701 - stpipe.Image2Pipeline - INFO - Prefetch for FORE reference file is 'N/A'.
2025-05-13 14:11:09,702 - stpipe.Image2Pipeline - INFO - Prefetch for FPA reference file is 'N/A'.
2025-05-13 14:11:09,702 - stpipe.Image2Pipeline - INFO - Prefetch for IFUFORE reference file is 'N/A'.
2025-05-13 14:11:09,702 - stpipe.Image2Pipeline - INFO - Prefetch for IFUPOST reference file is 'N/A'.
2025-05-13 14:11:09,703 - stpipe.Image2Pipeline - INFO - Prefetch for IFUSLICER reference file is 'N/A'.
2025-05-13 14:11:09,703 - stpipe.Image2Pipeline - INFO - Prefetch for MSA reference file is 'N/A'.
2025-05-13 14:11:09,703 - stpipe.Image2Pipeline - INFO - Prefetch for OTE reference file is 'N/A'.
2025-05-13 14:11:09,704 - stpipe.Image2Pipeline - INFO - Prefetch for PHOTOM reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits'.
2025-05-13 14:11:09,704 - stpipe.Image2Pipeline - INFO - Prefetch for REGIONS reference file is 'N/A'.
2025-05-13 14:11:09,704 - stpipe.Image2Pipeline - INFO - Prefetch for SFLAT reference file is 'N/A'.
2025-05-13 14:11:09,705 - stpipe.Image2Pipeline - INFO - Prefetch for SPECWCS reference file is 'N/A'.
2025-05-13 14:11:09,705 - stpipe.Image2Pipeline - INFO - Prefetch for WAVELENGTHRANGE reference file is 'N/A'.
2025-05-13 14:11:09,705 - stpipe.Image2Pipeline - INFO - Starting calwebb_image2 ...
2025-05-13 14:11:09,706 - stpipe.Image2Pipeline - INFO - Processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage
2025-05-13 14:11:09,706 - stpipe.Image2Pipeline - INFO - Working on input /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage_rateints.fits ...
2025-05-13 14:11:09,939 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg001_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:10,123 - stpipe.Image2Pipeline.assign_wcs - INFO - Created a MIRI mir_image pipeline with references {'distortion': '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf', 'filteroffset': '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf', 'specwcs': None, 'regions': None, 'wavelengthrange': None, 'camera': None, 'collimator': None, 'disperser': None, 'fore': None, 'fpa': None, 'msa': None, 'ote': None, 'ifupost': None, 'ifufore': None, 'ifuslicer': None}
2025-05-13 14:11:10,232 - stpipe.Image2Pipeline.assign_wcs - INFO - Update S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:10,233 - stpipe.Image2Pipeline.assign_wcs - INFO - assign_wcs updated S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:10,233 - stpipe.Image2Pipeline.assign_wcs - INFO - COMPLETED assign_wcs
2025-05-13 14:11:10,276 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs done
2025-05-13 14:11:10,394 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg001_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:10,457 - stpipe.Image2Pipeline.flat_field - INFO - Using FLAT reference file: /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits
2025-05-13 14:11:10,457 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type FFLAT
2025-05-13 14:11:10,458 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type SFLAT
2025-05-13 14:11:10,458 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type DFLAT
2025-05-13 14:11:10,525 - stpipe.Image2Pipeline.flat_field - INFO - Extracting matching subarray from flat
2025-05-13 14:11:10,797 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field done
2025-05-13 14:11:10,912 - stpipe.Image2Pipeline.photom - INFO - Step photom running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg001_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:10,938 - stpipe.Image2Pipeline.photom - INFO - Using photom reference file: /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits
2025-05-13 14:11:10,939 - stpipe.Image2Pipeline.photom - INFO - Using area reference file: /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits
2025-05-13 14:11:11,013 - stpipe.Image2Pipeline.photom - INFO - Using instrument: MIRI
2025-05-13 14:11:11,014 - stpipe.Image2Pipeline.photom - INFO - detector: MIRIMAGE
2025-05-13 14:11:11,014 - stpipe.Image2Pipeline.photom - INFO - exp_type: MIR_IMAGE
2025-05-13 14:11:11,014 - stpipe.Image2Pipeline.photom - INFO - filter: F1500W
2025-05-13 14:11:11,044 - stpipe.Image2Pipeline.photom - INFO - Pixel area map copied to output.
2025-05-13 14:11:11,044 - stpipe.Image2Pipeline.photom - INFO - Values for PIXAR_SR and PIXAR_A2 obtained from AREA reference file.
2025-05-13 14:11:11,046 - stpipe.Image2Pipeline.photom - INFO - subarray: SUB256
2025-05-13 14:11:11,046 - stpipe.Image2Pipeline.photom - INFO - Applying the time-dependent correction to the PHOTOM value.
2025-05-13 14:11:11,051 - stpipe.Image2Pipeline.photom - INFO - PHOTMJSR value: 0.377168
2025-05-13 14:11:11,212 - stpipe.Image2Pipeline.photom - INFO - Step photom done
2025-05-13 14:11:11,215 - stpipe.Image2Pipeline - INFO - Finished processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg001_mirimage
2025-05-13 14:11:11,216 - stpipe.Image2Pipeline - INFO - ... ending calwebb_image2
2025-05-13 14:11:11,216 - stpipe.Image2Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:11,565 - stpipe.Image2Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg001_mirimage_calints.fits
2025-05-13 14:11:11,565 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline done
2025-05-13 14:11:11,566 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:11:11,784 - stpipe - INFO - PARS-RESAMPLESTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf
2025-05-13 14:11:11,792 - stpipe - INFO - PARS-IMAGE2PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf
2025-05-13 14:11:11,802 - stpipe.Image2Pipeline - INFO - Image2Pipeline instance created.
2025-05-13 14:11:11,803 - stpipe.Image2Pipeline.bkg_subtract - INFO - BackgroundStep instance created.
2025-05-13 14:11:11,804 - stpipe.Image2Pipeline.assign_wcs - INFO - AssignWcsStep instance created.
2025-05-13 14:11:11,805 - stpipe.Image2Pipeline.flat_field - INFO - FlatFieldStep instance created.
2025-05-13 14:11:11,805 - stpipe.Image2Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:11,807 - stpipe.Image2Pipeline.resample - INFO - ResampleStep instance created.
2025-05-13 14:11:11,920 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline running with args (np.str_('/home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage_rateints.fits'),).
2025-05-13 14:11:11,927 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage2
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_bsub: False
steps:
bkg_subtract:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
save_combined_background: False
sigma: 3.0
maxiters: None
wfss_mmag_extract: None
wfss_maxiter: 5
wfss_rms_stop: 0.0
wfss_outlier_percent: 1.0
assign_wcs:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
sip_approx: True
sip_max_pix_error: 0.01
sip_degree: None
sip_max_inv_pix_error: 0.01
sip_inv_degree: None
sip_npoints: 12
slit_y_low: -0.55
slit_y_high: 0.55
flat_field:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_interpolated_flat: False
user_supplied_flat: None
inverse: False
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
resample:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
pixfrac: 1.0
kernel: square
fillval: NAN
weight_type: exptime
output_shape: None
crpix: None
crval: None
rotation: None
pixel_scale_ratio: 1.0
pixel_scale: None
output_wcs: ''
single: False
blendheaders: True
in_memory: True
2025-05-13 14:11:12,046 - stpipe.Image2Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg002_mirimage_rateints.fits' reftypes = ['area', 'camera', 'collimator', 'dflat', 'disperser', 'distortion', 'fflat', 'filteroffset', 'flat', 'fore', 'fpa', 'ifufore', 'ifupost', 'ifuslicer', 'msa', 'ote', 'photom', 'regions', 'sflat', 'specwcs', 'wavelengthrange']
2025-05-13 14:11:12,049 - stpipe.Image2Pipeline - INFO - Prefetch for AREA reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits'.
2025-05-13 14:11:12,050 - stpipe.Image2Pipeline - INFO - Prefetch for CAMERA reference file is 'N/A'.
2025-05-13 14:11:12,050 - stpipe.Image2Pipeline - INFO - Prefetch for COLLIMATOR reference file is 'N/A'.
2025-05-13 14:11:12,050 - stpipe.Image2Pipeline - INFO - Prefetch for DFLAT reference file is 'N/A'.
2025-05-13 14:11:12,051 - stpipe.Image2Pipeline - INFO - Prefetch for DISPERSER reference file is 'N/A'.
2025-05-13 14:11:12,051 - stpipe.Image2Pipeline - INFO - Prefetch for DISTORTION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf'.
2025-05-13 14:11:12,051 - stpipe.Image2Pipeline - INFO - Prefetch for FFLAT reference file is 'N/A'.
2025-05-13 14:11:12,052 - stpipe.Image2Pipeline - INFO - Prefetch for FILTEROFFSET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf'.
2025-05-13 14:11:12,052 - stpipe.Image2Pipeline - INFO - Prefetch for FLAT reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits'.
2025-05-13 14:11:12,052 - stpipe.Image2Pipeline - INFO - Prefetch for FORE reference file is 'N/A'.
2025-05-13 14:11:12,053 - stpipe.Image2Pipeline - INFO - Prefetch for FPA reference file is 'N/A'.
2025-05-13 14:11:12,053 - stpipe.Image2Pipeline - INFO - Prefetch for IFUFORE reference file is 'N/A'.
2025-05-13 14:11:12,053 - stpipe.Image2Pipeline - INFO - Prefetch for IFUPOST reference file is 'N/A'.
2025-05-13 14:11:12,054 - stpipe.Image2Pipeline - INFO - Prefetch for IFUSLICER reference file is 'N/A'.
2025-05-13 14:11:12,054 - stpipe.Image2Pipeline - INFO - Prefetch for MSA reference file is 'N/A'.
2025-05-13 14:11:12,054 - stpipe.Image2Pipeline - INFO - Prefetch for OTE reference file is 'N/A'.
2025-05-13 14:11:12,055 - stpipe.Image2Pipeline - INFO - Prefetch for PHOTOM reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits'.
2025-05-13 14:11:12,055 - stpipe.Image2Pipeline - INFO - Prefetch for REGIONS reference file is 'N/A'.
2025-05-13 14:11:12,055 - stpipe.Image2Pipeline - INFO - Prefetch for SFLAT reference file is 'N/A'.
2025-05-13 14:11:12,056 - stpipe.Image2Pipeline - INFO - Prefetch for SPECWCS reference file is 'N/A'.
2025-05-13 14:11:12,056 - stpipe.Image2Pipeline - INFO - Prefetch for WAVELENGTHRANGE reference file is 'N/A'.
2025-05-13 14:11:12,057 - stpipe.Image2Pipeline - INFO - Starting calwebb_image2 ...
2025-05-13 14:11:12,057 - stpipe.Image2Pipeline - INFO - Processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage
2025-05-13 14:11:12,057 - stpipe.Image2Pipeline - INFO - Working on input /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage_rateints.fits ...
2025-05-13 14:11:12,287 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg002_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:12,457 - stpipe.Image2Pipeline.assign_wcs - INFO - Created a MIRI mir_image pipeline with references {'distortion': '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf', 'filteroffset': '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf', 'specwcs': None, 'regions': None, 'wavelengthrange': None, 'camera': None, 'collimator': None, 'disperser': None, 'fore': None, 'fpa': None, 'msa': None, 'ote': None, 'ifupost': None, 'ifufore': None, 'ifuslicer': None}
2025-05-13 14:11:12,546 - stpipe.Image2Pipeline.assign_wcs - INFO - Update S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:12,547 - stpipe.Image2Pipeline.assign_wcs - INFO - assign_wcs updated S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:12,547 - stpipe.Image2Pipeline.assign_wcs - INFO - COMPLETED assign_wcs
2025-05-13 14:11:12,579 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs done
2025-05-13 14:11:12,688 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg002_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:12,745 - stpipe.Image2Pipeline.flat_field - INFO - Using FLAT reference file: /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits
2025-05-13 14:11:12,745 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type FFLAT
2025-05-13 14:11:12,746 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type SFLAT
2025-05-13 14:11:12,746 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type DFLAT
2025-05-13 14:11:12,811 - stpipe.Image2Pipeline.flat_field - INFO - Extracting matching subarray from flat
2025-05-13 14:11:13,082 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field done
2025-05-13 14:11:13,192 - stpipe.Image2Pipeline.photom - INFO - Step photom running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg002_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:13,214 - stpipe.Image2Pipeline.photom - INFO - Using photom reference file: /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits
2025-05-13 14:11:13,214 - stpipe.Image2Pipeline.photom - INFO - Using area reference file: /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits
2025-05-13 14:11:13,291 - stpipe.Image2Pipeline.photom - INFO - Using instrument: MIRI
2025-05-13 14:11:13,292 - stpipe.Image2Pipeline.photom - INFO - detector: MIRIMAGE
2025-05-13 14:11:13,292 - stpipe.Image2Pipeline.photom - INFO - exp_type: MIR_IMAGE
2025-05-13 14:11:13,292 - stpipe.Image2Pipeline.photom - INFO - filter: F1500W
2025-05-13 14:11:13,318 - stpipe.Image2Pipeline.photom - INFO - Pixel area map copied to output.
2025-05-13 14:11:13,318 - stpipe.Image2Pipeline.photom - INFO - Values for PIXAR_SR and PIXAR_A2 obtained from AREA reference file.
2025-05-13 14:11:13,319 - stpipe.Image2Pipeline.photom - INFO - subarray: SUB256
2025-05-13 14:11:13,320 - stpipe.Image2Pipeline.photom - INFO - Applying the time-dependent correction to the PHOTOM value.
2025-05-13 14:11:13,324 - stpipe.Image2Pipeline.photom - INFO - PHOTMJSR value: 0.377168
2025-05-13 14:11:13,485 - stpipe.Image2Pipeline.photom - INFO - Step photom done
2025-05-13 14:11:13,488 - stpipe.Image2Pipeline - INFO - Finished processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg002_mirimage
2025-05-13 14:11:13,489 - stpipe.Image2Pipeline - INFO - ... ending calwebb_image2
2025-05-13 14:11:13,489 - stpipe.Image2Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:13,832 - stpipe.Image2Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg002_mirimage_calints.fits
2025-05-13 14:11:13,833 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline done
2025-05-13 14:11:13,833 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:11:13,958 - stpipe - INFO - PARS-RESAMPLESTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf
2025-05-13 14:11:13,966 - stpipe - INFO - PARS-IMAGE2PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf
2025-05-13 14:11:13,976 - stpipe.Image2Pipeline - INFO - Image2Pipeline instance created.
2025-05-13 14:11:13,977 - stpipe.Image2Pipeline.bkg_subtract - INFO - BackgroundStep instance created.
2025-05-13 14:11:13,978 - stpipe.Image2Pipeline.assign_wcs - INFO - AssignWcsStep instance created.
2025-05-13 14:11:13,979 - stpipe.Image2Pipeline.flat_field - INFO - FlatFieldStep instance created.
2025-05-13 14:11:13,980 - stpipe.Image2Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:13,983 - stpipe.Image2Pipeline.resample - INFO - ResampleStep instance created.
2025-05-13 14:11:14,103 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline running with args (np.str_('/home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage_rateints.fits'),).
2025-05-13 14:11:14,111 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage2
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_bsub: False
steps:
bkg_subtract:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
save_combined_background: False
sigma: 3.0
maxiters: None
wfss_mmag_extract: None
wfss_maxiter: 5
wfss_rms_stop: 0.0
wfss_outlier_percent: 1.0
assign_wcs:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
sip_approx: True
sip_max_pix_error: 0.01
sip_degree: None
sip_max_inv_pix_error: 0.01
sip_inv_degree: None
sip_npoints: 12
slit_y_low: -0.55
slit_y_high: 0.55
flat_field:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_interpolated_flat: False
user_supplied_flat: None
inverse: False
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
resample:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
pixfrac: 1.0
kernel: square
fillval: NAN
weight_type: exptime
output_shape: None
crpix: None
crval: None
rotation: None
pixel_scale_ratio: 1.0
pixel_scale: None
output_wcs: ''
single: False
blendheaders: True
in_memory: True
2025-05-13 14:11:14,231 - stpipe.Image2Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg003_mirimage_rateints.fits' reftypes = ['area', 'camera', 'collimator', 'dflat', 'disperser', 'distortion', 'fflat', 'filteroffset', 'flat', 'fore', 'fpa', 'ifufore', 'ifupost', 'ifuslicer', 'msa', 'ote', 'photom', 'regions', 'sflat', 'specwcs', 'wavelengthrange']
2025-05-13 14:11:14,235 - stpipe.Image2Pipeline - INFO - Prefetch for AREA reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits'.
2025-05-13 14:11:14,235 - stpipe.Image2Pipeline - INFO - Prefetch for CAMERA reference file is 'N/A'.
2025-05-13 14:11:14,236 - stpipe.Image2Pipeline - INFO - Prefetch for COLLIMATOR reference file is 'N/A'.
2025-05-13 14:11:14,236 - stpipe.Image2Pipeline - INFO - Prefetch for DFLAT reference file is 'N/A'.
2025-05-13 14:11:14,236 - stpipe.Image2Pipeline - INFO - Prefetch for DISPERSER reference file is 'N/A'.
2025-05-13 14:11:14,237 - stpipe.Image2Pipeline - INFO - Prefetch for DISTORTION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf'.
2025-05-13 14:11:14,237 - stpipe.Image2Pipeline - INFO - Prefetch for FFLAT reference file is 'N/A'.
2025-05-13 14:11:14,237 - stpipe.Image2Pipeline - INFO - Prefetch for FILTEROFFSET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf'.
2025-05-13 14:11:14,238 - stpipe.Image2Pipeline - INFO - Prefetch for FLAT reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits'.
2025-05-13 14:11:14,239 - stpipe.Image2Pipeline - INFO - Prefetch for FORE reference file is 'N/A'.
2025-05-13 14:11:14,239 - stpipe.Image2Pipeline - INFO - Prefetch for FPA reference file is 'N/A'.
2025-05-13 14:11:14,239 - stpipe.Image2Pipeline - INFO - Prefetch for IFUFORE reference file is 'N/A'.
2025-05-13 14:11:14,239 - stpipe.Image2Pipeline - INFO - Prefetch for IFUPOST reference file is 'N/A'.
2025-05-13 14:11:14,240 - stpipe.Image2Pipeline - INFO - Prefetch for IFUSLICER reference file is 'N/A'.
2025-05-13 14:11:14,240 - stpipe.Image2Pipeline - INFO - Prefetch for MSA reference file is 'N/A'.
2025-05-13 14:11:14,240 - stpipe.Image2Pipeline - INFO - Prefetch for OTE reference file is 'N/A'.
2025-05-13 14:11:14,241 - stpipe.Image2Pipeline - INFO - Prefetch for PHOTOM reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits'.
2025-05-13 14:11:14,241 - stpipe.Image2Pipeline - INFO - Prefetch for REGIONS reference file is 'N/A'.
2025-05-13 14:11:14,242 - stpipe.Image2Pipeline - INFO - Prefetch for SFLAT reference file is 'N/A'.
2025-05-13 14:11:14,242 - stpipe.Image2Pipeline - INFO - Prefetch for SPECWCS reference file is 'N/A'.
2025-05-13 14:11:14,243 - stpipe.Image2Pipeline - INFO - Prefetch for WAVELENGTHRANGE reference file is 'N/A'.
2025-05-13 14:11:14,243 - stpipe.Image2Pipeline - INFO - Starting calwebb_image2 ...
2025-05-13 14:11:14,244 - stpipe.Image2Pipeline - INFO - Processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage
2025-05-13 14:11:14,244 - stpipe.Image2Pipeline - INFO - Working on input /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage_rateints.fits ...
2025-05-13 14:11:14,479 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg003_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:14,648 - stpipe.Image2Pipeline.assign_wcs - INFO - Created a MIRI mir_image pipeline with references {'distortion': '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf', 'filteroffset': '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf', 'specwcs': None, 'regions': None, 'wavelengthrange': None, 'camera': None, 'collimator': None, 'disperser': None, 'fore': None, 'fpa': None, 'msa': None, 'ote': None, 'ifupost': None, 'ifufore': None, 'ifuslicer': None}
2025-05-13 14:11:14,737 - stpipe.Image2Pipeline.assign_wcs - INFO - Update S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:14,738 - stpipe.Image2Pipeline.assign_wcs - INFO - assign_wcs updated S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:14,738 - stpipe.Image2Pipeline.assign_wcs - INFO - COMPLETED assign_wcs
2025-05-13 14:11:14,769 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs done
2025-05-13 14:11:14,890 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg003_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:14,947 - stpipe.Image2Pipeline.flat_field - INFO - Using FLAT reference file: /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits
2025-05-13 14:11:14,947 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type FFLAT
2025-05-13 14:11:14,948 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type SFLAT
2025-05-13 14:11:14,948 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type DFLAT
2025-05-13 14:11:15,013 - stpipe.Image2Pipeline.flat_field - INFO - Extracting matching subarray from flat
2025-05-13 14:11:15,276 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field done
2025-05-13 14:11:15,390 - stpipe.Image2Pipeline.photom - INFO - Step photom running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg003_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:15,413 - stpipe.Image2Pipeline.photom - INFO - Using photom reference file: /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits
2025-05-13 14:11:15,413 - stpipe.Image2Pipeline.photom - INFO - Using area reference file: /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits
2025-05-13 14:11:15,489 - stpipe.Image2Pipeline.photom - INFO - Using instrument: MIRI
2025-05-13 14:11:15,490 - stpipe.Image2Pipeline.photom - INFO - detector: MIRIMAGE
2025-05-13 14:11:15,491 - stpipe.Image2Pipeline.photom - INFO - exp_type: MIR_IMAGE
2025-05-13 14:11:15,491 - stpipe.Image2Pipeline.photom - INFO - filter: F1500W
2025-05-13 14:11:15,516 - stpipe.Image2Pipeline.photom - INFO - Pixel area map copied to output.
2025-05-13 14:11:15,517 - stpipe.Image2Pipeline.photom - INFO - Values for PIXAR_SR and PIXAR_A2 obtained from AREA reference file.
2025-05-13 14:11:15,518 - stpipe.Image2Pipeline.photom - INFO - subarray: SUB256
2025-05-13 14:11:15,518 - stpipe.Image2Pipeline.photom - INFO - Applying the time-dependent correction to the PHOTOM value.
2025-05-13 14:11:15,523 - stpipe.Image2Pipeline.photom - INFO - PHOTMJSR value: 0.377168
2025-05-13 14:11:15,685 - stpipe.Image2Pipeline.photom - INFO - Step photom done
2025-05-13 14:11:15,688 - stpipe.Image2Pipeline - INFO - Finished processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg003_mirimage
2025-05-13 14:11:15,689 - stpipe.Image2Pipeline - INFO - ... ending calwebb_image2
2025-05-13 14:11:15,689 - stpipe.Image2Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:16,033 - stpipe.Image2Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg003_mirimage_calints.fits
2025-05-13 14:11:16,034 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline done
2025-05-13 14:11:16,034 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:11:16,161 - stpipe - INFO - PARS-RESAMPLESTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf
2025-05-13 14:11:16,168 - stpipe - INFO - PARS-IMAGE2PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf
2025-05-13 14:11:16,179 - stpipe.Image2Pipeline - INFO - Image2Pipeline instance created.
2025-05-13 14:11:16,180 - stpipe.Image2Pipeline.bkg_subtract - INFO - BackgroundStep instance created.
2025-05-13 14:11:16,181 - stpipe.Image2Pipeline.assign_wcs - INFO - AssignWcsStep instance created.
2025-05-13 14:11:16,181 - stpipe.Image2Pipeline.flat_field - INFO - FlatFieldStep instance created.
2025-05-13 14:11:16,182 - stpipe.Image2Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:16,183 - stpipe.Image2Pipeline.resample - INFO - ResampleStep instance created.
2025-05-13 14:11:16,297 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline running with args (np.str_('/home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage_rateints.fits'),).
2025-05-13 14:11:16,305 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage2
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_bsub: False
steps:
bkg_subtract:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
save_combined_background: False
sigma: 3.0
maxiters: None
wfss_mmag_extract: None
wfss_maxiter: 5
wfss_rms_stop: 0.0
wfss_outlier_percent: 1.0
assign_wcs:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
sip_approx: True
sip_max_pix_error: 0.01
sip_degree: None
sip_max_inv_pix_error: 0.01
sip_inv_degree: None
sip_npoints: 12
slit_y_low: -0.55
slit_y_high: 0.55
flat_field:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_interpolated_flat: False
user_supplied_flat: None
inverse: False
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
resample:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
pixfrac: 1.0
kernel: square
fillval: NAN
weight_type: exptime
output_shape: None
crpix: None
crval: None
rotation: None
pixel_scale_ratio: 1.0
pixel_scale: None
output_wcs: ''
single: False
blendheaders: True
in_memory: True
2025-05-13 14:11:16,427 - stpipe.Image2Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg004_mirimage_rateints.fits' reftypes = ['area', 'camera', 'collimator', 'dflat', 'disperser', 'distortion', 'fflat', 'filteroffset', 'flat', 'fore', 'fpa', 'ifufore', 'ifupost', 'ifuslicer', 'msa', 'ote', 'photom', 'regions', 'sflat', 'specwcs', 'wavelengthrange']
2025-05-13 14:11:16,430 - stpipe.Image2Pipeline - INFO - Prefetch for AREA reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits'.
2025-05-13 14:11:16,431 - stpipe.Image2Pipeline - INFO - Prefetch for CAMERA reference file is 'N/A'.
2025-05-13 14:11:16,431 - stpipe.Image2Pipeline - INFO - Prefetch for COLLIMATOR reference file is 'N/A'.
2025-05-13 14:11:16,431 - stpipe.Image2Pipeline - INFO - Prefetch for DFLAT reference file is 'N/A'.
2025-05-13 14:11:16,432 - stpipe.Image2Pipeline - INFO - Prefetch for DISPERSER reference file is 'N/A'.
2025-05-13 14:11:16,432 - stpipe.Image2Pipeline - INFO - Prefetch for DISTORTION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf'.
2025-05-13 14:11:16,432 - stpipe.Image2Pipeline - INFO - Prefetch for FFLAT reference file is 'N/A'.
2025-05-13 14:11:16,433 - stpipe.Image2Pipeline - INFO - Prefetch for FILTEROFFSET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf'.
2025-05-13 14:11:16,433 - stpipe.Image2Pipeline - INFO - Prefetch for FLAT reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits'.
2025-05-13 14:11:16,433 - stpipe.Image2Pipeline - INFO - Prefetch for FORE reference file is 'N/A'.
2025-05-13 14:11:16,434 - stpipe.Image2Pipeline - INFO - Prefetch for FPA reference file is 'N/A'.
2025-05-13 14:11:16,434 - stpipe.Image2Pipeline - INFO - Prefetch for IFUFORE reference file is 'N/A'.
2025-05-13 14:11:16,434 - stpipe.Image2Pipeline - INFO - Prefetch for IFUPOST reference file is 'N/A'.
2025-05-13 14:11:16,435 - stpipe.Image2Pipeline - INFO - Prefetch for IFUSLICER reference file is 'N/A'.
2025-05-13 14:11:16,435 - stpipe.Image2Pipeline - INFO - Prefetch for MSA reference file is 'N/A'.
2025-05-13 14:11:16,435 - stpipe.Image2Pipeline - INFO - Prefetch for OTE reference file is 'N/A'.
2025-05-13 14:11:16,435 - stpipe.Image2Pipeline - INFO - Prefetch for PHOTOM reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits'.
2025-05-13 14:11:16,436 - stpipe.Image2Pipeline - INFO - Prefetch for REGIONS reference file is 'N/A'.
2025-05-13 14:11:16,436 - stpipe.Image2Pipeline - INFO - Prefetch for SFLAT reference file is 'N/A'.
2025-05-13 14:11:16,436 - stpipe.Image2Pipeline - INFO - Prefetch for SPECWCS reference file is 'N/A'.
2025-05-13 14:11:16,437 - stpipe.Image2Pipeline - INFO - Prefetch for WAVELENGTHRANGE reference file is 'N/A'.
2025-05-13 14:11:16,437 - stpipe.Image2Pipeline - INFO - Starting calwebb_image2 ...
2025-05-13 14:11:16,438 - stpipe.Image2Pipeline - INFO - Processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage
2025-05-13 14:11:16,438 - stpipe.Image2Pipeline - INFO - Working on input /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage_rateints.fits ...
2025-05-13 14:11:16,675 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg004_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:16,845 - stpipe.Image2Pipeline.assign_wcs - INFO - Created a MIRI mir_image pipeline with references {'distortion': '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf', 'filteroffset': '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf', 'specwcs': None, 'regions': None, 'wavelengthrange': None, 'camera': None, 'collimator': None, 'disperser': None, 'fore': None, 'fpa': None, 'msa': None, 'ote': None, 'ifupost': None, 'ifufore': None, 'ifuslicer': None}
2025-05-13 14:11:16,934 - stpipe.Image2Pipeline.assign_wcs - INFO - Update S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:16,935 - stpipe.Image2Pipeline.assign_wcs - INFO - assign_wcs updated S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:16,935 - stpipe.Image2Pipeline.assign_wcs - INFO - COMPLETED assign_wcs
2025-05-13 14:11:16,967 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs done
2025-05-13 14:11:17,091 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg004_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:17,148 - stpipe.Image2Pipeline.flat_field - INFO - Using FLAT reference file: /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits
2025-05-13 14:11:17,148 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type FFLAT
2025-05-13 14:11:17,149 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type SFLAT
2025-05-13 14:11:17,149 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type DFLAT
2025-05-13 14:11:17,215 - stpipe.Image2Pipeline.flat_field - INFO - Extracting matching subarray from flat
2025-05-13 14:11:17,478 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field done
2025-05-13 14:11:17,598 - stpipe.Image2Pipeline.photom - INFO - Step photom running with args (<CubeModel(234, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg004_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:17,620 - stpipe.Image2Pipeline.photom - INFO - Using photom reference file: /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits
2025-05-13 14:11:17,620 - stpipe.Image2Pipeline.photom - INFO - Using area reference file: /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits
2025-05-13 14:11:17,696 - stpipe.Image2Pipeline.photom - INFO - Using instrument: MIRI
2025-05-13 14:11:17,696 - stpipe.Image2Pipeline.photom - INFO - detector: MIRIMAGE
2025-05-13 14:11:17,697 - stpipe.Image2Pipeline.photom - INFO - exp_type: MIR_IMAGE
2025-05-13 14:11:17,697 - stpipe.Image2Pipeline.photom - INFO - filter: F1500W
2025-05-13 14:11:17,722 - stpipe.Image2Pipeline.photom - INFO - Pixel area map copied to output.
2025-05-13 14:11:17,722 - stpipe.Image2Pipeline.photom - INFO - Values for PIXAR_SR and PIXAR_A2 obtained from AREA reference file.
2025-05-13 14:11:17,723 - stpipe.Image2Pipeline.photom - INFO - subarray: SUB256
2025-05-13 14:11:17,724 - stpipe.Image2Pipeline.photom - INFO - Applying the time-dependent correction to the PHOTOM value.
2025-05-13 14:11:17,729 - stpipe.Image2Pipeline.photom - INFO - PHOTMJSR value: 0.377168
2025-05-13 14:11:17,889 - stpipe.Image2Pipeline.photom - INFO - Step photom done
2025-05-13 14:11:17,892 - stpipe.Image2Pipeline - INFO - Finished processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg004_mirimage
2025-05-13 14:11:17,893 - stpipe.Image2Pipeline - INFO - ... ending calwebb_image2
2025-05-13 14:11:17,893 - stpipe.Image2Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:18,238 - stpipe.Image2Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg004_mirimage_calints.fits
2025-05-13 14:11:18,239 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline done
2025-05-13 14:11:18,240 - stpipe - INFO - Results used jwst version: 1.18.0
2025-05-13 14:11:18,291 - stpipe - INFO - PARS-RESAMPLESTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-resamplestep_0001.asdf
2025-05-13 14:11:18,298 - stpipe - INFO - PARS-IMAGE2PIPELINE parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-image2pipeline_0001.asdf
2025-05-13 14:11:18,309 - stpipe.Image2Pipeline - INFO - Image2Pipeline instance created.
2025-05-13 14:11:18,310 - stpipe.Image2Pipeline.bkg_subtract - INFO - BackgroundStep instance created.
2025-05-13 14:11:18,311 - stpipe.Image2Pipeline.assign_wcs - INFO - AssignWcsStep instance created.
2025-05-13 14:11:18,312 - stpipe.Image2Pipeline.flat_field - INFO - FlatFieldStep instance created.
2025-05-13 14:11:18,312 - stpipe.Image2Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:18,313 - stpipe.Image2Pipeline.resample - INFO - ResampleStep instance created.
2025-05-13 14:11:18,437 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline running with args (np.str_('/home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage_rateints.fits'),).
2025-05-13 14:11:18,444 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage2
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_bsub: False
steps:
bkg_subtract:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
save_combined_background: False
sigma: 3.0
maxiters: None
wfss_mmag_extract: None
wfss_maxiter: 5
wfss_rms_stop: 0.0
wfss_outlier_percent: 1.0
assign_wcs:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
sip_approx: True
sip_max_pix_error: 0.01
sip_degree: None
sip_max_inv_pix_error: 0.01
sip_inv_degree: None
sip_npoints: 12
slit_y_low: -0.55
slit_y_high: 0.55
flat_field:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_interpolated_flat: False
user_supplied_flat: None
inverse: False
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
resample:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
pixfrac: 1.0
kernel: square
fillval: NAN
weight_type: exptime
output_shape: None
crpix: None
crval: None
rotation: None
pixel_scale_ratio: 1.0
pixel_scale: None
output_wcs: ''
single: False
blendheaders: True
in_memory: True
2025-05-13 14:11:18,491 - stpipe.Image2Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg005_mirimage_rateints.fits' reftypes = ['area', 'camera', 'collimator', 'dflat', 'disperser', 'distortion', 'fflat', 'filteroffset', 'flat', 'fore', 'fpa', 'ifufore', 'ifupost', 'ifuslicer', 'msa', 'ote', 'photom', 'regions', 'sflat', 'specwcs', 'wavelengthrange']
2025-05-13 14:11:18,494 - stpipe.Image2Pipeline - INFO - Prefetch for AREA reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits'.
2025-05-13 14:11:18,495 - stpipe.Image2Pipeline - INFO - Prefetch for CAMERA reference file is 'N/A'.
2025-05-13 14:11:18,495 - stpipe.Image2Pipeline - INFO - Prefetch for COLLIMATOR reference file is 'N/A'.
2025-05-13 14:11:18,495 - stpipe.Image2Pipeline - INFO - Prefetch for DFLAT reference file is 'N/A'.
2025-05-13 14:11:18,496 - stpipe.Image2Pipeline - INFO - Prefetch for DISPERSER reference file is 'N/A'.
2025-05-13 14:11:18,496 - stpipe.Image2Pipeline - INFO - Prefetch for DISTORTION reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf'.
2025-05-13 14:11:18,497 - stpipe.Image2Pipeline - INFO - Prefetch for FFLAT reference file is 'N/A'.
2025-05-13 14:11:18,497 - stpipe.Image2Pipeline - INFO - Prefetch for FILTEROFFSET reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf'.
2025-05-13 14:11:18,497 - stpipe.Image2Pipeline - INFO - Prefetch for FLAT reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits'.
2025-05-13 14:11:18,498 - stpipe.Image2Pipeline - INFO - Prefetch for FORE reference file is 'N/A'.
2025-05-13 14:11:18,498 - stpipe.Image2Pipeline - INFO - Prefetch for FPA reference file is 'N/A'.
2025-05-13 14:11:18,498 - stpipe.Image2Pipeline - INFO - Prefetch for IFUFORE reference file is 'N/A'.
2025-05-13 14:11:18,499 - stpipe.Image2Pipeline - INFO - Prefetch for IFUPOST reference file is 'N/A'.
2025-05-13 14:11:18,499 - stpipe.Image2Pipeline - INFO - Prefetch for IFUSLICER reference file is 'N/A'.
2025-05-13 14:11:18,499 - stpipe.Image2Pipeline - INFO - Prefetch for MSA reference file is 'N/A'.
2025-05-13 14:11:18,500 - stpipe.Image2Pipeline - INFO - Prefetch for OTE reference file is 'N/A'.
2025-05-13 14:11:18,500 - stpipe.Image2Pipeline - INFO - Prefetch for PHOTOM reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits'.
2025-05-13 14:11:18,500 - stpipe.Image2Pipeline - INFO - Prefetch for REGIONS reference file is 'N/A'.
2025-05-13 14:11:18,501 - stpipe.Image2Pipeline - INFO - Prefetch for SFLAT reference file is 'N/A'.
2025-05-13 14:11:18,501 - stpipe.Image2Pipeline - INFO - Prefetch for SPECWCS reference file is 'N/A'.
2025-05-13 14:11:18,501 - stpipe.Image2Pipeline - INFO - Prefetch for WAVELENGTHRANGE reference file is 'N/A'.
2025-05-13 14:11:18,502 - stpipe.Image2Pipeline - INFO - Starting calwebb_image2 ...
2025-05-13 14:11:18,502 - stpipe.Image2Pipeline - INFO - Processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage
2025-05-13 14:11:18,502 - stpipe.Image2Pipeline - INFO - Working on input /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage_rateints.fits ...
2025-05-13 14:11:18,664 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs running with args (<CubeModel(28, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg005_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:18,834 - stpipe.Image2Pipeline.assign_wcs - INFO - Created a MIRI mir_image pipeline with references {'distortion': '/home/runner/crds/references/jwst/miri/jwst_miri_distortion_0047.asdf', 'filteroffset': '/home/runner/crds/references/jwst/miri/jwst_miri_filteroffset_0006.asdf', 'specwcs': None, 'regions': None, 'wavelengthrange': None, 'camera': None, 'collimator': None, 'disperser': None, 'fore': None, 'fpa': None, 'msa': None, 'ote': None, 'ifupost': None, 'ifufore': None, 'ifuslicer': None}
2025-05-13 14:11:18,888 - stpipe.Image2Pipeline.assign_wcs - INFO - Update S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:18,889 - stpipe.Image2Pipeline.assign_wcs - INFO - assign_wcs updated S_REGION to POLYGON ICRS 44.327146143 76.553992882 44.330655321 76.546218795 44.364309447 76.547064828 44.360856810 76.554840483
2025-05-13 14:11:18,890 - stpipe.Image2Pipeline.assign_wcs - INFO - COMPLETED assign_wcs
2025-05-13 14:11:18,921 - stpipe.Image2Pipeline.assign_wcs - INFO - Step assign_wcs done
2025-05-13 14:11:19,033 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field running with args (<CubeModel(28, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg005_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:19,090 - stpipe.Image2Pipeline.flat_field - INFO - Using FLAT reference file: /home/runner/crds/references/jwst/miri/jwst_miri_flat_0828.fits
2025-05-13 14:11:19,091 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type FFLAT
2025-05-13 14:11:19,091 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type SFLAT
2025-05-13 14:11:19,091 - stpipe.Image2Pipeline.flat_field - INFO - No reference found for type DFLAT
2025-05-13 14:11:19,118 - stpipe.Image2Pipeline.flat_field - INFO - Extracting matching subarray from flat
2025-05-13 14:11:19,160 - stpipe.Image2Pipeline.flat_field - INFO - Step flat_field done
2025-05-13 14:11:19,278 - stpipe.Image2Pipeline.photom - INFO - Step photom running with args (<CubeModel(28, 256, 256) from ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg005_mirimage_image2pipeline.fits>,).
2025-05-13 14:11:19,300 - stpipe.Image2Pipeline.photom - INFO - Using photom reference file: /home/runner/crds/references/jwst/miri/jwst_miri_photom_0218.fits
2025-05-13 14:11:19,300 - stpipe.Image2Pipeline.photom - INFO - Using area reference file: /home/runner/crds/references/jwst/miri/jwst_miri_area_0006.fits
2025-05-13 14:11:19,327 - stpipe.Image2Pipeline.photom - INFO - Using instrument: MIRI
2025-05-13 14:11:19,328 - stpipe.Image2Pipeline.photom - INFO - detector: MIRIMAGE
2025-05-13 14:11:19,328 - stpipe.Image2Pipeline.photom - INFO - exp_type: MIR_IMAGE
2025-05-13 14:11:19,328 - stpipe.Image2Pipeline.photom - INFO - filter: F1500W
2025-05-13 14:11:19,354 - stpipe.Image2Pipeline.photom - INFO - Pixel area map copied to output.
2025-05-13 14:11:19,354 - stpipe.Image2Pipeline.photom - INFO - Values for PIXAR_SR and PIXAR_A2 obtained from AREA reference file.
2025-05-13 14:11:19,355 - stpipe.Image2Pipeline.photom - INFO - subarray: SUB256
2025-05-13 14:11:19,356 - stpipe.Image2Pipeline.photom - INFO - Applying the time-dependent correction to the PHOTOM value.
2025-05-13 14:11:19,361 - stpipe.Image2Pipeline.photom - INFO - PHOTMJSR value: 0.377168
2025-05-13 14:11:19,384 - stpipe.Image2Pipeline.photom - INFO - Step photom done
2025-05-13 14:11:19,385 - stpipe.Image2Pipeline - INFO - Finished processing product /home/runner/work/jwst-pipeline-notebooks/jwst-pipeline-notebooks/notebooks/MIRI/Imaging-TSO/imaging_demo_data/PID03730Obs013/stage1/jw03730013001_03101_00001-seg005_mirimage
2025-05-13 14:11:19,386 - stpipe.Image2Pipeline - INFO - ... ending calwebb_image2
2025-05-13 14:11:19,386 - stpipe.Image2Pipeline - INFO - Results used CRDS context: jwst_1364.pmap
2025-05-13 14:11:19,519 - stpipe.Image2Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage2/jw03730013001_03101_00001-seg005_mirimage_calints.fits
2025-05-13 14:11:19,519 - stpipe.Image2Pipeline - INFO - Step Image2Pipeline done
2025-05-13 14:11:19,520 - stpipe - INFO - Results used jwst version: 1.18.0
# Print out the time benchmark
time1 = time.perf_counter()
print(f"Runtime so far: {time1 - time0:0.0f} seconds")
print(f"Runtime for Image2: {time1 - time_image2:0.0f} seconds")
Runtime so far: 1388 seconds
Runtime for Image2: 11 seconds
7. Tso3 Pipeline#
The Stage 3 pipeline for TSOs, Tso3, is significantly simpler than the analogous processing stage for non-TSO data sets. First, an
association file
needs to be created that contains all of the *_calints.fits files produced from Stage 2.
By default, the Tso3 pipeline performs the following steps on MIRI Imaging TSO data sets:
outlier_detectionflags any remaining cosmic rays, bad pixels, or other artifacts not already flagged during the Detector1 stage of the pipeline. For TSOs, a moving median filtering process is carried out that searches for outlier pixel values along the time axis. This method is designed to guard against the spurious flagging of true astrophysical variability in the target. The default rolling window width is 25 integrations, but that parameter can be adjusted in the user-specified dictionary below.tso_photometrydoes aperture photometry using a circular aperture centered on the target. The sky background is computed as the mean within a circular annulus. The output is a table (ASCII ecsv format) containing the time at the midpoint of each integration and the photometry values. The default extraction aperture and background annulus sizes are stored in thetsophotreference file.
IMPORTANT NOTE: the position of the photometric aperture is determined by the world coordinate solution (WCS) in the header, which can be offset from the true position of the target due to pointing and/or target coordinate inaccuracies. It is recommended that users carry out their own photometric extraction using a computed centroid position for the target aperture.
To override certain steps and reference files, use the examples below.
time_tso3 = time.perf_counter()
# Set up a dictionary to define how the Tso3 pipeline should be configured
# Boilerplate dictionary setup
tso3dict = {}
tso3dict['outlier_detection'], tso3dict['tso_photometry'] = {}, {}
# Overrides for whether or not certain steps should be skipped (example)
#tso3dict['outlier_detection']['skip'] = True
# Overrides for specific parameters in the step (examples)
#tso3dict['outlier_detection']['rolling_window_width'] = 35
Collect all of the Stage 2 *calints.fits files, ensuring the use of absolute paths.
# Grab all the calints.fits files
cal_files = sorted(glob.glob(os.path.join(image2_dir, '*calints.fits')))
for ii in range(0, len(cal_files)):
cal_files[ii] = os.path.abspath(cal_files[ii])
calfiles = np.array(cal_files)
Create Association File#
An association file lists the exposures to be calibrated together in Stage 3
of the JWST pipeline. The code below creates an
association file from the *calints.fits files.
# Create a Level 3 Association
if do_tso3:
# Define the basic association of science files
asn = afl.asn_from_list(cal_files, rule=DMS_Level3_Base, product_name='Stage3')
# Write the association to a json file
asnfile = os.path.join(tso3_dir, 'stage3_asn.json')
_, serialized = asn.dump()
with open(asnfile, 'w') as outfile:
outfile.write(serialized)
2025-05-13 14:11:19,543 - stpipe - WARNING - /usr/share/miniconda/lib/python3.13/site-packages/jwst/associations/association.py:215: UserWarning: Input association file contains path information; note that this can complicate usage and/or sharing of such files.
warnings.warn(err_str, UserWarning)
Run the Tso3 pipeline#
In addition to the photometry file Stage3_phot.ecsv, the Tso3 pipeline produces outlier-masked calibrated image stacks *crfints.fits for each segment of integrations.
if do_tso3:
Tso3Pipeline.call(asnfile, output_dir=tso3_dir, steps=tso3dict, save_results=True)
else:
print('Skipping Tso3 processing...')
2025-05-13 14:11:19,784 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_pars-outlierdetectionstep_0101.asdf 1.3 K bytes (1 / 1 files) (0 / 1.3 K bytes)
2025-05-13 14:11:19,906 - stpipe - INFO - PARS-OUTLIERDETECTIONSTEP parameters found: /home/runner/crds/references/jwst/miri/jwst_miri_pars-outlierdetectionstep_0101.asdf
2025-05-13 14:11:19,925 - stpipe.Tso3Pipeline - INFO - Tso3Pipeline instance created.
2025-05-13 14:11:19,926 - stpipe.Tso3Pipeline.outlier_detection - INFO - OutlierDetectionStep instance created.
2025-05-13 14:11:19,927 - stpipe.Tso3Pipeline.tso_photometry - INFO - TSOPhotometryStep instance created.
2025-05-13 14:11:19,928 - stpipe.Tso3Pipeline.pixel_replace - INFO - PixelReplaceStep instance created.
2025-05-13 14:11:19,933 - stpipe.Tso3Pipeline.extract_1d - INFO - Extract1dStep instance created.
2025-05-13 14:11:19,934 - stpipe.Tso3Pipeline.photom - INFO - PhotomStep instance created.
2025-05-13 14:11:19,934 - stpipe.Tso3Pipeline.white_light - INFO - WhiteLightStep instance created.
2025-05-13 14:11:20,050 - stpipe.Tso3Pipeline - INFO - Step Tso3Pipeline running with args ('./imaging_demo_data/PID03730Obs013/stage3/stage3_asn.json',).
2025-05-13 14:11:20,060 - stpipe.Tso3Pipeline - INFO - Step Tso3Pipeline parameters are:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: ./imaging_demo_data/PID03730Obs013/stage3
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: True
skip: False
suffix: None
search_output_file: True
input_dir: ''
steps:
outlier_detection:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: False
input_dir: ''
weight_type: ivm
pixfrac: 1.0
kernel: square
fillval: NAN
maskpt: 0.7
snr: 5.0 4.0
scale: 1.2 0.7
backg: 0.0
kernel_size: 7 7
threshold_percent: 99.8
rolling_window_width: 25
ifu_second_check: False
save_intermediate_results: False
resample_data: False
good_bits: ~DO_NOT_USE+NON_SCIENCE
in_memory: True
tso_photometry:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
save_catalog: False
pixel_replace:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: True
output_use_index: True
save_results: False
skip: True
suffix: None
search_output_file: True
input_dir: ''
algorithm: fit_profile
n_adjacent_cols: 3
extract_1d:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
subtract_background: None
apply_apcorr: True
extraction_type: box
use_source_posn: None
position_offset: 0.0
model_nod_pair: True
optimize_psf_location: True
smoothing_length: None
bkg_fit: None
bkg_order: None
log_increment: 50
save_profile: False
save_scene_model: False
save_residual_image: False
center_xy: None
ifu_autocen: False
bkg_sigma_clip: 3.0
ifu_rfcorr: True
ifu_set_srctype: None
ifu_rscale: None
ifu_covar_scale: 1.0
soss_atoca: True
soss_threshold: 0.01
soss_n_os: 2
soss_wave_grid_in: None
soss_wave_grid_out: None
soss_estimate: None
soss_rtol: 0.0001
soss_max_grid_size: 20000
soss_tikfac: None
soss_width: 40.0
soss_bad_pix: masking
soss_modelname: None
photom:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
inverse: False
source_type: None
mrs_time_correction: True
white_light:
pre_hooks: []
post_hooks: []
output_file: None
output_dir: None
output_ext: .ecsv
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: whtlt
search_output_file: True
input_dir: ''
min_wavelength: None
max_wavelength: None
2025-05-13 14:11:20,069 - stpipe.Tso3Pipeline - WARNING - /usr/share/miniconda/lib/python3.13/site-packages/jwst/associations/association.py:215: UserWarning: Input association file contains path information; note that this can complicate usage and/or sharing of such files.
warnings.warn(err_str, UserWarning)
2025-05-13 14:11:20,256 - stpipe.Tso3Pipeline - INFO - Prefetching reference files for dataset: 'jw03730013001_03101_00001-seg001_mirimage_calints.fits' reftypes = ['gain', 'readnoise']
2025-05-13 14:11:20,260 - stpipe.Tso3Pipeline - INFO - Prefetch for GAIN reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_gain_0048.fits'.
2025-05-13 14:11:20,260 - stpipe.Tso3Pipeline - INFO - Prefetch for READNOISE reference file is '/home/runner/crds/references/jwst/miri/jwst_miri_readnoise_0085.fits'.
2025-05-13 14:11:20,261 - stpipe.Tso3Pipeline - INFO - Starting calwebb_tso3...
2025-05-13 14:11:20,269 - stpipe.Tso3Pipeline - WARNING - /usr/share/miniconda/lib/python3.13/site-packages/jwst/associations/association.py:215: UserWarning: Input association file contains path information; note that this can complicate usage and/or sharing of such files.
warnings.warn(err_str, UserWarning)
2025-05-13 14:11:21,102 - stpipe.Tso3Pipeline - INFO - Performing outlier detection on input images ...
2025-05-13 14:11:21,227 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_calints.fits>,).
2025-05-13 14:11:21,228 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection mode: tso
2025-05-13 14:11:21,229 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection asn_id: a3001
2025-05-13 14:11:33,365 - stpipe.Tso3Pipeline.outlier_detection - INFO - Flagging outliers
2025-05-13 14:11:33,637 - stpipe.Tso3Pipeline.outlier_detection - INFO - 380 pixels marked as outliers
2025-05-13 14:11:33,644 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection done
2025-05-13 14:11:33,644 - stpipe.Tso3Pipeline - INFO - Saving crfints products with updated DQ arrays ...
2025-05-13 14:11:33,961 - stpipe.Tso3Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage3/jw03730013001_03101_00001-seg001_mirimage_a3001_crfints.fits
2025-05-13 14:11:33,962 - stpipe.Tso3Pipeline - INFO - Performing outlier detection on input images ...
2025-05-13 14:11:34,092 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_calints.fits>,).
2025-05-13 14:11:34,093 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection mode: tso
2025-05-13 14:11:34,093 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection asn_id: a3001
2025-05-13 14:11:46,299 - stpipe.Tso3Pipeline.outlier_detection - INFO - Flagging outliers
2025-05-13 14:11:46,570 - stpipe.Tso3Pipeline.outlier_detection - INFO - 128 pixels marked as outliers
2025-05-13 14:11:46,577 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection done
2025-05-13 14:11:46,577 - stpipe.Tso3Pipeline - INFO - Saving crfints products with updated DQ arrays ...
2025-05-13 14:11:46,894 - stpipe.Tso3Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage3/jw03730013001_03101_00001-seg002_mirimage_a3001_crfints.fits
2025-05-13 14:11:46,895 - stpipe.Tso3Pipeline - INFO - Performing outlier detection on input images ...
2025-05-13 14:11:47,026 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_calints.fits>,).
2025-05-13 14:11:47,026 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection mode: tso
2025-05-13 14:11:47,027 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection asn_id: a3001
2025-05-13 14:11:59,236 - stpipe.Tso3Pipeline.outlier_detection - INFO - Flagging outliers
2025-05-13 14:11:59,509 - stpipe.Tso3Pipeline.outlier_detection - INFO - 145 pixels marked as outliers
2025-05-13 14:11:59,515 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection done
2025-05-13 14:11:59,516 - stpipe.Tso3Pipeline - INFO - Saving crfints products with updated DQ arrays ...
2025-05-13 14:11:59,833 - stpipe.Tso3Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage3/jw03730013001_03101_00001-seg003_mirimage_a3001_crfints.fits
2025-05-13 14:11:59,834 - stpipe.Tso3Pipeline - INFO - Performing outlier detection on input images ...
2025-05-13 14:11:59,960 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_calints.fits>,).
2025-05-13 14:11:59,961 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection mode: tso
2025-05-13 14:11:59,961 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection asn_id: a3001
2025-05-13 14:12:12,405 - stpipe.Tso3Pipeline.outlier_detection - INFO - Flagging outliers
2025-05-13 14:12:12,678 - stpipe.Tso3Pipeline.outlier_detection - INFO - 109 pixels marked as outliers
2025-05-13 14:12:12,684 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection done
2025-05-13 14:12:12,685 - stpipe.Tso3Pipeline - INFO - Saving crfints products with updated DQ arrays ...
2025-05-13 14:12:13,002 - stpipe.Tso3Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage3/jw03730013001_03101_00001-seg004_mirimage_a3001_crfints.fits
2025-05-13 14:12:13,003 - stpipe.Tso3Pipeline - INFO - Performing outlier detection on input images ...
2025-05-13 14:12:13,136 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection running with args (<CubeModel(28, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_calints.fits>,).
2025-05-13 14:12:13,136 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection mode: tso
2025-05-13 14:12:13,137 - stpipe.Tso3Pipeline.outlier_detection - INFO - Outlier Detection asn_id: a3001
2025-05-13 14:12:15,449 - stpipe.Tso3Pipeline.outlier_detection - INFO - Flagging outliers
2025-05-13 14:12:15,480 - stpipe.Tso3Pipeline.outlier_detection - INFO - 17 pixels marked as outliers
2025-05-13 14:12:15,485 - stpipe.Tso3Pipeline.outlier_detection - INFO - Step outlier_detection done
2025-05-13 14:12:15,485 - stpipe.Tso3Pipeline - INFO - Saving crfints products with updated DQ arrays ...
2025-05-13 14:12:15,615 - stpipe.Tso3Pipeline - INFO - Saved model in ./imaging_demo_data/PID03730Obs013/stage3/jw03730013001_03101_00001-seg005_mirimage_a3001_crfints.fits
2025-05-13 14:12:15,757 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg001_mirimage_calints.fits>,).
2025-05-13 14:12:15,776 - CRDS - INFO - Fetching /home/runner/crds/references/jwst/miri/jwst_miri_tsophot_0001.asdf 1.1 K bytes (1 / 1 files) (0 / 1.1 K bytes)
2025-05-13 14:12:16,079 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry done
2025-05-13 14:12:16,217 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg002_mirimage_calints.fits>,).
2025-05-13 14:12:16,434 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry done
2025-05-13 14:12:16,556 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg003_mirimage_calints.fits>,).
2025-05-13 14:12:16,772 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry done
2025-05-13 14:12:16,894 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry running with args (<CubeModel(234, 256, 256) from jw03730013001_03101_00001-seg004_mirimage_calints.fits>,).
2025-05-13 14:12:17,111 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry done
2025-05-13 14:12:17,233 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry running with args (<CubeModel(28, 256, 256) from jw03730013001_03101_00001-seg005_mirimage_calints.fits>,).
2025-05-13 14:12:17,285 - stpipe.Tso3Pipeline.tso_photometry - INFO - Step tso_photometry done
2025-05-13 14:12:17,289 - stpipe.Tso3Pipeline - INFO - Writing Level 3 photometry catalog ./imaging_demo_data/PID03730Obs013/stage3/Stage3_phot.ecsv
2025-05-13 14:12:17,326 - stpipe.Tso3Pipeline - INFO - Step Tso3Pipeline done
2025-05-13 14:12:17,326 - stpipe - INFO - Results used jwst version: 1.18.0
# Print out the time benchmark
time1 = time.perf_counter()
print(f"Runtime so far: {time1 - time0:0.0f} seconds")
print(f"Runtime for Image3: {time1 - time_tso3:0.0f} seconds")
Runtime so far: 1446 seconds
Runtime for Image3: 58 seconds
8. Visualize the photometric light curve#
Plot the extracted photometric light curve produced by the pipeline. For the demo mode example, note the handful of outliers that were not addressed by the Tso3 pipeline, as well as the systematic offset in flux level in the last segment of integrations.
if do_viz:
# Read in photometry file
phot_file = os.path.join(tso3_dir, 'Stage3_phot.ecsv')
data = ascii.read(phot_file, comment='#', delimiter=' ')
# Make normal plots
%matplotlib inline
# Interactive plots
#%matplotlib notebook
# Plot result
rc('axes', linewidth=2)
fig, ax = plt.subplots(1, 1, figsize=(10, 5), dpi=150)
ax.plot(data['MJD'], data['aperture_sum'], 'b.', ms=6)
plt.xlabel('MJD_UTC (d)')
plt.ylabel('Flux (Jy)')
plt.grid()
plt.tight_layout()
plt.savefig(os.path.join(tso3_dir, 'imaging_tso_example_lc.png'))
