MIRI LRS Slit Spectroscopy: Spectral Extraction using the JWST Pipeline#
July 2023
Use case: Spectral extraction of slit spectra with the JWST calibration pipeline.
Data: Publicly available science data
Tools: jwst, matplotlib, astropy.
Cross-intrument: NIRSpec, MIRI.
Documentation: This notebook is part of a STScI’s larger post-pipeline Data Analysis Tools Ecosystem and can be downloaded directly from the JDAT Notebook Github directory.
Introduction: Spectral extraction in the JWST calibration pipeline#
The JWST calibration pipeline performs spectrac extraction for all spectroscopic data using basic default assumptions that are tuned to produce accurately calibrated spectra for the majority of science cases. This default method is a simple fixed-width boxcar extraction, where the spectrum is summed over a number of pixels along the cross-dispersion axis, over the valid wavelength range. An aperture correction is applied at each pixel along the spectrum to account for flux lost from the finite-width aperture.
The extract_1d
step uses the following inputs for its algorithm:
the spectral extraction reference file: this is a json-formatted file, available as a reference file from the JWST CRDS system
the bounding box: the
assign_wcs
step attaches a bounding box definition to the data, which defines the region over which a valid calibration is available. We will demonstrate below how to visualize this region.
However the extract_1d
step has the capability to perform more complex spectral extractions, requiring some manual editing of parameters and re-running of the pipeline step.
Aims#
This notebook will demonstrate how to re-run the spectral extraction step with different settings to illustrate the capabilities of the JWST calibration pipeline.
Assumptions#
We will demonstrate the spectral extraction methods on resampled, calibrated spectral images. The basic demo and two examples run on Level 3 data, in which the nod exposures have been combined into a single spectral image. Two examples will use the Level 2b data - one of the nodded exposures.
Test data#
The data used in this notebook is an observation of the Type Ia supernova SN2021aefx, observed by Jha et al in PID 2072 (Obs 1). These data were taken with zero exclusive access period, and published in Kwok et al 2023. You can retrieve the data from this Box folder, and we recommend you place the files in the data/
folder of this repository, or change the directory settings in the notebook prior to running.
You can of course use your own data instead of the demo data.
JWST pipeline version and CRDS context#
This notebook was written using the calibration pipeline version 1.10.2. We set the CRDS context explicitly to 1089 to match the current latest version in MAST. If you use different pipeline versions or CRDS context, please read the relevant release notes (here for pipeline, here for CRDS) for possibly relevant changes.
Contents#
The Level 3 data products
The spectral extraction reference file

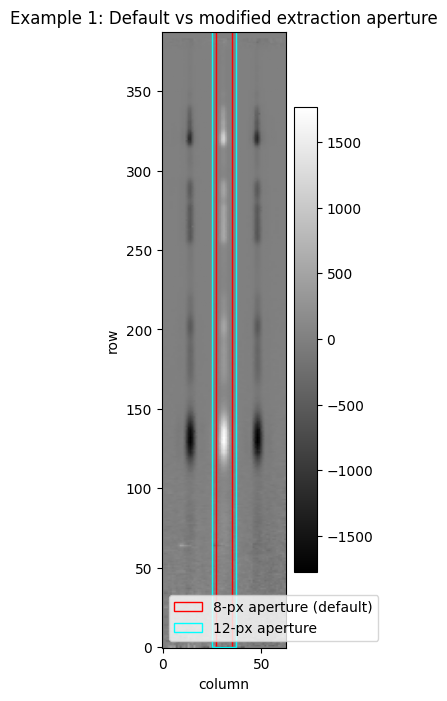

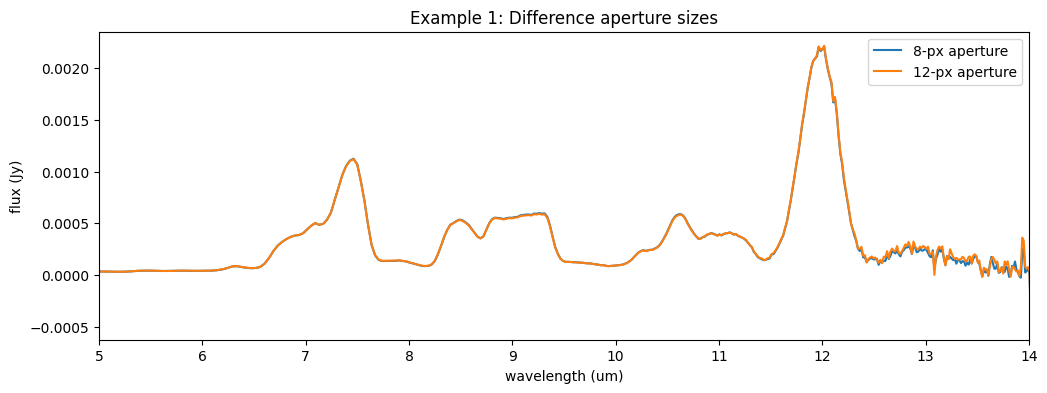

Example 1: Changing the aperture width

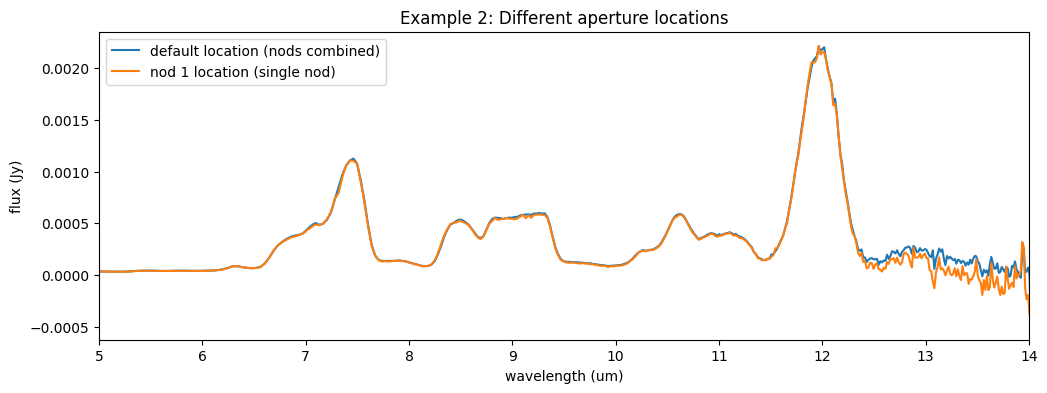

Example 2: Changing the aperture location

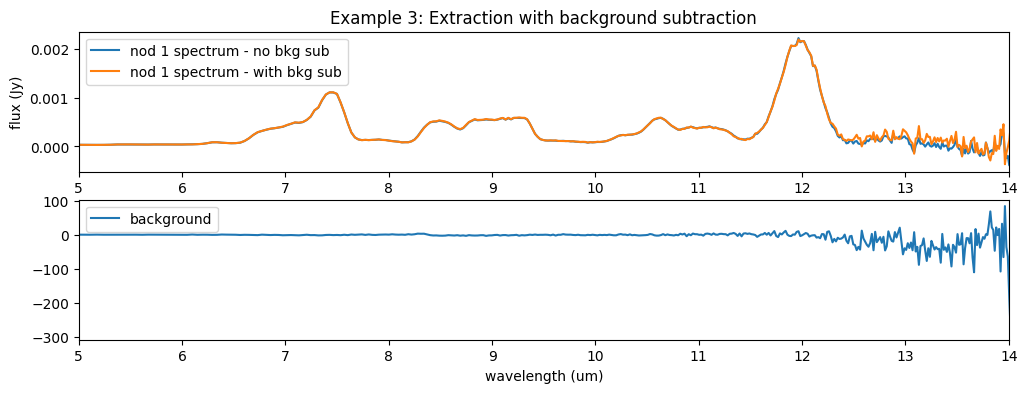

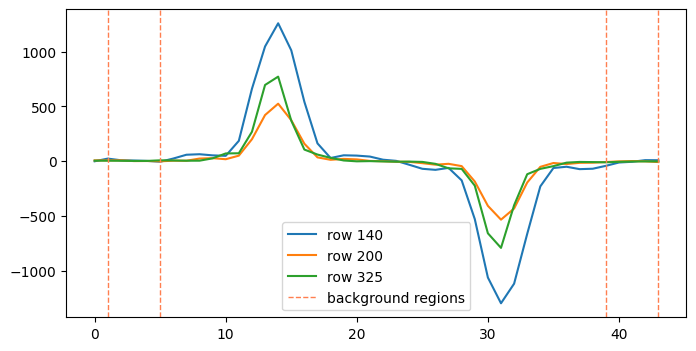

Example 3: Extraction with background subtraction

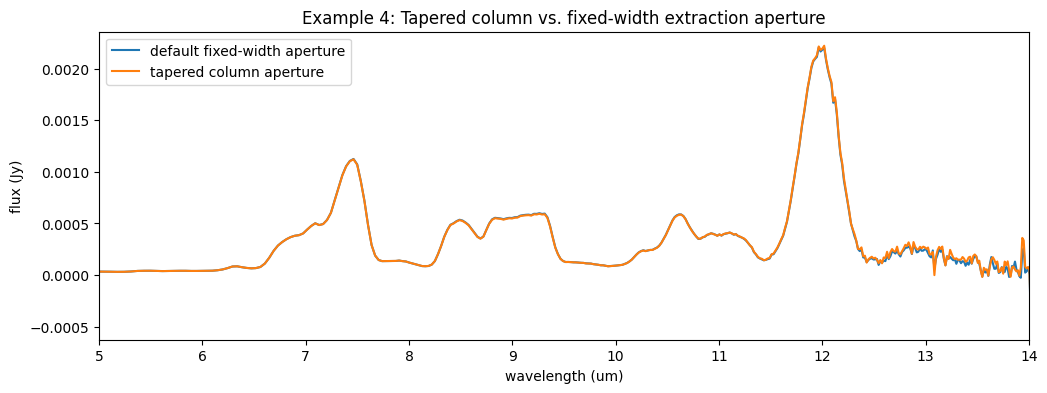

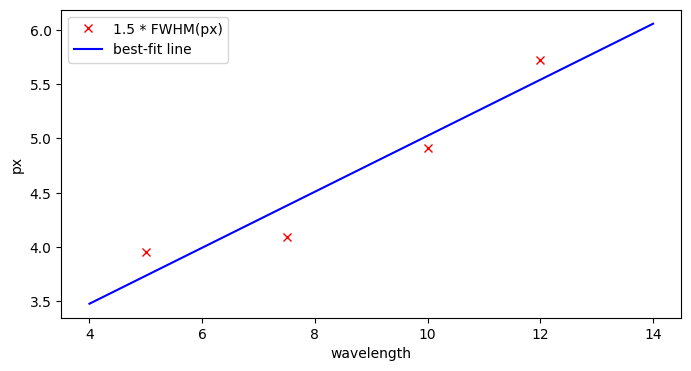

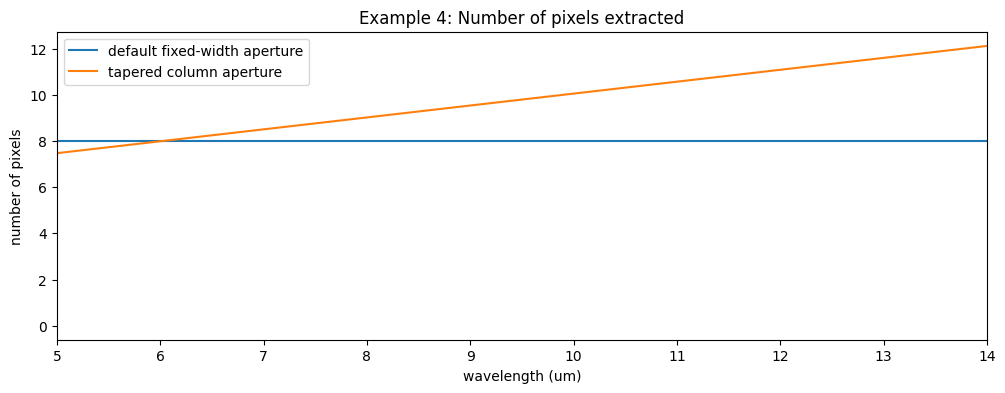

Example 4: Tapered column extraction
Import Packages#
astropy.io
fits for accessing FITS filesos
for managing system pathsmatplotlib
for plotting dataurllib
for downloading datatarfile
for unpacking datanumpy
for basic array manipulationjwst
for running JWST pipeline and handling data productsjson
for working with json filescrds
for working with JWST reference files
# Set CRDS variables first
import os
os.environ['CRDS_CONTEXT'] = 'jwst_1089.pmap'
os.environ['CRDS_PATH'] = os.environ['HOME']+'/crds_cache'
os.environ['CRDS_SERVER_URL'] = 'https://jwst-crds.stsci.edu'
print(f'CRDS cache location: {os.environ["CRDS_PATH"]}')
CRDS cache location: /home/runner/crds_cache
%matplotlib inline
import urllib.request
import tarfile
import numpy as np
import matplotlib.pyplot as plt
import astropy.io.fits as fits
import astropy.units as u
from astropy.modeling import models, fitting
import jwst
from jwst import datamodels
from jwst.extract_1d import Extract1dStep
from matplotlib.patches import Rectangle
import json
import crds
print(f'Using JWST calibration pipeline version {jwst.__version__}')
Using JWST calibration pipeline version 1.15.1
data_tar_url = 'https://data.science.stsci.edu/redirect/JWST/jwst-data_analysis_tools/MIRI_LRS_notebook/data.tar.gz'
# Download and unpack data if needed
if not os.path.exists("data.tar.gz"):
print("Downloading Data")
urllib.request.urlretrieve(data_tar_url, 'data.tar.gz')
if not os.path.exists("data/"):
print("Unpacking Data")
with tarfile.open('./data.tar.gz', "r:gz") as tar:
tar.extractall()
Downloading Data
Unpacking Data
1. The Level 3 Data Products #
Let’s start by plotting the main default Level 3 output products:
the
s2d
file: this is the 2D image built from the co-added resampled individual nod exposures.the
x1d
file: this is the 1-D extracted spectrum, extracted from the Level 3s2d
file.

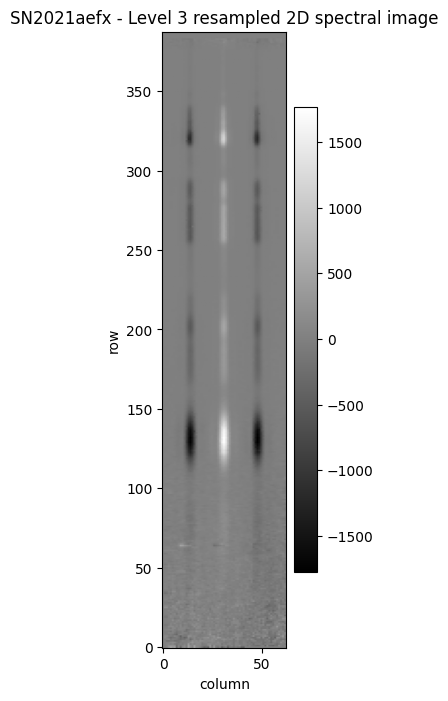

The s2d
image shows a bright central trace, flanked by two negative traces. These result from the combination of the nod exposures, each of which also contains a positive and negative trace due to being mutually subtracted for background subtraction.
We restrict the short-wavelength end of the x-axis to 5 micron, as our calibration is very poor below this wavelength. The Level 3 spectrum is extracted from the resampled, dither-combined, calibrated exposure.
l3_s2d_file = 'data/jw02072-o001_t010_miri_p750l_s2d_1089.fits'
l3_s2d = datamodels.open(l3_s2d_file)
fig, ax = plt.subplots(figsize=[2, 8])
im2d = ax.imshow(l3_s2d.data, origin='lower', aspect='auto', cmap='gist_gray')
ax.set_xlabel('column')
ax.set_ylabel('row')
ax.set_title('SN2021aefx - Level 3 resampled 2D spectral image')
fig.colorbar(im2d)
fig.show()
![../../../_images/7940380e6028818f9d0a23f0d5428026952f198fe5766500dc64e677d70f9fe0.png](../../../_images/7940380e6028818f9d0a23f0d5428026952f198fe5766500dc64e677d70f9fe0.png)

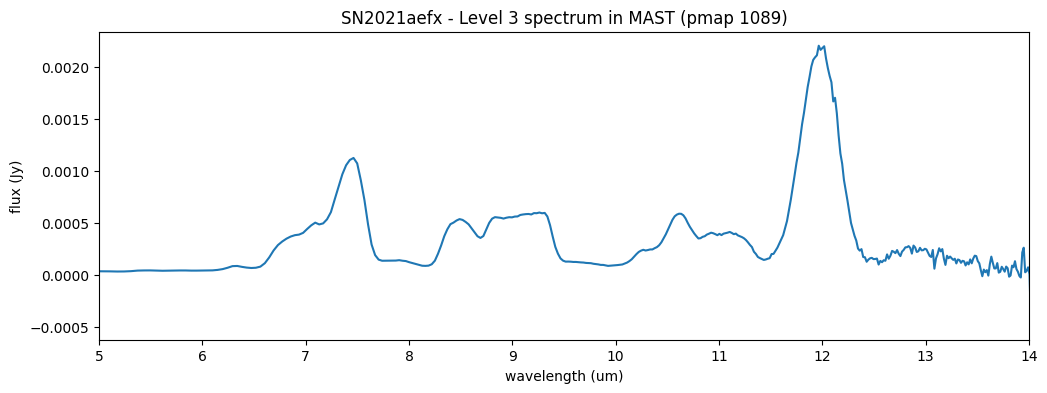

l3_file = 'data/jw02072-o001_t010_miri_p750l_x1d_1089.fits'
l3_spec = datamodels.open(l3_file)
fig2, ax2 = plt.subplots(figsize=[12, 4])
ax2.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['FLUX'])
ax2.set_xlabel('wavelength (um)')
ax2.set_ylabel('flux (Jy)')
ax2.set_title('SN2021aefx - Level 3 spectrum in MAST (pmap 1089)')
ax2.set_xlim(5., 14.)
fig2.show()
![../../../_images/769cd08b36ec32c87ebefaab770b5a4fea901262fa1f0691c9ea3b2b0824f097.png](../../../_images/769cd08b36ec32c87ebefaab770b5a4fea901262fa1f0691c9ea3b2b0824f097.png)
The spectral extraction reference file #
The reference file that tells the extract_1d
algorithm what parameters to use is a text file using the json
format that is available in CRDS. The second reference file used in the extraction is the aperture correction; this corrects for the flux lost as a function of wavelength for the extraction aperture size used. You can use the datamodel attributes of the x1d
file to check which extraction reference file was called by the algorithm.
We show below how to examine the file programmatically to see what aperture was used to produce the default Level 3 spectrum shown above. Note: this json file can easily be opened and edited with a simple text editor.
Full documentation of the extract_1d
reference file is available here. We recommend you read this page and any links therein carefully to understand how the parameters in the file are applied to the data.
print(f'Spectral extraction reference file used: {l3_spec.meta.ref_file.extract1d.name}')
Spectral extraction reference file used: crds://jwst_miri_extract1d_0005.json
file_path = 'data/jw02072-o001_t010_miri_p750l_x1d_1089.fits'
with fits.open(file_path) as hdul:
header = hdul[0].header
json_ref_default = crds.getreferences(header)['extract1d']
with open(json_ref_default) as json_ref:
x1dref_default = json.load(json_ref)
print('Settings for SLIT data: {}'.format(x1dref_default['apertures'][0]))
print(' ')
print('Settings for SLITLESS data: {}'.format(x1dref_default['apertures'][1]))
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_system_datalvl_0002.rmap 694 bytes (1 / 183 files) (0 / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_system_calver_0033.rmap 4.1 K bytes (2 / 183 files) (694 / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_system_0032.imap 385 bytes (3 / 183 files) (4.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_wavelengthrange_0020.rmap 1.5 K bytes (4 / 183 files) (5.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_wavecorr_0005.rmap 884 bytes (5 / 183 files) (6.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_superbias_0062.rmap 29.9 K bytes (6 / 183 files) (7.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_sflat_0023.rmap 20.6 K bytes (7 / 183 files) (37.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_saturation_0018.rmap 2.0 K bytes (8 / 183 files) (58.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_refpix_0015.rmap 1.6 K bytes (9 / 183 files) (60.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_readnoise_0025.rmap 2.6 K bytes (10 / 183 files) (61.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_photom_0013.rmap 958 bytes (11 / 183 files) (64.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pathloss_0005.rmap 983 bytes (12 / 183 files) (65.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-whitelightstep_0001.rmap 777 bytes (13 / 183 files) (66.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-spec2pipeline_0013.rmap 2.1 K bytes (14 / 183 files) (67.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-jumpstep_0004.rmap 810 bytes (15 / 183 files) (69.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-image2pipeline_0008.rmap 1.0 K bytes (16 / 183 files) (69.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-detector1pipeline_0003.rmap 1.1 K bytes (17 / 183 files) (70.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_pars-darkpipeline_0003.rmap 872 bytes (18 / 183 files) (71.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_ote_0028.rmap 1.2 K bytes (19 / 183 files) (72.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_msaoper_0009.rmap 1.2 K bytes (20 / 183 files) (74.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_msa_0025.rmap 1.2 K bytes (21 / 183 files) (75.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_mask_0031.rmap 1.9 K bytes (22 / 183 files) (76.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_linearity_0017.rmap 1.6 K bytes (23 / 183 files) (78.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_ipc_0006.rmap 876 bytes (24 / 183 files) (79.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_ifuslicer_0015.rmap 1.5 K bytes (25 / 183 files) (80.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_ifupost_0017.rmap 1.4 K bytes (26 / 183 files) (82.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_ifufore_0015.rmap 1.4 K bytes (27 / 183 files) (83.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_gain_0023.rmap 1.8 K bytes (28 / 183 files) (85.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_fpa_0026.rmap 1.2 K bytes (29 / 183 files) (86.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_fore_0024.rmap 4.5 K bytes (30 / 183 files) (88.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_flat_0015.rmap 3.8 K bytes (31 / 183 files) (92.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_fflat_0017.rmap 7.2 K bytes (32 / 183 files) (96.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_extract1d_0016.rmap 2.3 K bytes (33 / 183 files) (103.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_disperser_0026.rmap 5.1 K bytes (34 / 183 files) (105.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_dflat_0007.rmap 1.1 K bytes (35 / 183 files) (111.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_dark_0055.rmap 28.5 K bytes (36 / 183 files) (112.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_cubepar_0014.rmap 966 bytes (37 / 183 files) (140.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_collimator_0024.rmap 1.3 K bytes (38 / 183 files) (141.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_camera_0024.rmap 1.2 K bytes (39 / 183 files) (142.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_barshadow_0004.rmap 928 bytes (40 / 183 files) (144.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_area_0018.rmap 6.3 K bytes (41 / 183 files) (145.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_apcorr_0009.rmap 5.6 K bytes (42 / 183 files) (151.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nirspec_0326.imap 5.2 K bytes (43 / 183 files) (156.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_wfssbkg_0007.rmap 3.1 K bytes (44 / 183 files) (162.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_wavemap_0008.rmap 2.2 K bytes (45 / 183 files) (165.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_wavelengthrange_0006.rmap 862 bytes (46 / 183 files) (167.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_trappars_0004.rmap 753 bytes (47 / 183 files) (168.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_trapdensity_0004.rmap 774 bytes (48 / 183 files) (169.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_throughput_0004.rmap 979 bytes (49 / 183 files) (169.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_superbias_0025.rmap 7.2 K bytes (50 / 183 files) (170.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_specwcs_0010.rmap 3.1 K bytes (51 / 183 files) (178.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_spectrace_0008.rmap 2.3 K bytes (52 / 183 files) (181.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_specprofile_0008.rmap 2.4 K bytes (53 / 183 files) (183.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_speckernel_0006.rmap 1.0 K bytes (54 / 183 files) (185.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_saturation_0014.rmap 761 bytes (55 / 183 files) (186.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_readnoise_0011.rmap 987 bytes (56 / 183 files) (187.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_photom_0031.rmap 1.2 K bytes (57 / 183 files) (188.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_persat_0006.rmap 738 bytes (58 / 183 files) (189.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pathloss_0003.rmap 758 bytes (59 / 183 files) (190.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-undersamplecorrectionstep_0001.rmap 904 bytes (60 / 183 files) (191.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-tweakregstep_0005.rmap 3.1 K bytes (61 / 183 files) (192.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-spec2pipeline_0008.rmap 984 bytes (62 / 183 files) (195.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-sourcecatalogstep_0001.rmap 668 bytes (63 / 183 files) (196.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-outlierdetectionstep_0004.rmap 2.7 K bytes (64 / 183 files) (197.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-jumpstep_0006.rmap 4.5 K bytes (65 / 183 files) (199.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-image2pipeline_0005.rmap 1.0 K bytes (66 / 183 files) (204.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-detector1pipeline_0002.rmap 1.0 K bytes (67 / 183 files) (205.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_pars-darkpipeline_0002.rmap 868 bytes (68 / 183 files) (206.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_mask_0020.rmap 859 bytes (69 / 183 files) (207.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_linearity_0021.rmap 894 bytes (70 / 183 files) (207.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_ipc_0007.rmap 651 bytes (71 / 183 files) (208.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_gain_0011.rmap 797 bytes (72 / 183 files) (209.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_flat_0023.rmap 5.9 K bytes (73 / 183 files) (210.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_filteroffset_0007.rmap 844 bytes (74 / 183 files) (216.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_extract1d_0007.rmap 905 bytes (75 / 183 files) (216.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_drizpars_0004.rmap 519 bytes (76 / 183 files) (217.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_distortion_0023.rmap 3.4 K bytes (77 / 183 files) (218.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_dark_0031.rmap 6.8 K bytes (78 / 183 files) (221.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_area_0014.rmap 2.7 K bytes (79 / 183 files) (228.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_apcorr_0006.rmap 4.3 K bytes (80 / 183 files) (231.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_abvegaoffset_0004.rmap 1.4 K bytes (81 / 183 files) (235.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_niriss_0218.imap 5.3 K bytes (82 / 183 files) (237.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_wfssbkg_0004.rmap 7.2 K bytes (83 / 183 files) (242.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_wavelengthrange_0010.rmap 996 bytes (84 / 183 files) (249.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_tsophot_0003.rmap 896 bytes (85 / 183 files) (250.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_trappars_0003.rmap 1.6 K bytes (86 / 183 files) (251.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_trapdensity_0003.rmap 1.6 K bytes (87 / 183 files) (252.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_superbias_0015.rmap 12.7 K bytes (88 / 183 files) (254.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_specwcs_0018.rmap 7.1 K bytes (89 / 183 files) (267.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_saturation_0010.rmap 2.2 K bytes (90 / 183 files) (274.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_readnoise_0022.rmap 19.9 K bytes (91 / 183 files) (276.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_psfmask_0007.rmap 11.0 K bytes (92 / 183 files) (296.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_photom_0017.rmap 3.4 K bytes (93 / 183 files) (307.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_persat_0005.rmap 1.6 K bytes (94 / 183 files) (310.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-whitelightstep_0003.rmap 1.5 K bytes (95 / 183 files) (312.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-tweakregstep_0003.rmap 4.5 K bytes (96 / 183 files) (313.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-spec2pipeline_0008.rmap 984 bytes (97 / 183 files) (318.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-sourcecatalogstep_0001.rmap 668 bytes (98 / 183 files) (319.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-outlierdetectionstep_0003.rmap 940 bytes (99 / 183 files) (319.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-jumpstep_0004.rmap 806 bytes (100 / 183 files) (320.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-image2pipeline_0003.rmap 1.0 K bytes (101 / 183 files) (321.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-detector1pipeline_0002.rmap 1.0 K bytes (102 / 183 files) (322.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_pars-darkpipeline_0002.rmap 868 bytes (103 / 183 files) (323.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_mask_0010.rmap 2.9 K bytes (104 / 183 files) (324.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_linearity_0011.rmap 2.4 K bytes (105 / 183 files) (327.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_ipc_0003.rmap 2.0 K bytes (106 / 183 files) (329.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_gain_0016.rmap 2.1 K bytes (107 / 183 files) (331.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_flat_0024.rmap 51.6 K bytes (108 / 183 files) (334.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_filteroffset_0004.rmap 1.4 K bytes (109 / 183 files) (385.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_extract1d_0004.rmap 842 bytes (110 / 183 files) (387.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_drizpars_0001.rmap 519 bytes (111 / 183 files) (387.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_distortion_0031.rmap 23.7 K bytes (112 / 183 files) (388.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_dark_0043.rmap 23.6 K bytes (113 / 183 files) (412.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_area_0007.rmap 4.6 K bytes (114 / 183 files) (435.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_apcorr_0008.rmap 4.3 K bytes (115 / 183 files) (440.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_abvegaoffset_0002.rmap 1.3 K bytes (116 / 183 files) (444.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_nircam_0258.imap 5.1 K bytes (117 / 183 files) (445.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_wavelengthrange_0027.rmap 929 bytes (118 / 183 files) (450.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_tsophot_0004.rmap 882 bytes (119 / 183 files) (451.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_straymask_0009.rmap 987 bytes (120 / 183 files) (452.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_specwcs_0035.rmap 5.8 K bytes (121 / 183 files) (453.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_saturation_0015.rmap 1.2 K bytes (122 / 183 files) (459.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_rscd_0008.rmap 1.0 K bytes (123 / 183 files) (460.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_resol_0006.rmap 790 bytes (124 / 183 files) (461.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_reset_0026.rmap 3.9 K bytes (125 / 183 files) (462.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_regions_0033.rmap 5.2 K bytes (126 / 183 files) (466.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_readnoise_0023.rmap 1.6 K bytes (127 / 183 files) (471.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_psfmask_0008.rmap 1.6 K bytes (128 / 183 files) (473.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_photom_0038.rmap 3.9 K bytes (129 / 183 files) (474.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pathloss_0004.rmap 802 bytes (130 / 183 files) (478.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-whitelightstep_0003.rmap 912 bytes (131 / 183 files) (479.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-tweakregstep_0003.rmap 1.8 K bytes (132 / 183 files) (480.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-spec3pipeline_0004.rmap 816 bytes (133 / 183 files) (482.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-spec2pipeline_0007.rmap 1.1 K bytes (134 / 183 files) (483.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-sourcecatalogstep_0003.rmap 1.9 K bytes (135 / 183 files) (484.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-outlierdetectionstep_0012.rmap 3.4 K bytes (136 / 183 files) (486.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-jumpstep_0006.rmap 864 bytes (137 / 183 files) (489.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-image2pipeline_0006.rmap 979 bytes (138 / 183 files) (490.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-detector1pipeline_0004.rmap 1.1 K bytes (139 / 183 files) (491.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_pars-darkpipeline_0002.rmap 860 bytes (140 / 183 files) (492.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_mrsxartcorr_0002.rmap 2.2 K bytes (141 / 183 files) (493.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_mrsptcorr_0002.rmap 1.9 K bytes (142 / 183 files) (495.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_mask_0020.rmap 1.1 K bytes (143 / 183 files) (497.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_linearity_0017.rmap 2.7 K bytes (144 / 183 files) (498.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_gain_0007.rmap 893 bytes (145 / 183 files) (501.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_fringefreq_0003.rmap 1.4 K bytes (146 / 183 files) (502.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_fringe_0018.rmap 3.7 K bytes (147 / 183 files) (503.4 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_flat_0061.rmap 15.1 K bytes (148 / 183 files) (507.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_filteroffset_0025.rmap 2.5 K bytes (149 / 183 files) (522.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_extract1d_0018.rmap 1.4 K bytes (150 / 183 files) (524.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_drizpars_0002.rmap 511 bytes (151 / 183 files) (526.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_distortion_0039.rmap 4.9 K bytes (152 / 183 files) (526.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_dark_0034.rmap 4.4 K bytes (153 / 183 files) (531.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_cubepar_0014.rmap 800 bytes (154 / 183 files) (535.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_area_0013.rmap 806 bytes (155 / 183 files) (536.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_apcorr_0009.rmap 4.3 K bytes (156 / 183 files) (537.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_abvegaoffset_0002.rmap 1.3 K bytes (157 / 183 files) (541.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_miri_0341.imap 5.2 K bytes (158 / 183 files) (543.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_trappars_0004.rmap 903 bytes (159 / 183 files) (548.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_trapdensity_0006.rmap 930 bytes (160 / 183 files) (549.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_superbias_0017.rmap 3.8 K bytes (161 / 183 files) (550.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_saturation_0009.rmap 779 bytes (162 / 183 files) (553.9 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_readnoise_0011.rmap 1.3 K bytes (163 / 183 files) (554.7 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_photom_0014.rmap 1.1 K bytes (164 / 183 files) (556.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_persat_0006.rmap 884 bytes (165 / 183 files) (557.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-tweakregstep_0002.rmap 850 bytes (166 / 183 files) (558.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-sourcecatalogstep_0001.rmap 636 bytes (167 / 183 files) (558.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-outlierdetectionstep_0001.rmap 654 bytes (168 / 183 files) (559.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-image2pipeline_0005.rmap 974 bytes (169 / 183 files) (560.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-detector1pipeline_0002.rmap 1.0 K bytes (170 / 183 files) (561.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_pars-darkpipeline_0002.rmap 856 bytes (171 / 183 files) (562.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_mask_0023.rmap 1.1 K bytes (172 / 183 files) (563.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_linearity_0015.rmap 925 bytes (173 / 183 files) (564.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_ipc_0003.rmap 614 bytes (174 / 183 files) (565.0 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_gain_0010.rmap 890 bytes (175 / 183 files) (565.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_flat_0009.rmap 1.1 K bytes (176 / 183 files) (566.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_distortion_0009.rmap 1.2 K bytes (177 / 183 files) (567.6 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_dark_0017.rmap 4.3 K bytes (178 / 183 files) (568.8 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_area_0010.rmap 1.2 K bytes (179 / 183 files) (573.1 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_apcorr_0004.rmap 4.0 K bytes (180 / 183 files) (574.3 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_abvegaoffset_0002.rmap 1.3 K bytes (181 / 183 files) (578.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_fgs_0109.imap 4.7 K bytes (182 / 183 files) (579.5 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/mappings/jwst/jwst_1089.pmap 580 bytes (183 / 183 files) (584.2 K / 584.8 K bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_gain_0008.fits 4.2 M bytes (1 / 15 files) (0 / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_readnoise_0085.fits 4.2 M bytes (2 / 15 files) (4.2 M / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_dark_0094.fits 6.1 G bytes (3 / 15 files) (8.5 M / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_extract1d_0005.json 801 bytes (4 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_apcorr_0007.fits 262.1 K bytes (5 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_rscd_0017.fits 37.4 K bytes (6 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_saturation_0034.fits 8.5 M bytes (7 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_drizpars_0001.fits 8.6 K bytes (8 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_photom_0085.fits 14.4 K bytes (9 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_pathloss_0001.fits 3.1 M bytes (10 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_linearity_0032.fits 25.4 M bytes (11 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_mask_0036.fits 4.3 M bytes (12 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_distortion_0047.asdf 12.4 K bytes (13 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_specwcs_0005.fits 46.1 K bytes (14 / 15 files) (6.1 G / 6.2 G bytes)
CRDS - INFO - Fetching /home/runner/crds_cache/references/jwst/miri/jwst_miri_flat_0790.fits 21.2 M bytes (15 / 15 files) (6.1 G / 6.2 G bytes)
Settings for SLIT data: {'id': 'MIR_LRS-FIXEDSLIT', 'region_type': 'target', 'bkg_order': 0, 'dispaxis': 2, 'xstart': 27, 'xstop': 34, 'use_source_posn': False}
Settings for SLITLESS data: {'id': 'MIR_LRS-SLITLESS', 'region_type': 'target', 'bkg_order': 0, 'dispaxis': 2, 'xstart': 30, 'xstop': 41, 'use_source_posn': False}
Let’s look at what’s in this file.
id: identification label, in this case specifying the exposure type the parameters will be applied to.
region_type: optional, if included must be set to ‘target’
disp_axis: defines the direction of dispersion (1 for x-axis, 2 for y-axis). For MIRI LRS this should always be set to 2.
xstart (int): first pixel in the horizontal direction (x-axis; 0-indexed)
xstop (int): last pixel in the horizontal direction (x-axis; 0-indexed; limit is inclusive)
bkg_order:
use_source_posn (True/False): if True, this will use the target coordinates to locate the target in the field, and offset the extraction aperture to this location. We recommend this is set to False.
bkg_order: the polynomial order to be used for background fitting. if the accompanying parameter bkg_coeff is not provided, no background fitting will be performed. For MIRI LRS slit data, default background subtraction is achieved in the Spec2Pipeline, by mutually subtracting nod expsosures.
As for MIRI LRS the dispersion is in the vertical direction (i.e. disp_axis
= 2), the extraction aperture width is specified with the coordinates xstart
and xstop
. If no coordinates ystart
and ystop
are provided, the spectrum will be extracted over the full height of the s2d
cutout region. We can illustrate the default extraction parameters on the Level 3 s2d
file.
xstart = x1dref_default['apertures'][0]['xstart']
xstop = x1dref_default['apertures'][0]['xstop']
ap_height = np.shape(l3_s2d.data)[0]
ap_width = xstop - xstart + 1
x1d_rect = Rectangle(xy=(xstart, 0), width=ap_width, height=ap_height, angle=0., edgecolor='red',
facecolor='None', ls='-', lw=1.5)
fig, ax = plt.subplots(figsize=[2, 8])
im2d = ax.imshow(l3_s2d.data, origin='lower', aspect='auto', cmap='gist_gray')
ax.add_patch(x1d_rect)
ax.set_xlabel('column')
ax.set_ylabel('row')
ax.set_title('SN2021aefx - Level 3 resampled 2D spectral image')
fig.colorbar(im2d)
fig.show()
![../../../_images/76d3b71cf1a5eb6f27a2fa9352235e94df91ff887bc02e5f9283eea479e78d0d.png](../../../_images/76d3b71cf1a5eb6f27a2fa9352235e94df91ff887bc02e5f9283eea479e78d0d.png)
Example 1: Changing the extraction width #
In this example, we demonstrate how to change the extraction width from the default. Instead of 8 pixels, we’ll extract 12, keeping the aperture centred on the trace.
We will modify the values in the json files in python in this notebook, but the file can also simply be edited in a text editor.
xstart2 = xstart - 2
xstop2 = xstop + 2
print('New xstart, xstop values = {0},{1}'.format(xstart2, xstop2))
with open(json_ref_default) as json_ref:
x1dref_default = json.load(json_ref)
x1dref_ex1 = x1dref_default.copy()
x1dref_ex1['apertures'][0]['xstart'] = xstart2
x1dref_ex1['apertures'][0]['xstop'] = xstop2
with open('x1d_reffile_example1.json', 'w') as jsrefout:
json.dump(x1dref_ex1, jsrefout, indent=4)
New xstart, xstop values = 25,36
ap_width2 = xstop2 - xstart2 + 1
x1d_rect1 = Rectangle(xy=(xstart, 0), width=ap_width, height=ap_height, angle=0., edgecolor='red',
facecolor='None', ls='-', lw=1, label='8-px aperture (default)')
x1d_rect2 = Rectangle(xy=(xstart2, 0), width=ap_width2, height=ap_height, angle=0., edgecolor='cyan',
facecolor='None', ls='-', lw=1, label='12-px aperture')
fig4, ax4 = plt.subplots(figsize=[2, 8])
im2d = ax4.imshow(l3_s2d.data, origin='lower', aspect='auto', cmap='gist_gray')
# ax4.add_collection(aps_collection)
ax4.add_patch(x1d_rect1)
ax4.add_patch(x1d_rect2)
ax4.set_xlabel('column')
ax4.set_ylabel('row')
ax4.set_title('Example 1: Default vs modified extraction aperture')
ax4.legend(loc=3)
fig.colorbar(im2d)
fig.show()
2024-07-10 20:22:23,198 - stpipe - WARNING - /tmp/ipykernel_1894/1574329999.py:18: UserWarning: Adding colorbar to a different Figure <Figure size 200x800 with 2 Axes> than <Figure size 200x800 with 2 Axes> which fig.colorbar is called on.
2024-07-10 20:22:23,198 - stpipe - WARNING - fig.colorbar(im2d)
2024-07-10 20:22:23,199 - stpipe - WARNING -
![../../../_images/53e8cdb4adf8af755d9afa5911578dfccb5cc443fcad022d80b950f5483de0ff.png](../../../_images/53e8cdb4adf8af755d9afa5911578dfccb5cc443fcad022d80b950f5483de0ff.png)
Next we run the spectral extraction step, using this modified reference file. Note: when a step is run individually the file name suffix is different from when we run the Spec3Pipeline in its entirety. The extracted spectrum will now have extract1dstep.fits
in the filename. The custom parameters we pass to the step call:
output_file
: we provide a custom output filename for this example (including an output filename renders thesave_results
parameter obsolete)override_extract1d
: here we provide the name of the custom reference file we created above
We will plot the output against the default extracted product. We expect the spectra to be almost identical; differences can be apparent at the longer wavelengths as our path loss correction is less well calibrated in this low SNR region.
sp3_ex1 = Extract1dStep.call(l3_s2d, output_dir='data/',
output_file='lrs_slit_extract_example1', override_extract1d='x1d_reffile_example1.json')
2024-07-10 20:22:23,438 - stpipe.Extract1dStep - INFO - Extract1dStep instance created.
2024-07-10 20:22:23,532 - stpipe.Extract1dStep - INFO - Step Extract1dStep running with args (<SlitModel(388, 63) from jw02072-o001_t010_miri_p750l_s2d_1089.fits>,).
2024-07-10 20:22:23,536 - stpipe.Extract1dStep - INFO - Step Extract1dStep parameters are:
pre_hooks: []
post_hooks: []
output_file: /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/lrs_slit_extract_example1
output_dir: data/
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
smoothing_length: None
bkg_fit: None
bkg_order: None
bkg_sigma_clip: 3.0
log_increment: 50
subtract_background: None
use_source_posn: None
center_xy: None
apply_apcorr: True
ifu_autocen: False
ifu_rfcorr: False
ifu_set_srctype: None
ifu_rscale: None
ifu_covar_scale: 1.0
soss_atoca: True
soss_threshold: 0.01
soss_n_os: 2
soss_wave_grid_in: None
soss_wave_grid_out: None
soss_estimate: None
soss_rtol: 0.0001
soss_max_grid_size: 20000
soss_transform: None
soss_tikfac: None
soss_width: 40.0
soss_bad_pix: masking
soss_modelname: None
2024-07-10 20:22:23,576 - stpipe.Extract1dStep - INFO - Using EXTRACT1D reference file /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/x1d_reffile_example1.json
2024-07-10 20:22:23,616 - stpipe.Extract1dStep - INFO - Using APCORR file /home/runner/crds_cache/references/jwst/miri/jwst_miri_apcorr_0007.fits
2024-07-10 20:22:23,651 - stpipe.Extract1dStep - WARNING - spectral_order is None; using 1
2024-07-10 20:22:23,651 - stpipe.Extract1dStep - INFO - Processing spectral order 1
2024-07-10 20:22:23,659 - stpipe.Extract1dStep - INFO - Using extraction limits: xstart=25, xstop=36, ystart=0, ystop=387
2024-07-10 20:22:23,745 - stpipe.Extract1dStep - INFO - Applying Aperture correction.
2024-07-10 20:22:23,971 - stpipe.Extract1dStep - INFO - Results used CRDS context: jwst_1089.pmap
2024-07-10 20:22:24,058 - stpipe.Extract1dStep - INFO - Saved model in data/lrs_slit_extract_example1_extract1dstep.fits
2024-07-10 20:22:24,058 - stpipe.Extract1dStep - INFO - Step Extract1dStep done
print(sp3_ex1)
<MultiSpecModel from lrs_slit_extract_example1_extract1dstep.fits>
fig5, ax5 = plt.subplots(figsize=[12, 4])
ax5.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['FLUX'], label='8-px aperture')
ax5.plot(sp3_ex1.spec[0].spec_table['WAVELENGTH'], sp3_ex1.spec[0].spec_table['FLUX'], label='12-px aperture')
ax5.set_xlabel('wavelength (um)')
ax5.set_ylabel('flux (Jy)')
ax5.set_title('Example 1: Difference aperture sizes')
ax5.set_xlim(5., 14.)
ax5.legend()
fig5.show()
![../../../_images/498c144c142bbd7843ceb1852491c869dfb4d989852b9392106ff010a60f1ccb.png](../../../_images/498c144c142bbd7843ceb1852491c869dfb4d989852b9392106ff010a60f1ccb.png)
Example 2: Changing aperture location#
In this example we will demonstrate spectral extraction at a different location in the slit. A good use case for this is to extract a spectrum from one of the nodded exposures, prior to combination of the nods in the Spec3Pipeline. We will take the s2d
output from the Spec2Pipeline, and extract the spectrum. In the nod 1 exposure we see the spectrum peak is located in column 13 (0-indexed), and we extract a default 8-px fixed-width aperture.
l2_s2d_file = 'data/jw02072001001_06101_00001_mirimage_s2d.fits'
l2_s2d = datamodels.open(l2_s2d_file)
xstart3 = 9
xstop3 = 17
with open(json_ref_default) as json_ref:
x1dref_default = json.load(json_ref)
x1dref_ex2 = x1dref_default.copy()
x1dref_ex2['apertures'][0]['xstart'] = xstart3
x1dref_ex2['apertures'][0]['xstop'] = xstop3
with open('x1d_reffile_example2.json', 'w') as jsrefout:
json.dump(x1dref_ex2, jsrefout, indent=4)
ap_width3 = xstop3 - xstart3 + 1
x1d_rect3 = Rectangle(xy=(xstart3, 0), width=ap_width3, height=ap_height, angle=0., edgecolor='red',
facecolor='None', ls='-', lw=1, label='8-px aperture at nod 1 location')
fig6, ax6 = plt.subplots(figsize=[2, 8])
im2d = ax6.imshow(l2_s2d.data, origin='lower', aspect='auto', cmap='gist_gray')
ax6.add_patch(x1d_rect3)
ax6.set_xlabel('column')
ax6.set_ylabel('row')
ax6.set_title('Example 2: Different aperture location')
ax6.legend(loc=3)
fig6.colorbar(im2d)
fig6.show()
![../../../_images/74e466a1805e678184cd59b3962e2b65c05502d0a7f6e47d0ed2ac6b8ff56bb2.png](../../../_images/74e466a1805e678184cd59b3962e2b65c05502d0a7f6e47d0ed2ac6b8ff56bb2.png)
sp2_ex2 = Extract1dStep.call(l2_s2d_file, output_dir='data/', output_file='lrs_slit_extract_example2',
override_extract1d='x1d_reffile_example2.json')
2024-07-10 20:22:24,582 - stpipe.Extract1dStep - INFO - Extract1dStep instance created.
2024-07-10 20:22:24,680 - stpipe.Extract1dStep - INFO - Step Extract1dStep running with args ('data/jw02072001001_06101_00001_mirimage_s2d.fits',).
2024-07-10 20:22:24,684 - stpipe.Extract1dStep - INFO - Step Extract1dStep parameters are:
pre_hooks: []
post_hooks: []
output_file: /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/lrs_slit_extract_example2
output_dir: data/
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
smoothing_length: None
bkg_fit: None
bkg_order: None
bkg_sigma_clip: 3.0
log_increment: 50
subtract_background: None
use_source_posn: None
center_xy: None
apply_apcorr: True
ifu_autocen: False
ifu_rfcorr: False
ifu_set_srctype: None
ifu_rscale: None
ifu_covar_scale: 1.0
soss_atoca: True
soss_threshold: 0.01
soss_n_os: 2
soss_wave_grid_in: None
soss_wave_grid_out: None
soss_estimate: None
soss_rtol: 0.0001
soss_max_grid_size: 20000
soss_transform: None
soss_tikfac: None
soss_width: 40.0
soss_bad_pix: masking
soss_modelname: None
2024-07-10 20:22:24,751 - stpipe.Extract1dStep - INFO - Using EXTRACT1D reference file /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/x1d_reffile_example2.json
2024-07-10 20:22:24,793 - stpipe.Extract1dStep - INFO - Using APCORR file /home/runner/crds_cache/references/jwst/miri/jwst_miri_apcorr_0007.fits
2024-07-10 20:22:24,825 - stpipe.Extract1dStep - WARNING - spectral_order is None; using 1
2024-07-10 20:22:24,826 - stpipe.Extract1dStep - INFO - Processing spectral order 1
2024-07-10 20:22:24,832 - stpipe.Extract1dStep - INFO - Using extraction limits: xstart=9, xstop=17, ystart=0, ystop=386
2024-07-10 20:22:24,914 - stpipe.Extract1dStep - INFO - Applying Aperture correction.
2024-07-10 20:22:25,131 - stpipe.Extract1dStep - INFO - Results used CRDS context: jwst_1089.pmap
2024-07-10 20:22:25,216 - stpipe.Extract1dStep - INFO - Saved model in data/lrs_slit_extract_example2_extract1dstep.fits
2024-07-10 20:22:25,216 - stpipe.Extract1dStep - INFO - Step Extract1dStep done
Let’s again plot the output against the default extracted product. We expect this 1-nod spectrum to be noisier but not significantly different from the combined product. The spectrum may have more bad pixels that manifest as spikes or dips in the spectrum.
fig7, ax7 = plt.subplots(figsize=[12, 4])
ax7.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['FLUX'], label='default location (nods combined)')
ax7.plot(sp2_ex2.spec[0].spec_table['WAVELENGTH'], sp2_ex2.spec[0].spec_table['FLUX'], label='nod 1 location (single nod)')
ax7.set_xlabel('wavelength (um)')
ax7.set_ylabel('flux (Jy)')
ax7.set_title('Example 2: Different aperture locations')
ax7.set_xlim(5., 14.)
ax7.legend()
fig7.show()
![../../../_images/d4d1226de82a2edc5c7739d0537971965cf43f3d73967c1e9c4d8ce4e74dbcbc.png](../../../_images/d4d1226de82a2edc5c7739d0537971965cf43f3d73967c1e9c4d8ce4e74dbcbc.png)
Example 3: Extraction with background subtraction#
For LRS slit observations, the default background subtraction strategy is performed in the background
step in the Spec2Pipeline; the 2 nodded exposures are mutually subtracted, resulting in each returning a 2D spectral image with a positive and a negative trace, and the background subtracted.
For non-standard cases or slitless LRS data it is however possible to subtract a background as part of the spectral extraction in extract_1d
. In the extract_1d
reference file we can pass specific parameters for the background:
bkg_coeff (list or list of floats): the regions to be used as background. This is the main parameter required for background subtraction
bkg_fit (string): the type or method of the background computation. (e.g. None, ‘poly’, ‘mean’ or ‘median’)
bkg_order (int): the order of polynomial to fit to background regions. if bkg_fit is not set to ‘poly’, this parameter will be ignored.
smoothing_length (odd int; optional): the width of the boxcar filter that will be used to smooth the background signal in the dispersion direction. This can provide a better quality in case of noisy data.
The ‘poly’ option for the bkg_fit
parameter will take the value of all pixels in the background region on a given row, and fit a polynomial of order bkg_order
to them. This option can be useful in cases where a gradient is present in the background.
The data we’re using here already has the background subtracted so we expect the impact of this to be minimal, but we provide a demonstration using the nod 1, level 2b spectral image. In this example we will calculate the background from 2 4-column windows, setting the bkg_fit
to ‘median’.
rows = [140, 200, 325]
fig8, ax8 = plt.subplots(figsize=[8, 4])
ncols = np.shape(l2_s2d.data)[1]
pltx = np.arange(ncols)
for rr in rows:
label = 'row {}'.format(rr)
ax8.plot(pltx, l2_s2d.data[rr, :], label=label)
ax8.axvline(x=1, ymin=0, ymax=1, ls='--', lw=1., color='coral', label='background regions')
ax8.axvline(x=5, ymin=0, ymax=1, ls='--', lw=1., color='coral')
ax8.axvline(x=39, ymin=0, ymax=1, ls='--', lw=1., color='coral')
ax8.axvline(x=43, ymin=0, ymax=1, ls='--', lw=1., color='coral')
ax8.legend()
fig8.show()
![../../../_images/415572e1d74bfdcf7320fc9b9cc6179b59df66561b88c232431304bee5f4396f.png](../../../_images/415572e1d74bfdcf7320fc9b9cc6179b59df66561b88c232431304bee5f4396f.png)
with open(json_ref_default) as json_ref:
x1dref_default = json.load(json_ref)
x1dref_ex3 = x1dref_default.copy()
x1dref_ex3['apertures'][0]['xstart'] = xstart3
x1dref_ex3['apertures'][0]['xstop'] = xstop3
x1dref_ex3['apertures'][0]['bkg_coeff'] = [[0.5], [4.5], [38.5], [43.5]]
x1dref_ex3['apertures'][0]['bkg_fit'] = 'median'
with open('x1d_reffile_example3.json', 'w') as jsrefout:
json.dump(x1dref_ex3, jsrefout, indent=4)
sp2_ex3 = Extract1dStep.call(l2_s2d_file, output_dir='data/', output_file='lrs_slit_extract_example3',
override_extract1d='x1d_reffile_example3.json')
2024-07-10 20:22:25,599 - stpipe.Extract1dStep - INFO - Extract1dStep instance created.
2024-07-10 20:22:25,705 - stpipe.Extract1dStep - INFO - Step Extract1dStep running with args ('data/jw02072001001_06101_00001_mirimage_s2d.fits',).
2024-07-10 20:22:25,708 - stpipe.Extract1dStep - INFO - Step Extract1dStep parameters are:
pre_hooks: []
post_hooks: []
output_file: /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/lrs_slit_extract_example3
output_dir: data/
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
smoothing_length: None
bkg_fit: None
bkg_order: None
bkg_sigma_clip: 3.0
log_increment: 50
subtract_background: None
use_source_posn: None
center_xy: None
apply_apcorr: True
ifu_autocen: False
ifu_rfcorr: False
ifu_set_srctype: None
ifu_rscale: None
ifu_covar_scale: 1.0
soss_atoca: True
soss_threshold: 0.01
soss_n_os: 2
soss_wave_grid_in: None
soss_wave_grid_out: None
soss_estimate: None
soss_rtol: 0.0001
soss_max_grid_size: 20000
soss_transform: None
soss_tikfac: None
soss_width: 40.0
soss_bad_pix: masking
soss_modelname: None
2024-07-10 20:22:25,774 - stpipe.Extract1dStep - INFO - Using EXTRACT1D reference file /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/x1d_reffile_example3.json
2024-07-10 20:22:25,816 - stpipe.Extract1dStep - INFO - Using APCORR file /home/runner/crds_cache/references/jwst/miri/jwst_miri_apcorr_0007.fits
2024-07-10 20:22:25,846 - stpipe.Extract1dStep - WARNING - spectral_order is None; using 1
2024-07-10 20:22:25,847 - stpipe.Extract1dStep - INFO - Processing spectral order 1
2024-07-10 20:22:25,854 - stpipe.Extract1dStep - INFO - Using extraction limits: xstart=9, xstop=17, ystart=0, ystop=386
2024-07-10 20:22:25,854 - stpipe.Extract1dStep - INFO - with background subtraction
2024-07-10 20:22:26,289 - stpipe.Extract1dStep - INFO - Applying Aperture correction.
2024-07-10 20:22:26,505 - stpipe.Extract1dStep - INFO - Results used CRDS context: jwst_1089.pmap
2024-07-10 20:22:26,588 - stpipe.Extract1dStep - INFO - Saved model in data/lrs_slit_extract_example3_extract1dstep.fits
2024-07-10 20:22:26,589 - stpipe.Extract1dStep - INFO - Step Extract1dStep done
When the extract_1d
step performs a background subtraction, the background spectrum is part of the output product, so you can check what was subtracted. In the plot below we can see that, as expected, the background for this particular exposure is near-zero (apart from the noisy long-wavelength end), as the subtraction was already performed.
fig9, ax9 = plt.subplots(nrows=2, ncols=1, figsize=[12, 4])
# ax9.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['FLUX'], label='default location (nods combined)')
ax9[0].plot(sp2_ex2.spec[0].spec_table['WAVELENGTH'], sp2_ex2.spec[0].spec_table['FLUX'], label='nod 1 spectrum - no bkg sub')
ax9[0].plot(sp2_ex3.spec[0].spec_table['WAVELENGTH'], sp2_ex3.spec[0].spec_table['FLUX'], label='nod 1 spectrum - with bkg sub')
ax9[1].plot(sp2_ex3.spec[0].spec_table['WAVELENGTH'], sp2_ex3.spec[0].spec_table['BACKGROUND'], label='background')
ax9[1].set_xlabel('wavelength (um)')
ax9[0].set_ylabel('flux (Jy)')
ax9[0].set_title('Example 3: Extraction with background subtraction')
ax9[0].set_xlim(5., 14.)
ax9[1].set_xlim(5., 14.)
ax9[0].legend()
ax9[1].legend()
fig9.show()
![../../../_images/753d2a32a41a44259033d4d2e10e122ca59bc93f4feeb54c48a1c08f9e117613.png](../../../_images/753d2a32a41a44259033d4d2e10e122ca59bc93f4feeb54c48a1c08f9e117613.png)
Example 4: Tapered column extraction#
In this example we will use the JWST calibration pipeline to perform a spectral extraction in a tapered column aperture. The way to specify this in the extraction reference file is to use the src_soeff
parameter instead of the simpler xstart
, xstop
settings. The src_coeff
parameter can take polynomial coefficients rather than fixed pixel values. In this example, we will define a tapered column aperture corresponding to 3 * the FWHM of the spatial profile.
Polynomial definitions for the extraction aperture can be specified as a function of pixels or wavelength, which is defined in the independent_var
parameter.
We will use pre-measured FWHM values as a function of wavelength to fit a straight line to the FWHM(\(\lambda\)) profile, and set the extraction parameters according to this fit. The FWHM can of course also be measured directly from the data as well.
def calc_xap_fit():
# these are values measured from commissioning data. FWHM is in arcsec.
lam = [5.0, 7.5, 10.0, 12.0]
fwhm = [0.29, 0.3, 0.36, 0.42]
# convert from arcsec to pixel using MIRI pixel scaling of 0.11 arcsec/px
fwhm_px = fwhm / (0.11*u.arcsec/u.pixel)
# we want to extract 3 * fwhm, which means 1.5 * fwhm on either side of the trace
xap_pix = 1.5 * fwhm_px
# now we want to fit a line to these points
line_init = models.Linear1D()
fit = fitting.LinearLSQFitter()
fitted_line = fit(line_init, lam, xap_pix.value)
print(fitted_line)
fig, ax = plt.subplots(figsize=[8, 4])
xplt = np.linspace(4.0, 14., num=50)
ax.plot(lam, xap_pix.value, 'rx', label='1.5 * FWHM(px)')
ax.plot(xplt, fitted_line(xplt), 'b-', label='best-fit line')
ax.set_xlabel('wavelength')
ax.set_ylabel('px')
ax.legend()
return fitted_line
poly_pos = calc_xap_fit()
print(poly_pos.slope, poly_pos.intercept)
Model: Linear1D
Inputs: ('x',)
Outputs: ('y',)
Model set size: 1
Parameters:
slope intercept
------------------ -----------------
0.2579519802996102 2.445618715370405
Parameter('slope', value=0.2579519802996102) Parameter('intercept', value=2.445618715370405)
![../../../_images/efa7b9c110a345aa7119b6b08bf96e75c5c841e3f4748874318657e71acb0491.png](../../../_images/efa7b9c110a345aa7119b6b08bf96e75c5c841e3f4748874318657e71acb0491.png)
The above polynomial defines the relationship between wavelength and the number of pixels to extract. To ensure that the extractio location is centred on the location of the spectrum, we add to the intercept value the central location of the trace, which is at column 30.5.
In the next cell, we provide these parameters to the src_coeff
parameter in the extraction reference file. Note: The src_coeff
parameter takes precedence over the xstart
and xstop
parameters if all 3 are present; for clarity we remove the latter from our reference file.
trace_cen = 30.5
with open(json_ref_default) as json_ref:
x1dref_default = json.load(json_ref)
x1dref_ex4 = x1dref_default.copy()
x1dref_ex4['apertures'][0]['xstart'] = None
x1dref_ex4['apertures'][0]['xstop'] = None
x1dref_ex4['apertures'][0]['independent_var'] = 'wavelength'
x1dref_ex4['apertures'][0]['src_coeff'] = [[-1*poly_pos.intercept.value + trace_cen, -1*poly_pos.slope.value], [poly_pos.intercept.value + trace_cen, poly_pos.slope.value]]
with open('x1d_reffile_example4.json', 'w') as jsrefout:
json.dump(x1dref_ex4, jsrefout, indent=4)
sp3_ex4 = Extract1dStep.call(l3_s2d, output_dir='data/',
output_file='lrs_slit_extract_example4', override_extract1d='x1d_reffile_example4.json')
2024-07-10 20:22:27,012 - stpipe.Extract1dStep - INFO - Extract1dStep instance created.
2024-07-10 20:22:27,124 - stpipe.Extract1dStep - INFO - Step Extract1dStep running with args (<SlitModel(388, 63) from jw02072-o001_t010_miri_p750l_s2d_1089.fits>,).
2024-07-10 20:22:27,128 - stpipe.Extract1dStep - INFO - Step Extract1dStep parameters are:
pre_hooks: []
post_hooks: []
output_file: /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/lrs_slit_extract_example4
output_dir: data/
output_ext: .fits
output_use_model: False
output_use_index: True
save_results: False
skip: False
suffix: None
search_output_file: True
input_dir: ''
smoothing_length: None
bkg_fit: None
bkg_order: None
bkg_sigma_clip: 3.0
log_increment: 50
subtract_background: None
use_source_posn: None
center_xy: None
apply_apcorr: True
ifu_autocen: False
ifu_rfcorr: False
ifu_set_srctype: None
ifu_rscale: None
ifu_covar_scale: 1.0
soss_atoca: True
soss_threshold: 0.01
soss_n_os: 2
soss_wave_grid_in: None
soss_wave_grid_out: None
soss_estimate: None
soss_rtol: 0.0001
soss_max_grid_size: 20000
soss_transform: None
soss_tikfac: None
soss_width: 40.0
soss_bad_pix: masking
soss_modelname: None
2024-07-10 20:22:27,168 - stpipe.Extract1dStep - INFO - Using EXTRACT1D reference file /home/runner/work/jdat_notebooks/jdat_notebooks/notebooks/MIRI/MIRI_LRS_spectral_extraction/x1d_reffile_example4.json
2024-07-10 20:22:27,210 - stpipe.Extract1dStep - INFO - Using APCORR file /home/runner/crds_cache/references/jwst/miri/jwst_miri_apcorr_0007.fits
2024-07-10 20:22:27,240 - stpipe.Extract1dStep - WARNING - spectral_order is None; using 1
2024-07-10 20:22:27,241 - stpipe.Extract1dStep - INFO - Processing spectral order 1
2024-07-10 20:22:27,249 - stpipe.Extract1dStep - INFO - Using extraction limits: ystart=0, ystop=387, and src_coeff
2024-07-10 20:22:27,334 - stpipe.Extract1dStep - INFO - Applying Aperture correction.
2024-07-10 20:22:27,556 - stpipe.Extract1dStep - INFO - Results used CRDS context: jwst_1089.pmap
2024-07-10 20:22:27,640 - stpipe.Extract1dStep - INFO - Saved model in data/lrs_slit_extract_example4_extract1dstep.fits
2024-07-10 20:22:27,641 - stpipe.Extract1dStep - INFO - Step Extract1dStep done
fig10, ax10 = plt.subplots(figsize=[12, 4])
ax10.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['FLUX'], label='default fixed-width aperture')
ax10.plot(sp3_ex4.spec[0].spec_table['WAVELENGTH'], sp3_ex4.spec[0].spec_table['FLUX'], label='tapered column aperture')
ax10.set_xlabel('wavelength (um)')
ax10.set_ylabel('flux (Jy)')
ax10.set_title('Example 4: Tapered column vs. fixed-width extraction aperture')
ax10.set_xlim(5., 14.)
ax10.legend()
fig10.show()
![../../../_images/0e9fc20824069f62371e38099aba3ba3e73cc12c6a74192d3557e0b33574d991.png](../../../_images/0e9fc20824069f62371e38099aba3ba3e73cc12c6a74192d3557e0b33574d991.png)
The output spectrum also contains a reference to the number of pixels used for the extraction as a function of wavelength. Let’s visualize that too.
fig11, ax11 = plt.subplots(figsize=[12, 4])
ax11.plot(l3_spec.spec[0].spec_table['WAVELENGTH'], l3_spec.spec[0].spec_table['NPIXELS'], label='default fixed-width aperture')
ax11.plot(sp3_ex4.spec[0].spec_table['WAVELENGTH'], sp3_ex4.spec[0].spec_table['NPIXELS'], label='tapered column aperture')
ax11.set_xlabel('wavelength (um)')
ax11.set_ylabel('number of pixels')
ax11.set_title('Example 4: Number of pixels extracted')
ax11.set_xlim(5., 14.)
ax11.legend()
fig11.show()
![../../../_images/43bcc2d90bc46c0ee772a23cfe31c4be8e445344b1cbe0d821162371cbab6888.png](../../../_images/43bcc2d90bc46c0ee772a23cfe31c4be8e445344b1cbe0d821162371cbab6888.png)
Summary#
We hope this notebook was useful in helping you understand the capabilities of the JWST calibration for spectral extraction. The above examples are not an exhaustive list of all the possibilities: different methods of source and background extraction can be combined for more complex extraction operations.
If you have any questions, comments, or requests for further demos of these capabilities, please contact the JWST Helpdesk.
