MAST’S View of the Sky#
Learning Goals#
By the end of this tutorial, you will:
Create a visualization of the MAST archive and the data it contains
Learn about some of the different missions with data hosted at MAST and what their footprints look like
Understand how to convert between celestial coordinates (RA, Dec) and other coordinate systems using astropy
Create your own wallpaper image of MAST to use as a Desktop background!
Table of Contents#
Introduction
Imports
MAST’s View of the Sky
Making a Map of MAST Data
What am I looking at?
Projecting to Different Coordinate Systems
Ecliptic Coordinates
Galactic Coordinates
MAST Wallpaper Image
Additional Resources
Citations
About this Notebook
Introduction#
As of July 2025, the Mikulski Archive for Space Telescope (MAST) contains nearly 300 million astronomical observations from over 20 different telescope missions including the Hubble Space Telescope (HST), the James Webb Space Telescope (JWST), and the Transiting Exoplanet Survey Satellite (TESS).
That’s a lot of data - but what does it look like? In this notebook, we will create a visualization of MAST data on the sky, and learn about the variety of different missions hosted at MAST!
Imports#
These are the packages we will need for this notebook:
numpy to handle array functions
astropy.coordinates for handling astronomical coordinates
astropy.units for handling astronomical units
astroquery.mast for resolving coordinates of different targets
matplotlib.pyplot for plotting data
matplotlib.colors for creating custom color maps
matplotlib.image for plotting png image files
%matplotlib inline
# Imports for working with data
import numpy as np
from astropy.coordinates import SkyCoord, ICRS
from astropy import units
from astroquery.mast import Observations
# Imports for plotting images
import matplotlib.pyplot as plt
from matplotlib.colors import LogNorm, LinearSegmentedColormap
from matplotlib.image import imread
from matplotlib import patheffects
This cell updates some of the settings in matplotlib to use larger font sizes in the figures:
# Update Plotting Parameters
params = {
"axes.labelsize": 12,
"xtick.labelsize": 12,
"ytick.labelsize": 12,
"text.usetex": False,
"lines.linewidth": 1,
"axes.titlesize": 18,
"font.family": "serif",
"font.size": 12,
}
plt.rcParams.update(params)
MAST’s View of the Sky#
MAST is like a library - our collections are open to the public and free of cost. For both libraries and MAST, maintaining a detailed catalog that lists everything in the collection is extremely important to help people find what they are looking for. A library might catalog the book title, author’s name, publishing year, and the location on the shelf for every book in its collection. At MAST, we maintain a list of the filenames, the astronomical coordinates, the exposure date, which telescope was used, and so much more, for every single file in the archive. This information is referred to as ‘metadata’ - important information which describes the contents of every file!
At MAST, this metadata catalog is accessible from your web browser using the MAST Portal, in Python using astroquery.MAST, or using the Table Access Protocal (VO-TAP) service. With this MAST metadata catalog, we can retrieve a huge list of astronomical coordinates for every observation in MAST.
For this notebook, we did the hard work for you and have created a file named mast_obscounts.npz which contains the observation counts in MAST for every coordinate in the sky. This file was last updated in July 2025.
A Note of Caution: We do not recommend trying to re-create this file yourself, because MAST contains A LOT of data and the large query will fill up your computer’s RAM quickly. If you need to perform large queries or want a higher-resolution version of this file, please contact the MAST Helpdesk.
Making a Map of MAST Data#
The file provided with this notebook, mast_obscounts.npz, contains the observation counts in MAST for every coordinate in the sky. Let’s open the file and view it’s contents:
# Load in the file
mast_data = np.load("mast_obscounts.npz")
# Print file information
mast_data
NpzFile 'mast_obscounts.npz' with keys: data, ra, dec
This file has three keys: data, ra, and dec.
The
dataarray contains the number of observations in MAST for each coordinateThe right Ascension (
ra) and Declination (dec) arrays are the astronomical coordinates (in degrees) defining the grid over which the data was counted.
We we save each of these as it’s own variable:
ra_coords = mast_data["ra"]
dec_coords = mast_data["dec"]
observation_counts = mast_data["data"]
And print some basic information about each aarray:
print(f"Shape of observation_counts: {observation_counts.shape}")
print(
f"ra_coords: {np.min(ra_coords)} to {np.max(ra_coords)} deg in {len(ra_coords)} steps"
)
print(
f"dec_coords: {np.min(dec_coords)} to {np.max(dec_coords)} deg in {len(dec_coords)} steps"
)
print(f"Total number of Observations: {np.sum(observation_counts)}")
Shape of observation_counts: (2100, 1050)
ra_coords: 0.0 to 360.0 deg in 2100 steps
dec_coords: -90.0 to 90.0 deg in 1050 steps
Total number of Observations: 287124009
This shows us that observation_counts is a 2D array, with a size of (2100, 1050), covering the sky from 0 to 360 degrees in RA and -90 to 90 degrees in Declination!

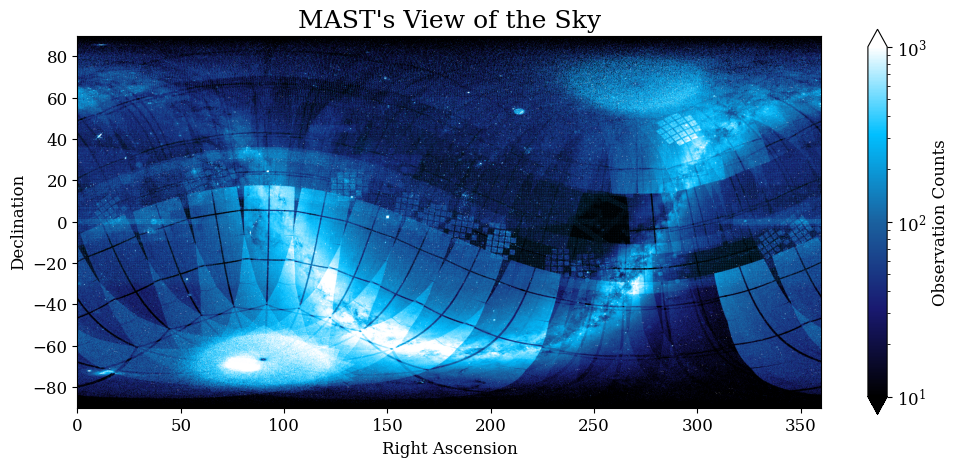

Let’s plot this data using plt.imshow() to see what it looks like! We will create a plot of the sky, with Right Ascension on the x-axis and Declination on the y-axis. Each pixel in the image will be colored according to the number of observations in MAST at that location.
# Initiate plot
plt.figure(figsize=(12, 5))
# Make the background of the plot black
plt.axvspan(0, 360, color="k", zorder=-1)
# Define a custom color map
# This will create a gradient from black to blue to white!
colormap = LinearSegmentedColormap.from_list(
"", ["black", "midnightblue", "#1a619f", "deepskyblue", "white"]
)
# Plot the data
im = plt.imshow(
observation_counts.T,
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
extent=[0, 360, -90, 90], # Set the limits of the data
origin="lower",
)
plt.colorbar(im, label="Observation Counts", extend="both")
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# Add labels to plot
plt.title("MAST's View of the Sky")
plt.xlabel("Right Ascension")
plt.ylabel("Declination")
plt.show()
What am I looking at?#
This image is pretty, but what is it? It doesn’t look like your standard picture of the sky. There are some recognizable features, like the U-shaped Milky Way spanning across the image, but what are all of those rectangles?
Let’s annotate this plot to get a better idea of what’s going on!
First, let’s find the maximum of the image - the coordinates in our grid that have been observed the highest number of times in MAST
print("Maxmimum Observations at a Single Location")
print(f"Number of Observations: {np.max(observation_counts)}")
max_i = np.unravel_index(
np.argmax(observation_counts), observation_counts.shape
)
print(f"RA = {ra_coords[max_i[0]]} deg")
print(f"DEC = {dec_coords[max_i[1]]} deg")
Maxmimum Observations at a Single Location
Number of Observations: 88046
RA = 53.1681753215817 deg
DEC = -27.883698760724506 deg
We have the coordinates, but we don’t really know what this is yet! Luckily, can get the coordinates for almost any named astronomical object using the Observations.resolve_object() function. For example, if you want to know the coordinates of the Andromeda galaxy (also knowns as ‘M31’), the closest big spiral galaxy to the Milky Way, you can search:
# Retrieve coordinates of the Andromeda Galaxy
Observations.resolve_object("Andromeda Galaxy")
# Andromeda is also known as M31: This also works, and gives the same results!
Observations.resolve_object("M31")
<SkyCoord (ICRS): (ra, dec) in deg
(10.684708, 41.26875)>
…or if you want to know the coordinates for the center of the Milky Way galaxy, you can search for the black hole named Sagittarius A* (“Sgr A*” for short).
# Retrieve coordinates of the center of the MW
Observations.resolve_object("Sgr A*")
<SkyCoord (ICRS): (ra, dec) in deg
(266.41681662, -29.00782497)>
What is your favorite astronomical target? Search for it’s coordinates in the cell below!
# Retrieve coordinates of your favorite object!
my_favorite_object = "Crab Nebula"
Observations.resolve_object(my_favorite_object)
<SkyCoord (ICRS): (ra, dec) in deg
(83.6324, 22.0174)>

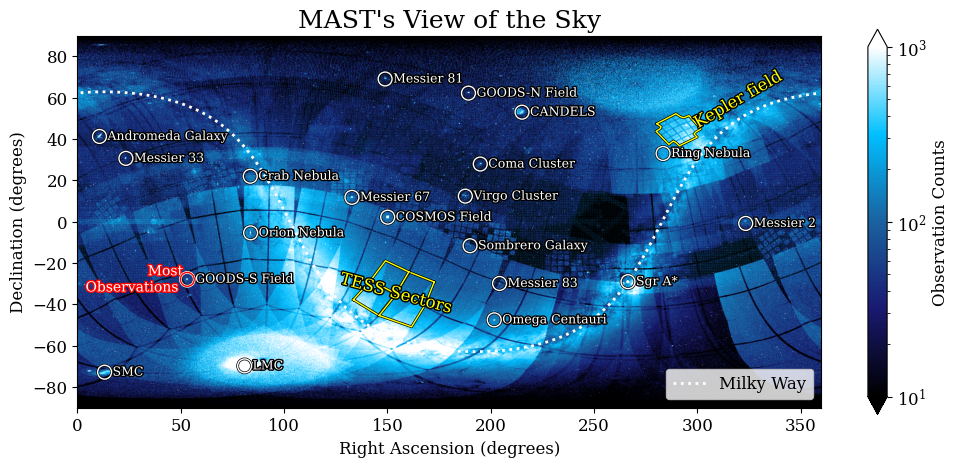

In the next cell, we are going to write a function that plots several astronomical objects to highlight on our plot. We will use the Observations.resolve_object() to get the coordinates, and then add each object to our plot!
def add_annotations():
"""
Adds annotations to a plot axes. These annotations highlight several areas
of interest on the MAST Data visualization plot!
"""
# Give the text a black outline for better visibility
path_effect = [patheffects.withStroke(linewidth=2, foreground="k")]
# Define a list of targets we want to add to the plot
object_list = [
"Andromeda Galaxy",
"Sgr A*",
"Crab Nebula",
"Ring Nebula",
"Sombrero Galaxy",
"Messier 81",
"Messier 33",
"Orion Nebula",
"Messier 67",
"Messier 83",
"Messier 2",
"LMC",
"SMC",
"Omega Centauri",
"GOODS-N Field",
"GOODS-S Field",
"COSMOS Field",
"Virgo Cluster",
"Coma Cluster",
]
# Annotate each object
for object in object_list:
# Resolve coordinates
coords = Observations.resolve_object(object)
# Plot the coordinates
plt.scatter(
coords.ra.deg,
coords.dec.deg,
marker="o",
s=100, # plot as open circle
color="white",
facecolor="none",
zorder=10, # top layer
path_effects=path_effect,
)
# Add a label
plt.text(
coords.ra.deg,
coords.dec.deg,
f" {object}",
ha="left",
va="center", # text alignment
color="white",
fontsize=9,
# Give the text a black outline for better visibility
path_effects=path_effect,
)
# Add a few more custom field examples
# Plot the plane of the Milky Way!
coord = SkyCoord(
l=np.linspace(-100, 360 + 100, 500),
b=np.zeros(500),
unit="deg",
frame="galactic",
)
coord = coord.transform_to(ICRS())
ra = np.array([r.value for r in coord.ra])
dec = np.array([d.value for d in coord.dec])
dec = dec[np.argsort(ra)]
ra = ra[np.argsort(ra)]
plt.plot(ra, dec, c="w", lw=2, linestyle=":", label="Milky Way")
# Kepler Field
ra = np.array(
[
280.35706,
289.601315,
291.859202,
293.46134,
295.909203,
301.717391,
299.256026,
298.367126,
299.88208,
291.270003,
289.664231,
288.372243,
286.216013,
280.010491,
281.945872,
282.421332,
280.35706,
]
)
dec = np.array(
[
47.451248,
52.264435,
50.779018,
50.302547,
51.347939,
44.921898,
43.41193,
42.448555,
40.933086,
36.728466,
38.252754,
39.03775,
37.425247,
43.764854,
44.933575,
45.964638,
47.451248,
]
)
plt.plot(ra, dec, c="yellow", path_effects=path_effect)
plt.text(
np.median(ra) + 30,
np.median(dec) + 14,
"Kepler field",
ha="center",
va="center",
color="yellow",
rotation=30,
zorder=10,
# Give the text a black outline for better visibility
path_effects=path_effect,
)
# TESS Sectors example
cam1 = [
[133.551896, 141.773709, 153.943518, 145.780484, 133.551896],
[-37.75945, -28.551867, -35.09302, -45.250728, -37.75945],
]
cam2 = [
[145.97794, 154.129099, 168.199924, 161.690434, 145.97794],
[-45.354798, -35.188894, -40.300275, -50.856598, -45.354798],
]
cam3 = [
[172.658597, 168.319248, 154.290886, 160.552346, 172.658597],
[-29.124892, -40.044401, -34.941887, -24.347663, -29.124892],
]
cam4 = [
[160.388788, 154.107103, 141.953841, 149.081756, 160.388788],
[-24.272883, -34.856823, -28.334722, -18.881219, -24.272883],
]
for cam in [cam1, cam2, cam3, cam4]:
ra, dec = cam
ra = np.array(ra)
dec = np.array(dec)
plt.plot(ra, dec, "yellow", zorder=10, path_effects=path_effect)
plt.text(
ra[np.argmin(dec)],
dec[np.argmin(dec)],
"TESS Sectors",
ha="center",
va="center",
color="yellow",
rotation=-15,
zorder=100,
# Give the text a black outline for better visibility
path_effects=path_effect,
)
# CANDELS Field
coords = SkyCoord(ra="14h20m34.89s", dec="53d0m15.4s")
plt.scatter(
coords.ra.deg,
coords.dec.deg,
marker="o",
s=100, # plot as open circle
color="white",
facecolor="none",
zorder=10, # top layer
path_effects=path_effect,
)
plt.text(
coords.ra.deg,
coords.dec.deg,
" CANDELS",
ha="left",
va="center", # text alignment
color="white",
fontsize=9,
path_effects=path_effect,
)
# Add a legend
plt.legend(loc="lower right")
# Point out the pixel with the maximum number of observations
max_i = np.unravel_index(
np.argmax(observation_counts), observation_counts.shape
)
plt.scatter(
ra_coords[max_i[0]],
dec_coords[max_i[1]],
marker="o",
s=100, # plot as open circle
color="red",
facecolor="none",
zorder=10, # top layer
path_effects=[patheffects.withStroke(linewidth=2, foreground="w")],
)
# Add a label
plt.text(
ra_coords[max_i[0]],
dec_coords[max_i[1]],
"Most \nObservations ",
ha="right",
va="center", # text alignment
color="w",
fontsize=10,
# Give the text a black outline for better visibility
path_effects=[patheffects.withStroke(linewidth=2, foreground="r")],
)
return

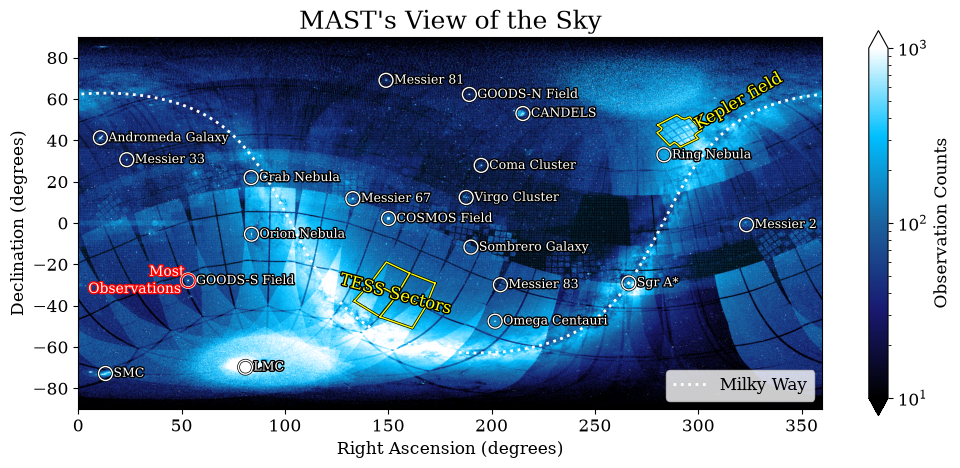

# Initiate plot
plt.figure(figsize=(12, 5))
# Make the background of the plot black
plt.axvspan(0, 360, color="k", zorder=-1)
# Define a custom color map
# This will create a gradient from black to blue to white!
colormap = LinearSegmentedColormap.from_list(
"", ["black", "midnightblue", "#1a619f", "deepskyblue", "white"]
)
# Plot the data
im = plt.imshow(
observation_counts.T,
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
extent=[0, 360, -90, 90], # Set the limits of the data
origin="lower",
)
plt.colorbar(im, label="Observation Counts", extend="both")
# Add annotations using our function above
add_annotations()
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# Add labels to plot
plt.title("MAST's View of the Sky")
plt.xlabel("Right Ascension (degrees)")
plt.ylabel("Declination (degrees)")
plt.show()

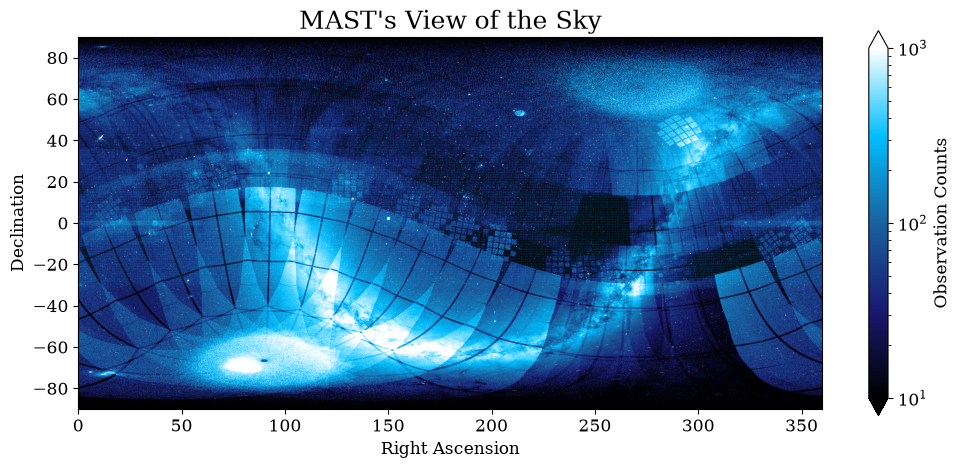

With these annotations, we can more clearly understand different parts of this plot!!
Some aspects of this plot reflect what we can see in the sky - the disk of the Milky Way is the “U”-shaped stripe across the image. Some of our closest neighbor galaxies, like the Large Magellanic Cloud (LMC) and Small Magellanic Cloud (SMC) are visible near the bottom-left of the image!
The large rectangles that are most obvious along the lower half of the image are TESS Sectors! The TESS telescope has a huge field of view, and observes giant rectangles that are 24° x 96° in size at a time.
The “+” shaped footprint in the upper-right that that is highlighted in yellow is the footprint of the Kepler telescope, [explain here]. You can also see fainter footprints near the equator, which are all from the second Kepler Mission (K2)
Some big programs from HST and JWST show up as really bright spots in this image too. The most obvious ones here are the CANDELS and COSMOS fields, which were two of the largest observing programs done by HST.
But in general, the bright spots peppered around all throughout the image are the locations of many interesting astronomical targets, from nebulaes like the Orion Nebula to galaxies like Andromeda or M81. The brightest points in this image are locations that scientists observe again and again and again, with different telescopes and instruments and at different times - the most interesting parts of the sky!
Projecting to Different Coordinate Systems#
So far, we have made plots using the standard Celestial Coordinate system, using right ascension (RA) and declination (Dec). This is not the only coordinate system used in astronomy, however! Different applications might require different coordinate systems: while the standard celestial coordinate system is centered on the Earth, Ecliptic Coordinates are centered on the ecliptic plane, Earth’s orbit around the Sun.
Using astropy.coordinates, it is pretty easy to reproject all of our MAST data into another frame. All of the available coordinate systems are listed here, but we will explore two in particular: geocentricmeanecliptic and galactic!
Ecliptic Coordinates#
As a quick refresher, MAST uses coordinates aligned to the celestial pole, which is aligned to our rotating Earth. A declination of +90 is directly overhead the north pole, while -90 is directly overhead the south pole. Our first transformation is to the ecliptic plane, aligned instead to Earth’s orbit around the sun:
By CielProfond - Own work, CC BY-SA 4.0, Source
Ecliptic coordinates are useful for space-based telescopes, since the sun is — by definition —always at a declination of 0º. In fact, the survey design of the TESS spacecraft takes advantage of this by always keeping one camera on the ecliptic pole, with the others facing opposite the sun.
# Convert from the grid edges into a meshgrid
x, y = np.meshgrid(ra_coords, dec_coords)
# Iniate a SkyCoord object with these coordinates
orig_coords = SkyCoord(x, y, frame="icrs", unit="deg")
# Transform coordinates to Ecliptic Coordinate
coords_ecl = orig_coords.transform_to("geocentricmeanecliptic")
x_ecl = coords_ecl.lon.degree
y_ecl = coords_ecl.lat.degree

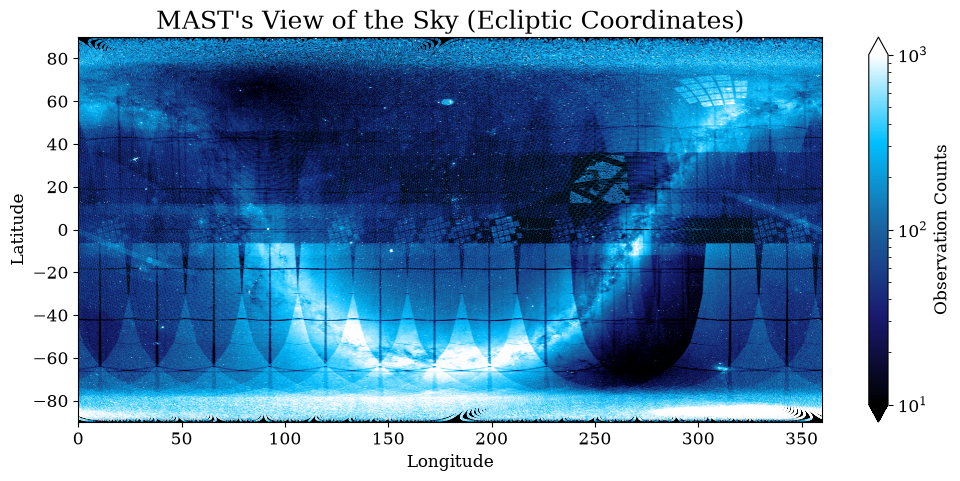

Now we can remake our plot in ecliptic coordinates!
# Initiate plot
plt.figure(figsize=(12, 5))
# Make the background of the plot black
plt.axvspan(0, 360, color="k", zorder=-1)
# Define a custom color map
# This will create a gradient from black to blue to white!
colormap = LinearSegmentedColormap.from_list(
"", ["black", "midnightblue", "#1a619f", "deepskyblue", "white"]
)
im = plt.scatter(
x_ecl.flatten(),
y_ecl.flatten(),
c=observation_counts.T.flatten(),
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
marker=".",
s=1,
)
plt.colorbar(im, label="Observation Counts", extend="both")
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# Add labels to plot
plt.title("MAST's View of the Sky (Ecliptic Coordinates)")
plt.xlabel("Longitude")
plt.ylabel("Latitude")
plt.show()
Galactic Coordinates#
Somewhat counter-intuitively, galactic coordinates are still centered on our Sun. In this case, 0º longitude is defined to be the line between the sun and the center of the galaxy. Latitude measures the angle of an object relative to the flat disk of the galaxy, as seen from Earth.
By NASA/JPL-Caltech/ESO/R. Hurt - http://www.eso.org/public/images/eso1339e/, Public Domain, Source

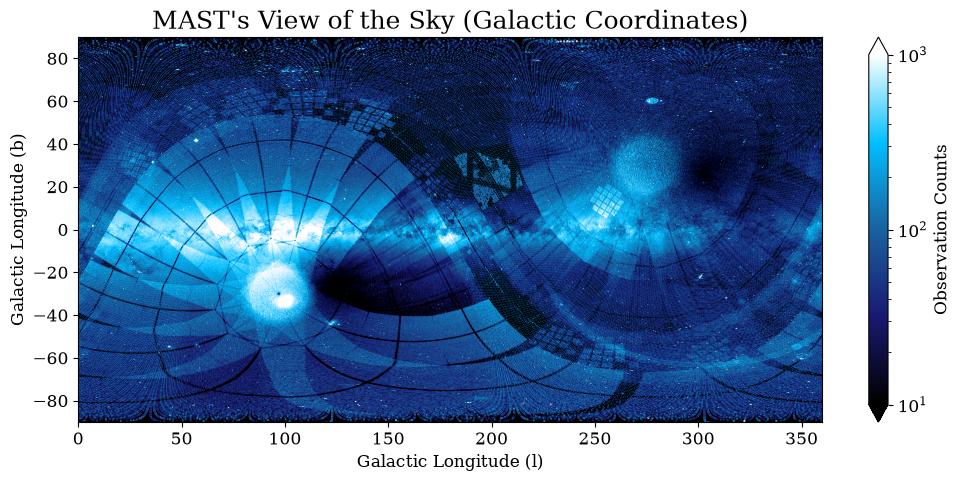

The nice thing about using the galactic coordinate system is that most stars are near the plane of the galaxy, so it shows up quite nicely on our plot!
# Convert from the grid edges into a meshgrid
x, y = np.meshgrid(ra_coords, dec_coords)
# Iniate a SkyCoord object with these coordinates
orig_coords = SkyCoord(x, y, frame="icrs", unit="deg")
# Transform coordinates to Galactocentric Coordinates
coords_gal = orig_coords.transform_to("galactic")
x_gal = coords_gal.l.wrap_at(180 * units.degree).degree + 180
y_gal = coords_gal.b.degree
# Initiate plot
plt.figure(figsize=(12, 5))
# Make the background of the plot black
plt.axvspan(0, 360, color="k", zorder=-1)
# Define a custom color map
# This will create a gradient from black to blue to white!
colormap = LinearSegmentedColormap.from_list(
"", ["black", "midnightblue", "#1a619f", "deepskyblue", "white"]
)
im = plt.scatter(
x_gal.flatten(),
y_gal.flatten(),
c=observation_counts.T.flatten(),
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
marker=".",
s=1,
)
plt.colorbar(im, label="Observation Counts", extend="both")
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# Add labels to plot
plt.title("MAST's View of the Sky (Galactic Coordinates)")
plt.xlabel("Galactic Longitude (l)")
plt.ylabel("Galactic Longitude (b)")
plt.show()
Wallpaper Image#
Just for fun, let’s make a pretty version of this plot to use as a Desktop Wallpaper, removing the axes and labels and focusing on the image.
# Initiate plot - 16:9 aspect ratio for wallpaper
plt.figure(figsize=(16, 9))
ax = plt.subplot()
# Make the background of the plot black
plt.style.use("dark_background")
plt.axvspan(0, 360, color="k", zorder=-1)
# Define a custom color map
# This will create a gradient from black to blue to white!
colormap = LinearSegmentedColormap.from_list(
"", ["black", "midnightblue", "#1a619f", "deepskyblue", "white"]
)
# Plot the data
im = ax.imshow(
observation_counts.T,
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
extent=[0, 360, -90, 90], # Set the limits of the data
origin="lower",
)
# Add MAST logo to corner
mast_logo = imread("imgs/MAST-Logo-Horizontal.png")
# preserve aspect ratio so the logo isn't skewed
mast_logo_ratio = mast_logo.shape[0] / mast_logo.shape[1] * (8 / 9)
# Need extra 8/9 because the figure size is 16:9 but the pixel size is 16:8
mast_logo_size = 120 # degrees
ax.imshow(
mast_logo,
zorder=100, # bring to front of plot
extent=[
359 - mast_logo_size,
359,
-89,
-89 + mast_logo_size * mast_logo_ratio,
],
)
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# turn off axes
plt.axis("off")
# Force aspect ratio 16:9
ax.set_aspect("auto")
# Save file
plt.savefig("mast_wallpaper.png", bbox_inches="tight", dpi=300)
plt.savefig("mast_visualization.png", bbox_inches="tight")
plt.show()
Nice! Just for fun, we can make this image again in different colors. Try out any colormap you want - all of the colormaps available in Python are listed here!
colormap = "magma"
# Initiate plot - 16:9 aspect ratio for wallpaper
plt.figure(figsize=(16, 9))
ax = plt.subplot()
# Make the background of the plot black
plt.style.use("dark_background")
plt.axvspan(0, 360, color="k", zorder=-1)
# Plot the data
im = ax.imshow(
observation_counts.T,
cmap=colormap, # Set colormap
norm=LogNorm(10, 1e3), # Define limits of colormap
extent=[0, 360, -90, 90], # Set the limits of the data
origin="lower",
)
# Add MAST logo to corner
mast_logo = imread("imgs/MAST-Logo-Horizontal.png")
# preserve aspect ratio so the logo isn't skewed
mast_logo_ratio = mast_logo.shape[0] / mast_logo.shape[1] * (8 / 9)
# Need extra 8/9 because the figure size is 16:9 but the pixel size is 16:8
mast_logo_size = 120 # degrees
ax.imshow(
mast_logo,
zorder=100, # bring to front of plot
extent=[
359 - mast_logo_size,
359,
-89,
-89 + mast_logo_size * mast_logo_ratio,
],
)
# Set axes limits
plt.xlim(0, 360)
plt.ylim(-90, 90)
# turn off axes
plt.axis("off")
# Force aspect ratio 16:9
ax.set_aspect("auto")
# Save file
plt.savefig("mast_wallpaper2.png", bbox_inches="tight", dpi=300)
plt.show()
Additional Resources#
Additional resources are linked below:
Citations#
If you use this visualization for published work, see the following links for information on which citations to include:
About this Notebook#
Authors: Julie Imig (jimig@stsci.edu), Thomas Dutkiewicz (tdutkiewicz@stsci.edu)
Keywords: Tutorial, MAST, data visualization
First published: July 2025
Last updated: July 2025
Top of Page
