WFC3/UVIS Filter Transformations with stsynphot#
Learning Goals#
By the end of this tutorial, you will:
Generate synthetic observations using
synphotandstsynphot.Find color terms between WFC3/UVIS filters and non-HST filters.
Plot bandpasses to investigate various throughputs.
Table of Contents#
Introduction
1. Imports
2. Select filters for the transformation
3. Define a spectrum
4. Select UVIS chips
5. Select magnitude systems
6. Generate outputs

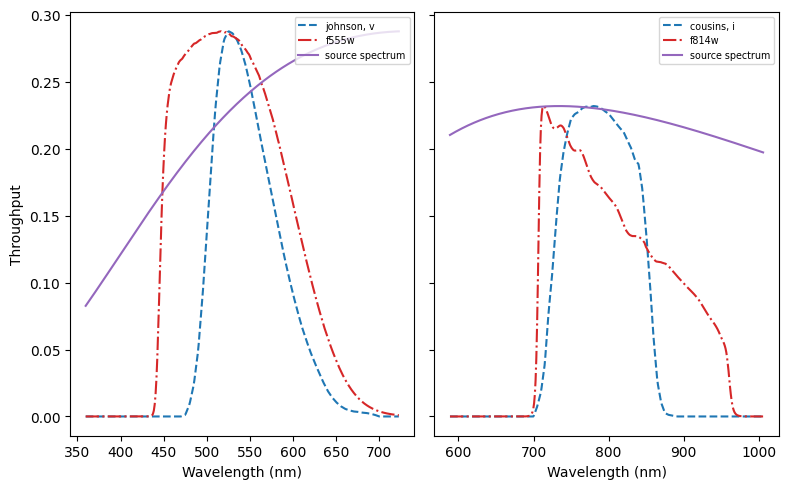

7. Plot bandpasses
8. Conclusions
Additional Resources
About the Notebook
Citations
Introduction#
This notebook computes color terms between selected WFC3/UVIS filters and non-HST filters, such as Johnson-Cousins, for a user-defined reference spectrum. The terms as given are the difference between the magnitude of the spectrum in the selected non-HST filter and the corresponding UVIS filter.
This tool reproduces the methods described in section 4 of WFC3 ISR 2014-16, but will automatically use the latest available spectra and throughput tables.
stsynphot requires access to data distributed by the Calibration Data Reference System (CRDS) in order to operate. Both packages look for an environment variable called PYSYN_CDBS to find the directory containing these data.
Users can obtain these data files from the CDRS. Information on how to obtain the most up-to-date reference files (and what they contain) can be found here. An example of how to download the files with curl and set up this environment variable is presented below.
For detailed instructions on how to install and set up these packages, see the synphot and stsynphot documentation.
1. Imports#
This notebook assumes you have created the virtual environment in WFC3 notebooks’ installation instructions.
We import:
os for setting environment variables
tarfile for extracting a .tar archive
numpy for handling array functions
pandas for managing data
matplotlib.pyplot for plotting data
astropy.units and synphot.units for handling units
synphot and stsynphot for evaluating synthetic photometry
Additionally, we will need to set the PYSYN_CDBS environment variable before importing stsynphot. We will also create a Vega spectrum using synphot’s inbuilt from_vega() method, as the latter package will supercede this method’s functionality and require a downloaded copy of the latest Vega spectrum to be provided.
import os
import tarfile
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import astropy.units as u
import synphot.units as su
import synphot as syn
from synphot import Observation
%matplotlib inline
vegaspec = syn.SourceSpectrum.from_vega()
This section obtains the WFC3 throughput component tables for use with stsynphot. This step only needs to be done once. If these reference files have already been downloaded, this section can be skipped.
!curl -O https://archive.stsci.edu/hlsps/reference-atlases/hlsp_reference-atlases_hst_multi_everything_multi_v11_sed.tar
% Total % Received % Xferd Average Speed Time Time Time Current
Dload Upload Total Spent Left Speed
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 0 0 0 0 0 0 0 --:--:-- --:--:-- --:--:-- 0
0 796M 0 6064k 0 0 5356k 0 0:02:32 0:00:01 0:02:31 5352k
4 796M 4 37.8M 0 0 17.9M 0 0:00:44 0:00:02 0:00:42 17.8M
8 796M 8 65.2M 0 0 20.8M 0 0:00:38 0:00:03 0:00:35 20.8M
10 796M 10 82.4M 0 0 19.8M 0 0:00:40 0:00:04 0:00:36 19.8M
12 796M 12 98.2M 0 0 19.2M 0 0:00:41 0:00:05 0:00:36 19.7M
13 796M 13 110M 0 0 18.1M 0 0:00:43 0:00:06 0:00:37 21.0M
14 796M 14 119M 0 0 16.6M 0 0:00:47 0:00:07 0:00:40 16.1M
15 796M 15 125M 0 0 15.4M 0 0:00:51 0:00:08 0:00:43 12.0M
16 796M 16 130M 0 0 14.2M 0 0:00:55 0:00:09 0:00:46 9841k
17 796M 17 136M 0 0 13.4M 0 0:00:59 0:00:10 0:00:49 7707k
17 796M 17 142M 0 0 12.7M 0 0:01:02 0:00:11 0:00:51 6299k
18 796M 18 147M 0 0 12.1M 0 0:01:05 0:00:12 0:00:53 5899k
19 796M 19 153M 0 0 11.7M 0 0:01:08 0:00:13 0:00:55 5808k
19 796M 19 159M 0 0 11.2M 0 0:01:10 0:00:14 0:00:56 5858k
20 796M 20 163M 0 0 10.8M 0 0:01:13 0:00:15 0:00:58 5728k
21 796M 21 168M 0 0 10.4M 0 0:01:15 0:00:16 0:00:59 5557k
21 796M 21 174M 0 0 10.1M 0 0:01:18 0:00:17 0:01:01 5492k
22 796M 22 180M 0 0 9.9M 0 0:01:20 0:00:18 0:01:02 5497k
23 796M 23 186M 0 0 9974k 0 0:01:21 0:00:19 0:01:02 5592k
24 796M 24 192M 0 0 9774k 0 0:01:23 0:00:20 0:01:03 5774k
24 796M 24 198M 0 0 9602k 0 0:01:24 0:00:21 0:01:03 5980k
25 796M 25 204M 0 0 9454k 0 0:01:26 0:00:22 0:01:04 6074k
26 796M 26 210M 0 0 9294k 0 0:01:27 0:00:23 0:01:04 6049k
27 796M 27 216M 0 0 9186k 0 0:01:28 0:00:24 0:01:04 6176k
27 796M 27 221M 0 0 9046k 0 0:01:30 0:00:25 0:01:05 6103k
28 796M 28 227M 0 0 8897k 0 0:01:31 0:00:26 0:01:05 5916k
29 796M 29 231M 0 0 8735k 0 0:01:33 0:00:27 0:01:06 5562k
29 796M 29 235M 0 0 8578k 0 0:01:35 0:00:28 0:01:07 5249k
30 796M 30 238M 0 0 8402k 0 0:01:37 0:00:29 0:01:08 4615k
30 796M 30 242M 0 0 8243k 0 0:01:38 0:00:30 0:01:08 4221k
30 796M 30 245M 0 0 8057k 0 0:01:41 0:00:31 0:01:10 3677k
30 796M 30 246M 0 0 7852k 0 0:01:43 0:00:32 0:01:11 3068k
31 796M 31 247M 0 0 7652k 0 0:01:46 0:00:33 0:01:13 2455k
31 796M 31 248M 0 0 7455k 0 0:01:49 0:00:34 0:01:15 1977k
31 796M 31 249M 0 0 7272k 0 0:01:52 0:00:35 0:01:17 1420k
31 796M 31 250M 0 0 7089k 0 0:01:55 0:00:36 0:01:19 1034k
31 796M 31 250M 0 0 6916k 0 0:01:57 0:00:37 0:01:20 930k
31 796M 31 251M 0 0 6764k 0 0:02:00 0:00:38 0:01:22 880k
31 796M 31 252M 0 0 6619k 0 0:02:03 0:00:39 0:01:24 878k
31 796M 31 254M 0 0 6482k 0 0:02:05 0:00:40 0:01:25 942k
32 796M 32 255M 0 0 6355k 0 0:02:08 0:00:41 0:01:27 1082k
32 796M 32 256M 0 0 6245k 0 0:02:10 0:00:42 0:01:28 1227k
32 796M 32 258M 0 0 6142k 0 0:02:12 0:00:43 0:01:29 1385k
32 796M 32 261M 0 0 6058k 0 0:02:14 0:00:44 0:01:30 1676k
33 796M 33 263M 0 0 5975k 0 0:02:16 0:00:45 0:01:31 1911k
33 796M 33 266M 0 0 5907k 0 0:02:18 0:00:46 0:01:32 2188k
33 796M 33 268M 0 0 5843k 0 0:02:19 0:00:47 0:01:32 2467k
34 796M 34 271M 0 0 5784k 0 0:02:20 0:00:48 0:01:32 2709k
34 796M 34 274M 0 0 5728k 0 0:02:22 0:00:49 0:01:33 2827k
34 796M 34 277M 0 0 5674k 0 0:02:23 0:00:50 0:01:33 2962k
35 796M 35 280M 0 0 5626k 0 0:02:24 0:00:51 0:01:33 3038k
35 796M 35 283M 0 0 5579k 0 0:02:26 0:00:52 0:01:34 3076k
36 796M 36 287M 0 0 5536k 0 0:02:27 0:00:53 0:01:34 3153k
36 796M 36 290M 0 0 5502k 0 0:02:28 0:00:54 0:01:34 3280k
37 796M 37 295M 0 0 5481k 0 0:02:28 0:00:55 0:01:33 3529k
37 796M 37 299M 0 0 5471k 0 0:02:29 0:00:56 0:01:33 3881k
38 796M 38 305M 0 0 5480k 0 0:02:28 0:00:57 0:01:31 4459k
39 796M 39 313M 0 0 5516k 0 0:02:27 0:00:58 0:01:29 5297k
40 796M 40 322M 0 0 5579k 0 0:02:26 0:00:59 0:01:27 6414k
41 796M 41 333M 0 0 5676k 0 0:02:23 0:01:00 0:01:23 7833k
43 796M 43 346M 0 0 5808k 0 0:02:20 0:01:01 0:01:19 9589k
45 796M 45 363M 0 0 5987k 0 0:02:16 0:01:02 0:01:14 11.4M
47 796M 47 377M 0 0 6115k 0 0:02:13 0:01:03 0:01:10 12.7M
49 796M 49 390M 0 0 6243k 0 0:02:10 0:01:04 0:01:06 13.8M
50 796M 50 402M 0 0 6323k 0 0:02:08 0:01:05 0:01:03 13.7M
52 796M 52 414M 0 0 6416k 0 0:02:07 0:01:06 0:01:01 13.4M
53 796M 53 427M 0 0 6513k 0 0:02:05 0:01:07 0:00:58 12.7M
55 796M 55 439M 0 0 6613k 0 0:02:03 0:01:08 0:00:55 12.6M
56 796M 56 452M 0 0 6705k 0 0:02:01 0:01:09 0:00:52 12.3M
58 796M 58 465M 0 0 6802k 0 0:01:59 0:01:10 0:00:49 12.7M
60 796M 60 479M 0 0 6896k 0 0:01:58 0:01:11 0:00:47 12.9M
61 796M 61 492M 0 0 6992k 0 0:01:56 0:01:12 0:00:44 13.1M
63 796M 63 505M 0 0 7074k 0 0:01:55 0:01:13 0:00:42 13.0M
65 796M 65 518M 0 0 7161k 0 0:01:53 0:01:14 0:00:39 13.1M
66 796M 66 532M 0 0 7252k 0 0:01:52 0:01:15 0:00:37 13.2M
68 796M 68 546M 0 0 7346k 0 0:01:50 0:01:16 0:00:34 13.4M
70 796M 70 560M 0 0 7446k 0 0:01:49 0:01:17 0:00:32 13.6M
72 796M 72 575M 0 0 7546k 0 0:01:48 0:01:18 0:00:30 14.1M
74 796M 74 592M 0 0 7668k 0 0:01:46 0:01:19 0:00:27 14.8M
76 796M 76 611M 0 0 7808k 0 0:01:44 0:01:20 0:00:24 15.7M
79 796M 79 631M 0 0 7969k 0 0:01:42 0:01:21 0:00:21 17.1M
81 796M 81 651M 0 0 8129k 0 0:01:40 0:01:22 0:00:18 18.2M
84 796M 84 670M 0 0 8258k 0 0:01:38 0:01:23 0:00:15 18.8M
85 796M 85 681M 0 0 8288k 0 0:01:38 0:01:24 0:00:14 17.6M
86 796M 86 691M 0 0 8314k 0 0:01:38 0:01:25 0:00:13 16.0M
88 796M 88 701M 0 0 8340k 0 0:01:37 0:01:26 0:00:11 14.0M
89 796M 89 712M 0 0 8373k 0 0:01:37 0:01:27 0:00:10 12.0M
90 796M 90 723M 0 0 8407k 0 0:01:36 0:01:28 0:00:08 10.6M
92 796M 92 735M 0
0 8446k 0 0:01:36 0:01:29 0:00:07 10.8M
93 796M 93 745M 0 0 8473k 0 0:01:36 0:01:30 0:00:06 10.9M
95 796M 95 757M 0 0 8507k 0 0:01:35 0:01:31 0:00:04 11.1M
96 796M 96 768M 0 0 8540k 0 0:01:35 0:01:32 0:00:03 11.1M
97 796M 97 780M 0 0 8575k 0 0:01:35 0:01:33 0:00:02 11.2M
99 796M 99 791M 0 0 8606k 0 0:01:34 0:01:34 --:--:-- 11.1M
100 796M 100 796M 0 0 8622k 0 0:01:34 0:01:34 --:--:-- 11.3M
Once the downloaded is complete, extract the file and set the environment variable PYSYN_CDBS to the path of the trds subdirectory. The next cell will do this for you, as long as the .tar file downloaded above has not been moved.
tar_archive = 'hlsp_reference-atlases_hst_multi_everything_multi_v11_sed.tar'
extract_to = 'hlsp_reference-atlases_hst_multi_everything_multi_v11_sed'
abs_extract_to = os.path.abspath(extract_to)
with tarfile.open(tar_archive, 'r') as tar:
for member in tar.getmembers():
member_path = os.path.abspath(os.path.join(abs_extract_to, member.name))
if member_path.startswith(abs_extract_to):
tar.extract(member, path=extract_to)
else:
print(f"Skipped {member.name} due to potential security risk")
os.environ['PYSYN_CDBS'] = os.path.join(abs_extract_to, 'grp/redcat/trds/')
Now, after having set up PYSYN_CDBS, we import stsynphot. A warning regarding the Vega spectrum is expected here.
import stsynphot as stsyn
WARNING: Failed to load Vega spectrum from /home/runner/work/hst_notebooks/hst_notebooks/notebooks/WFC3/filter_transformations/hlsp_reference-atlases_hst_multi_everything_multi_v11_sed/grp/redcat/trds//calspec/alpha_lyr_stis_011.fits; Functionality involving Vega will be severely limited: FileNotFoundError(2, 'No such file or directory') [stsynphot.spectrum]
2. Select filters for the transformation#
Define the filters to use for computing the transformation. One filter should be a UVIS filter, and the other a non-HST filter such as a Johnson-Cousins filter.
Filter names should be input as a list of tupled strings. Each tuple represents a pair of filters to convert between, and should contain the non-HST filter as the first element, and the UVIS filter as the second.
For non-HST filters, the filter system be included in the string, separated from the filter name by a comma (e.g. 'johnson, v' or 'sdss, g'). The available non-HST filters are listed here:
System |
Bands |
|---|---|
cousins |
r, i |
galex |
nuv, fuv |
johnson |
u, b, v, r, i, j, k |
landolt |
u, b, v, r, i |
sdss |
u, g, r, i, z, |
stromgren |
u, v, b, y |
Furthermore, Johnson-Cousins filters with corresponding UVIS filters are listed here:
Johnson-Cousins Filter |
UVIS Filter |
|---|---|
U |
F336W |
B |
F475W |
V |
F555W/F606W |
I |
F814W |
A summary of the UVIS filters, with descriptions, is available in Section 6.5.1 of the WFC3 Instrument Handbook
The notebook is currently set up to return the color terms between the V and I Johnson-Cousins filters, and corresponding UVIS filters.
filter_pairs = [('johnson, v', 'f555w'), ('cousins, i', 'f814w')]
3. Define a spectrum#
Define a spectrum to get color terms for. Some common options are embedded below. A wide array of reference spectra are available for download from spectral atlases located here.
# Blackbody (5000 K)
blackbody_temperature = 5000
model = syn.models.BlackBody1D(blackbody_temperature)
source_spectrum = syn.SourceSpectrum(model)
# Power law
pl_index = 0
model = syn.models.PowerLawFlux1D(amplitude=flux_in, x_0=wl_in, alpha=pl_index)
source_spectrum = syn.SourceSpectrum(model)
# Load from a FITS table (e.g. a CALSPEC spectrum)
source_spectrum = syn.SourceSpectrum.from_file('/path/to/your/spectrum.fits')
Currently, the notebook is configured to use a 5000 K blackbody spectrum.
blackbody_temperature = 5000
model = syn.models.BlackBody1D(blackbody_temperature)
source_spectrum = syn.SourceSpectrum(model)
4. Select UVIS chips#
Quantum efficiency differences between the two UVIS chips mean that you must specify which chips to use for computing color terms. Simply set the chip you would like to use to True and the other to False, or set both to True if you would like coefficients for both.
use_uvis1 = True
use_uvis2 = True
chips = [use_uvis1, use_uvis2]
5. Select magnitude systems#
Select which magnitude systems you would like color terms to be provided for. Set those you would like to True and others to False.
ABMAG = True
STMAG = True
VEGAMAG = False
mags = [('ABMAG', u.ABmag, ABMAG), ('STMAG', u.STmag, STMAG),
('VEGAMAG', su.VEGAMAG, VEGAMAG)]
6. Generate outputs#
Generate a data frame containing the color terms for the inputs you have specified.
First, let’s define the column names for the output table, and a list to fill with table rows.
cols = ['Filter Pair', 'Chip']
rows = []
Then, append the names of magnitude systems being used.
for name, _, toggle in mags:
if toggle:
cols.append(f'{name} Color Term')
Next, iterate over filter pairs. For each filter pair, this loop will:
generate observation mode strings, bandpasses, and observations
calculate the color term and append it
append filters, chip, and color term as a row to
rows
for pair in filter_pairs:
comparison_filter, uvis_filter = pair # Unpack filters
filt_str = comparison_filter + ' - ' + uvis_filter
for i, toggle in enumerate(chips):
if not toggle:
continue
chip_str = 'UVIS' + str(i + 1)
# Generate observation mode strings, bandpasses, observations
comparison_obsmode = comparison_filter
uvis_obsmode = 'wfc3, ' + chip_str + ', ' + uvis_filter
comparison_bp = stsyn.band(comparison_obsmode)
uvis_bp = stsyn.band(uvis_obsmode)
comparison_observation = Observation(source_spectrum, comparison_bp)
uvis_observation = Observation(source_spectrum, uvis_bp)
row = [filt_str, chip_str] # Append filters and chip to row
for name, unit, toggle in mags:
if not toggle:
continue
comparison_countrate = comparison_observation.effstim(
flux_unit=unit, vegaspec=vegaspec)
uvis_countrate = uvis_observation.effstim(
flux_unit=unit, vegaspec=vegaspec)
color = comparison_countrate - uvis_countrate # Find color term
row.append(f'{color.value:.3f}') # Append color term
rows.append(row) # Append row to list of rows
Finally, generate and return the output table.
df = pd.DataFrame(rows, columns=cols)
df
| Filter Pair | Chip | ABMAG Color Term | STMAG Color Term | |
|---|---|---|---|---|
| 0 | johnson, v - f555w | UVIS1 | -0.094 | -0.025 |
| 1 | johnson, v - f555w | UVIS2 | -0.094 | -0.025 |
| 2 | cousins, i - f814w | UVIS1 | 0.005 | -0.039 |
| 3 | cousins, i - f814w | UVIS2 | 0.005 | -0.038 |
If you wish to save the output table as a .txt file, please uncomment and execute the code block below.
# df.to_csv('your/path/here.txt', sep='\t')
7. Plot bandpasses#
It can be nice to see your selected bandpass pairs plotted with each other. The cell below will generate a figure with subplots for each filter pair specified above, as well as the relevant portion of the spectrum you’ve defined, all normalized to fit on the same axes.
Note: For the purposes of these plots, the non-HST bandpass and spectrum have been scaled to the amplitude of the HST bandpass, which reflects the actual total system throughput as a function of wavelength.
fig, axs = plt.subplots(1, len(filter_pairs), sharey=True, figsize=(
4*len(filter_pairs), 5)) # Instantiate subplots
axs[0].set_ylabel('Throughput')
for i, pair in enumerate(filter_pairs):
f1, f2 = pair
bp1 = stsyn.band(f1)
bp2 = stsyn.band('wfc3, uvis1,' + f2)
# Create wavelength array for subplot based on average bandpass wavelength and width
avgwave = (bp1.avgwave().to(u.nm) + bp2.avgwave().to(u.nm))/2
width = (bp1.rectwidth().to(u.nm) + bp2.rectwidth().to(u.nm))/2
left = max((avgwave - 1.5 * width).value, 1)
right = (avgwave + 1.5 * width).value
wl = np.arange(left, right) * u.nm
# Normalize curves to fit on one set of axes
bp1_norm = bp1(wl) / np.max(bp1(wl)) * np.max(bp2(wl))
spec_norm = source_spectrum(
wl) / np.max(source_spectrum(wl)) * np.max(bp2(wl))
# Plot bandpasses and spectrum on subplot
axs[i].plot(wl, bp1_norm, ls='--', label=f1, c='tab:blue')
axs[i].plot(wl, bp2(wl), ls='-.', label=f2, c='tab:red')
axs[i].plot(wl, spec_norm, label='source spectrum', c='tab:purple')
axs[i].set_xlabel('Wavelength (nm)')
axs[i].legend(fontsize='x-small', loc='upper right')
plt.tight_layout()
8. Conclusions#
Thank you for walking through this notebook. Now using WFC3 data, you should be more familiar with:
Generating synthetic observations using
synphotandstsynphot.Finding color terms between WFC3/UVIS filters and non-HST filters.
Ploting bandpasses to investigate various throughputs.
Congratulations, you have completed the notebook!#
Additional Resources#
Below are some additional resources that may be helpful. Please send any questions through the HST Helpdesk.
-
see sections 9.5.2 for reference to this notebook
About this Notebook#
Authors: Aidan Pidgeon, Jennifer Mack; WFC3 Instrument Team
Updated on: 2021-09-13
Citations#
If you use numpy, astropy, synphot, or stsynphot for published research, please cite the
authors. Follow these links for more information about citing the libraries below:
Top of Page
