Flux Unit Conversions with synphot and stsynphot#


Learning Goals#

By the end of this tutorial, you will:

  • Perform conversions between various systems of flux and magnitude using the synphot and stsynphot packages.

  • Extrapolate an output flux at a different wavelength than the input flux, by using a spectrum defined using the same packages.

  • Provide a framework to adapt a more personalized and streamlined conversion process, if desired.

Table of Contents#

Introduction
1. Imports
2. Input and output setup

  • 2.1 Units

  • 2.2 Bandpasses

  • 2.3 Choosing a spectrum

  • 2.4 User settings

3. Set up the conversion
4. Perform the conversion and create a plot
5. Examples

  • 5.1 Flux in Jy to AB mag with a flat spectrum in \(F_\nu\)

  • 5.2 Flux in flam to Flux in flam along a blackbody

  • 5.3 Flux in fnu to flux in photnu, any spectrum (same wavelength)

  • 5.4 mag to mag from an HST bandpass to a Johnson bandpass, flat spectrum in \(F_\lambda\)

6. Conclusions
Additional Resources
About the Notebook
Citations

Introduction#

This notebook is based on the prior “HST Photometric Conversion Tool” that returns unit conversions between various flux units and magnitude systems. It is not intended to replace more detailed functionality such as that provided by the Exposure Time Calculator (ETC). Rather, it is intended to provide a simple, quick result for flux unit conversions.

stsynphot requires access to data distributed by the Calibration Data Reference System (CRDS) in order to operate. Both packages look for an environment variable called PYSYN_CDBS to find the directory containing these data.

Users can obtain these data files from the CDRS. Information on how to obtain the most up-to-date reference files (and what they contain) can be found here. An example of how to download these files using curl and set up this environment variable is presented in the imports section below.

For detailed instructions on how to install and set up these packages, see the synphot and stsynphot documentation.

1. Imports#

This notebook assumes you have created the virtual environment in WFC3 notebooks’ installation instructions.

We import:

  • os for setting environment variables

  • tarfile for extracting a .tar archive

  • numpy for handling array functions

  • matplotlib.pyplot for plotting data

  • synphot and stsynphot for evaluating synthetic photometry

  • astropy.units and synphot.units for handling units

Additionally, we will need to set the PYSYN_CDBS environment variable before importing stsynphot. We will also create a Vega spectrum using synphot’s inbuilt from_vega() method, as the latter package will supercede this method’s functionality and require a downloaded copy of the latest Vega spectrum to be provided.

import os
import tarfile

import numpy as np
import matplotlib.pyplot as plt

from synphot import SourceSpectrum
from synphot.models import BlackBody1D, PowerLawFlux1D
from synphot.units import convert_flux

from astropy import units as u
from synphot import units as su

%matplotlib inline
vegaspec = SourceSpectrum.from_vega()

This section obtains the WFC3 throughput component tables for use with stsynphot. This step only needs to be done once. If these reference files have already been downloaded, this section can be skipped.

cmd_input = 'curl -O https://archive.stsci.edu/hlsps/reference-atlases/hlsp_reference-atlases_hst_multi_everything_multi_v11_sed.tar'
os.system(cmd_input)
  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed

  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
  0  796M    0  224k    0     0   337k      0  0:40:16 --:--:--  0:40:16  337k
  3  796M    3 24.6M    0     0  14.8M      0  0:00:53  0:00:01  0:00:52 14.8M
  6  796M    6 48.8M    0     0  18.2M      0  0:00:43  0:00:02  0:00:41 18.2M
  8  796M    8 64.5M    0     0  17.6M      0  0:00:45  0:00:03  0:00:42 17.6M
  9  796M    9 75.7M    0     0  16.2M      0  0:00:49  0:00:04  0:00:45 16.2M
 11  796M   11 87.9M    0     0  15.4M      0  0:00:51  0:00:05  0:00:46 17.4M
 12  796M   12  100M    0     0  15.0M      0  0:00:52  0:00:06  0:00:46 15.1M
 14  796M   14  112M    0     0  14.6M      0  0:00:54  0:00:07  0:00:47 12.8M
 15  796M   15  125M    0     0  14.4M      0  0:00:55  0:00:08  0:00:47 12.1M
 17  796M   17  138M    0     0  14.3M      0  0:00:55  0:00:09  0:00:46 12.5M
 18  796M   18  150M    0     0  14.1M      0  0:00:56  0:00:10  0:00:46 12.5M
 20  796M   20  160M    0     0  13.7M      0  0:00:57  0:00:11  0:00:46 12.0M
 21  796M   21  171M    0     0  13.5M      0  0:00:58  0:00:12  0:00:46 11.8M
 22  796M   22  182M    0     0  13.3M      0  0:00:59  0:00:13  0:00:46 11.4M
 24  796M   24  195M    0     0  13.2M      0  0:00:59  0:00:14  0:00:45 11.3M
 26  796M   26  207M    0     0  13.2M      0  0:01:00  0:00:15  0:00:45 11.4M
 27  796M   27  217M    0     0  13.0M      0  0:01:00  0:00:16  0:00:44 11.3M
 28  796M   28  227M    0     0  12.8M      0  0:01:01  0:00:17  0:00:44 11.1M
 29  796M   29  237M    0     0  12.7M      0  0:01:02  0:00:18  0:00:44 10.9M
 30  796M   30  245M    0     0  12.4M      0  0:01:03  0:00:19  0:00:44 10.0M
 31  796M   31  251M    0     0  12.1M      0  0:01:05  0:00:20  0:00:45 9032k
 32  796M   32  256M    0     0  11.8M      0  0:01:07  0:00:21  0:00:46 8036k
 32  796M   32  261M    0     0  11.5M      0  0:01:08  0:00:22  0:00:46 7056k
 33  796M   33  266M    0     0  11.2M      0  0:01:10  0:00:23  0:00:47 5861k
 33  796M   33  270M    0     0  10.9M      0  0:01:12  0:00:24  0:00:48 5126k
 34  796M   34  274M    0     0  10.6M      0  0:01:14  0:00:25  0:00:49 4663k
 34  796M   34  278M    0     0  10.4M      0  0:01:16  0:00:26  0:00:50 4462k
 35  796M   35  282M    0     0  10.2M      0  0:01:17  0:00:27  0:00:50 4331k
 35  796M   35  286M    0     0   9.9M      0  0:01:19  0:00:28  0:00:51 4153k
 36  796M   36  290M    0     0   9.7M      0  0:01:21  0:00:29  0:00:52 4106k
 36  796M   36  294M    0     0  9826k      0  0:01:22  0:00:30  0:00:52 4064k
 37  796M   37  298M    0     0  9653k      0  0:01:24  0:00:31  0:00:53 4064k
 38  796M   38  302M    0     0  9500k      0  0:01:25  0:00:32  0:00:53 4092k
 38  796M   38  307M    0     0  9346k      0  0:01:27  0:00:33  0:00:54 4258k
 39  796M   39  311M    0     0  9204k      0  0:01:28  0:00:34  0:00:54 4374k
 39  796M   39  315M    0     0  9071k      0  0:01:29  0:00:35  0:00:54 4450k
 40  796M   40  319M    0     0  8934k      0  0:01:31  0:00:36  0:00:55 4363k
 40  796M   40  323M    0     0  8795k      0  0:01:32  0:00:37  0:00:55 4208k
 41  796M   41  327M    0     0  8661k      0  0:01:34  0:00:38  0:00:56 4121k
 41  796M   41  330M    0     0  8541k      0  0:01:35  0:00:39  0:00:56 3967k
 41  796M   41  334M    0     0  8420k      0  0:01:36  0:00:40  0:00:56 3770k
 42  796M   42  337M    0     0  8307k      0  0:01:38  0:00:41  0:00:57 3708k
 42  796M   42  341M    0     0  8198k      0  0:01:39  0:00:42  0:00:57 3695k
 43  796M   43  345M    0     0  8098k      0  0:01:40  0:00:43  0:00:57 3671k
 43  796M   43  348M    0     0  8000k      0  0:01:41  0:00:44  0:00:57 3696k
 44  796M   44  352M    0     0  7910k      0  0:01:43  0:00:45  0:00:58 3767k
 44  796M   44  356M    0     0  7827k      0  0:01:44  0:00:46  0:00:58 3850k
 45  796M   45  360M    0     0  7756k      0  0:01:45  0:00:47  0:00:58 3981k
 45  796M   45  364M    0     0  7671k      0  0:01:46  0:00:48  0:00:58 3940k
 46  796M   46  368M    0     0  7592k      0  0:01:47  0:00:49  0:00:58 3960k
 46  796M   46  371M    0     0  7512k      0  0:01:48  0:00:50  0:00:58 3901k
 47  796M   47  374M    0     0  7427k      0  0:01:49  0:00:51  0:00:58 3680k
 47  796M   47  377M    0     0  7335k      0  0:01:51  0:00:52  0:00:59 3324k
 47  796M   47  379M    0     0  7240k      0  0:01:52  0:00:53  0:00:59 3051k
 47  796M   47  381M    0     0  7148k      0  0:01:54  0:00:54  0:01:00 2716k
 48  796M   48  383M    0     0  7060k      0  0:01:55  0:00:55  0:01:00 2444k
 48  796M   48  386M    0     0  6976k      0  0:01:56  0:00:56  0:01:00 2325k
 48  796M   48  388M    0     0  6897k      0  0:01:58  0:00:57  0:01:01 2304k
 49  796M   49  390M    0     0  6824k      0  0:01:59  0:00:58  0:01:01 2370k
 49  796M   49  393M    0     0  6756k      0  0:02:00  0:00:59  0:01:01 2480k
 49  796M   49  396M    0     0  6690k      0  0:02:01  0:01:00  0:01:01 2592k
 50  796M   50  399M    0     0  6633k      0  0:02:02  0:01:01  0:01:01 2744k
 50  796M   50  402M    0     0  6583k      0  0:02:03  0:01:02  0:01:01 2942k
 51  796M   51  407M    0     0  6546k      0  0:02:04  0:01:03  0:01:01 3287k
 51  796M   51  411M    0     0  6519k      0  0:02:05  0:01:04  0:01:01 3718k
 52  796M   52  416M    0     0  6489k      0  0:02:05  0:01:05  0:01:00 4039k
 52  796M   52  419M    0     0  6446k      0  0:02:06  0:01:06  0:01:00 4141k
 53  796M   53  423M    0     0  6406k      0  0:02:07  0:01:07  0:01:00 4212k
 53  796M   53  427M    0     0  6371k      0  0:02:07  0:01:08  0:00:59 4164k
 54  796M   54  431M    0     0  6340k      0  0:02:08  0:01:09  0:00:59 4001k
 54  796M   54  435M    0     0  6304k      0  0:02:09  0:01:10  0:00:59 3872k
 54  796M   54  437M    0     0  6258k      0  0:02:10  0:01:11  0:00:59 3741k
 55  796M   55  440M    0     0  6207k      0  0:02:11  0:01:12  0:00:59 3491k
 55  796M   55  443M    0     0  6161k      0  0:02:12  0:01:13  0:00:59 3248k
 56  796M   56  446M    0     0  6119k      0  0:02:13  0:01:14  0:00:59 3032k
 56  796M   56  448M    0     0  6076k      0  0:02:14  0:01:15  0:00:59 2853k
 56  796M   56  451M    0     0  6035k      0  0:02:15  0:01:16  0:00:59 2863k
 57  796M   57  454M    0     0  6000k      0  0:02:15  0:01:17  0:00:58 2979k
 57  796M   57  458M    0     0  5964k      0  0:02:16  0:01:18  0:00:58 3070k
 57  796M   57  461M    0     0  5934k      0  0:02:17  0:01:19  0:00:58 3171k
 58  796M   58  465M    0     0  5906k      0  0:02:18  0:01:20  0:00:58 3338k
 58  796M   58  469M    0     0  5885k      0  0:02:18  0:01:21  0:00:57 3582k
 59  796M   59  474M    0     0  5877k      0  0:02:18  0:01:22  0:00:56 3972k
 60  796M   60  480M    0     0  5883k      0  0:02:18  0:01:23  0:00:55 4591k
 61  796M   61  487M    0     0  5902k      0  0:02:18  0:01:24  0:00:54 5388k
 62  796M   62  497M    0     0  5947k      0  0:02:17  0:01:25  0:00:52 6597k
 63  796M   63  509M    0     0  6017k      0  0:02:15  0:01:26  0:00:49 8170k
 65  796M   65  523M    0     0  6110k      0  0:02:13  0:01:27  0:00:46 9980k
 67  796M   67  541M    0     0  6247k      0  0:02:10  0:01:28  0:00:42 12.0M
 70  796M   70  562M    0     0  6420k      0  0:02:06  0:01:29  0:00:37 14.8M
 73  796M   73  586M    0     0  6624k      0  0:02:03  0:01:30  0:00:33 17.7M
 76  796M   76  607M    0     0  6783k      0  0:02:00  0:01:31  0:00:29 19.5M
 78  796M   78  627M    0     0  6932k      0  0:01:57  0:01:32  0:00:25 20.8M
 80  796M   80  643M    0     0  7039k      0  0:01:55  0:01:33  0:00:22 20.6M
 83  796M   83  661M    0     0  7158k      0  0:01:53  0:01:34  0:00:19 19.9M
 85  796M   85  679M    0     0  7279k      0  0:01:52  0:01:35  0:00:17 18.7M
 87  796M   87  698M    0     0  7399k      0  0:01:50  0:01:36  0:00:14 18.2M
 90  796M   90  717M    0     0  7523k      0  0:01:48  0:01:37  0:00:11 17.9M
 91  796M   91  729M    0     0  7571k      0  0:01:47  0:01:38  0:00:09 17.1M
 92  796M   92  739M    0     0  7601k      0  0:01:47  0:01:39  0:00:08 15.6M
 94  796M   94  751M    0     0  7640k      0  0:01:46  0:01:40  0:00:06 14.2M
 95  796M   95  762M    0     0  7682k      0  0:01:46  0:01:41  0:00:05 12.8M
 96  796M   96  771M    0     0  7699k      0  0:01:45  0:01:42  0:00:03 10.8M
 98  796M   98  780M    0     0  7713k      0  0:01:45  0:01:43  0:00:02 10.2M
 98  796M   98  787M    0     0  7708k      0  0:01:45  0:01:44  0:00:01 9836k
 99  796M   99  795M    0     0  7706k      0  0:01:45  0:01:45 --:--:-- 9040k
100  796M  100  796M    0     0  7707k      0  0:01:45  0:01:45 --:--:-- 8321k
0

Once the downloaded is complete, extract the file and set the environment variable PYSYN_CDBS to the path of the trds subdirectory. The next cell will do this for you, as long as the .tar file downloaded above has not been moved.

tar_archive = 'hlsp_reference-atlases_hst_multi_everything_multi_v11_sed.tar'
extract_to = 'hlsp_reference-atlases_hst_multi_everything_multi_v11_sed'
with tarfile.open(tar_archive, 'r') as tar:
    tar.extractall(path=extract_to)

os.environ['PYSYN_CDBS'] = 'hlsp_reference-atlases_hst_multi_everything_multi_v11_sed/grp/redcat/trds/'

Now, after having set up PYSYN_CDBS, we import stsynphot. A warning regarding the Vega spectrum is expected here.

import stsynphot as stsyn
WARNING: Failed to load Vega spectrum from hlsp_reference-atlases_hst_multi_everything_multi_v11_sed/grp/redcat/trds//calspec/alpha_lyr_stis_010.fits; Functionality involving Vega will be cripped: FileNotFoundError(2, 'No such file or directory') [stsynphot.spectrum]

2. Input and output setup#

2.1 Units#

The conversion framework below will accept any astropy or synphot unit with dimensions of spectral flux density (\(F_\lambda\) or \(F_\nu\)) or photon flux density. Flux units with any of the following dimensions will be supported by the tool:

  • [power] [area] [wavelength]\(^{-1}\)

  • [power] [area] [frequency]\(^{-1}\)

  • photons [area] [wavelength]\(^{-1}\)

  • photons [area] [frequency]\(^{-1}\)

Alternatively, a magnitude system may be specified as the unit for the input or the output in the same way that a flux density would be. The tables below lists flux units which are defined by name in astropy and synphot, and the magnitude systems supported by the tool.

Unit

Definition

astropy/synphot attribute

Jansky

$\(10^{-26} \text{ W} \text{ m}^{-2} \text{ Hz}^{-1}\)$

astropy.units.Jy

fnu

$\(\text{erg} \text{ s}^{-1} \text{ cm}^{-2} \text{ Hz}^{-1}\)$

synphot.units.FNU

flam

$\(\text{erg} \text{ s}^{-1} \text{ cm}^{-2} \text{ Å}^{-1}\)$

synphot.units.FLAM

photnu

$\(\text{photons} \text{ s}^{-1} \text{ cm}^{-2} \text{ Hz}^{-1}\)$

synphot.units.PHOTNU

photlam

$\(\text{photons} \text{ s}^{-1} \text{ cm}^{-2} \text{ Å}^{-1}\)$

synphot.units.PHOTLAM

Mag System

astropy/synphot attribute

ABmag

astropy.units.ABmag

STmag

astropy.units.STmag

vegamag

synphot.units.VEGAMAG

For more information on accepted units in synphot, refer to the documentation here.

2.2 Bandpasses#

When selecting a magnitude as an input or output, the tool will need a bandpass to be defined, which is done with a string of observation mode, or obsmode, keywords. The pivot wavelength for that bandpass will then serve as the characteristic wavelength to be used for the conversion.

For HST bandpasses, stsynphot accounts for the telescope’s optics by combining throughput information along the entire optical path. As an example, 'wfc3, uvis2, f475w, mjd#59367' tells stsynphot to retrieve the latest throughput tables for the UVIS2 detector on WFC3, through the F475W filter for the Modified Julian Date 59367 (June 1, 2021). The option to specify a Julian date is provided for instruments which show changes in sensitivity over time. If no date is specified, stsynphot will use the reference epoch for each instrument as default.

As the required and optional obsmode keywords vary from instrument to instrument, it would be impractical to list the available options here in their entirety. Please refer to the full list of available obsmode keywords for details on how to specify HST bandpasses.

For non-HST filter systems, the only required keywords are the filter system’s name and that of the desired filter within that system (e.g. 'johnson, v'). A list of the non-HST filter systems accepted by stsynphot is given here:

System

Bands

cousins

r, i

galex

nuv, fuv

johnson

u, b, v, r, i, j, k

landolt

u, b, v, r, i

sdss

u, g, r, i, z,

stromgren

u, v, b, y

2.3 Choosing a spectrum#

You’ll also need to define a spectrum, which the tool will use to extrapolate your input flux to an output at a different wavelength.

The embedded code below shows how to generate or load various useful spectra. You can simply copy one of them into the cell below and modify as appropriate, or create your own. For more information, see the Source Spectrum documentation.

Some notes:

  • For evaluation and plotting, these models default to outputting flux in photlam, however, the output unit may be specified with the flux_unit keyword argument.

  • synphot.models.BlackBody1D outputs a function according to Planck’s law, which means that the output unit carries an implicit “per unit solid angle,” in steradians. For a normalized blackbody, you can use BlackBodyNorm1D, whose output is normalized to a 1 solar radius star at a distance of 1 kpc, or multiply your source spectrum by some solid angle of your choosing.

  • synphot.models.PowerLawFlux1D uses the definition \(f(x) = A (\frac{x}{x_0})^{-\alpha}\), where \(A\) is input flux (flux_in), and \(x_0\) is the input wavelength (wavelength_in). Note the negative sign in front of the power law index \(\alpha\). The model can generate curves with \(x\) as either frequency or wavelength, but the example here assumes that wavelength will be used. The y-axis unit will be taken from \(A\).

  • A wide array of reference spectra are available for download from spectral atlases located here.

Example spectrum definitions:

# Blackbody
bb_temp = 5800 * u.K

model = BlackBody1D(bb_temp)
spectrum = SourceSpectrum(model)

# Power law
pl_index = 0

model = PowerLawFlux1D(amplitude=flux_in, x_0=wavelength_in, alpha=pl_index)
spectrum = SourceSpectrum(model)

# Load from a FITS table
spectrum = SourceSpectrum.from_file('/path/to/your/spectrum.fits')

The notebook has been set up to perform an extrapolation from \(V = 0.0\) in the Vega system to the R-band in the same system, using the Vega spectrum defined in the imports cell. Further examples of input and output settings are available at the bottom of this notebook.

2.4 User settings#

First, we define our conversion input settings:

  • value_in: numerical value of input flux/mag (float)

  • unit_in: unit or mag system for input value

  • waveband_in: input’s wavelength (float) for flux, or bandpass obsmode (string) for magnitudes. The use of “waveband” here is only for the purpose of variable naming, since this can be either a wavelength or a bandpass.

  • wavelength_unit: wavelength unit (used for plots, so needs to be specified even when using a bandpass)

value_in = 0.0
unit_in = su.VEGAMAG
waveband_in = 'johnson, v'
wavelength_unit = u.nm

Next, we define our conversion output settings:

  • unit_out: unit or mag system for the output

  • waveband_out: wavelength (float) or bandpass obsmode (string) to find output for; if a wavelength, the unit specified in the cell above by wavelength_unit will be used.

unit_out = su.VEGAMAG
waveband_out = 'cousins, r'

Finally, we define our spectrum to use (copy/paste from above, or define your own).

spectrum = vegaspec

3. Set up the conversion#

Now, we need to run a few cells that will set up the conversion. First, we check whether the input and output are a flux or a magnitude, and set some variables appropriately. Then, we scale the chosen spectrum such that it passes through the defined input so the extrapolation to the output wavelength will give an accurate result.

Note that the default plotting unit is set to the input unit for conversions made from flux units, and photlam for conversions from magnitudes. This may be altered, if desired, by changing the plot_unit variable definitions in the cell below.

Note: No inputs required for the cells below. All the inputs were assigned in Section 2.4.

First, let’s combine input value and unit as a quantity, then list the systems that will work for the tool.

quantity_in = value_in * unit_in
mag_systems = [u.STmag, u.ABmag, su.VEGAMAG]
flux_systems = ['spectral flux density', 'spectral flux density wav',
                'photon flux density', 'photon flux density wav']

Next, let’s get inputs set up for following steps. Here are the three possible outcomes:

  • If the input is a magnitude,

    • define bandpass with input obsmode string

    • pivot wavelength of input bandpass

    • set flux_in to equivalent flux in photlam at pivot wavelength (Vega spectrum needed if using VEGAMAG)

    • set plotting unit and flux for later

  • If the input is a flux,

    • combine wavelength for flux and unit as the input wavelength

    • set plotting unit and flux for later

  • If anything else, print

    • unit_in not a flux density unit or magnitude system

if unit_in in mag_systems:
    mag_in = quantity_in
    bandpass_in = stsyn.band(waveband_in)
    wavelength_in = bandpass_in.pivot().to(wavelength_unit)
    flux_in = convert_flux(wavelength_in, quantity_in, su.PHOTLAM,
                           vegaspec=vegaspec)
    plot_unit = su.PHOTLAM
    plot_flux_in = convert_flux(wavelength_in, flux_in, plot_unit)
elif unit_in.physical_type in flux_systems:
    flux_in = quantity_in
    wavelength_in = waveband_in * wavelength_unit
    plot_unit = unit_in
    plot_flux_in = convert_flux(wavelength_in, flux_in, plot_unit)
else:
    print('unit_in not a flux density unit or magnitude system')

We perform a similar setup for outputs:

  • If the output is a magnitude,

    • use output wavelength to calculate output bandpass

    • output bandpass’s pivot wavelength

  • If the output is a flux,

    • combine wavelength for flux and unit as output wavelength

  • If anything else, print

    • unit_out not a flux density unit or magnitude system

if unit_out in mag_systems:
    bandpass_out = stsyn.band(waveband_out)
    wavelength_out = bandpass_out.pivot().to(wavelength_unit)
elif unit_out.physical_type in flux_systems:
    wavelength_out = waveband_out * wavelength_unit
else:
    print('unit_out not a flux density unit or magnitude system')

Finally, we convert the flux, scale, and multiply by our spectrum. The default evaluation unit is set to photlam.

scale = convert_flux(wavelength_in, flux_in, su.PHOTLAM) / \
    spectrum(wavelength_in)
scaled_spectrum = spectrum * scale

4. Perform the conversion and create a plot#

We can now find our output by using the convert_flux function from synphot. We will first scale the spectrum defined above such that its value at the input wavelength is that of the input flux. Then, we convert the scaled spectrum’s value at the output wavelength to the selected output units, as well as the unit that will be used for plotting.

if unit_out in mag_systems:
    flux_out = convert_flux(wavelength_out, scaled_spectrum(wavelength_out), unit_out,
                            vegaspec=vegaspec)
    plot_flux_out = convert_flux(
        wavelength_out, scaled_spectrum(wavelength_out), plot_unit)
else:
    flux_out = convert_flux(
        wavelength_out, scaled_spectrum(wavelength_out), unit_out)
    plot_flux_out = convert_flux(
        wavelength_out, scaled_spectrum(wavelength_out), plot_unit)

value_out = flux_out.value

Print the input and output values.

print(f'Input: {value_in:.4f} {unit_in:s} at {wavelength_in.value:.1f} {wavelength_in.unit:s}\n')
print(f'Input: {value_out:.4f} {unit_out:s} at {wavelength_out.value:.1f} {wavelength_out.unit:s}\n')
# print(f'Output: {float(value_out):.4} {} at {:.1f} {}'.format(, str(unit_out), wavelength_out.value, str(wavelength_out.unit)))
Input: 0.0000 mag(VEGA) at 547.9 nm

Input: -0.0000 mag(VEGA) at 647.3 nm

While not strictly necessary for performing the conversion, plotting the selected spectrum with the input and output points can be a useful check to see if the spectrum looks like what you’re expecting.

Let’s define a set of wavelengths and minimum/maximum bounds for the plot.

wavelength_settings = [wl.value for wl in [wavelength_in, wavelength_out]]
short = min(wavelength_settings)
long = max(wavelength_settings)

if short == long:  # In case wavelength_in == wavelength_out
    diff = 10.
else:
    diff = long - short
right = long + diff
left = max([short - diff, 0.1])
wavelength_space = np.linspace(left, right, 10000) * wavelength_unit

We will also set the colors for the in/out markers.

if wavelength_in.value > wavelength_out.value:
    c_in = 'r'
    c_out = 'b'
else:
    c_in = 'b'
    c_out = 'r'

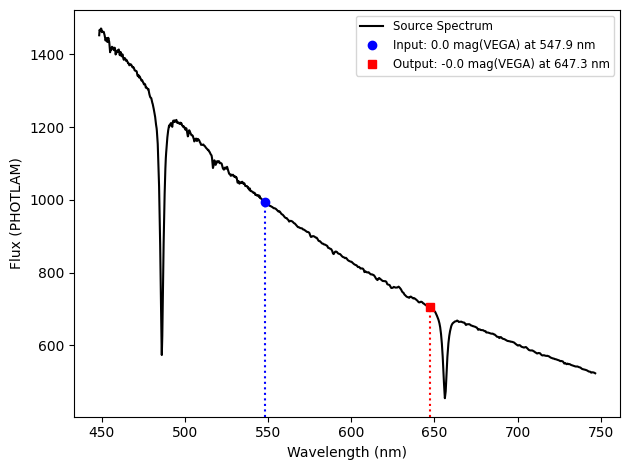

Plot the spectrum, input, and output. If the input was a magnitude, then plot_unit (see Section 3) will be used. In addition, if the input and output wavelength are the same, then print the input and output.

plt.figure()

# Plot spectrum
plt.plot(wavelength_space, scaled_spectrum(wavelength_space,
         flux_unit=plot_unit), c='k', label='Source Spectrum')

# Plot input
plt.plot(wavelength_in.value, plot_flux_in.value,
         marker='o', color=c_in, ls='none',
         label='Input: {:.4} {} at {:.1f} {}'.format(
             float(value_in), str(unit_in), wavelength_in.value, str(wavelength_in.unit)))

# Plot output
plt.plot(wavelength_out.value, plot_flux_out.value,
         marker='s', color=c_out, ls='none',
         label='Output: {:.4} {} at {:.1f} {}'.format(
             float(value_out), str(unit_out), wavelength_out.value, str(wavelength_out.unit)))

# Set heights for dotted lines to markers as % of plot range
bottom, top = plt.ylim()
yrange = top - bottom
inheight = (plot_flux_in.value - bottom) / yrange
outheight = (plot_flux_out.value - bottom) / yrange

# Plot dotted lines to markers
plt.axvline(wavelength_in.to(wavelength_unit).value,
            ymax=inheight, ls=':', c=c_in)
plt.axvline(wavelength_out.to(wavelength_unit).value,
            ymax=outheight, ls=':', c=c_out)

# Miscellaneous
plt.ylabel('Flux ({})'.format(str(plot_unit)))
plt.xlabel('Wavelength ({})'.format(str(wavelength_unit)))
plt.legend(fontsize='small')
plt.tight_layout()
../../../_images/5ff73ffa82e6ee381a5ced9673f708bb02236058022c819b939b776a0064ea41.png

5. Examples#

Here, we provide some examples to illustrate a few of the many conversions which are possible. If desired, you may run an example cell to set the inputs for the tool, then run through the notebook (without running the cells in Section 2.4) to see the results. Each cell will define an input, output, and spectrum.

5.1. Flux in Jy to AB mag with a flat spectrum in \(F_\nu\)#

Run cell then go to Section 3 to convert flux and plot.

# Input: 3631 Jy at 550. nm
value_in = 3631.
unit_in = u.Jy
waveband_in = 550.
wavelength_unit = u.nm

# Output: Johnson V mag (AB)
unit_out = u.ABmag
waveband_out = 'Johnson, V'

# Spectrum: Flat power law in F_nu
pl_index = 0
model = PowerLawFlux1D(amplitude=flux_in, x_0=wavelength_in, alpha=pl_index)
spectrum = SourceSpectrum(model)

5.2. Flux in flam to Flux in flam along a blackbody#

Run cell then go to Section 3 to convert flux and plot.

# Input: 1.234e-8 flam at 500. nm
value_in = 1.234e-8
unit_in = su.FLAM
waveband_in = 500.
wavelength_unit = u.nm

# Output: flam at 800. nm
unit_out = su.FLAM
waveband_out = 800.

# Spectrum: 5800 K blackbody
bb_temp = 5800 * u.K
model = BlackBody1D(bb_temp)
spec = SourceSpectrum(model)

5.3. Flux in fnu to flux in photnu, any spectrum (same wavelength)#

Run cell then go to Section 3 to convert flux and plot. Note the spectrum is irrelevant since conversion is at the same wavelength.

# Input: 1.234e-21 fnu at 686. nm
value_in = 1.234e-21
unit_in = su.FNU
waveband_in = 686.
wavelength_unit = u.nm

# Output: photnu at 686. nm
unit_out = su.PHOTNU
waveband_out = 686.

# Spectrum: 5800 K blackbody
bb_temp = 5800 * u.K
model = BlackBody1D(bb_temp)
spectrum = SourceSpectrum(model)

5.4. mag to mag from an HST bandpass to a Johnson bandpass, flat spectrum in \(F_\lambda\)#

Run cell then go to Section 3 to convert flux and plot. Note we run convert_flux for the power law amplitude to ensure the spectrum is flat in \(F_\lambda\) rather than in photlam.

# Input: STmag = 12.240, F606W filter on WFC3 UVIS 2
value_in = 12.240
unit_in = u.STmag
waveband_in = 'wfc3, uvis2, f606w, mjd#59367'
wavelength_unit = u.nm

# Output: Johnson V mag (AB)
unit_out = u.STmag
waveband_out = 'Johnson, V'

# Spectrum: Flat power law in F_lambda
pl_index = 0
model = PowerLawFlux1D(amplitude=convert_flux(
    606 * u.nm, 1., su.FLAM), x_0=606 * u.nm, alpha=pl_index)
spec = SourceSpectrum(model)
model = PowerLawFlux1D(amplitude=flux_in, x_0=wavelength_in, alpha=pl_index)

6. Conclusions#

Thank you for walking through this notebook. Now using WFC3 data, you should be more familiar with:

  • Performing conversions between various systems of flux and magnitude using the synphot and stsynphot packages.

  • Extrapolating an output flux at a different wavelength than the input flux.

  • Adapting a more personalized and streamlined conversion process.

Congratulations, you have completed the notebook!#

Additional Resources#

Below are some additional resources that may be helpful. Please send any questions through the HST Helpdesk.

About this Notebook#

Authors: Aidan Pidgeon, Joel Green; WFC3 Instrument Team

Updated on: 2021-09-13

Citations#

If you use numpy, astropy, synphot, or stsynphot for published research, please cite the authors. Follow these links for more information about citing the libraries below:


Top of Page Space Telescope Logo
