Learning Goals#

This notebook demonstrates how to download PSF cutouts (i.e. “realizations” of the PSF) from the WFC3 and WFPC2 PSF Databases on the MAST Portal using the MAST API. By the end of this tutorial, you will:

  • Query the database for source metadata.

  • Download source cutouts from reconstructed dataURIs.

  • Extract source cutouts from dataURLs.

Acronyms:

  • Hubble Space Telescope (HST)

  • Wide Field Camera 3 (WFC3)

  • Wide Field and Planetary Camera 2 (WFPC2)

  • WFC3 Ultraviolet and VISable detector (WFC3/UVIS or UVIS)

  • WFC3 InfraRed detector (WFC3/IR or IR)

  • Point Spread Function (PSF)

  • Mikulski Archive for Space Telescopes (MAST)

  • Application Programming Interface (API)

Table of Contents#

Introduction
1. Imports
2. Query the WFC3 and WFPC2 PSF Databases
3. Reconstruct dataURIs
4. Download and extract cutouts using dataURIs

  • 4.1 Single file

  • 4.2 Multiple files: bundle

  • 4.3 Multiple files: pooling

5. Extracting cutouts using dataURLs
6. Load and plot cutouts
7. Conclusions
Additional Resources
About this Notebook
Citations

Introduction#

The WFC3 and WFPC2 PSF Databases are three databases (WFC3/UVIS, WFC3/IR, and WFPC2) of sources measured in every external observation from the instruments, excluding proprietary data. All sources were measured using HST1PASS, a Fortran program that measures point sources using HST PSF models and one-pass photometry. These point sources are “realizations” of the PSF, meaning they can be used to construct detailed PSF models. WFC3 ISR 2021-12 (Dauphin et al. 2021) provides a detailed overview of the database pipeline and a statistical analysis of the databases up to 2021. As of August 2024, the databases have over 83.5 million sources, including both unsaturated and saturated sources. The databases are summarized below:

  • WFC3/UVIS: 33M sources (30M unsaturated and 3M saturated)

  • WFC3/IR: 25.5M sources (25.3M unsaturated and 0.2M saturated)

  • WFPC2: 25M sources (15M unsaturated and 10M saturated)

The databases are available on the MAST Portal under the collections “WFC3 PSF” (with wavebands “UVIS” and “IR”) and “WFPC2 PSF”. By clicking “Advanced Search”, the databases can be filtered and queried by various parameters, such as source position and flux. All of the searchable field options are described here. After completing the query, the sources’ measurables (i.e. metadata) and cutouts centered on the source can be retrieved and downloaded, using either raw or calibrated data.

Although the MAST Portal is extremely effective for a variety of purposes, we introduce a programmatic way of downloading metadata and cutouts, which can be useful for downstream tasks and increasing data accessibility.

1. Imports#

This notebook assumes you have installed the required libraries as described here.

We import:

  • glob for querying directories

  • os for handling files

  • tarfile for extracting the contents of a .tar.gz file

  • numpy for handling arrays

  • matplotlib.pyplot for plotting data

  • astropy.io fits for accessing FITS files

We also import a custom module mast_api_psf.py for querying sources and downloading cutouts.

import os
import tarfile

import numpy as np
import matplotlib.pyplot as plt
from astropy.io import fits

import mast_api_psf

2. Query the WFC3 and WFPC2 PSF Databases#

First, we query a database for source metadata. For this notebook, we use WFC3/UVIS (i.e. UVIS) as an example. The same syntax and functionality also works for WFC3/IR and WFPC2 (i.e. IR and WFPC2, respectively).

detector = 'UVIS'

Let’s retrieve a small subset of sources by filtering our query. We retrieve all unsaturated sources centered on pixels between 100 to 102 on both the x and y coordinates of the detector. We format our min and max values using mast_api_psf.set_min_max from Using the MAST API with Python.

center_min_max = mast_api_psf.set_min_max(100, 102)
center_min_max

[{'min': 100, 'max': 102}]

We define our parameters to be filtered. As a reminder, all of the columns that can be filtered are described here.

Note: there are a few column differences between the databases.

  • the column corresponding to filters (filter) in the WFC3 databases is filter_1 in the WFPC2 database. For WFPC2, our module corrects filter to filter_1 in case the former was used by accident.

  • the secondary filter column filter_2 is only available for WFPC2. For special WFPC2 observations, the user can utilize two filters at once as long as both filters are on different wheels. The most common case is using a standard optical filter with a polarizer.

  • the proposal type column proptype is only available for WFC3.

parameters = {
    'psf_x_center': center_min_max,
    'psf_y_center': center_min_max,
    'n_sat_pixels': ['0']
}

For reference, n_sat_pixels is the number of saturated pixels the source contains. 0 indicates no saturated pixels (i.e. unsaturated). Any number greater than 0 indicates a saturated source with that many saturated pixels.

We format our filters using mast_api_psf.set_filters from Using the MAST API with Python.

filts = mast_api_psf.set_filters(parameters)
filts

[{'paramName': 'psf_x_center', 'values': [{'min': 100, 'max': 102}]},
 {'paramName': 'psf_y_center', 'values': [{'min': 100, 'max': 102}]},
 {'paramName': 'n_sat_pixels', 'values': ['0']}]

Now, we query MAST by wrapping their API to retrieve our filtered sources using mast_api_psf.mast_query_psf_database. By default, this function returns all columns for the query. The columns can be changed using the parameter columns, which is a list of the columns to be returned. Here, we use the minimum number of columns necessary to reconstruct dataURIs.

Warning: the time it takes to query MAST depends on connectivity, the number of sources to retrieve, and the number of columns returned.

columns = ['id', 'rootname', 'filter', 'x_cal', 'y_cal', 'x_raw', 'y_raw', 'chip', 'qfit', 'subarray']
obs = mast_api_psf.mast_query_psf_database(detector=detector, filts=filts, columns=columns)
print(f'Number of sources queried: {len(obs)}')

Number of sources queried: 6

3. Reconstruct dataURIs#

Now that we retrieved our queried sources, we create dataURIs, or paths to their source on the MAST server, to download their respective cutouts using mast_api_psf.make_dataURIs and the metadata.

We support two data types for WFPC2 (raw, calibrated), and three data types for WFC3 (raw, calibrated, charge transfer efficiency (CTE) corrected). These data types are indicated by unique file suffixes:

  • raw for raw WFC3 data

  • d0m for raw WFPC2 data

  • flt for calibrated WFC3 data

  • c0m for calibrated WFPC2 data

  • flc for calibrated, CTE corrected WFC3/UVIS data (a similar option is not available for WFC3/IR or WFPC2)

Here, we reconstruct dataURIs for just calibrated (flt) data. By default, this function calls for 51x51 and 101x101 cutouts for unsaturated and saturated sources, respectively. The sizes can be changed within the function using the parameters unsat_size and sat_size as integers (i.e. unsat_size=51, sat_size=101).

file_suffix = ['flt']
dataURIs = mast_api_psf.make_dataURIs(obs, detector=detector, file_suffix=file_suffix)

  0%|          | 0/6 [00:00<?, ?it/s]

100%|██████████| 6/6 [00:00<00:00, 7700.68it/s]

4. Download and extract cutouts using dataURIs#

With the dataURIs, we download the respective cutouts using three different functions as derivatives from Using the MAST API with Python.

Warning: the time it takes to download cutouts from MAST depends on connectivity and the number of sources to retrieve.

4.1 Single file#

First, we download a single cutout using mast_api_psf.download_request_file, which downloads to the current working directory.

dataURI = dataURIs[0]
filename = dataURI.split('/')[-1]
filename_cutout = mast_api_psf.download_request_file([dataURI, filename])
filename_cutout

'ibc302ioq_8184981_F814W_flt_cutout.fits'

4.2 Multiple files: bundle#

Next, we download multiple cutouts using mast_api_psf.download_request_bundle, which downloads as a .tar.gz file that can later be extracted. We recommend using this to download hundreds of cutouts. A standard laptop and network bandwith can download a bundle of 1000 cutouts in ~30 seconds.

filename_bundle = mast_api_psf.download_request_bundle(dataURIs, filename='mastDownload.tar.gz')
filename_bundle

'mastDownload.tar.gz'

With the .tar.gz file downloaded, we safely extract the cutouts.

with tarfile.open(filename_bundle, 'r:gz') as tar:
    path_mast = tar.getnames()[0]
    print(f'Path to MAST PSF Cutouts: {path_mast}')
    tar.extractall(filter='data')

Path to MAST PSF Cutouts: MAST_2024-09-26T1147

4.3 Multiple files: pooling#

Lastly, we download multiple cutouts using mast_api_psf.download_request_pool, which downloads cutouts to a new directory indicated by the date, similar to the directory name of the extracted .tar.gz file. Although this method is ~1.5 times slower than bundle, we recommend using this to download thousands of cutouts as the progress bar can be helpful keeping track of how much longer the downloads will take. This function utilizes all available CPUs by default. Changing the parameter cpu_count sets the number of CPUs.

Warning: Interrupting the kernel will not kill the multiprocessing and will keep downloading cutouts. To kill the multiprocessing, restart the kernel.

mast_api_psf.download_request_pool(dataURIs)

  0%|          | 0/6 [00:00<?, ?it/s]

 17%|█▋        | 1/6 [00:00<00:01,  3.09it/s]

 83%|████████▎ | 5/6 [00:00<00:00,  8.06it/s]

100%|██████████| 6/6 [00:00<00:00,  8.80it/s]



'MAST_2024-09-26T1548/WFC3PSF'

5. Extracting cutouts using dataURLs#

If downloading the cutouts are unnecessary, we can also extract the cutouts directly using dataURLs, or links to their sources on the MAST website.

First, we convert the dataURIs to dataURLs using mast_api_psf.convert_dataURIs_to_dataURLs.

dataURLs = mast_api_psf.convert_dataURIs_to_dataURLs(dataURIs)

  0%|          | 0/6 [00:00<?, ?it/s]

100%|██████████| 6/6 [00:00<00:00, 88925.17it/s]

Then, we extract a single cutout using fits.getdata.

dataURL = dataURLs[0]
cutout_URL = fits.getdata(dataURL)

Finally, we extract all of the cutouts from the dataURLs using mast_api_psf.extract_cutouts_pool. Similarly to mast_api_psf.download_request_pool, this function performs multiprocessing to retrieve all the cutouts, and has the same parameter cpu_count to set the number of CPUs.

cutouts = mast_api_psf.extract_cutouts_pool(dataURLs)
print(f'Number of cutouts: {len(cutouts)}')

  0%|          | 0/6 [00:00<?, ?it/s]

 33%|███▎      | 2/6 [00:00<00:00,  5.31it/s]

100%|██████████| 6/6 [00:00<00:00,  9.03it/s]

100%|██████████| 6/6 [00:00<00:00,  8.43it/s]

Number of cutouts: 6

6. Load and plot cutouts#

Since the cutouts have been downloaded, we load them into the notebook. For this example, we only load the single cutout downloaded in the first example.

cutout_URI = fits.getdata(filename_cutout)

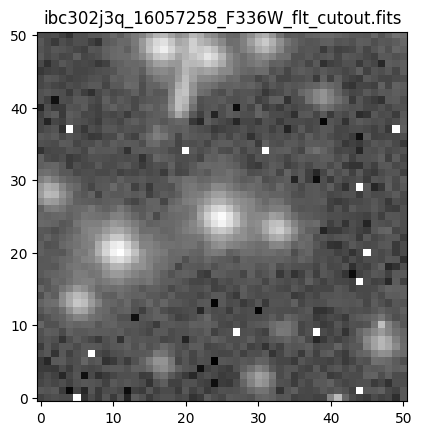

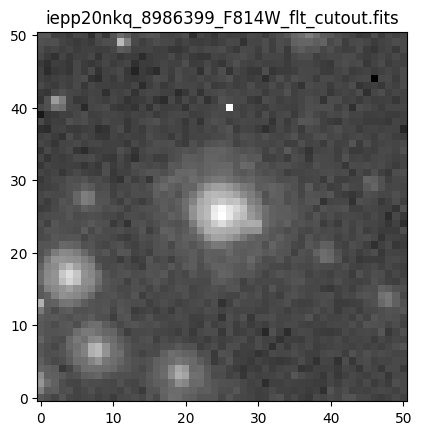

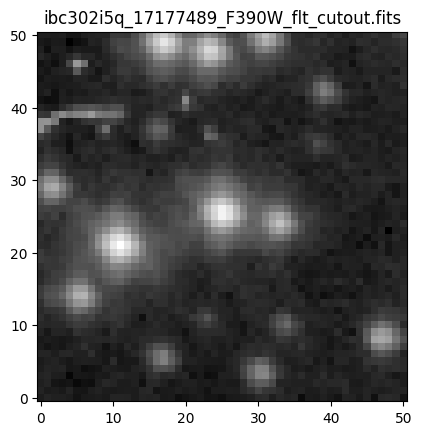

Now, we plot the cutout in log scaling.

file = os.path.basename(filename_cutout)
plt.title(file)
plt.imshow(np.log10(cutout_URI), origin='lower', cmap='gray')
plt.show()

/tmp/ipykernel_2290/3467526765.py:3: RuntimeWarning: invalid value encountered in log10
  plt.imshow(np.log10(cutout_URI), origin='lower', cmap='gray')
../../../_images/57c3776a24a5e9a9f7cd248f4f2243abcc194a36e74390483d26e717a5095311.png

For a final check, we show that the dataURI cutout is the same as the dataURL cutout.

diff = (cutout_URI != cutout_URL).sum()
print(f'There are {diff} different pixels.')

There are 0 different pixels.

7. Conclusions#

Thank you for walking through this notebook. Now, you should be familiar with:

  • Querying the WFC3 and WFPC2 PSF Databases for source metadata.

  • Reconstructing dataURIs and dataURLs to open source cutouts.

  • Downloading, extracting, loading, and plotting the cutouts.

Congratulations, you have completed the notebook.

Additional Resources#

Be sure to check out our complimentary notebook on HST WFC3 PSF Modeling for a variety of science use cases (Revalski 2024).

Below are some additional resources that may be helpful. Please send any questions through the HST Help Desk or open a ticket on HST Notebooks.

WFC3

WFPC2

MAST

About this Notebook#

Author: Fred Dauphin, WFC3 Instrument

Created On: 2024-09-11

Updated On: 2024-09-11

Source: HST Notebooks

Citations#

If you use numpy, matplotlib, astropy, or astroquery for published research, please cite the authors. Follow these links for more information about citing the libraries below:
