Introduction to the HSLA Data Products and Tools#
This Notebook will walk you through the data products available from the Hubble Spectroscopic Legacy Archive (HSLA) and show how to use the co-add script for custom applications.#
Learning Goals:#
By the end of this tutorial, you will learn how to:
Use
astroquery.mastto download HSLA, COS and STIS dataExamine the data (flux vs. wavelength), S/N ratio, and effective exposure time in an abutted spectral file
Retrieve the spectra of an entire class of objects
Change the choice of gratings for each wavelength by modifying the grating-priority file
Run the co-add script
Examine the co-added output
Table of Contents#
0. Introduction
1. Retrieve and Examine HSLA products
- 1.1 Use astroquery to Download HSLA Files
- 1.2 Examine the HSLA Files
- 1.3 Plot the HSLA Files
- 1.4 Examine the Provenance Table
- 3.1 Retrieve the COS and STIS Data
- 3.2 Run the Co-Add Script
0. Introduction#
The Hubble Advanced Spectral Products (HASP) program provides co-added spectra within individual observing programs that use the Space Telescope Imaging Spectrograph (STIS) and the Cosmic Origins Spectrograph (COS) instruments onboard the Hubble Space Telescope (HST). The Hubble Spectroscopic Legacy Archive (HSLA) goes one step farther, bringing together data from multiple observing programs to create spectra with the highest possible signal-to-noise and wavelength range (when possible, from the ultraviolet to the near-infrared). In this notebook, we will retrieve the HSLA data for a single object and explore the various data files. Then we will use the HSLA code to make a custom co-add, setting the selection criteria by hand.
We recommend using the micromamba environment stenv when co-adding spectra. Please see our Setup notebook to install this environment and download the co-add code.
Imports#
We will be using multiple libraries to retrieve and analyze data:
Path.pathlibto create product and data directoriesastroquery.mast MastMissionsandObservationsto download COS and STIS datashutilto perform directory and file operationsosto interact with the operating systemastropy.io fitsto work with FITS filesastropy.table Tableto examine the provenance tablematplotlib.pyplotto plot various arraysglobto work with multiple files in our directoriesnumpyto help analyze our data
Import all of the packages that we will use in this notebook by running the next cell:
import os
from pathlib import Path
from astroquery.mast import Observations
import shutil
import glob as glob
from astropy.io import fits
from astropy.table import Table
import matplotlib.pyplot as plt
import numpy as np
1. Retrieve and Examine HSLA products#
We begin by examining the HSLA products for the white-dwarf star Feige 22. It has been observed with both COS and STIS, but not so many times that downloading the data will be a chore.
1.1 Use astroquery to Download HSLA Files#
We set up our directory structure, then query the MAST database for the HSLA products for the star. Note that we use the Observations module to conduct the search. It has the advantage of allowing one to search for and retrieve the HSLA products directly. Its disadvantages are that the search criteria are somewhat limited and queries can be slow, since it searches a database containing all of the MAST-supported missions.
# Define the directory
output = Path('./hsla_default_products')
# Conduct the query
obs = Observations.get_product_list(
Observations.query_criteria(
provenance_name='HSLA',
target_name='Feige 22'
)
)
# Fetch the products
Observations.download_products(
obs,
download_dir=str(output)
)
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_trl.txt with expected size 6506. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_metadata.txt with expected size 773. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_cspec.png with expected size 87247. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_aspec.png with expected size 69990. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_cspec.png with expected size 220530. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_cspec.png with expected size 89015. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_cspec.png with expected size 87904. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_cspec.png with expected size 91979. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_cspec.png with expected size 81329. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_aspec.fits with expected size 1117440. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_cspec.fits with expected size 452160. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_cspec.fits with expected size 37440. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_cspec.fits with expected size 40320. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_cspec.fits with expected size 37440. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_cspec.fits with expected size 40320. [astroquery.query]
| Local Path | Status | Message | URL |
|---|---|---|---|
| str105 | str8 | object | object |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_trl.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_metadata.txt | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_aspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_cspec.png | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_aspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_cos_feige22--3678_g130m-lp05_cspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_e230h_cspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g430l_cspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_g750l_cspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg140l_cspec.fits | COMPLETE | None | None |
| hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_stis_feige22--3678_sg230l_cspec.fits | COMPLETE | None | None |
1.2. Examine the HSLA Files#
The HSLA files are stored several levels down in the hsla_default_products directory.
! ls -1 hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678
hst_cos_feige22--3678_g130m-lp05_cspec.fits
hst_cos_feige22--3678_g130m-lp05_trl.txt
hst_feige22--3678_aspec.fits
hst_feige22--3678_metadata.txt
hst_stis_feige22--3678_e230h_cspec.fits
hst_stis_feige22--3678_e230h_trl.txt
hst_stis_feige22--3678_g430l_cspec.fits
hst_stis_feige22--3678_g430l_trl.txt
hst_stis_feige22--3678_g750l_cspec.fits
hst_stis_feige22--3678_g750l_trl.txt
hst_stis_feige22--3678_sg140l_cspec.fits
hst_stis_feige22--3678_sg140l_trl.txt
hst_stis_feige22--3678_sg230l_cspec.fits
hst_stis_feige22--3678_sg230l_trl.txt
Consider first the HSLA output product, the abutted or “aspec” file, which spans the full range of available wavelengths. It is made by splicing together, or abutting, segments taken from the various gratings on both COS and STIS. The FITS version contains the data; we will examine it in more detail shortly. The PNG version is a quick-look image.
The “cspec” files contain the co-added spectra for various combinations of instrument, grating, and (for COS) lifetime position. Note that these files combine spectra taken at all available central wavelengths. Ignore any COS files labeled “lp0.” Those are calibration observations and are not included in the final spectrum.
The metadata file contains information compiled by the HSLA target-classification routine.
! cat hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678/hst_feige22--3678_metadata.txt
TARGNAME: Feige 22
HSLA_CAT: feige22--3678
RA (2000): 2 30 16.63
DEC (2000): 5 15 50.70
SIMBAD: Feige 22
NED: 2MASS J02301662+0515508
PHASE II: WD0227+050; WDJ023016.63+051550.70
PHASE II KEYWORDS: DA; STAR
PRIMARY CLASSIFICATION: Star
SECONDARY CLASSIFICATION: Stellar remnant
TERTIARY CLASSIFICATION: White dwarf
CLASSIFICATION SOURCE: SIMBAD
UAT EQUIVALENT: White dwarf stars (1799)
RADIAL VELOCITY: 16.5 km / s
PROPOSAL IDS: 13332; 16249; 17420
SUMMARY
------
INSTRUMENT GRATING COS LP MINWAVE MAXWAVE
COS G130M LP5 1130 1429
STIS G140L --- 1140 1730
STIS G230L --- 1568 3184
STIS E230H --- 2574 2846
STIS G430L --- 2900 5700
STIS G750L --- 5236 10266
1.3 Plot the HSLA Files#

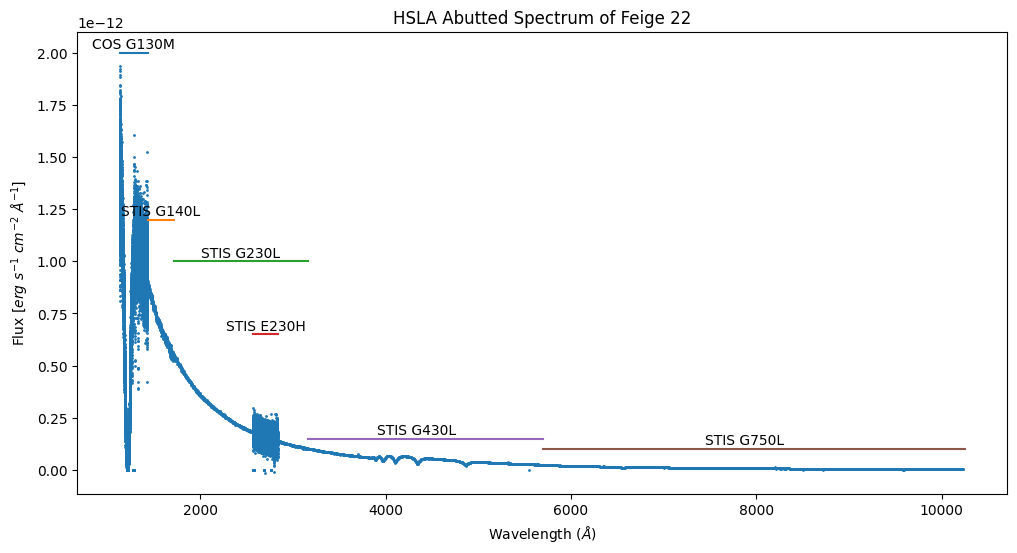

Let’s take a look at the abutted spectrum for this star.
hsla_path = "hsla_default_products/mastDownload/HST/hst_hsla_feige22--3678"
hsla_aspec_filename = "hst_feige22--3678_aspec.fits"
with fits.open(f"{hsla_path}/{hsla_aspec_filename}") as hdul:
# Read the data file
hsla_data = hdul[1].data
provenance = Table.read(hdul[2]) # We'll examine the provenance table shortly.
# Get the wavelength and flux arrays
hsla_wave = hsla_data["WAVELENGTH"]
hsla_flux = hsla_data["FLUX"]
plt.figure(figsize=(12, 6))
# Plot the spectrum
plt.scatter(hsla_wave, hsla_flux,
# Setting the size of the data points
s=1)
# Which grating provided each part of the spectrum?
plt.plot([1130, 1435], [2.0E-12, 2.0E-12])
plt.plot([1435, 1716], [1.2E-12, 1.2E-12])
plt.plot([1716, 3159], [1.0E-12, 1.0E-12])
plt.plot([2570, 2845], [6.5E-13, 6.5E-13])
plt.plot([3159, 5700], [1.5E-13, 1.5E-13])
plt.plot([5700, 10252], [1.0E-13, 1.0E-13])
plt.text(1280, 2.02E-12, 'COS G130M', horizontalalignment='center')
plt.text(1573, 1.22E-12, 'STIS G140L', horizontalalignment='center')
plt.text(2437, 1.02E-12, 'STIS G230L', horizontalalignment='center')
plt.text(2708, 6.70E-13, 'STIS E230H', horizontalalignment='center')
plt.text(4330, 1.70E-13, 'STIS G430L', horizontalalignment='center')
plt.text(7876, 1.20E-13, 'STIS G750L', horizontalalignment='center')
# Format the plot by adding titles
plt.title("HSLA Abutted Spectrum of Feige 22")
plt.xlabel(r'Wavelength ($\AA$)')
plt.ylabel(r'Flux [$erg\ s^{-1}\ cm^{-2}\ \AA^{-1}$]')
# Display the plot
plt.show()

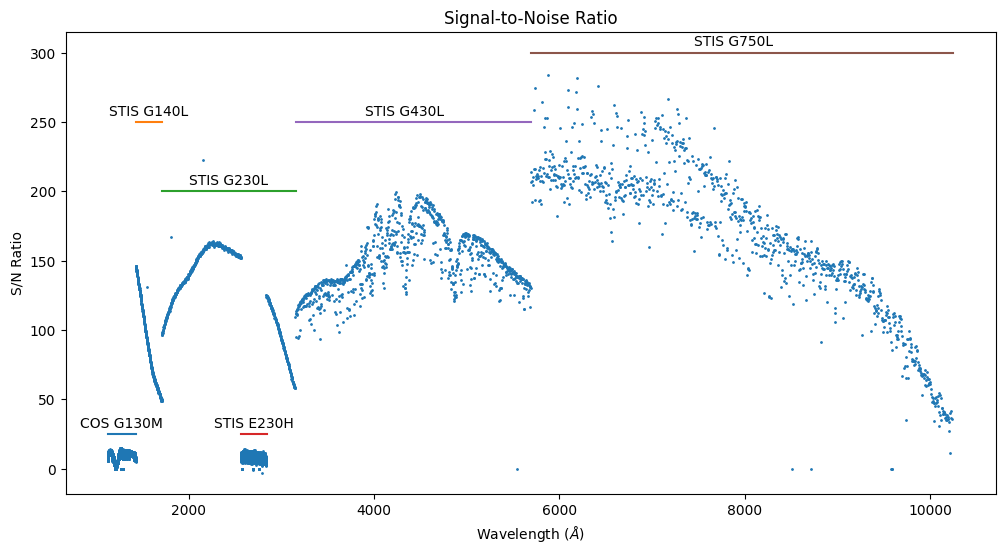

We have labeled the regions contributed by each of the COS and STIS gratings. The STIS G230L spectrum spans the region 1716 to 3159 A, except for the region 2570 to 2845 A, where the STIS G230H spectrum is used, because it provides higher spectral resolution. The low-resolution spectra have higher S/N ratios, reflecting their larger pixels. We can explore this in more detail by plotting the S/N ratio directly.
# Read the S/N array
hsla_snr = hsla_data["SNR"]
plt.figure(figsize=(12, 6))
# Plot the spectra
plt.scatter(hsla_wave, hsla_snr, s=1)
# Which grating provided each part of the spectrum?
plt.plot([1130, 1435], [25, 25])
plt.plot([1435, 1716], [250, 250])
plt.plot([1716, 3159], [200, 200])
plt.plot([2570, 2845], [25, 25])
plt.plot([3159, 5700], [250, 250])
plt.plot([5700, 10252], [300, 300])
plt.text(1280, 30, 'COS G130M', horizontalalignment='center')
plt.text(1573, 255, 'STIS G140L', horizontalalignment='center')
plt.text(2437, 205, 'STIS G230L', horizontalalignment='center')
plt.text(2708, 30, 'STIS E230H', horizontalalignment='center')
plt.text(4330, 255, 'STIS G430L', horizontalalignment='center')
plt.text(7876, 305, 'STIS G750L', horizontalalignment='center')
# Format the plot by adding titles
plt.title("Signal-to-Noise Ratio")
plt.xlabel(r'Wavelength ($\AA$)')
plt.ylabel(r'S/N Ratio')
plt.show()

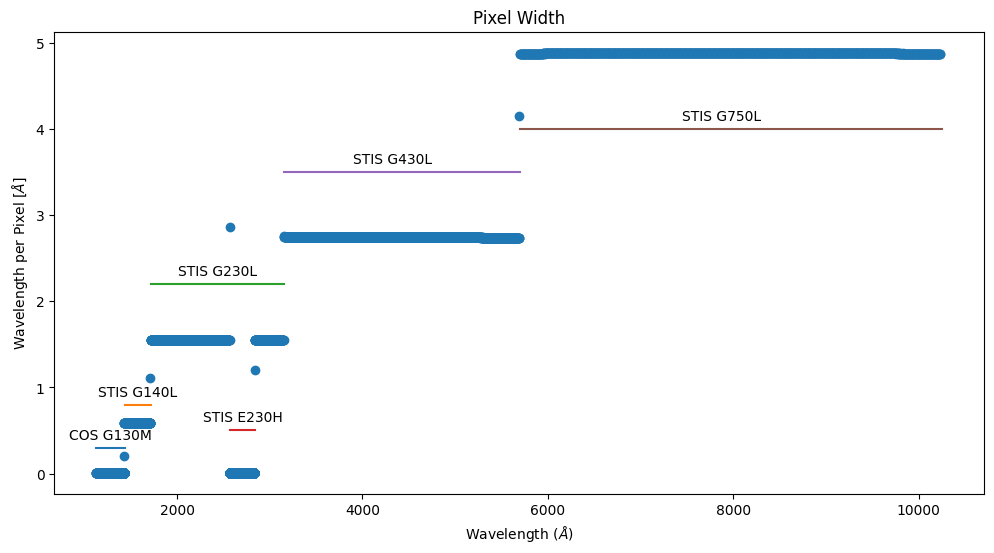

Note that the tabulated S/N ratio is per pixel, not per resolution element – and the pixel size varies with wavelength.
# Compute width of each pixel in wavelength.
dw = hsla_wave - np.roll(hsla_wave, 1)
dw[0, 0] = dw[0, 1]
plt.figure(figsize=(12, 6))
plt.scatter(hsla_wave, dw)
# Which grating provided each part of the spectrum?
plt.plot([1130, 1435], [0.3, 0.3])
plt.plot([1435, 1716], [0.8, 0.8])
plt.plot([1716, 3159], [2.2, 2.2])
plt.plot([2570, 2845], [0.5, 0.5])
plt.plot([3159, 5700], [3.5, 3.5])
plt.plot([5700, 10252], [4.0, 4.0])
plt.text(1280, 0.4, 'COS G130M', horizontalalignment='center')
plt.text(1573, 0.9, 'STIS G140L', horizontalalignment='center')
plt.text(2437, 2.3, 'STIS G230L', horizontalalignment='center')
plt.text(2708, 0.6, 'STIS E230H', horizontalalignment='center')
plt.text(4330, 3.6, 'STIS G430L', horizontalalignment='center')
plt.text(7876, 4.1, 'STIS G750L', horizontalalignment='center')
plt.title("Pixel Width")
plt.xlabel(r'Wavelength ($\AA$)')
plt.ylabel(r'Wavelength per Pixel [$\AA$]')
plt.show()

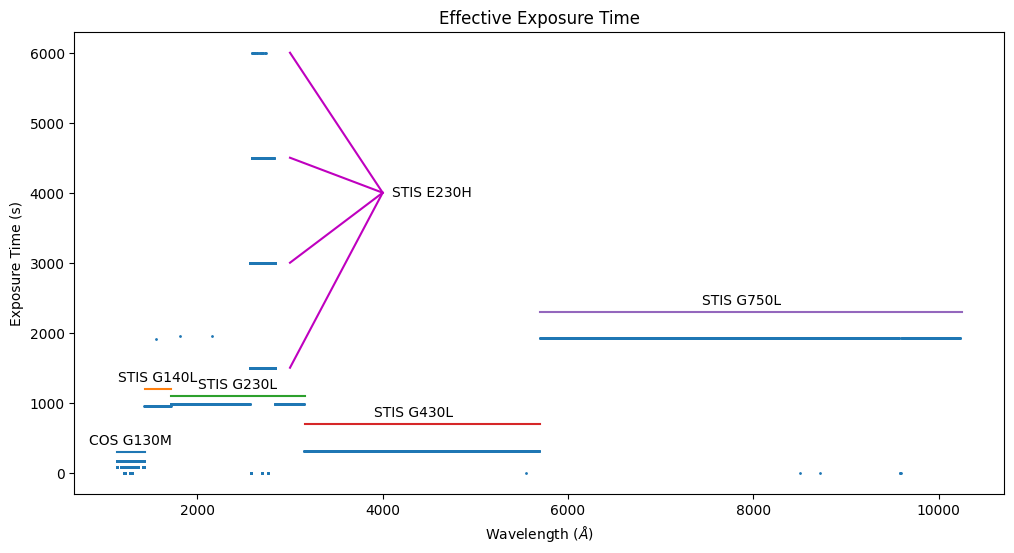

We can also see that the different gratings have different exposure times.
# Read the exposure-time array
exptime = hsla_data["EFF_EXPTIME"]
plt.figure(figsize=(12, 6))
# Plot the spectra
plt.scatter(hsla_wave, exptime, s=1)
# Which grating provided each part of the spectrum?
plt.plot([1130, 1435], [300, 300])
plt.plot([1435, 1716], [1200, 1200])
plt.plot([1716, 3159], [1100, 1100])
plt.plot([3159, 5700], [700, 700])
plt.plot([5700, 10252], [2300, 2300])
plt.text(1280, 400, 'COS G130M', horizontalalignment='center')
plt.text(1573, 1300, 'STIS G140L', horizontalalignment='center')
plt.text(2437, 1200, 'STIS G230L', horizontalalignment='center')
plt.text(4330, 800, 'STIS G430L', horizontalalignment='center')
plt.text(7876, 2400, 'STIS G750L', horizontalalignment='center')
plt.plot([3000, 4000], [6000, 4000], 'm')
plt.plot([3000, 4000], [4500, 4000], 'm')
plt.plot([3000, 4000], [3000, 4000], 'm')
plt.plot([3000, 4000], [1500, 4000], 'm')
plt.text(4100, 3950, 'STIS E230H')
# Format the plot by adding titles
plt.title("Effective Exposure Time")
plt.xlabel(r'Wavelength ($\AA$)')
plt.ylabel(r'Exposure Time (s)')
plt.show()
There is a bit of scatter in the exposure-time plot. Wavelength bins with higher-than-average exposure time contain data from multiple input pixels. Bins with lower-than-average time were observed at some central wavelengths (or FP-POS setting) but not others. Bins with zero exposure time either were never observed or were excluded because of their DQ flags. The STIS G230H is an echelle grating, and some wavelength bins contain data from multiple orders.
1.4 Examine the Provenance Table#
Extension 2 of the aspec file contains information about the individual exposures of which it is composed.
# Print the provenance table.
provenance.pprint_all()
FILENAME EXPNAME PROPOSID TELESCOPE INSTRUMENT DETECTOR DISPERSER CENWAVE APERTURE LIFE_ADJ SPECRES CAL_VER MJD_BEG MJD_MID MJD_END XPOSURE MINWAVE MAXWAVE
d d d s Angstrom Angstrom
------------------ --------- -------- --------- ---------- -------- --------- ------- -------- -------- -------- ------------------- -------------- ------------------ -------------- ------- ------------------ ------------------
lfac37doq_x1d.fits lfac37doq 17420 HST COS FUV G130M 1291 PSA 5 18000.0 3.6.1 60546.56632895 60546.566826635 60546.56732432 86.0 1134.0928081335824 1429.5239115244303
lfac37dtq_x1d.fits lfac37dtq 17420 HST COS FUV G130M 1291 PSA 5 18000.0 3.6.1 60546.57084265 60546.571340334995 60546.57183802 86.0 1130.7532299454112 1426.174276418001
oebo7b020_x1d.fits oebo7bhzq 16249 HST STIS FUV-MAMA G140L 1425 52X2 ? 1190.0 3.4.2 (19-Jan-2018) 59567.02707908 59567.032594125 59567.03810917 953.0 1140.0 1730.0
oebo7b010_x1d.fits oebo7bhwq 16249 HST STIS NUV-MAMA G230L 2376 52X2 ? 740.0 3.4.2 (19-Jan-2018) 59567.01254204 59567.018213335 59567.02388463 980.0 1568.0 3184.0
ocd837010_x1d.fits ocd837cbq 13332 HST STIS NUV-MAMA E230H 2713 0.2X0.2 ? 114000.0 3.4.2 (19-Jan-2018) 56582.72791103 56582.736591584995 56582.74527214 1500.0 2574.0 2846.0
oebo7b010_x1d.fits oebo7bhwq 16249 HST STIS NUV-MAMA G230L 2376 52X2 ? 740.0 3.4.2 (19-Jan-2018) 59567.01254204 59567.018213335 59567.02388463 980.0 1568.0 3184.0
oebo7b030_sx1.fits oebo7bi9q 16249 HST STIS CCD G430L 4300 52X2 ? 800.0 3.4.2 (19-Jan-2018) 59567.07247241 59567.074497825 59567.07652324 306.0 2900.0 5700.0
oebo7b040_sx1.fits oebo7bidq 16249 HST STIS CCD G750L 7751 52X2 ? 790.0 3.4.2 (19-Jan-2018) 59567.07898871 59567.09111834 59567.10324797 1920.0 5236.0 10266.0
2. Retrieve Targets by Class#
An important aspect of the HSLA project is the automated classification of all targets in the COS/STIS archive. Based on information from SIMBAD, NED, and the Phase II proposal, HSLA’s target-classification scheme is structured as a three-tiered hierarchy. For example, PKS 0405-123 is assigned a Tier 1 classification of Galaxy, Tier 2 of Active Galaxy, and Tier 3 of Seyfert Galaxy, while AzV 388 is classified as Star, Early-type star, and O Star. We can take advantage of this work to retrieve the data for an entire class of objects, in this case all of the DA white dwarfs in the COS and STIS archives.
# Search for HSLA targets using the "TIER3 = DA white dwarf" part of the Target Classification.
# Note that the wild cards are required.
datasets = Observations.query_criteria(project="HSLA",
target_classification=["*TIER3=DA white dwarf*"])
print(f"Found {len(datasets)} 'TIER3=DA white dwarf' HSLA datasets.")
Found 14 'TIER3=DA white dwarf' HSLA datasets.
# Get the products for these datasets.
products = Observations.get_unique_product_list(datasets)
# Filter to select only HSLA cspec and aspec FITS files.
# If you want all of the HSLA files, omit the extension filters.
filtered = Observations.filter_products(products,
extension=["cspec.fits", "aspec.fits"],
project="HSLA")
# Fetch the products
manifest = Observations.download_products(filtered, download_dir=str(output))
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wd-1057p719--0721/hst_wd-1057p719--0721_aspec.fits with expected size 708480. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wd-1057p719--0721/hst_cos_wd-1057p719--0721_g160m-lp01_cspec.fits with expected size 711360. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj133741d51p363903d3--0759/hst_wiseaj133741d51p363903d3--0759_aspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj133741d51p363903d3--0759/hst_cos_wiseaj133741d51p363903d3--0759_g130m-lp01_cspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj134117d90p342152d4--1395/hst_wiseaj134117d90p342152d4--1395_aspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj134117d90p342152d4--1395/hst_cos_wiseaj134117d90p342152d4--1395_g130m-lp03_cspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj143714d63-223118d8--2339/hst_wiseaj143714d63-223118d8--2339_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj143714d63-223118d8--2339/hst_cos_wiseaj143714d63-223118d8--2339_g130m-lp04_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj193955d00p093218d6--3138/hst_wiseaj193955d00p093218d6--3138_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj193955d00p093218d6--3138/hst_cos_wiseaj193955d00p093218d6--3138_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj02071736p3005116--3408/hst_2massj02071736p3005116--3408_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj02071736p3005116--3408/hst_cos_2massj02071736p3005116--3408_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj06411564-1341235--3400/hst_2massj06411564-1341235--3400_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj06411564-1341235--3400/hst_cos_2massj06411564-1341235--3400_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj06411564-1341235--3400/hst_cos_2massj06411564-1341235--3400_g130m_lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wdj123213d30-040925d74--3632/hst_wdj123213d30-040925d74--3632_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wdj123213d30-040925d74--3632/hst_cos_wdj123213d30-040925d74--3632_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_galexascj080016d13p004046d3--3696/hst_galexascj080016d13p004046d3--3696_aspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_galexascj080016d13p004046d3--3696/hst_cos_galexascj080016d13p004046d3--3696_g130m-lp05_cspec.fits with expected size 619200. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj064508d94-164303d4--5162/hst_wiseaj064508d94-164303d4--5162_aspec.fits with expected size 204480. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj064508d94-164303d4--5162/hst_stis_wiseaj064508d94-164303d4--5162_g230mb_cspec.fits with expected size 164160. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj064508d94-164303d4--5162/hst_stis_wiseaj064508d94-164303d4--5162_g430l_cspec.fits with expected size 37440. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_wiseaj064508d94-164303d4--5162/hst_stis_wiseaj064508d94-164303d4--5162_g750m_cspec.fits with expected size 40320. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj21352819p4903391--6500/hst_2massj21352819p4903391--6500_aspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_2massj21352819p4903391--6500/hst_stis_2massj21352819p4903391--6500_e140m_cspec.fits with expected size 627840. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_galexascj205018d07-421906d2--3835/hst_galexascj205018d07-421906d2--3835_aspec.fits with expected size 610560. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_galexascj205018d07-421906d2--3835/hst_cos_galexascj205018d07-421906d2--3835_g130m-lp05_cspec.fits with expected size 610560. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_siriusb--7039/hst_siriusb--7039_aspec.fits with expected size 1834560. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_siriusb--7039/hst_stis_siriusb--7039_e140h_cspec.fits with expected size 1186560. [astroquery.query]
INFO: Found cached file hsla_default_products/mastDownload/HST/hst_hsla_siriusb--7039/hst_stis_siriusb--7039_e230h_cspec.fits with expected size 668160. [astroquery.query]
print(filtered['productFilename'])
print(len(filtered))
productFilename
---------------------------------------------------------------
hst_wd-1057p719--0721_aspec.fits
hst_cos_wd-1057p719--0721_g160m-lp01_cspec.fits
hst_wd1233-164--0735_aspec.fits
hst_wiseaj133741d51p363903d3--0759_aspec.fits
hst_cos_wiseaj133741d51p363903d3--0759_g130m-lp01_cspec.fits
hst_wiseaj134117d90p342152d4--1395_aspec.fits
hst_cos_wiseaj134117d90p342152d4--1395_g130m-lp03_cspec.fits
hst_wiseaj143714d63-223118d8--2339_aspec.fits
hst_cos_wiseaj143714d63-223118d8--2339_g130m-lp04_cspec.fits
hst_wiseaj193955d00p093218d6--3138_aspec.fits
...
hst_stis_wiseaj064508d94-164303d4--5162_g230mb_cspec.fits
hst_stis_wiseaj064508d94-164303d4--5162_g430l_cspec.fits
hst_stis_wiseaj064508d94-164303d4--5162_g750m_cspec.fits
hst_2massj21352819p4903391--6500_aspec.fits
hst_stis_2massj21352819p4903391--6500_e140m_cspec.fits
hst_galexascj205018d07-421906d2--3835_aspec.fits
hst_cos_galexascj205018d07-421906d2--3835_g130m-lp05_cspec.fits
hst_siriusb--7039_aspec.fits
hst_stis_siriusb--7039_e140h_cspec.fits
hst_stis_siriusb--7039_e230h_cspec.fits
Length = 31 rows
31
# Let's have a look at the files retrieved for one of these stars.
!ls -1 hsla_default_products/mastDownload/HST/hst_hsla_wd1233-164--0735
3. HSLA Custom Co-Adds#
There are various ways to modify the abutted spectrum. The co-add script operates on all of the files in a particular directory, so an easy way to modify the output is to change the contents of that directory. An example is shown in the notebook, Combining COS Data from Multiple Lifetime Positions and Central Wavelengths, in which we explicitly select the lifetime positions and central wavelengths to be considered.
We can also adjust the logic by which the abutting routine decides which co-added spectra to use for each wavelength region. That logic is controlled by a file called grating_priority.json. To change the mapping from grating to wavelength, we can simply edit the file.
Returning to the star Feige 22, we see in the plots above that the STIS G140L and G230L spectra overlap between about 1600 and 1700 A. We also see that the S/N ratio of the G230L spectrum is greater than that of the G140L spectrum. So we could improve the S/N ratio of the final spectrum in the overlap region by extending the wavelength range for which the G230L data are used.

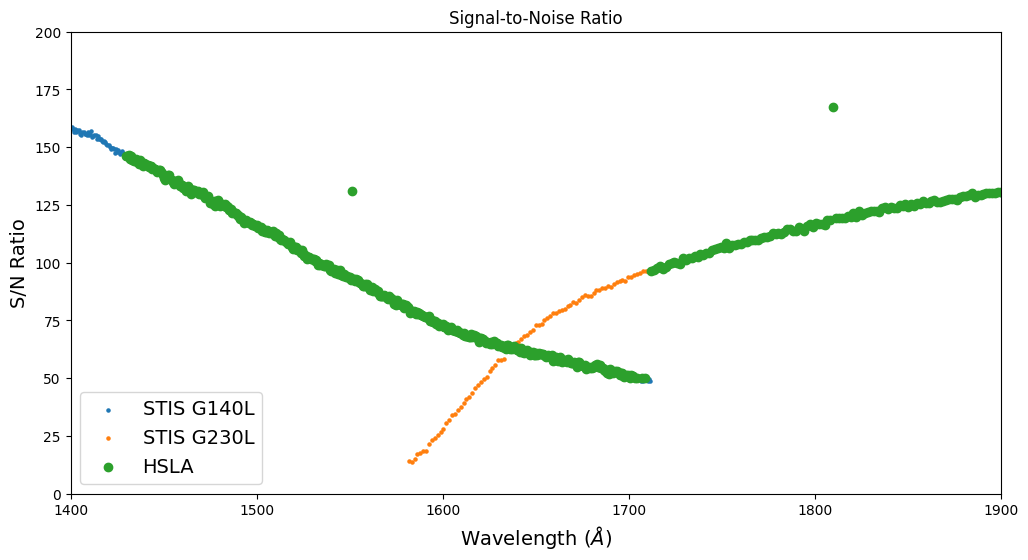

Let’s look more closely at the S/N ratios of the G140L and G230L spectra in the region of overlap.
hdul = fits.open(f"{hsla_path}/hst_stis_feige22--3678_sg140l_cspec.fits")
sg140l_data = hdul[1].data
sg140l_wave = sg140l_data["WAVELENGTH"]
sg140l_snr = sg140l_data["SNR"]
hdul.close()
hdul = fits.open(f"{hsla_path}/hst_stis_feige22--3678_sg230l_cspec.fits")
sg230l_data = hdul[1].data
sg230l_wave = sg230l_data["WAVELENGTH"]
sg230l_snr = sg230l_data["SNR"]
hdul.close()
# Plot the spectra
g = np.where(hsla_snr > 50) # Hide STIS E230H data
plt.figure(figsize=(12, 6))
plt.scatter(sg140l_wave, sg140l_snr, s=5, label='STIS G140L')
plt.scatter(sg230l_wave, sg230l_snr, s=5, label='STIS G230L')
plt.scatter(hsla_wave[g], hsla_snr[g], label='HSLA')
plt.legend(fontsize=14)
plt.xlim([1400, 1900])
plt.ylim([0, 200])
# Format the plot by adding titles
plt.title("Signal-to-Noise Ratio")
plt.xlabel(r'Wavelength ($\AA$)', fontsize=14)
plt.ylabel(r'S/N Ratio', fontsize=14)
plt.show()
To use the G230L spectrum for wavelengths longer than 1640 A, we must edit the JSON file that controls the wavelength regions to which each grating contributes. To retrieve the file, click on this link: https://github.com/spacetelescope/hasp/blob/main/hasp/grating_priority.json, then the “Download raw file” icon. Copy the file into a new file called my_grating_priority.json. Use your favorite text editor to replace
"STIS/G140L": {
"minwave": 1138.4,
"maxwave": 1716.4,
"priority": 14
},
with
"STIS/G140L": {
"minwave": 1138.4,
"maxwave": 1640.0,
"priority": 14
},
3.1 Retrieve the COS and STIS Data#
# Define data-download directory.
data_dir = Path("./data_dir/")
# Define the products directory to hold the output.
products_dir = Path("./hsla_products/")
# If the directories doesn't exist, then create them.
data_dir.mkdir(exist_ok=True)
products_dir.mkdir(exist_ok=True)
# Query MAST to get the product list
product_list = Observations.get_unique_product_list(
Observations.query_criteria(
instrument_name=['COS', 'STIS'],
target_name=['WD0227+050', 'WDJ023016.63+051550.70'],
dataproduct_type='SPECTRUM'
)
)
# Download the x1d and sx1 files to the data directory.
Observations.download_products(
product_list,
download_dir=str(data_dir),
productSubGroupDescription=['X1D', 'SX1']
)
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/ocd837010_x1d.fits to data_dir/mastDownload/HST/ocd837010/ocd837010_x1d.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/oebo7b010_x1d.fits to data_dir/mastDownload/HST/oebo7b010/oebo7b010_x1d.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/oebo7b020_x1d.fits to data_dir/mastDownload/HST/oebo7b020/oebo7b020_x1d.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/oebo7b030_sx1.fits to data_dir/mastDownload/HST/oebo7b030/oebo7b030_sx1.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/oebo7b040_sx1.fits to data_dir/mastDownload/HST/oebo7b040/oebo7b040_sx1.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/lfac37dtq_x1d.fits to data_dir/mastDownload/HST/lfac37dtq/lfac37dtq_x1d.fits ...
[Done]
Downloading URL https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/lfac37doq_x1d.fits to data_dir/mastDownload/HST/lfac37doq/lfac37doq_x1d.fits ...
[Done]
| Local Path | Status | Message | URL |
|---|---|---|---|
| str54 | str8 | object | object |
| data_dir/mastDownload/HST/ocd837010/ocd837010_x1d.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/oebo7b010/oebo7b010_x1d.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/oebo7b020/oebo7b020_x1d.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/oebo7b030/oebo7b030_sx1.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/oebo7b040/oebo7b040_sx1.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/lfac37dtq/lfac37dtq_x1d.fits | COMPLETE | None | None |
| data_dir/mastDownload/HST/lfac37doq/lfac37doq_x1d.fits | COMPLETE | None | None |
Note: We had to search on two target names to get all of the data. This obstacle can usually be overcome by searching on the target’s coordinates. Objects with high proper motion (or nearby binaries like Alpha Cen A/B) may require a bit more work. The HSLA metadata file should list all of the relevant program IDs, and the provenance extension of the cspec and aspec files contains a list of filenames that might be fed to astroquery.
When we download data using astroquery, it creates a directory called mastDownload/HST. Each dataset goes into a separate subfolder within that directory. Before running the combination script, we must move all of the x1d files into a single directory.
try:
# The path to all obs_id folders
mast_path = f"{data_dir}/mastDownload/HST/"
# Check if mastDownload exists
if not os.path.exists(mast_path):
print(f"Directory {mast_path} doesn't exist.")
# Getting a list of all obs_id folders. Each folder contains the FITS files
obs_id_dirs = os.listdir(mast_path)
# Iterating through sub-folders to change the path of each FITS file
for obs_id in obs_id_dirs:
# This is the path to each obs_id folder
obs_id_path = os.path.join(mast_path, obs_id)
# Getting list of FITS files in /mastDownload/HST/<obs_id> folder
data_files = glob.glob(obs_id_path + "/*fits")
# Iterating through each of these files to change their path individually
for file in data_files:
file_path = Path(file)
new_path = data_dir / file_path.name
shutil.move(file, new_path)
# Now we can remove the mastDownload directory
if os.path.exists(mast_path):
shutil.rmtree(f"{data_dir}/mastDownload/")
except Exception as e:
print(f"An error occurred: {e}")
3.2 Run the Co-Add Script#
Now we are ready to run the co-add script. In a terminal window, execute the following command.
swrapper -i data_dir -o hsla_products -x -g ./my_grating_priority.json
The -i parameter is the input directory (i.e, where the FITS files are located), while -o indicates the directory that will contain the newly created co-added products. -x tells the program to create the cross-program products, and -g tells it to use our modified grating-priority file.
Make sure that you are using the stenv conda environment discussed at the beginning of the notebook.
Once that’s done, we make the S/N plot using the new output files.
try:
hdul = fits.open('hsla_products/hst_data-dir_aspec.fits')
hsla_data = hdul[1].data
hsla_wave = hsla_data["WAVELENGTH"]
hsla_snr = hsla_data["SNR"]
hdul.close()
hdul = fits.open('hsla_products/hst_stis_data-dir_sg140l_cspec.fits')
sg140l_data = hdul[1].data
sg140l_wave = sg140l_data["WAVELENGTH"]
sg140l_snr = sg140l_data["SNR"]
hdul.close()
hdul = fits.open('hsla_products/hst_stis_data-dir_sg230l_cspec.fits')
g230l_data = hdul[1].data
g230l_wave = g230l_data["WAVELENGTH"]
g230l_snr = g230l_data["SNR"]
hdul.close()
# Plot the spectra
g = np.where(hsla_snr > 50) # Hide STIS E230H data
plt.figure(figsize=(12, 6))
plt.scatter(sg140l_wave, sg140l_snr, s=5, label='STIS G140L')
plt.scatter(sg230l_wave, sg230l_snr, s=5, label='STIS G230L')
plt.scatter(hsla_wave[g], hsla_snr[g], label='HSLA')
plt.legend(fontsize=14)
plt.xlim([1400, 1900])
plt.ylim([0, 200])
# Format the plot by adding titles
plt.title("Signal-to-Noise Ratio")
plt.xlabel(r'Wavelength ($\AA$)', fontsize=14)
plt.ylabel(r'S/N Ratio', fontsize=14)
plt.show()
except Exception as e:
print(f"An error occurred: {e}"+"\nPlease run the coadd script first")
An error occurred: [Errno 2] No such file or directory: 'hsla_products/hst_data-dir_aspec.fits'
Please run the coadd script first
In this example, we made a small change to the grating-priority table to improve the S/N over a 76 A region of the abutted spectrum, but you can imagine situations in which one might completely reorder the grating priorities.
4. Scaling Spectra for Special Cases#
In the process of co-adding data, the HSLA script compares the flux of each spectrum for a given mode against an initial coadd that includes all of the input spectra. If the median flux of an input spectrum is deemed too low, it will be removed; the program iterates until no more spectra are rejected. This is to prevent data from failed observations from being combined with good data.
But there are cases in which one might want to include low-flux spectra. Variable sources are but one example. STIS has multiple apertures, which for extended sources could create flux offsets between gratings. The smallest STIS apertures can be impacted by changes in observatory focus, creating flux offsets. Finally, extended sources observed at multiple orientations may have slight variations in flux. If a user’s science case is not dependent on a dataset’s absolute flux, scaling input spectra to be the same average flux may be desirable.
If you are interested in scaling your data, please see the notebook, Scaling Flux while using the Hubble Advanced Spectral Products Script.
Congrats on completing the notebook!#
There are more tutorial notebooks for custom co-addition cases in this repo. Check them out!#
About this Notebook#
Author: Van Dixon (dixon@stsci.edu)
Updated on: 10/01/2025
This tutorial was generated to be in compliance with the STScI style guides and would like to cite the Jupyter guide in particular.
Citations#
If you use the following packages for published research, please cite the authors. Follow these links for more information about citations:
